Light source & Optics

Light source: 2 x 120W RGBW LED + 216 x 0.3W RGB LED

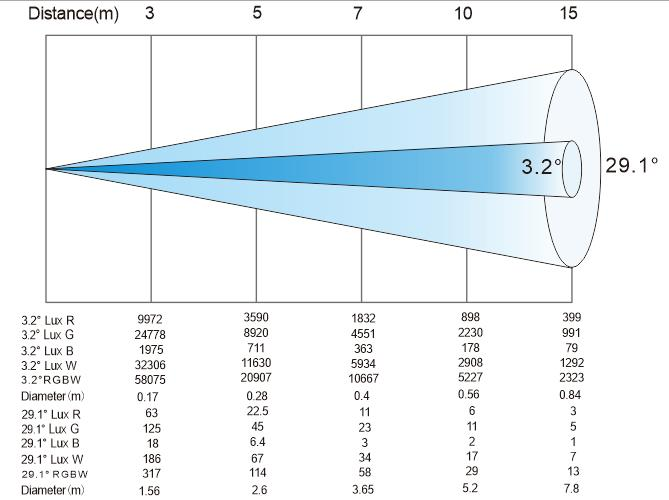

Beam Angle: 3.2°-29.1°

Field Angle: 4.01°-74.83°

Color Rendering Index: Ra≥79.6

Colour Temperature Output: 2500K-10000K

Lumem Output: 1946 lm

Illuminance: 20, 907 lx @ 5m

Light Source Theory Life Span: ≥20,000 h

EFFECTS

Color Mixing System: Uniform RGBW color mixing system with independent control of

each color, enabling a wide variety of visual effects.

Intelligent Frost: Linearly adjustable frost function to enhance color mixing effects.

Front Aura: Individually controllable front aura, supporting free-flowing chase and

color-changing effects.

Tilt-axis: Motorised tilt ±25°

Effect Macros: Static effect macros and dynamic effect macros functions

Dimming: Electronic dimming with four dimming curves

Strobe: 1-30Hz electronic strobe and random strobe

CONTROL AND PROGRAMMING

Control Channels: 26CH，48CH(see channel chart for details)

Control Protocols: DMX512, RDM, Art-Net, sACN

Data Connection: RJ45(Art-Net) In/Out，3 pin or 5 pin XLR In/Out

Display: LCD screen

SOFTWARE

Software upgrade: via DMX interface

Temperature control: Intelligent system for LED lifespan

POWER AND ELECTRICAL

Input Voltage Range: AC 100-240V 50/60Hz

Max Power Consumption: 320W

Power Factor: 0.98

Maximum Current: 1.45A/220V ; 3.2A/100V

SIZE & WEIGHT

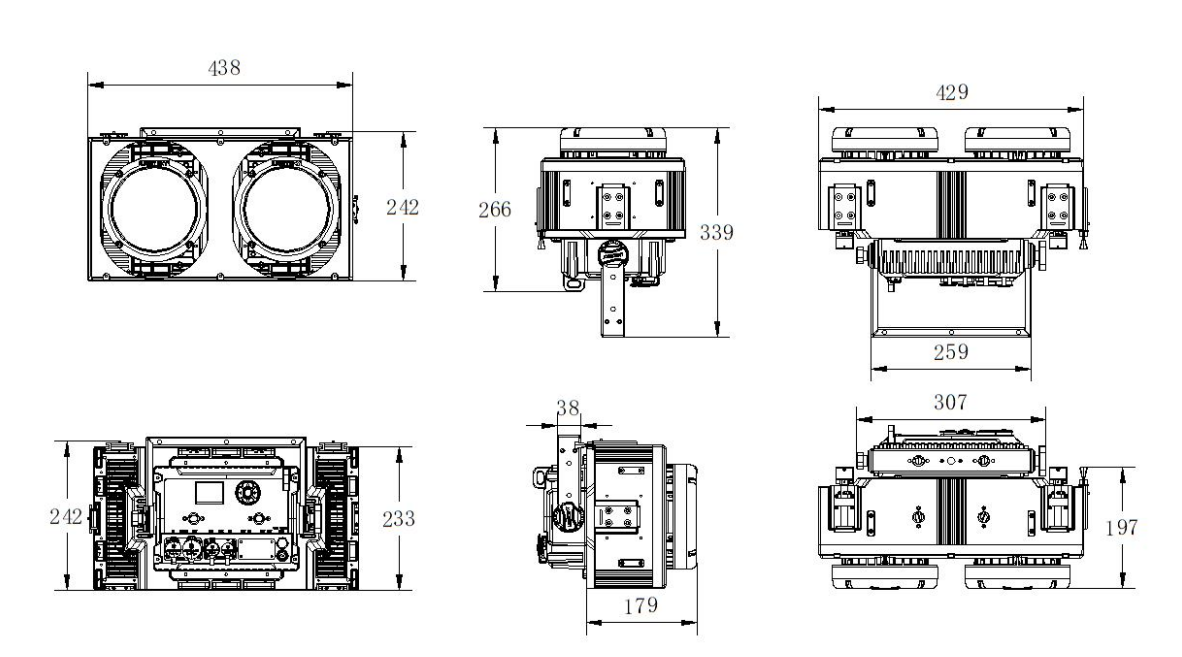

Net Dimensions: 438mm x 265mm x 242mm

Net Weight: 13.8 kg

Carton packaging: 510mm × 320mm × 380mm

Gross weight:16.5 kg

OTHERS

Protection Level: IP66

Operating Environment: -20℃~45℃

Maximum Surface Temperature: 65℃

Locking System: LiGHT SKY Mortise Locking System

FACTORY CONFIGURATION

Power Cable: 1 pc (Part No.: F0200030016)

Signal Cable: 1 pc (Part No.: F0200020008)

Safety Rope: 1 pc (Part No.: F0200010002)

Optional accessories/packaging

Clamp(LiGHT SKY): Part No.: C0499990075 (Compatible with tubes of Ø40–60 mm)

Clamp(Neutral): Part No.: C0499990021 (Compatible with tubes of Ø40–60 mm)

Packaging(Fly case): 960mm x 700mm x 465mm

Gross Weight: 89.0kg(4 in 1)
