Description

OPTICAL

Light source : OSRAM White light LED module
Light source power : 230W
Median Lifetime : 50000 h
Luminous Flux : 6850lm
CCT Light output : 7700K
CRI : 70
Beam range : 2.3° beam angle (0.8° / 1.5° beam angle selection)
Output lens diameter : φ163mm
Light output : 46948 lux @10m





COLOR

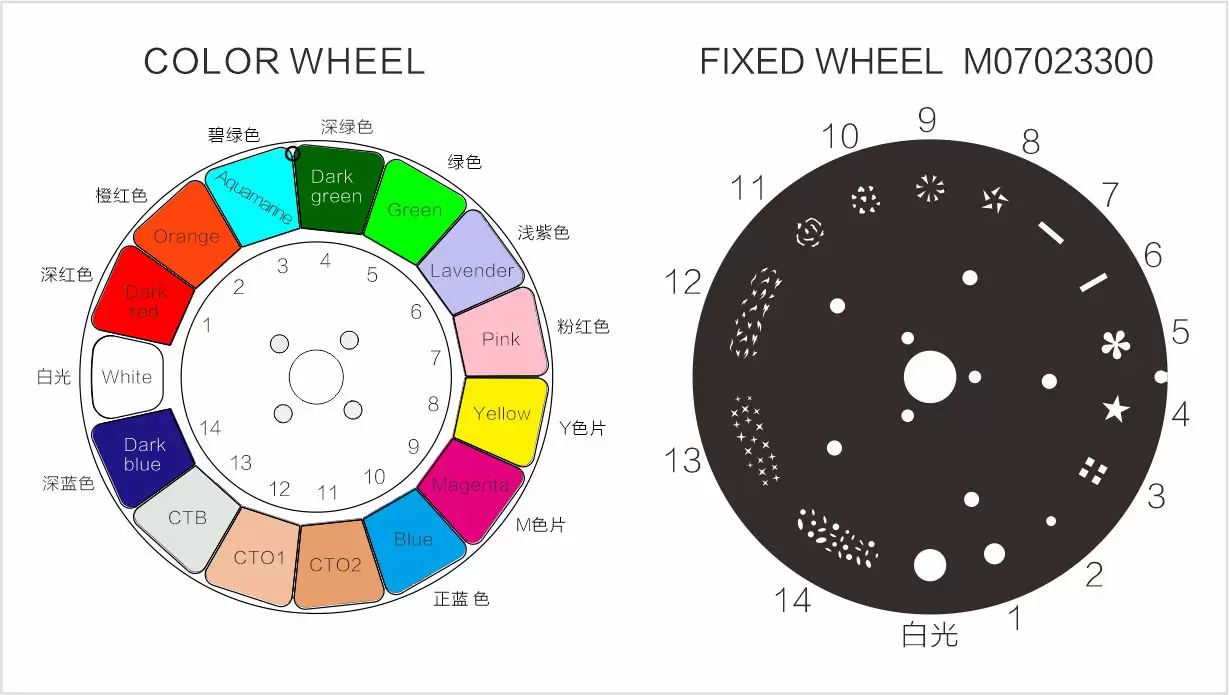

Colour Wheel : 14 colours + open,Bi-direction rotation and rainbow effect





GOBO

Static gobo wheel : 11 Gobos + open + 3 animations range ,Bi-direction flow water





EFFECTS

Prism : 8 face prism+16 face double prism,multiple prism combination effect, prism macro effect
Frost effect : adjustable wash effect angle
Focus : Motorized focus
Strobe : Pre-programmed random strobe & pulse effects(0.5-25Hz/second)
Dimmer : 0-100% linear adjustment





CONTROL

Setting & Addressing : Automatic charge battery, IP could be set without electricity; RDM two-way data transmission, Remote reset DMX address
Display : The display panel adopts a 2.0-inch LCD12864 LCD screen
Protocols : DMX-512, RDM
Control channels : 14CH、16CH、16PLUS





SOFTWARE

Intelligent control : Display board can record device’s using time, show device’s temperature, channel data and software version.
Error alarm : Automatic alarm for fixture failure
Software upgrade : Insert USB upgrade software





X/Y ANGLE OF MOTION

Pan movement : 540°
Tilt movement : 250°
Pan / Tilt Resolution : 2.11°/0.98°
Movement control : Standard and Speed
Pan / Tilt : Automatic Pan / Tilt position correction





POWER

Voltage range : AC100-240V 50/60Hz;
Power rating : 350W;
Power in connector : Neutrik power
DMX and RDM data in/out : Locking 3-pin & 5-pin XLR





SIZE & WEIGHT

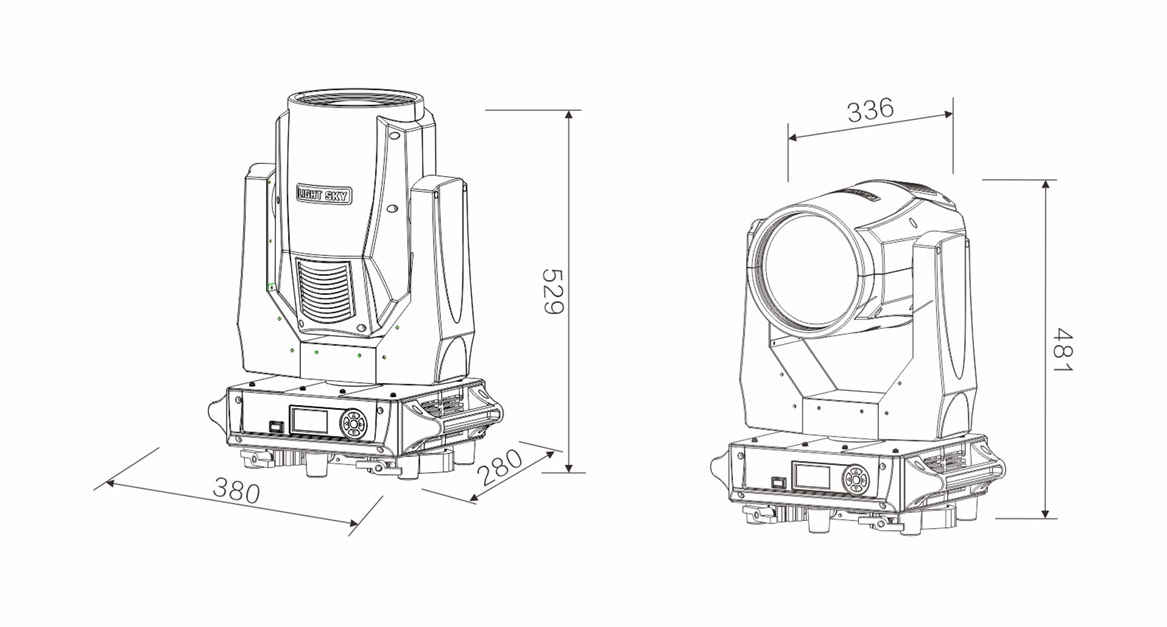

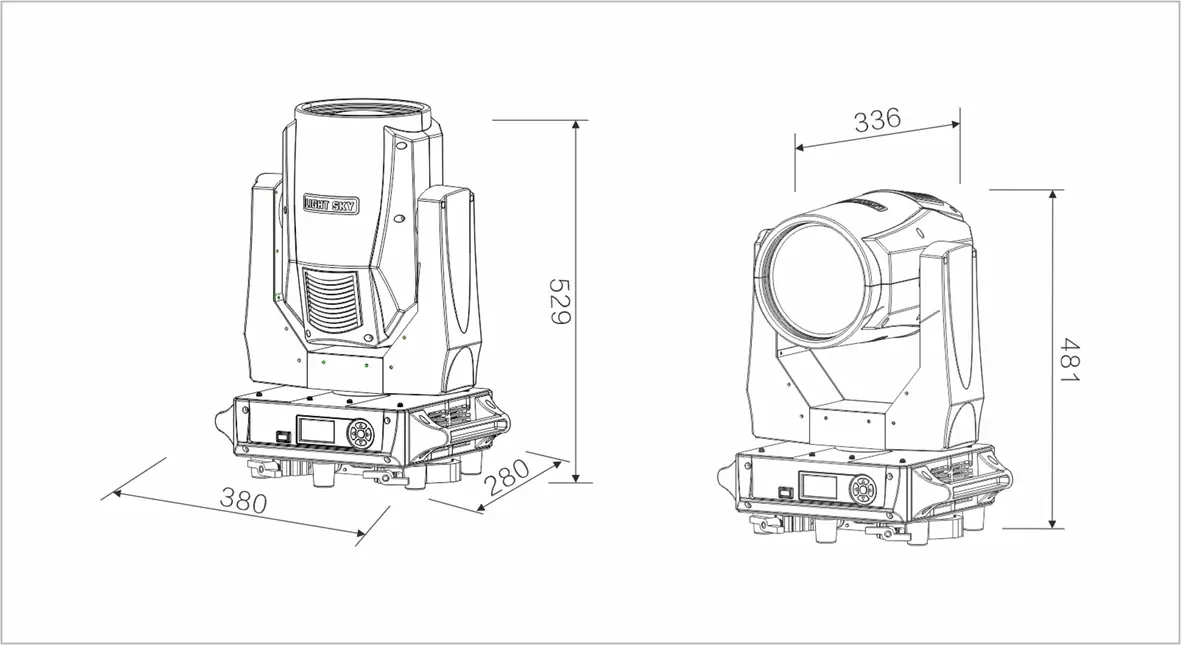

Product dimension : 380x280x529(mm)
Packing dimension (carton) : 400x345x570(mm)
N.W : 18.8Kg/pcs
G.W : 21.2Kg/pcs
Flightcase size(2pcs) : (LxWxH)865x470x740(mm)
N.W(2PCS) : 37.6Kg
G.W(2PCS) : 71.8Kg





OTHERS

Lamp hook design : Integrated foldable hanger design, more convenient for disassembly and transportation
Structure : Heat-proof plastic+module pressing alloy materials.
IP rate : IP20 protection
Accessory : clamp, DMX cable ,AC Power cable,Neutrickpower con(white),safety rope,singal cable, service card,instruction manual
