Description

OPTICAL

Luminous flux : 27000 lm
Light Source : 48pcs*15W RGBL LED
Color temperature : 2200K ~ 8500K adjustable
Lens Angle : 18° (15°/22°/25° optional)
Diffuser Angle : (20°/30°/40°/55° optional)



EFFECTS

Dimmer : 16Bit, 0-100% linear dimming, four dimming curves are optional
Stroboscopic : 1-25 electron stroboscopic and random stroboscopic
LED frequency : 1000Hz ~ 25KHz



CONTROL

Control mode : DMX512, RDM
Menu Displays : Menu Displays device temperature, channel data, and software version information
RDM : RDM Indicates bidirectional data transmission
Channel mode : Default : 9CH, 24CH,20CH,16CH,1CH,3CH,4CH-1,4CH-2,5CH,7CH see channel table for details



SOFTWARE

Upgrade software : Upgrade software through the DMX signal interface
Intelligent control : Intelligent temperature control to ensure LED life
Silent fan : Silent fan, intelligent temperature detection
Manual adjustment : Tilt Movement: Tilt rotation Angle ±100° manual adjustment



POWER

Voltage : VAC 100-240V 50/60Hz
Maximum power : 620W
Power factor : 0.996



SIZE & WEIGHT

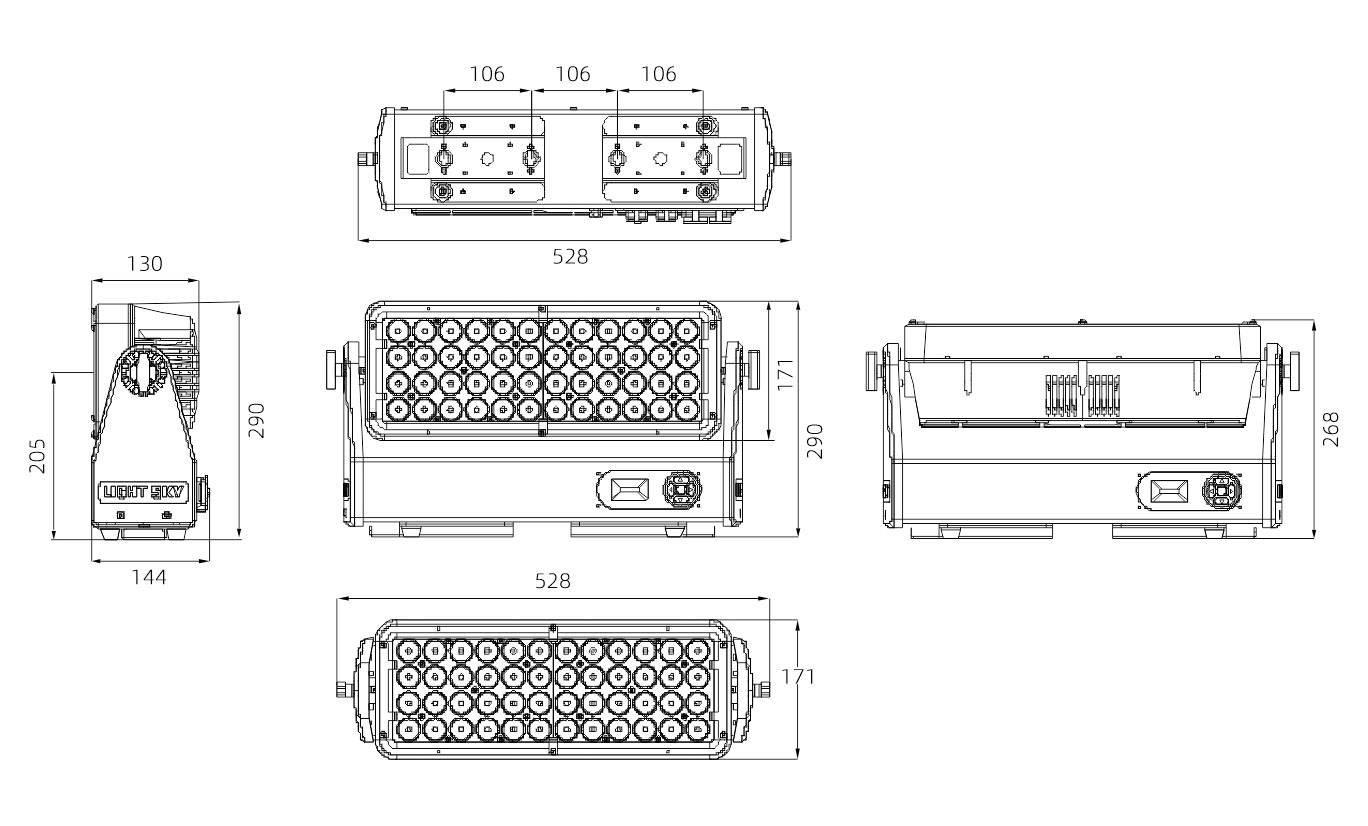

Size : 540 × 144 × 290(mm)
N.W : 12.9 Kg
Standard carton packing (1pcs in 1) : 620 x 265 x 365(mm)
N.W : 12.9 Kg G.W : 14.9Kg

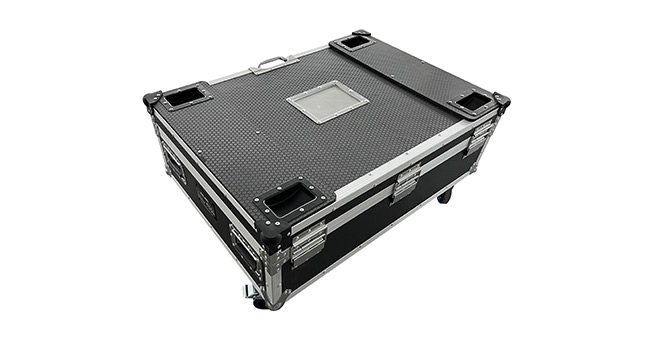

Flycase Size (5pcs in 1) : 1000 x 730 x 470(mm)
N.W : 64.5 Kg G.W : 100.2Kg



OTHERS

IP rate : IP65
Working Ambient : -20 ° C t- 45 ° C
Maximum fixture connect in Power : 2 /110V 4 /220V
Maximum current of fixture : 110V Maximum current: 5.6A; 220V maximum current: 2.82A
Optional accessories : hanger assembly, shutters assembly, folding shutters assembly
