Light Source / Power System

Voltage : AC100~240V (AC190-240V/4.5A; 100-125V/8.5A)
Power : 910W
Power factor : 0.980
Light source : 580W white light LED module
Output color temperature : 6300k
Light source average life span : 20000h
Total lumen output : 14706 Lm

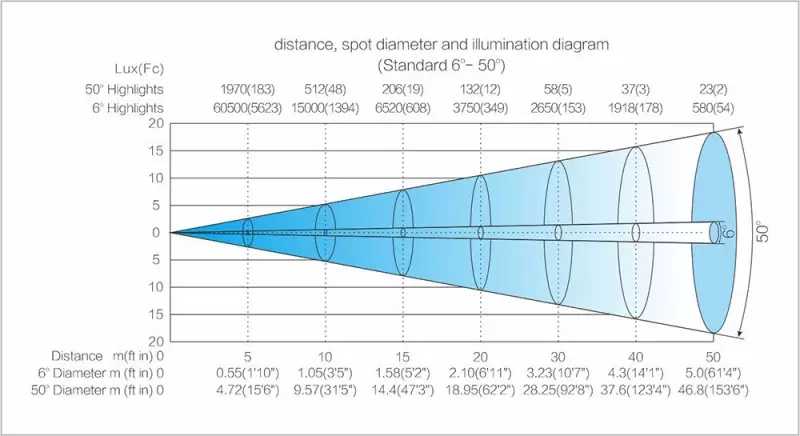

Luminance : 60500lux@5M
Front lens diamete : 127mm


Color / GOBO / Effects

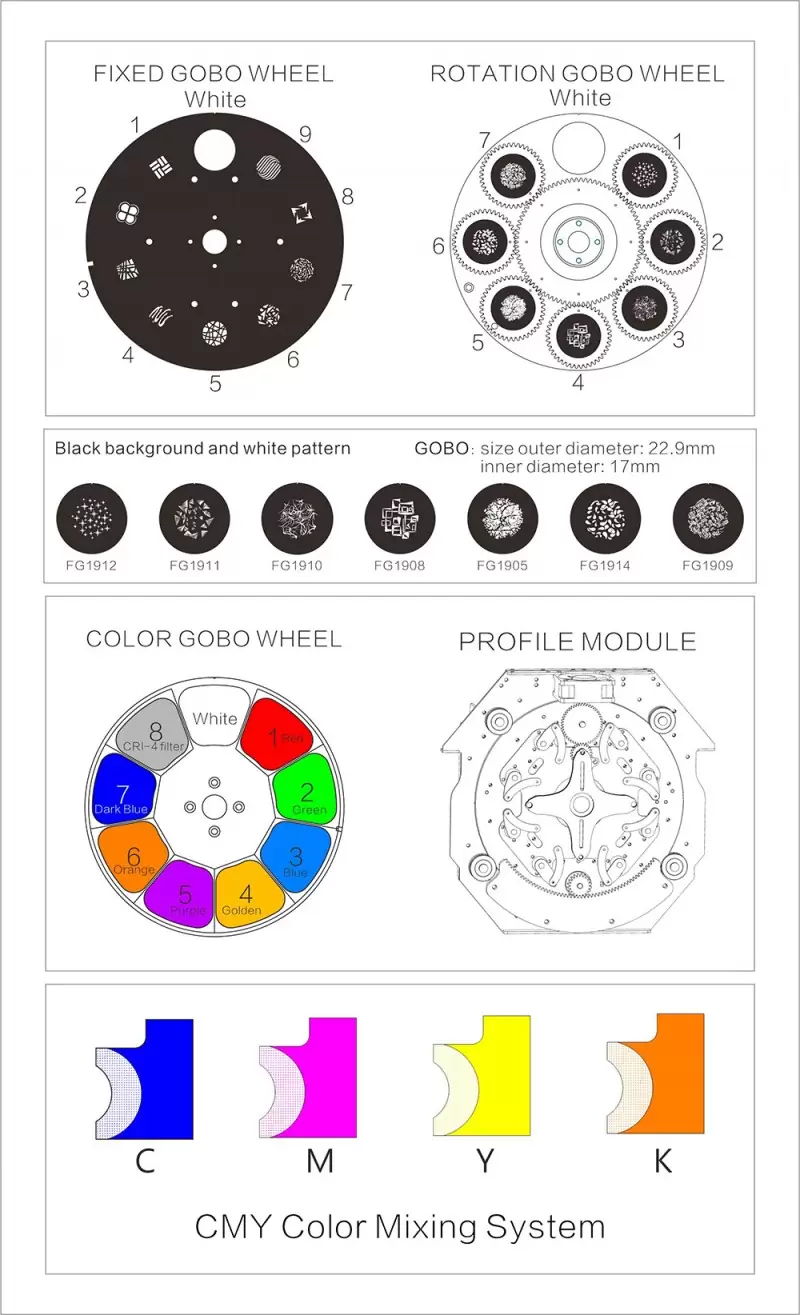

Color wheel : 8 color+1 white,Bi-directional rotating rainbow effect
Color mixing system : Linear CMY+CTO color mixing system
CRI : Can increase to 91 the above
Framing system : 8 facet&4 blades framing shutters modules
Iris : 5-100% linear adjustment with macro
Static gobo wheel : φ138,9+1 white,Bi-direction flow water animation effect
Rotation gobo wheel : 7+1 white,Bi-direction flow water animation effect
Prism : 4prism+16 facet prism +prism combination
Frost : 1°and 10°Two-level frost and superposition effect
Zoom angle : 6°-50°
Strobe : 1-25 times/second (adjustable)
Dimmer : 0 to 100% linear dimmer


Control System

Control protocol : DMX-512, RDM, Art-Net(Optional)
Channel mode : Standard channel:39CH; Extension channel:54CH
Motors : 30 pcs super mute motor
Pan/Tilt : 540°/ 270°
Pan/Tilt Resolution : 2.11°/1.05°
Software upgrading system : USB


Other functions

Display : 1、Display panel adopts 2.8 inch resistive color touch screen with good pressure sensitivity
               2、Chinese and English languages can be switched freely,menu available to display 180°reversely
IP set : Built in battery, IP address could be set without electricity.
Features : 1、Input signal isolation: guarantees stable signal transmission without interference。
                 2、Advanced Art-Net function
Safety Devices : BIPOlar circuit breaker with thermal protection.
The vertical direction : The vertical direction of the use of hidden locking device,convenient transportation and maintenance.


Appearance Parameters

Housing : heat-proof plastic+module pressing alloy materials
Hanging system : foldable light hook
IP rate : IP20

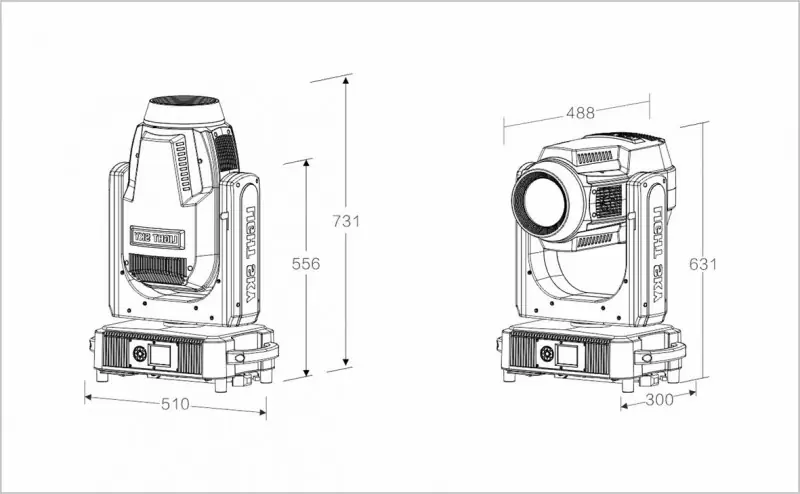

Light Dimension : 510 x 300 x 731mm
N.W : 33.2Kg/pcs
Carton dimension : 810 x 580 x 395mm
G.W with carton : 37.5Kg
Flycase dimension : 620 x 580 x 850mm
G.W with fly case : 66.5Kg(1 in 1)
