Description

Light Source / Power System

Voltage : AC100-240V 50/60Hz;
Power : 1530W;Power factor : PF 0.987
Power con : IP66 Neutrik power CON in/out (SAC3PX 16A 250V)
DMX and RDM : IP66 Locking 3-pin & 5-pin XLR
Light source : White light LED module
Light source power : 1200W-1400W
Average Lifespan : 20000h
Total LED source output Lumen : 86000 lm
Light source color temperature : 8000 K
Light color temperature : 6500 K
CRI : Standard version : 95.8; Optional version : 70;High color rendering index version : up to 90



Optical System

Optical system : High-precision zoom optical system, ratio 9.5:1
Zoom range : 6° – 57°
Output lens diameter : φ186mm
Fixture total lumen output : 40000 lm

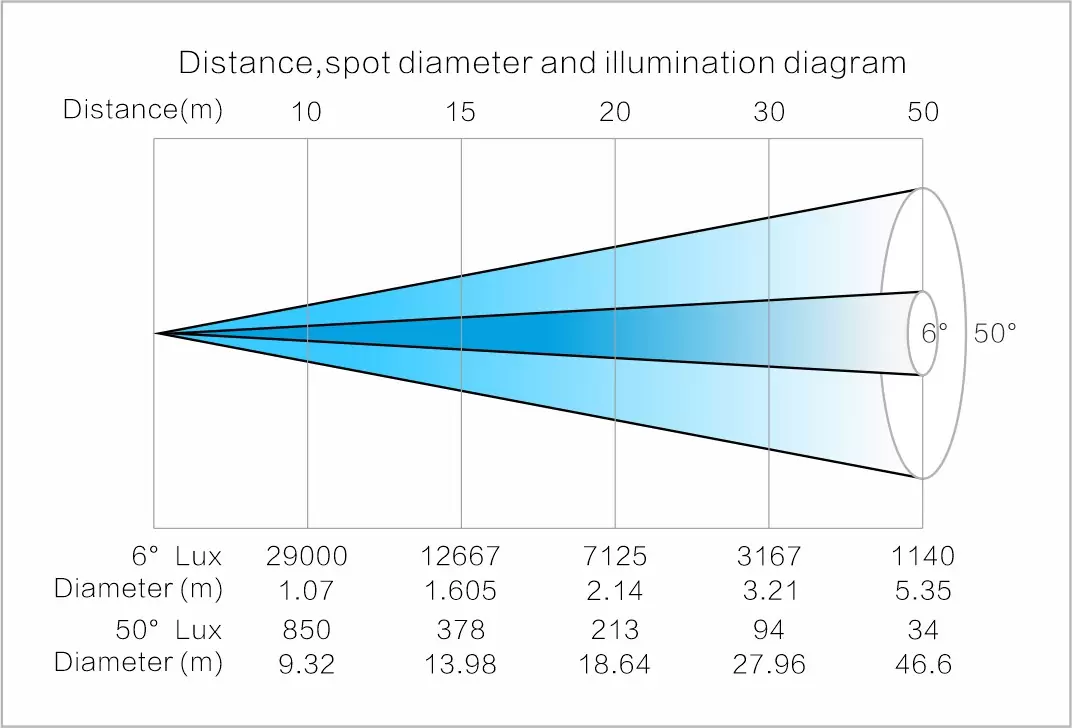

Light output : 21360 lux @10m
Focus and Lens : Motorized zoom and focus



Dynamic Effects

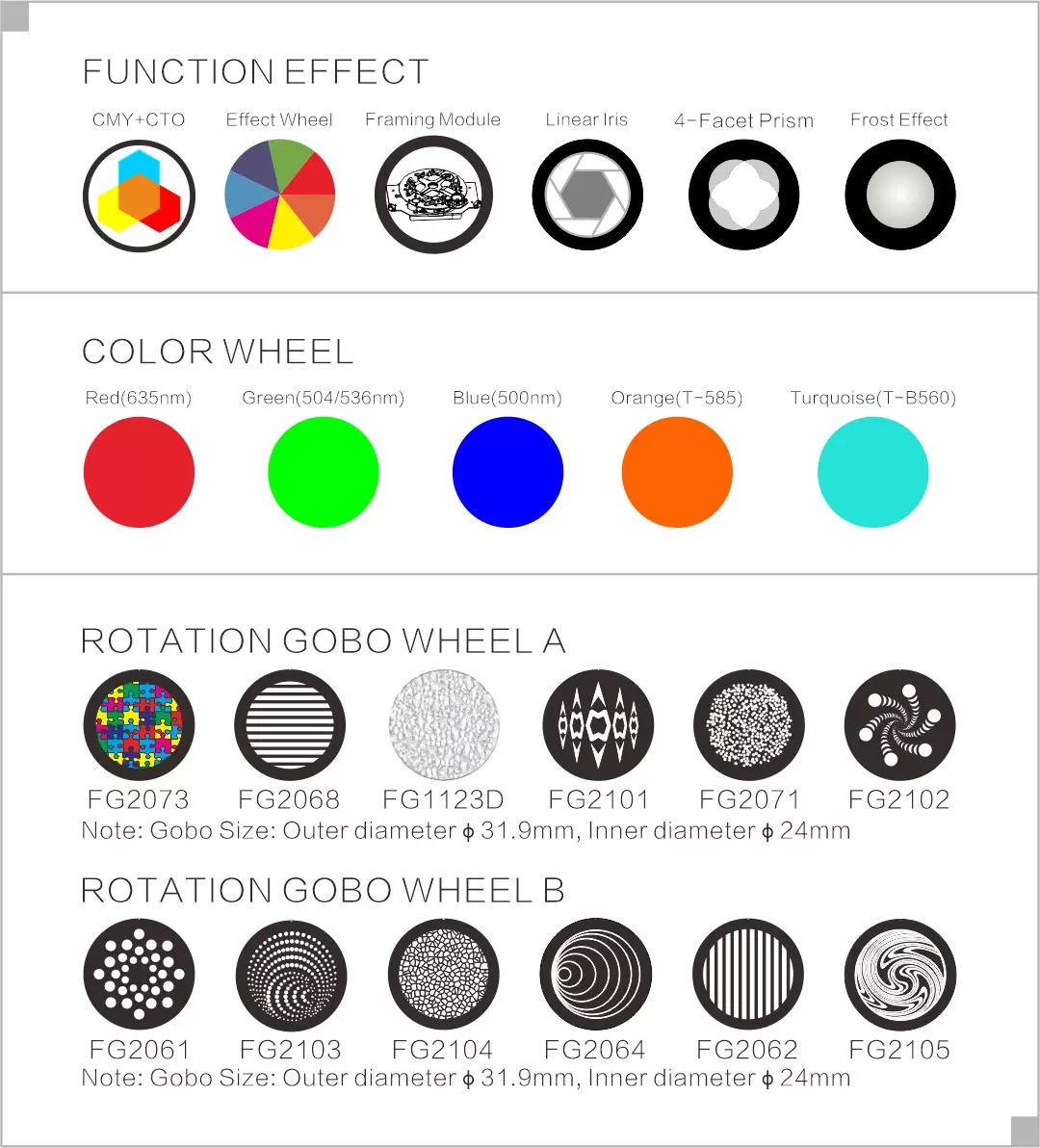

Colour Wheel : 5 colours + white,Bi-direction rotation and rainbow effect
C / M / Y : 0 – 100% linear adjustment
CTO : color temperature adjust from 6500K – 3000K
Effect Wheel : 7 colours effect Wheel,used alone or in combination withPrism wheel,
rotating in both directionsat variable speed,kaleidoscope effects and rainbow effect。
Rotation gobo wheel : Two pcs rotation gobo wheel , each wheel with 6 pcs SLOT&LOCK rotation gobo
Professional Framing system : 8 facet &4 blades framing shutters system,
And the whole framing system can rotate 90°..
Iris : 5-100% linearly adjustable with macro
Strobe : 1-30 times/second
Dimmer : 0-100% linear adjustment,flicker free management for HD and UHD cameras.
Prism : 4 facet prism,multiple prism combination effect, prism macro effect
Frost effet : 1° & 20° two layer frost filter ,which can work together and separately.



Movement

X/Y Travel : Pan movement: 540°; Tilt movement: 270°
Pan / Tilt Resolution : 2.11°/1.05°
Pan/Tilt Speed control : Standard and option;Automatic Pan / Tilt position correction system Pan/Tilt



Control And Programming

IP set : RDM two-way data transmission,Remote reset DMX address。
Display : The display panel adopts a 2.0-inch LCD12864 LCD screen
Intelligent control : Display board can record device’s using time ,
show device’s temperature, channel data and software version .
Error alarm : Automatic alarm for fixture failure
Software upgrade : Insert USB upgrade software
Control mode : DMX-512, RDM,Wireless DMX 512(optional).
Control channels : 44CH,56CH
Motors : 32 ultra-quiet motors



Appearance Parameters

Structure : The fixture adopted all aluminum alloy shell, anti-oxidation treatment,
high salt spray protection level.
IP rate : IP66

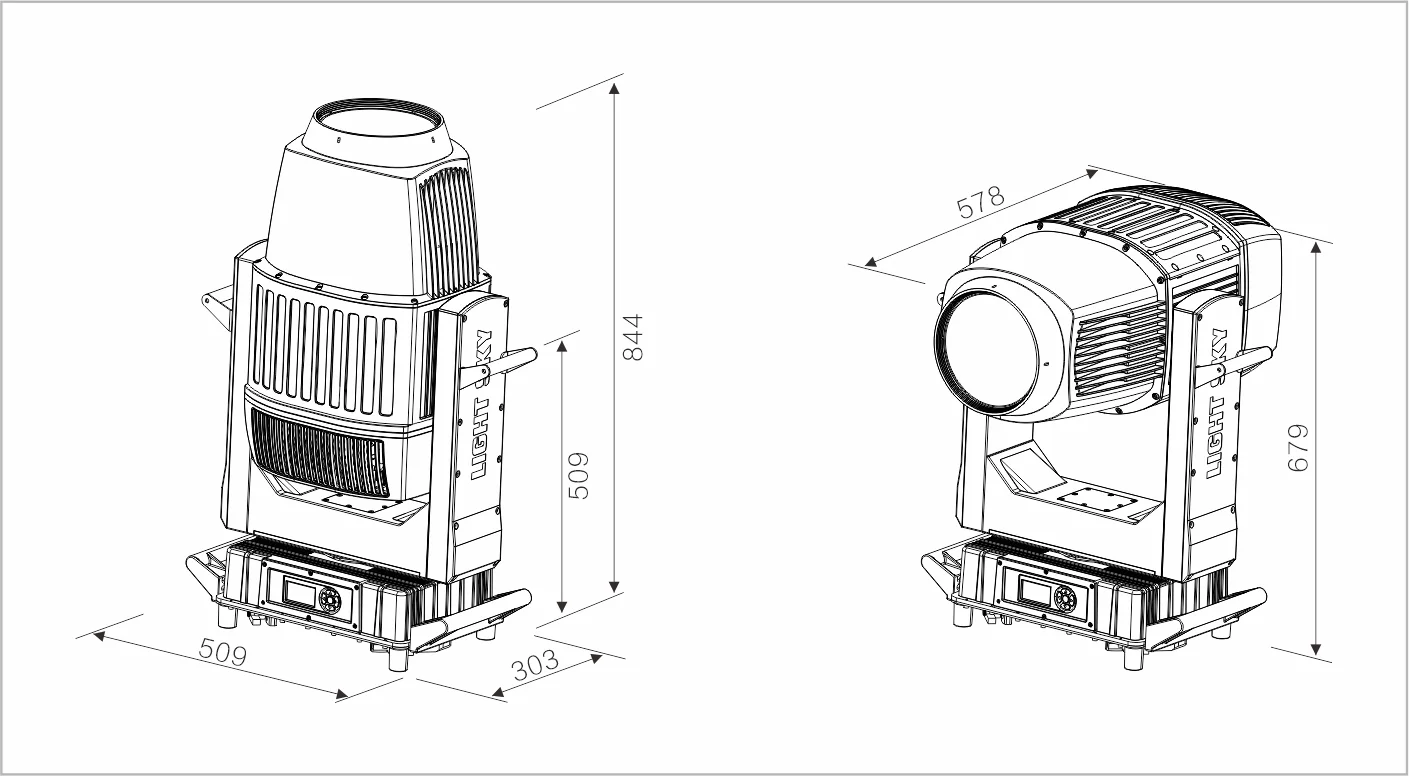

Lighting Size : 509x303x840.5mm
A single carton size : 950x630x420mm
N.W : 55.0kg , G.W : 61.50g
A single flight case size : 735X630X905mm
N.W : 55.0kg , G.W : 98.0kg
