Light source and Optics

Light source: 7×18W RGBALC LED

10°Lens：Beam Angle：14°, Field Angle：23°

Illuminance：1,023 lx@ 5m, Lumem Output：1, 962 lm

25°Lens：Beam Angle：22°, Field Angle：41°

Illuminance：384 lx@ 5m, Lumem Output：1, 905 lm

Lens Angle：10°、(optional: 25°, 40°, 15°, 40° )

Diffuser：LSD20/LSD30/LSD40/LSD601

Colour Temperature Output: 1800K – 10000K

CRI (Ra)：Ra up to 95

Light Source Theory Life Span: 20,000 h

LiGHTSKY Colorfy Calibration

Effects

Color Mixing System: RGBALC color mixing system with uniform output and

flicker-free performance

Dimming:16-bit, 0–100% linear dimming with four selectable dimming curves;

LED refresh rate: 1800 Hz – 25 kHz.

Multiple preset color temperature effects for direct use in various applications:

1800K–10000K linear CCT adjustment, channel control enables saturation adjustment

of the selected color temperature.

HSI Control: Preset HSI function for faster and more accurate linear hue transitions,

with linear saturation adjustment

Color Presets: 46 international color presets, 16 local color presets

Strobe: 1-25 times per second

Control and Programming

Control Channels: 13CH，5CH, see channel chart for details

Control Protocols: DMX512, RDM, Wireless control, remote controller

Wireless DMX: Supports CRMX Classic, CRMX2, W-DMX G3, G4, G4S and G5 protocols

Data Connection: 3-pin or 5-pin XLR In/Out

Display: OLED display

Software

Software upgrade: via DMX interface

Temperature control: Intelligent system for LED lifespan

Power and Electrical

Charger Input Voltage Range: AC 100-240V 50/60Hz

Charger Output Voltage : DC 33.6V

Max Power Consumption: 70W

Note: ① Actual LED power consumption: 60W

②Maximum fixture power consumption: 70W

(when charging only or when operating while charging)

Power Factor: 0.97

Maximum Current: 0.32A/220V；0.7A/100V

Battery

Battery Capacity: 28.8 V, 5000 mAh

Maximum Runtime (Full Output): Up to 4 hours

Maximum Runtime (Single Color): Up to 12 hours

Charging Temperature: 5°C -35°C

Charging Time: 2.5 hours

Battery Lifetime: 80% capacity remaining after 300 charge/discharge cycles

Note: ① Below 5°C, battery protection disables charging; operation only

         ② The fixture must be powered off to fully charge the battery; charging during operation may prevent the battery from reaching full capacity

Important Information:  ① Store the fixture in a cool, dry place at 0°C–30°C. For long-term storage, recharge and discharge the battery every 3–6 months and maintain a charge level of 60%–80%.

                                    ② Recharge the battery promptly after use and always use the dedicated charger.

Size and Weight

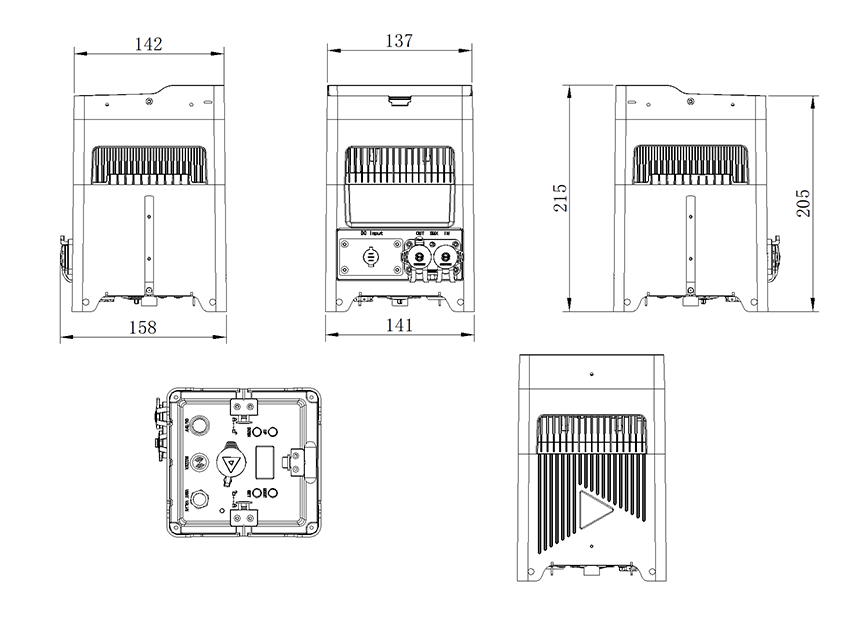

Product dimensions: 158mm × 141mm × 215mm

Net weight: 4.3kg

Carton packaging (1 in 1) : 340mm × 230mm × 345mm

Gross weight: 5.6kg

Carton packaging (6 in 1): 720mm × 720mm × 370mm

Gross weight(6 in 1): 36.8kg

Other

Protection Level: IP66

Operating Environment:-10℃ – 40℃

Maximum Surface Temperature: 70℃

Factory Configuration

Waterproof power cable: 1 pc

Waterproof signal cable: 1 pc

Remote controller: 1 pc

Optional Accessories/Packaging

Barn door: 1 option

Diffuser filters: 3 options (require diffuser holder)

Dome diffuser: 1 set (requires diffuser holder)

(Note: The Barndoor, Frost Filter, and Dome Diffuser are for upright installation only. Do not use these accessories when the fixture is suspended, side-mounted, or angled.)

Mounting: Clamp 1pc (Compatible with tubes of Ø38–52 mm), folding bracket 1 set, and safety cable 1 pc

Housing: 3 colors options

Flight Case (with charging function): B0101560001

Packaging(Fly case): 700mm × 550mm × 465mm

Gross weight(6 in 1): 57.8kg
