Description

Light Source / Power System

Voltage : AC100-240V 50/60Hz;
Power :400W PF : 0.987;

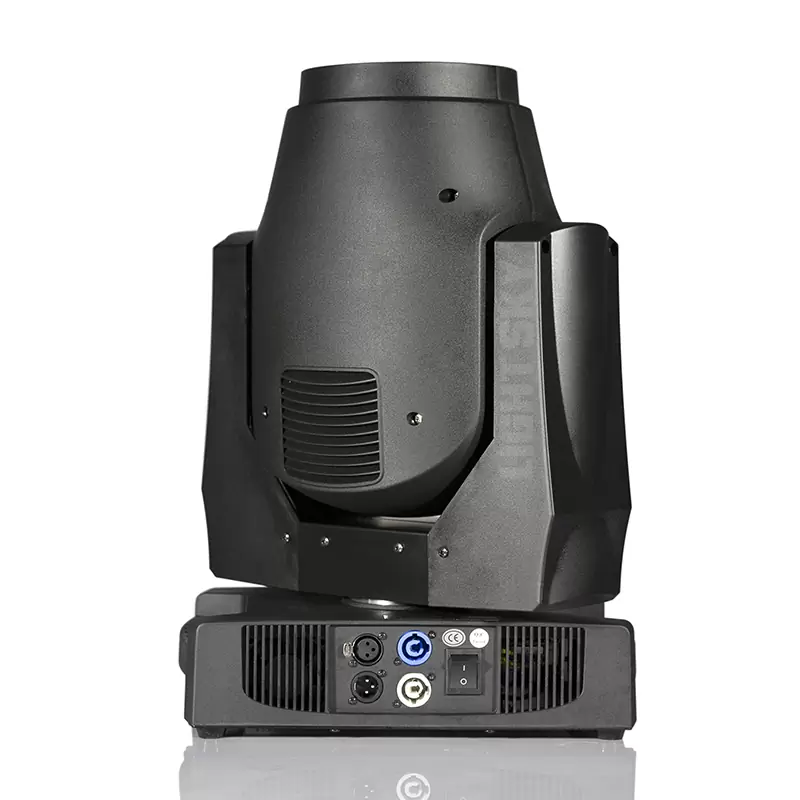

DMX and RDM connectors : Locking 3 pin or 5 pin XLR IN/OUT
Power connector : Seetronic one in one out
Light source : USHIO NSL 301
Light source power : 300W
Light source average life span : 2000h
Total lumen output : 19000 lm
Output color temperature : 7300 K
CRI : 80
Ballast : Electronic
Front lens diameter : φ150 mm

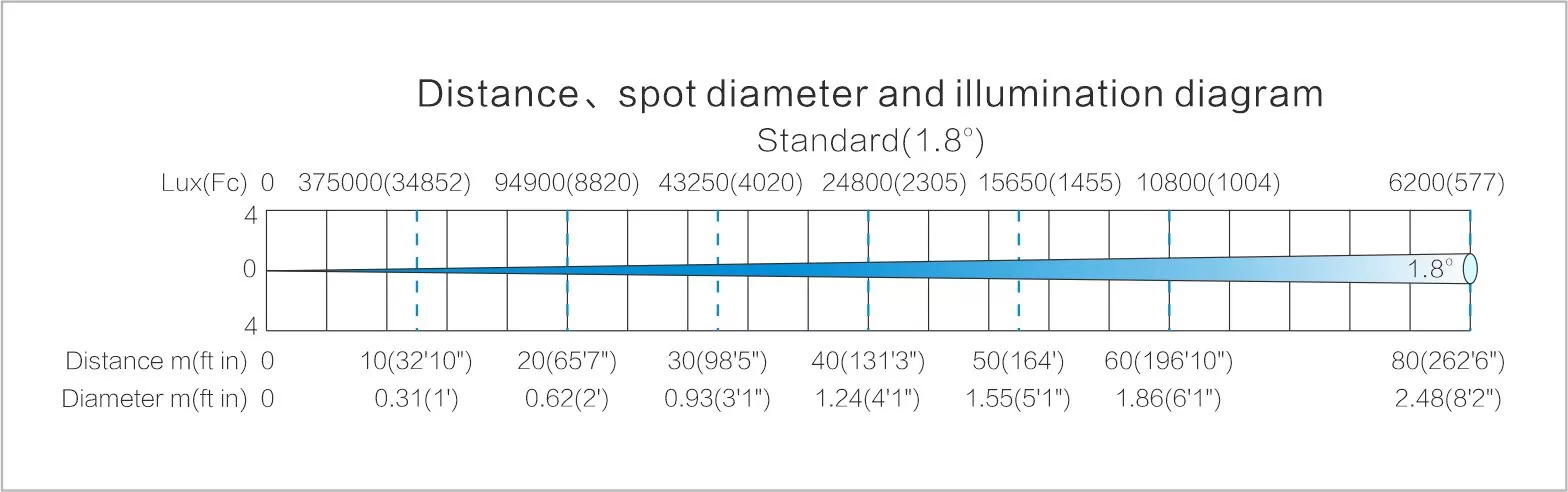

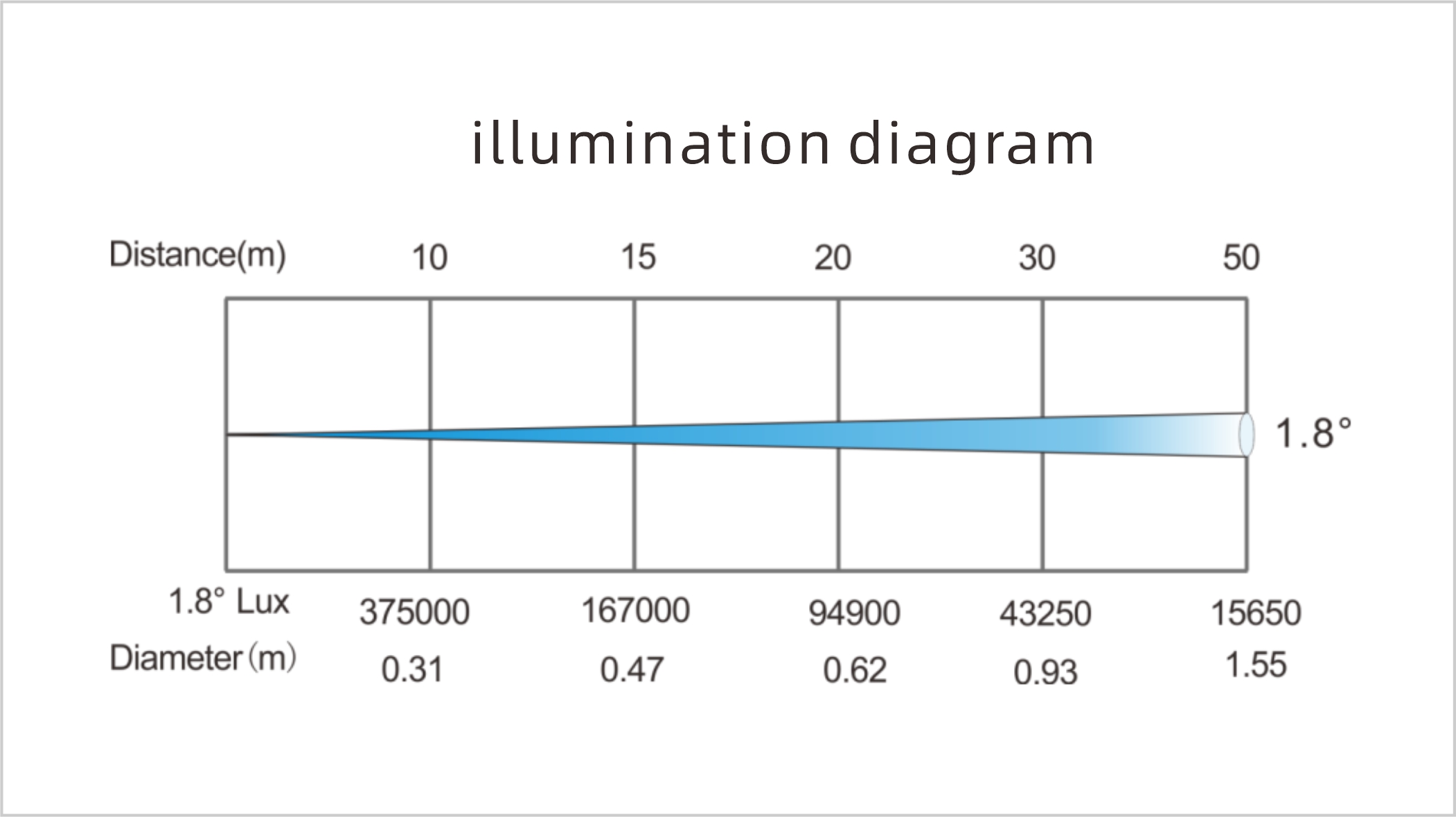

Luminance : 375000 lux @10m



Color / GOBO / Effects

Beam range : 1.8° beam angle (0.6° / 1.2° beam angle selection)

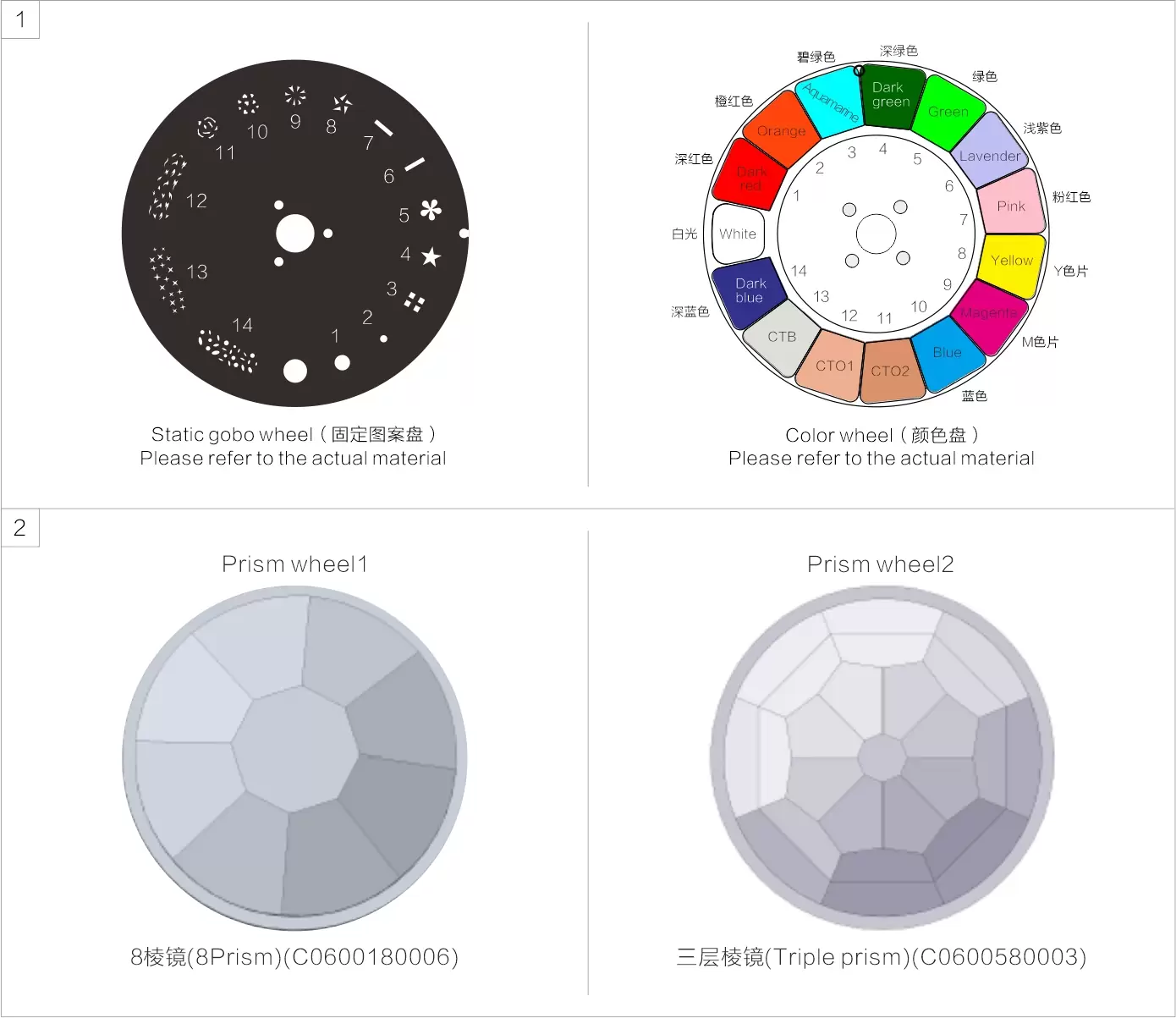

Colour Wheel : Color wheel : 12 color + 2 CTO + 1 blank
Static gobo wheel : 11 Gobos + open + 3 animations range ,Bi-direction flow water
Prism : With 8 facet prism+24 face prism+prism combination
Frost : adjustable wash effect angle
Focus : Motorized focus
Strobe : Electronic pulse strobe and random strobe
Dimmer : 0 to 100% linear dimmer



Control System

Pan/Tilt : 540°/270°
Pan / Tilt Resolution : 2.11°/1.05°
Pan / Tilt Speed : 2.7S/1.6S
IP Set : RDM two-way data transmission,Remote reset DMX address.

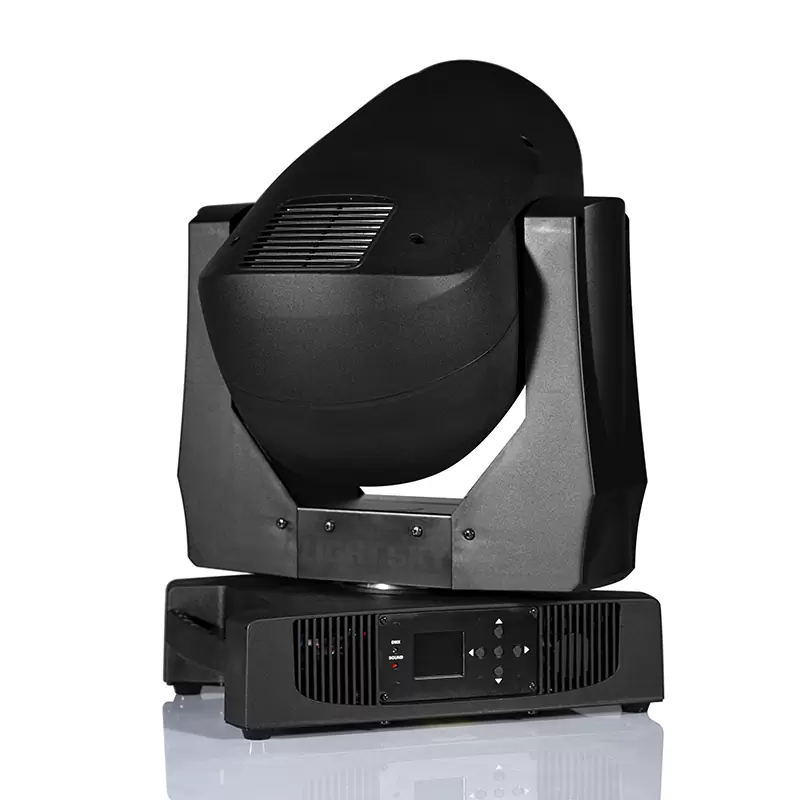

Display : The display panel adopts a 1.77-inch TFT screen
Noise level control : High brightness mode; Standard mode;Silent mode
Intelligent control : Display board can record device’s using time , show device’s temperature, channel data and software version .
Software upgrade : Upgrade with DMX
Control protocol : DMX512, RDM
Channel mode : 14CH、16CH 、16 PLUS



Appearance Parameters

Housing : Engineering plastic PA66

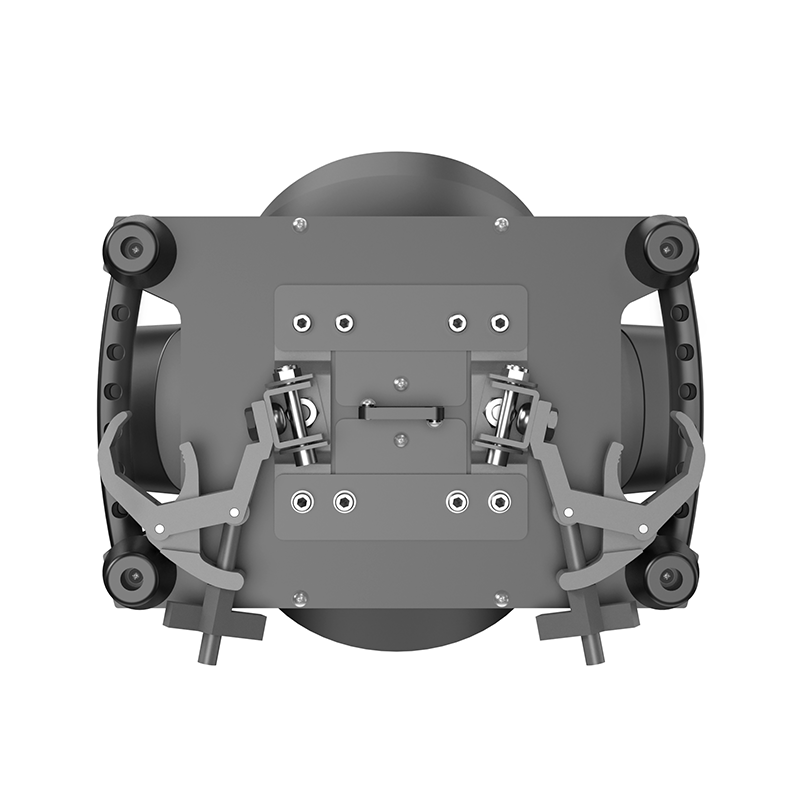

Hanging system : foldable light hook
IP rate : IP20

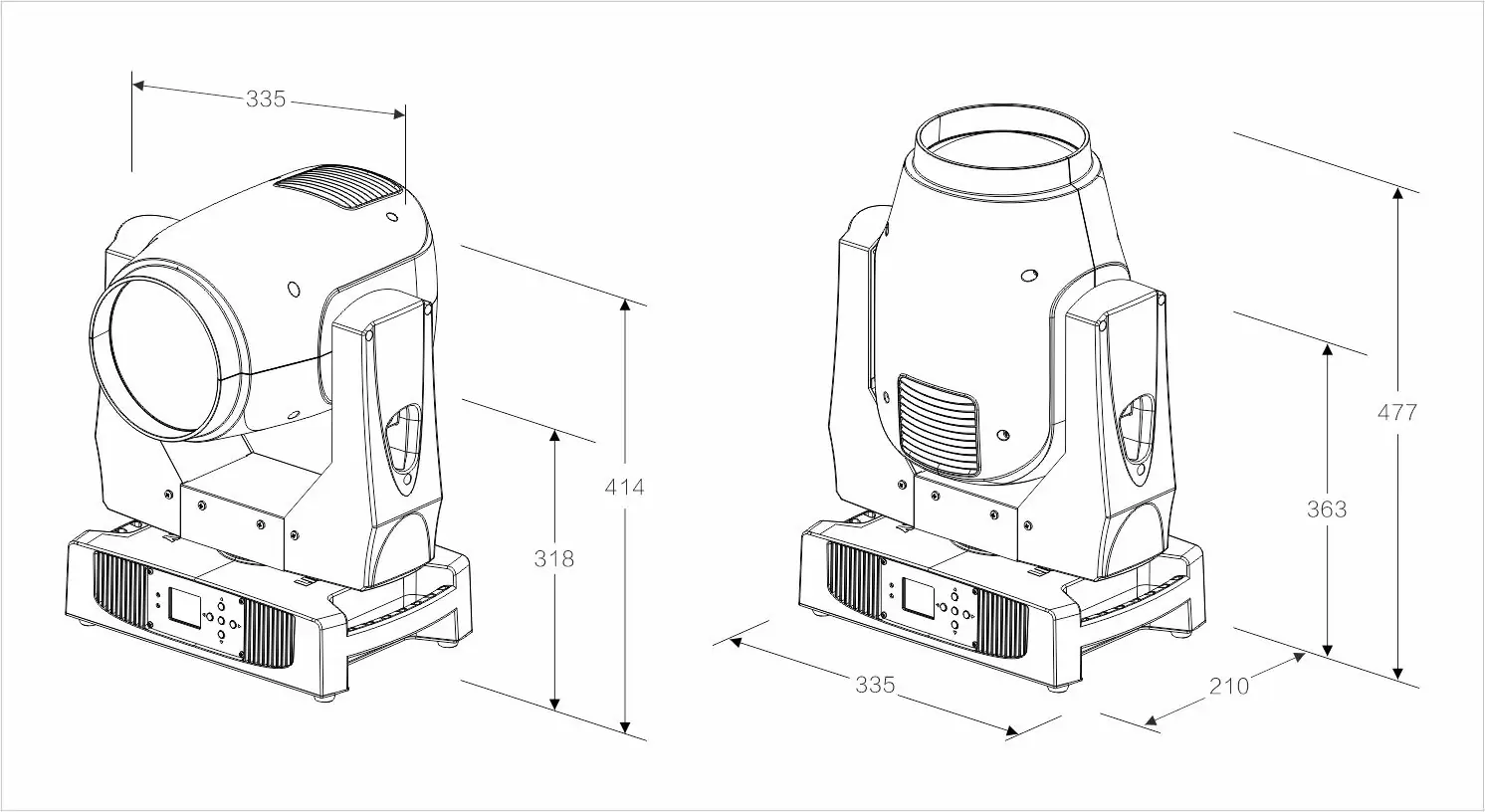

Light dimension : 335x210x477mm
N.W : 15.4Kg/pcs
Carton dimension : 410x290x575mm
G.W with carton : 18.5Kg
Flycase dimension : 660x500x720(mm)
G.W with fly case : 62.8Kg(2 in 1)
Flycase dimension : 820x685x720mm
G.W with fly case : 106.6Kg(4 in 1)
