Light Source / Power System

Voltage : AC100~240V 50/60Hz
Power : 620W; PF : 0.987
Light source : OSRAM SIRIUS HRI 471 W SN
Light source power : 470W
Light source average life span : 1500h
Ballast : Electronic Ballast
Output color temperature : 6300K
Luminance : 422000lux@10m at beam mode
CRI : 70+ with CRI Filter value up to 90
Front lens diameter : 160mm

Color / GOBO / Effects

Beam angle : 2°to 21° (Beam mode)
ZOOM angle : 3° to 42 ° (Spot mode)
Color wheel : 11 color + 2 CTO + blank
CMY : Linear CMY colour mixing
Iris : Motorized with variable pulse and random effects
Strobe : Electronic pulse strobe and random strobe
Focus : Motorized focus
Dimmer : 0 to 100% linear dimmer
Animation wheel : 1 dynamic animation wheel
Rotation gobo wheel : 1 rotation gobo wheel ,each with 9 pcs interchangable gobo+ 1 blank
Static gobo wheel : 14 fixed gobo + 1 blank
Prism : 4pcs prism (3+1 double prism wheel)& Multiple prism combinations
Frost : 2 frost system : light frost 1° and Heavy frost 5°
Noise level control : High brightness mode,Silent mode,Super silent mode

Control System

DMX and RDM connectors : Locking 3 pin or 5 pin XLR IN/OUT
Power connector : Seetronic one in one out
Control protocol : DMX 512 RDM ,WIRELESS (OPTION )
Channel mode : 33CH
Motors : 23 ultra-quiet motors
Pan/ Tilt : 540°/250°
Pan/ Tilt fine : 2.11°/0.98°
Pan/ Tilt Speed : 2.7 S/1.6 S
Software upgrade : Via USB

Other functions

Other functions : 1、The lamp’s switch can be controlled remotely; the cooling fan can be adjustable automatically; the lamp power will decrease when the fixture turns off.
2、DMX address can be reset remotely via control panel
3、The lamp’s heat dissipation can be adjustable with G-sensor system
Lamp safety : overcurrent and overheat protection; automatically interrupts lamp power when the lamp overheats or the cooling system fails.
Cooling System : Forced ventilation with an axial-flow fan
vertical direction : The locking device of vertical arm is used for convenient transportation and maintenance.

Appearance Parameters

Hanging system : foldable light hook
IP rate : IP20

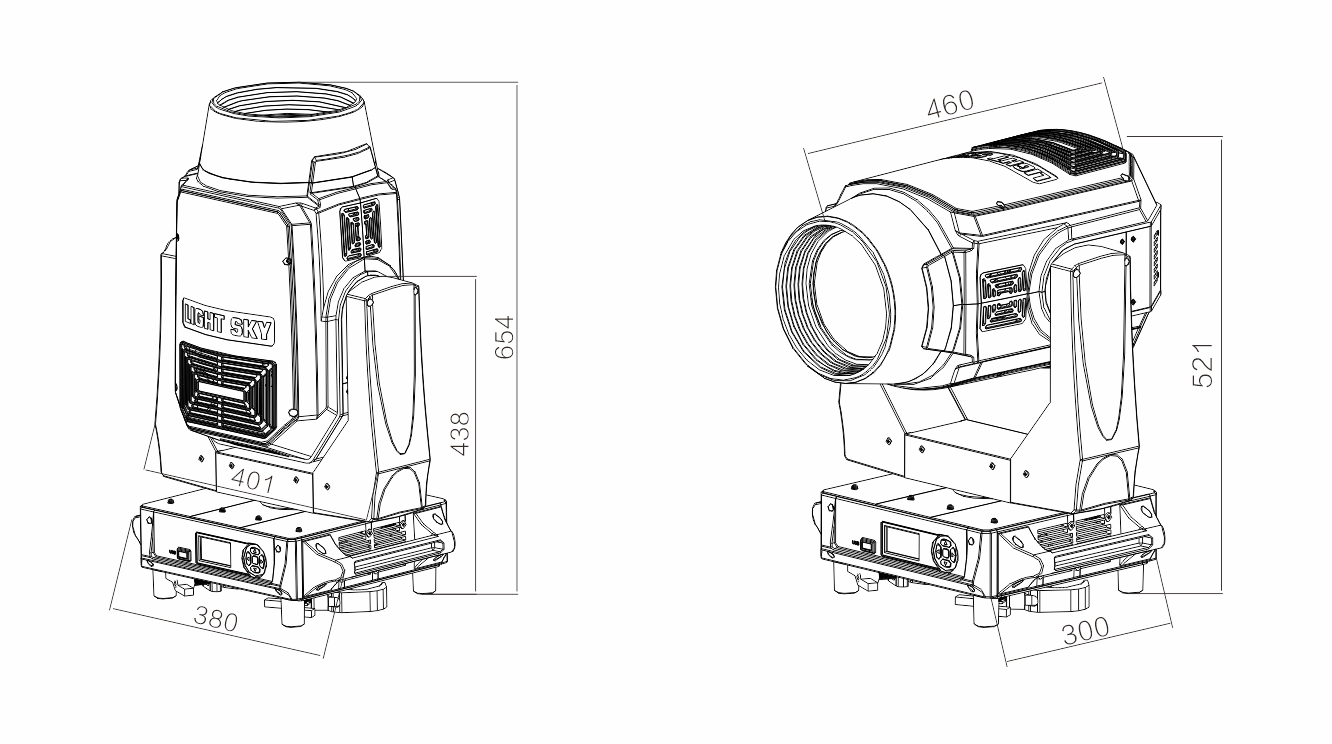

Light Dimension : 380 x 300 x 654mm
N.W : 29kg/pcs
Carton dimension : 490 x 390 x 725mm
G.W with carton : 32.5kg

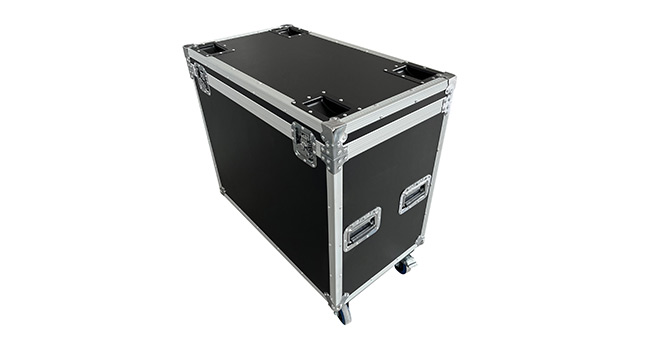

Flycase dimension : 890 x 500 x 850mm
G.W with fly case : 101kg (2 in 1)
