LIGHT SOURCE & OPTICAL

Light Source: 520W White LED module

Zoom Range: 3.8°- 50°

Optical Lens: Coated with High Transmission Anti-Reflection Film, Diameter 146mm

Color Temperature: 7000 K

Color Rendering Index (CRI): RA≥70 / RA≥88 (with high CRI filter)

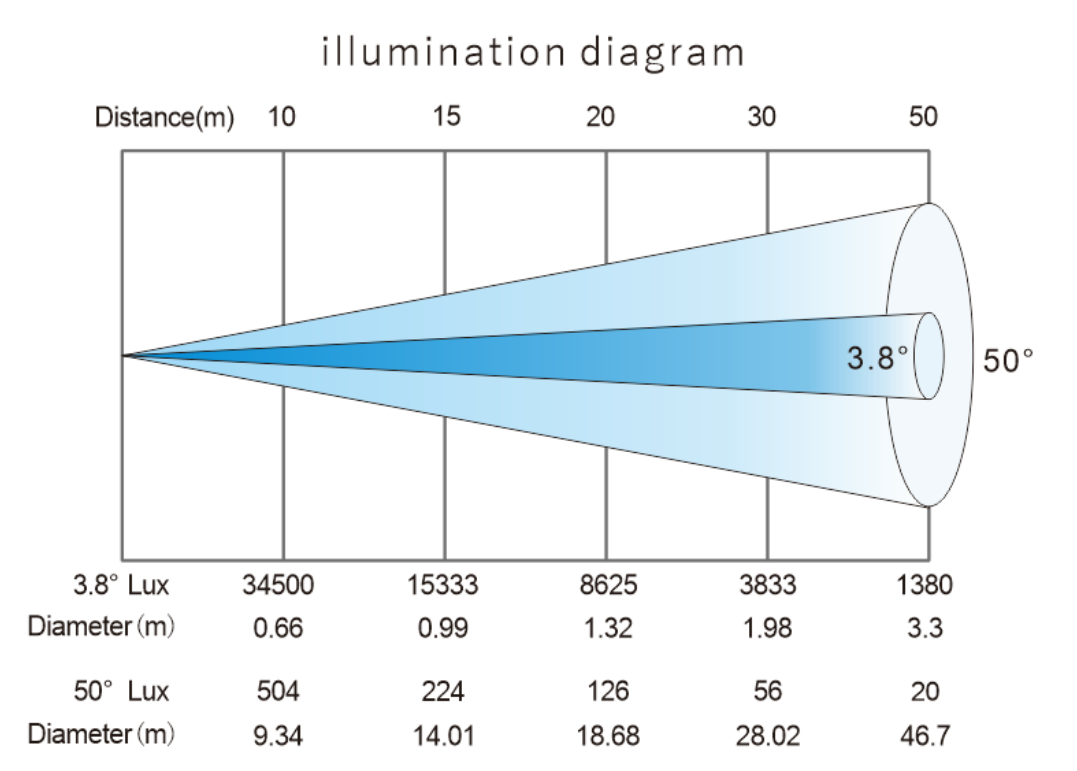

Illuminance: 34,500 Lux@10m

Total Lumen Output: 24,000 Lm

LED source life expectancy: 50,000 hours*

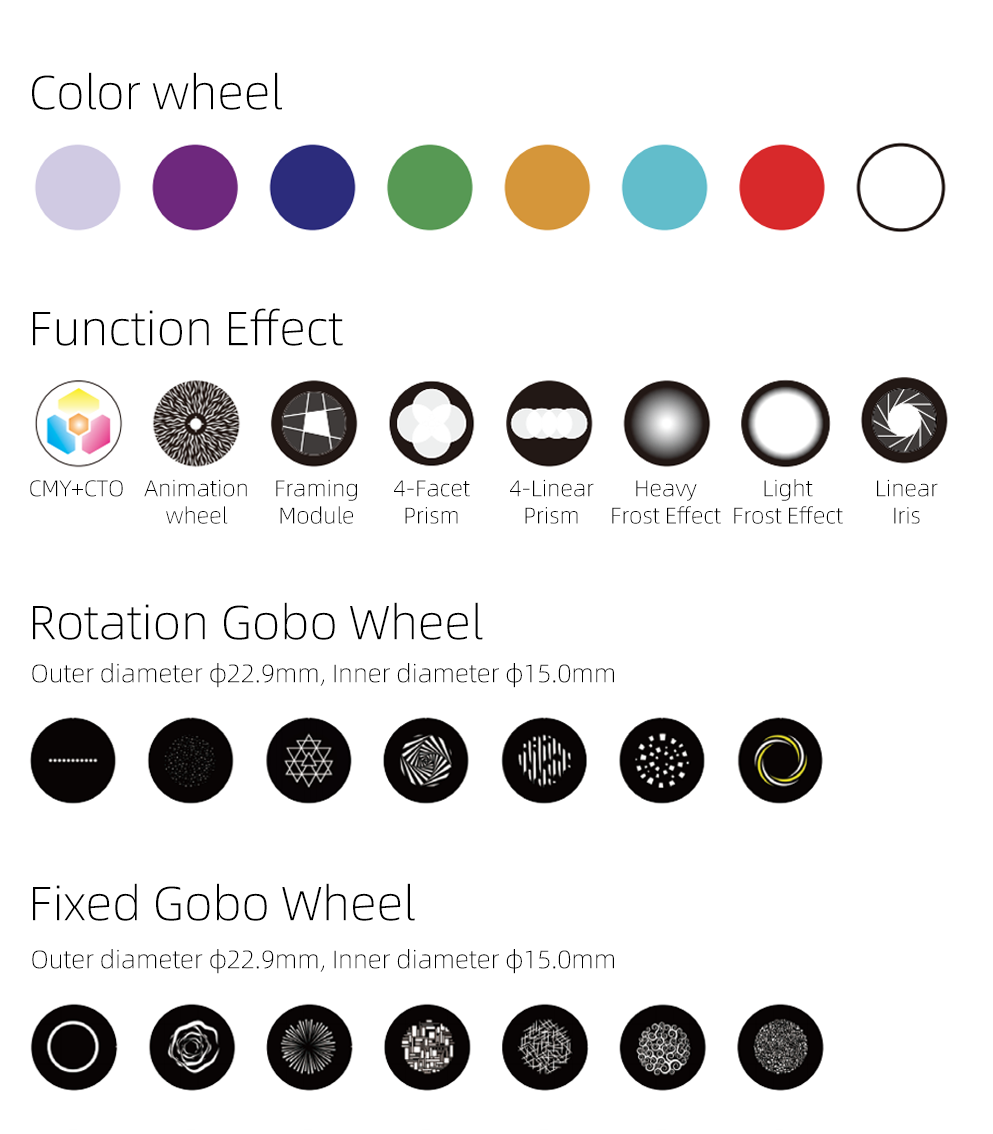

COLOR

-CMY infinite color mixing

-CTO color temperature linear adjustment (3000K-7000K)

-6 color filters + blank + high CRI filter, capable of bi-directional color rainbow effect, bi-color step gradient (linear movement), bi-directional rotating color wheel,

random color mode.

GOBO

-Rotating Gobo Wheel: 7 glass gobos + blank, replaceable, with rotating, flowing, and shaking effects.

-Fixed Gobo Wheel: 7 glass gobos + blank, with flowing and shaking effects.

-Animation Wheel: Bi-directional flowing effect, linear speed adjustment.

-Eight-blade Framing: 4 shutter blades for fast, smooth cutting, each blade independently controllable, module rotatable ±90º.

EFFECTS

-4-Linear Prism + 4-facet prisms with bi-directional rotation

-Light frost and Heavy frost, independently switchable, stackable

-Motorized iris, linear adjustment from 5-100%, with macro function for multiple effect variations

-Electronic dimmer, linear adjustment from 0-100%, uniform light spot

-Electronic strobe speed adjustable from 0.5-25 flashes per second

-LED refresh rate: 1000Hz ~ 25KHz

CONTROL & PROGRAMMING

-Control Channels: 41CH, 53CH, Compatible Channel 42CH (see channel chart for details)

-Protocols: DMX512, RDM, Art-Net, sACN

-Data Connection: 3-pin or 5-pin XLR IN/OUT, Dual RJ45 ports

-Display: LCD screen

SOFTWARE

-Software upgrade via DMX signal

-Temperature intelligent control, ensuring LED longevity

-Silent fan, three operation modes (high brightness/standard / silent) (Noise <40 dB in Silent Mode)

PAN/TILT MOVEMENT

Pan Axis: 540°, 8-bit/16-bit precision scan

Tilt Axis: 270°, 8-bit/16-bit precision scan

Reset Function with Automatic Error Correction

Fixed Lock: Tilt / Pan axis lock

POWER & ELECTRICAL

Input Voltage: AC 100-240V 50/60Hz

Maximum Power: 847W

Power Factor: 0.99

Maximum Fixture Current: 8.47A/100V; 3.8A/220V

SIZE & WEIGHT

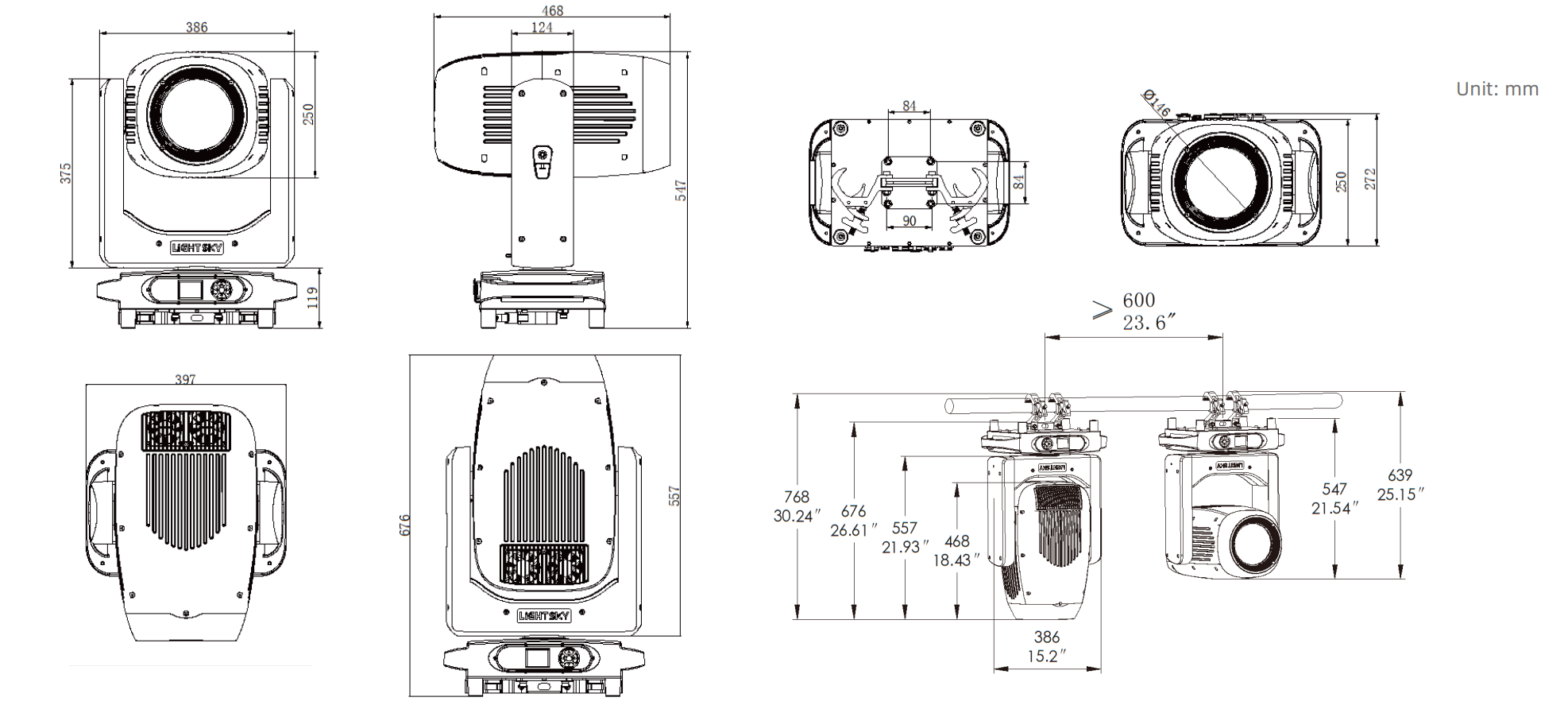

Product Dimensions: 397 × 272 × 676mm

Net Weight: 29.6 kg

Packaging: 515mm × 360mm × 800mm

Gross Weight: 35.8 kg (including folding hook)

OTHERS

IP Rate: IP66

Operating Environment: -20°C ~ 45°C

Maximum Surface Temperature: 65°C

FACTORY CONFIGURATION

Power Cable: 1 pc (Part No.: C1400050050)

Signal Cable: 1 pc (Part No.: F0200020087)

Safety Rope: 2 pcs (Part No.: F0200010002)

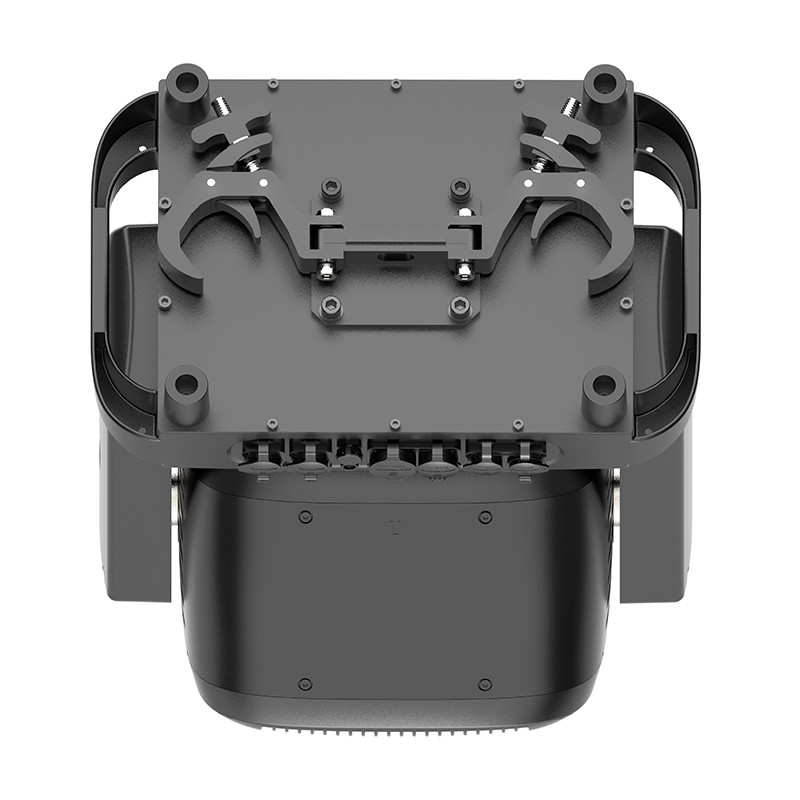

Clamp: 1 set (Part No.: C0499990040)

Packaging(Fly case 2 in 1): 870×550×920mm

Gross Weight (Fly case): 103.5 kg
