Light Source / Power System

Light Source: 200W 6-color LED (Red, Orange-Red, Lemon Green, Green, Blue, Indigo)

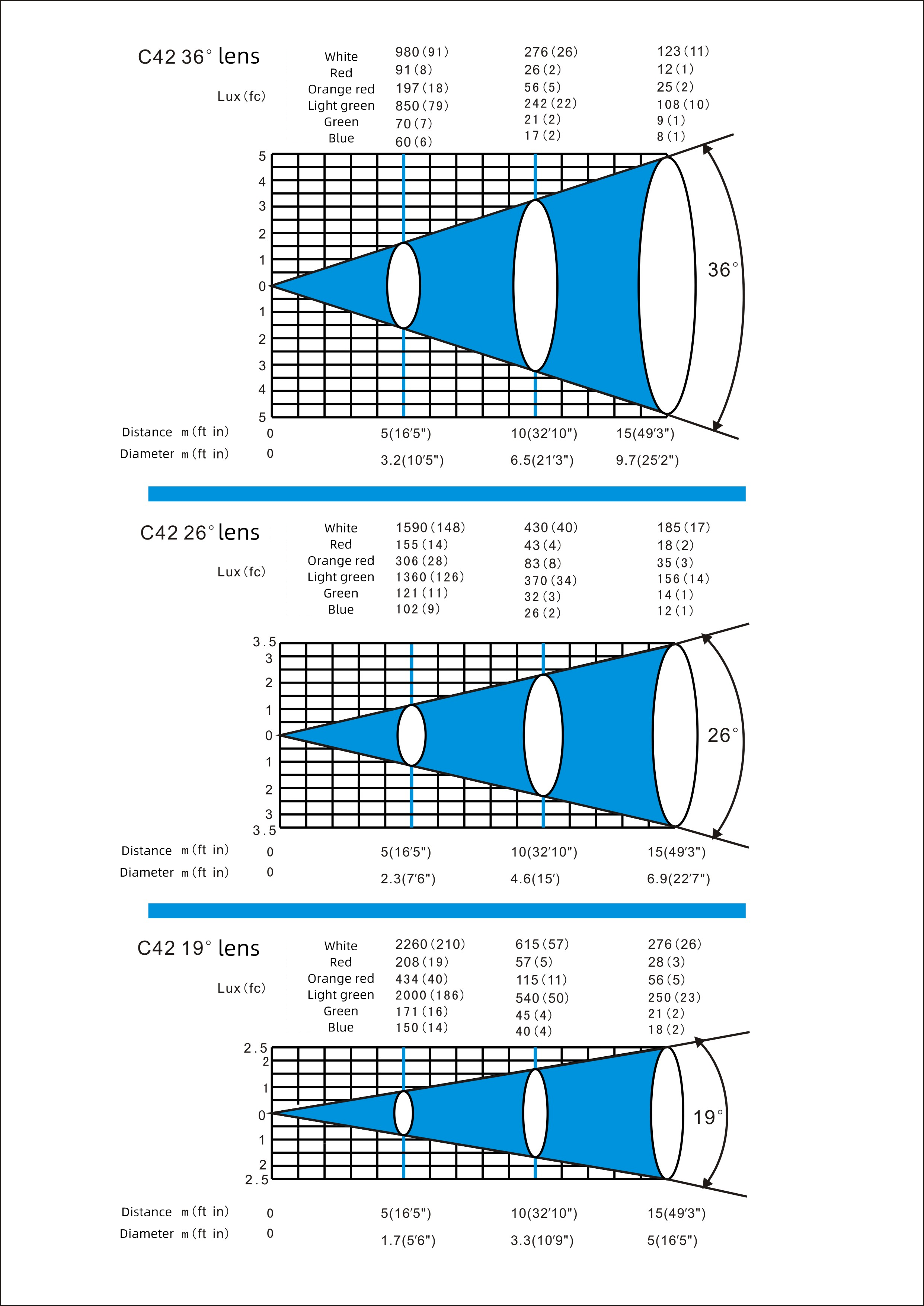

Front Lens: 19° (Standard) (Optional 26°/36°/asymmetric (top-bottom) lenses)

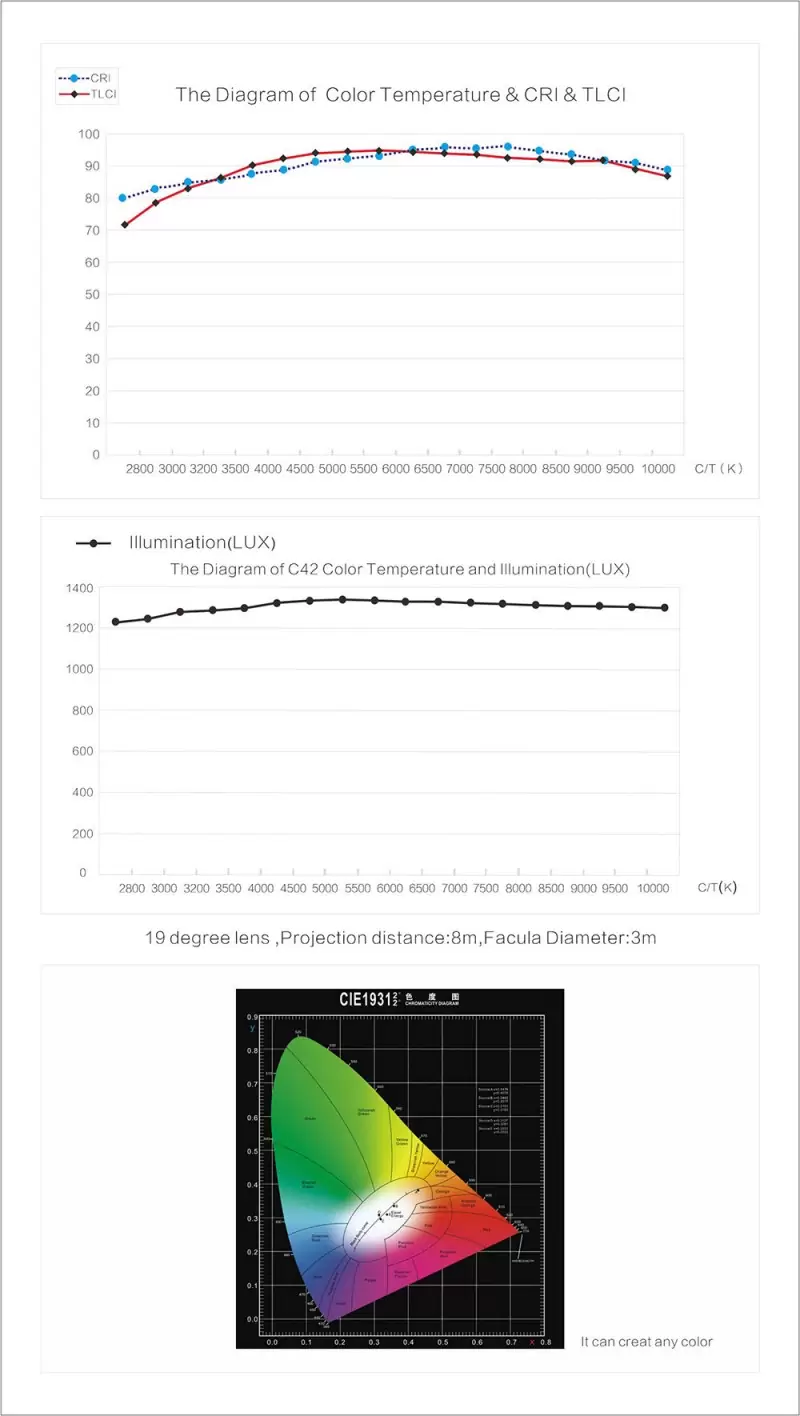

Colour Temperature Output: 2800K-10000K

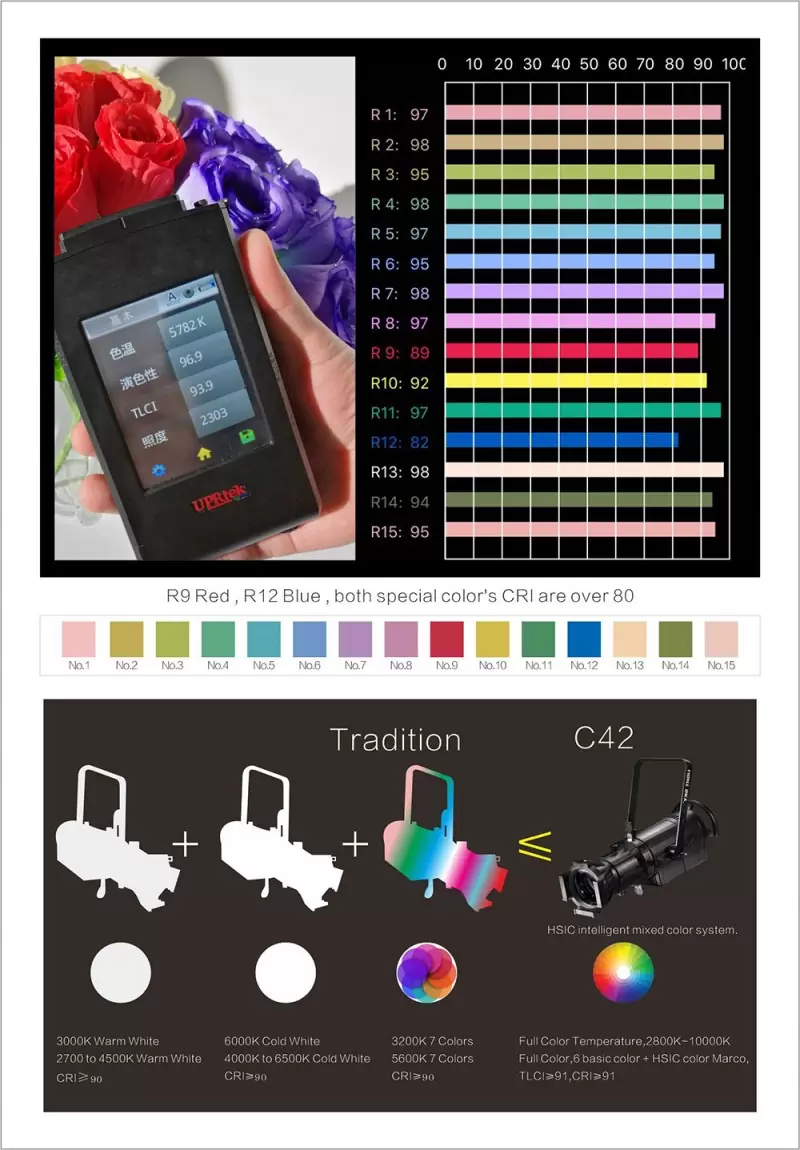

CRI (Ra): 91-97
Lumen Output: 8800lm
TLCI: 91-97

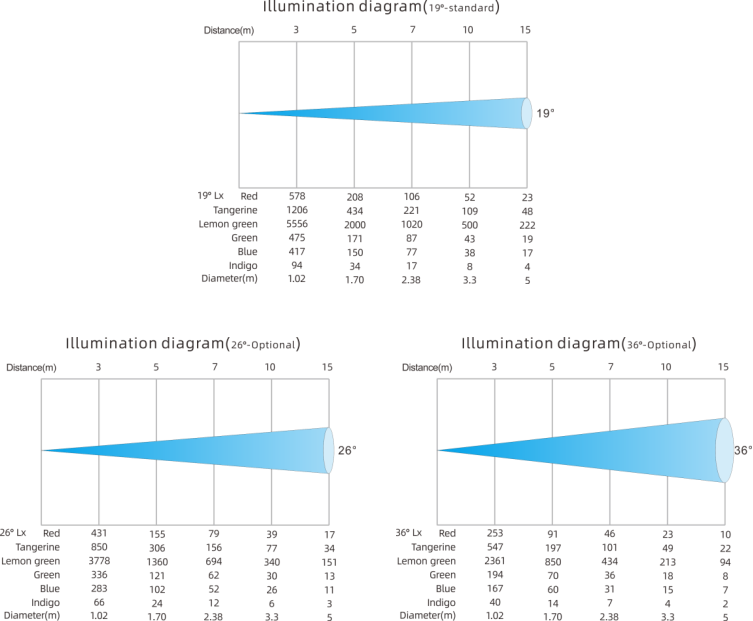

Illuminance: 2000 lx@ 5m (C42)
Life Time: 30000 h

Effects
Dimming: 65536-step flicker-free dimming
Strobe: 1-30Hz

Control and Programming
Channel: Standard 11CH, 1CH Mode; 2CH Mode; HSI (6CH)/HSI+7 (13CH); HSIC (7CH)/HSIC+7 (14CH); Studio (6CH), see the channel table for details
Control Protocols: Standard DMX512 protocol, RDM protocol

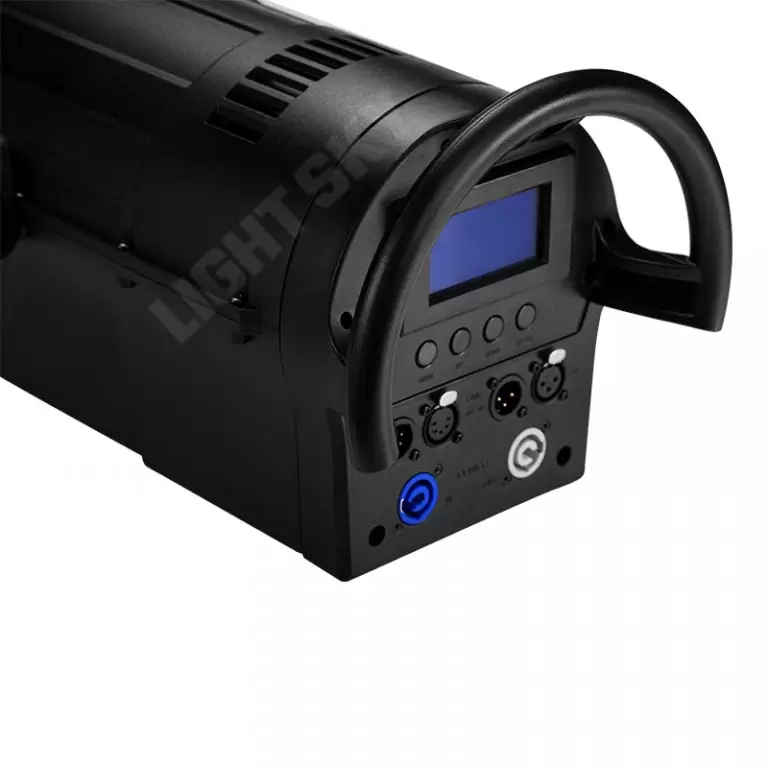

Data Connection: 3-pin or 5-pin signal input/output

Software
Software Upgrade: Via DMX signal interface
Intelligent Temperature Control to ensure LED lifetime

Power and Consumption
Input Voltage Range: AC 100-240V 50/60Hz
Max Power Consumption: 300W
Power Factor: 0.96
Max Current: 1.4A/220V; 3.0A/110V

Dimensions and Weight

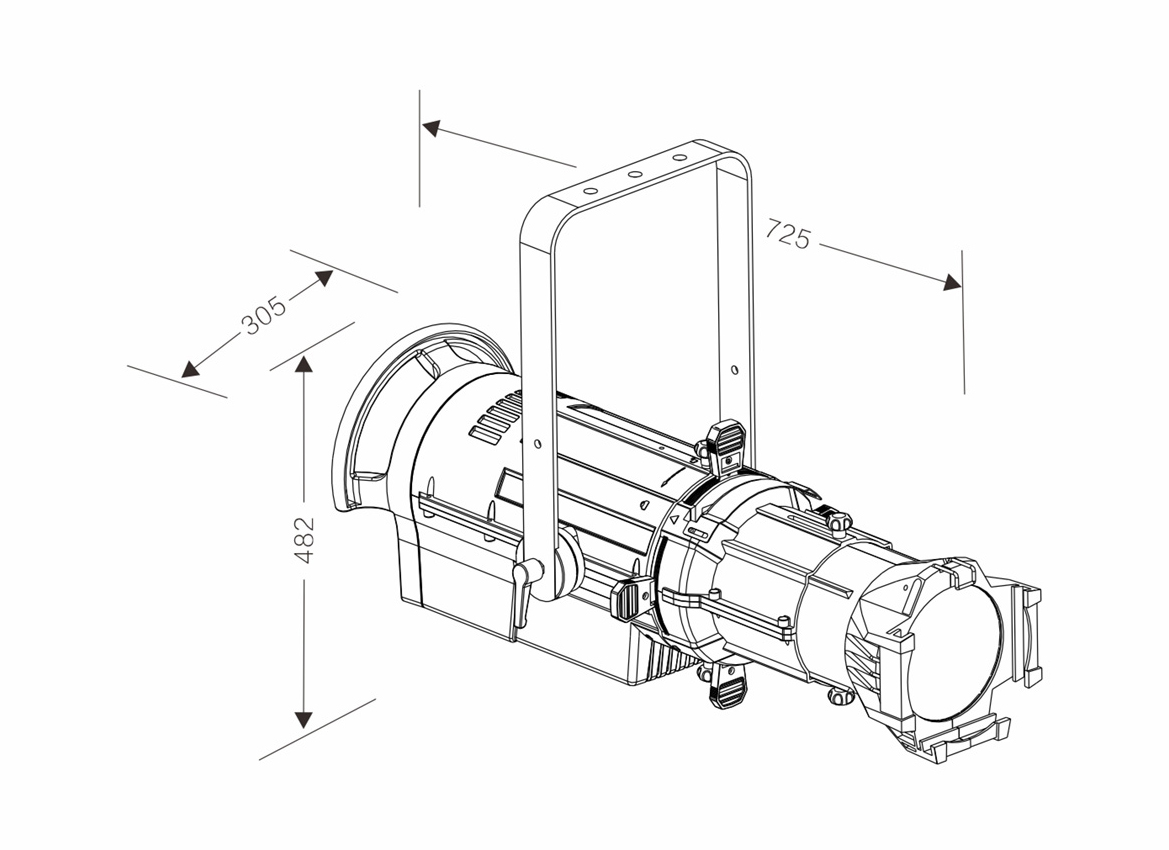

Net Dimensions: 725×305×482mm
Net Weight: 7.3 kg
Carton Packaging (1 in 1): 340×290×745mm
Gross Weight: 9.5 kg
Carton Packaging (4 in 1): 710×610×775mm
Gross Weight: 40.7 kg
Lens Packaging Dimensions (1 in 1): 340x290x380mm
Net Weight: 2.4KG
Gross Weight: 3.5KG
Lens Packaging Dimensions (4 in 1): 710x610x410mm
Net Weight: 9.6KG
Gross Weight: 16.2KG

Other
IP Rating: IP20
Operating Temperature: -10℃ ~ 40℃

Factory Configuration

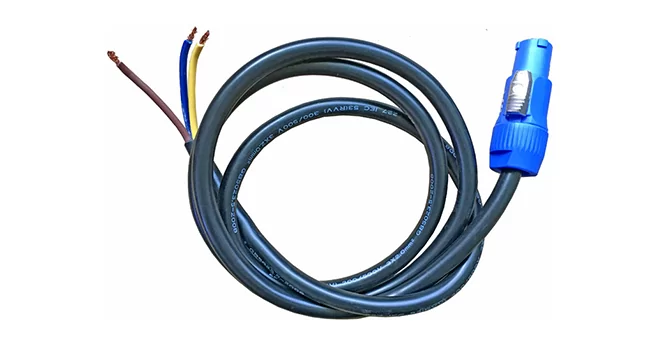

Power Cable: 1 pc (P/N: F0200030002)

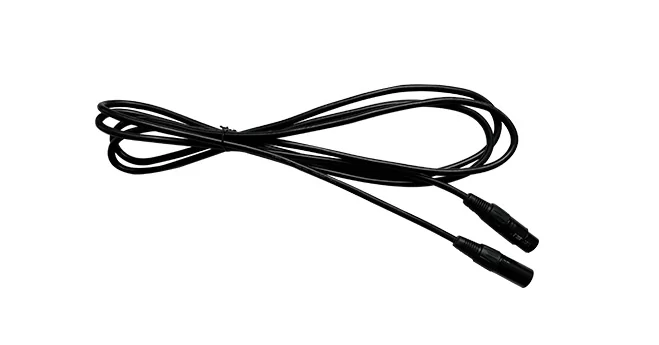

Signal Cable: 1 pc (P/N: F0200020001)

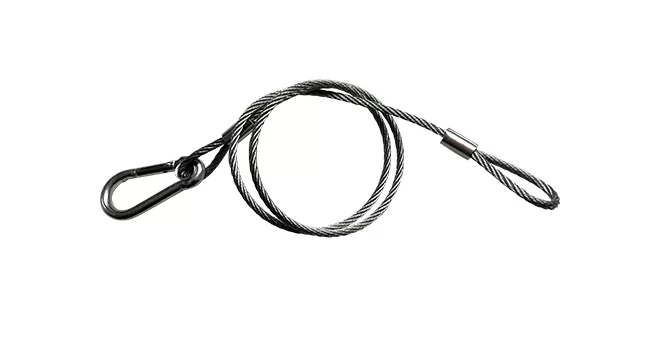

Safety Cable: 1 pc (P/N: F0200010008)

Optional Accessories/Packaging

Flight Case: B0100130001
Flight Case Dimensions (2 in 1): 1020x720x535mm
Gross Weight: 57.2 kg
