Description

Light Source / Power System

Voltage : AC100V-240V / 50-60Hz
Power : 800W,PF0.985
Light source : OSRAM 19pcs x 40W RGBW 4 IN 1LED
Light source average life span : 30000H
Optical : High efficiency optical system
Total lumen output : 12205Lm



Color / GOBO / Effects

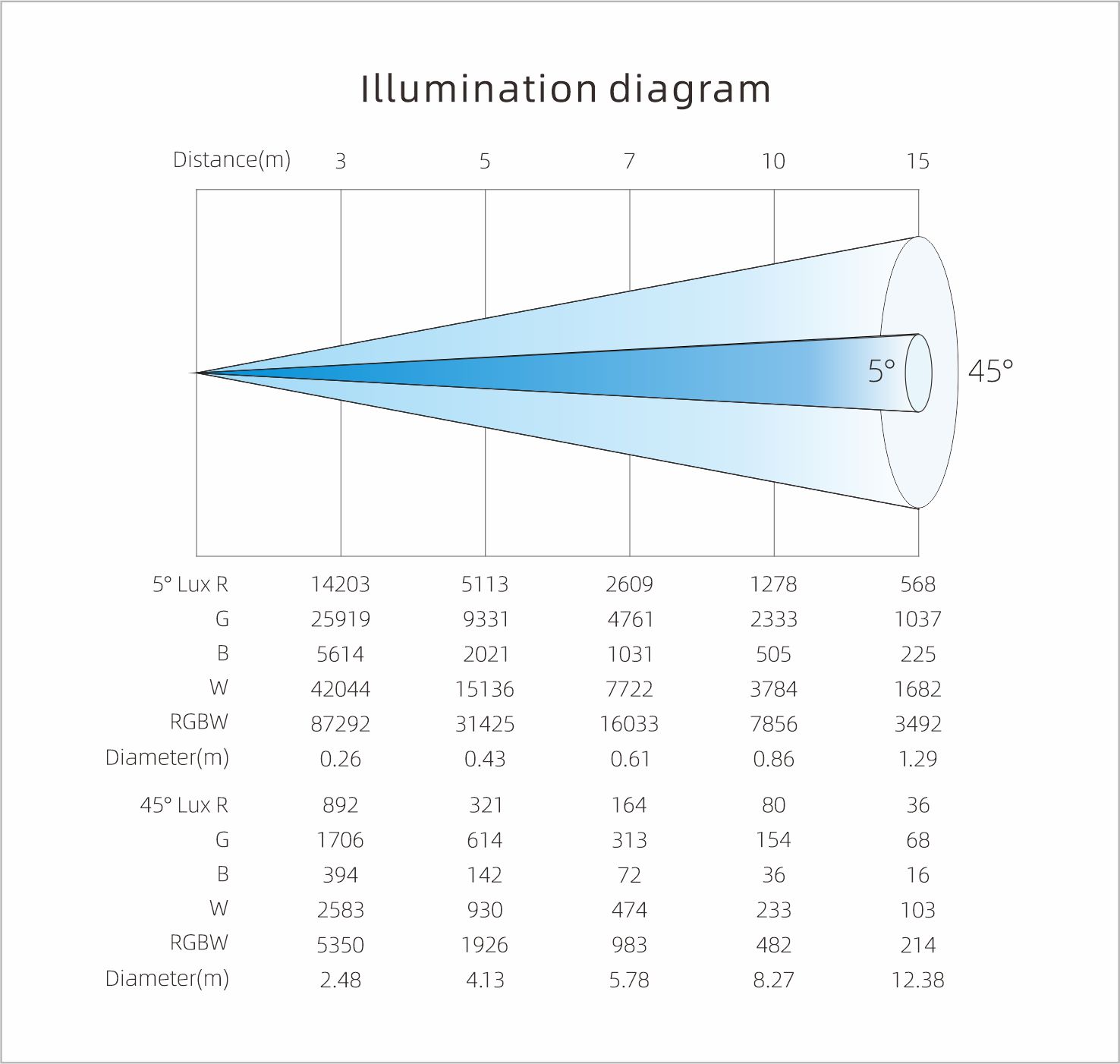

Zoom angle : 4.5°~60°.
Three operating modes : wash, beam, FX (Kaleido effects)
Color : RGBW macro color system.
Light color temperature range : 2500K to 10000K
CRI : Ra≥75
Effect macro : Static effect macro functions and Dynamic effects macro function
Strobe : Electronic pulse strobe and random strobe
Focus : Motorized focus
Dimmer : 0 to 100% 16 bit linear dimmer



Control System

Lens rotation : Front lens rotation: 360 degree, infinite rotation
Front ring AURA : led chip can be controlled individually
Individual LED control : Independent Individual LED control
Pan/Tilt : Pan/Tilt Travel : 540°/218°; Pan/Tilt Fine : 2.11°/0.85°; Pan/Tilt Speed : 2.5S/1.2S
Control protocol : DMX 512,RDM ,ARTNET , Wireless(optional)
Channel mode : 26CH , 45CH,98CH, 79CH, 22CH, 16CH,39CH,35CH
Display : 1.91 inches OLED display screen. With Chinese and English two version language.
Noise level control : Auto mode,stage mode,studio mode
Intelligent control : Display board can record device’s using time , show device’s temperature, channel data and software version .



Other functions

Error alarm : Automatic alarming for fixture error
IP set : built-in long-life battery, can set address without power connection
Software upgrade : Upgrade via DMX connector
Magnetic encoder : non-touch magnetic rotation encoder ,100% correct position memory
RDM : RDM signal two-way transmission
Safety Devices : Overcurrent and overheating protection.
DMX and RDM connectors : Locking 3 pin or 5 pin XLR IN/OUT
Power connector : Seetronic
Hanging system : foldable light hook



Appearance Parameters

Housing : Metal base and Anti-fire Plastic
IP rate : IP66

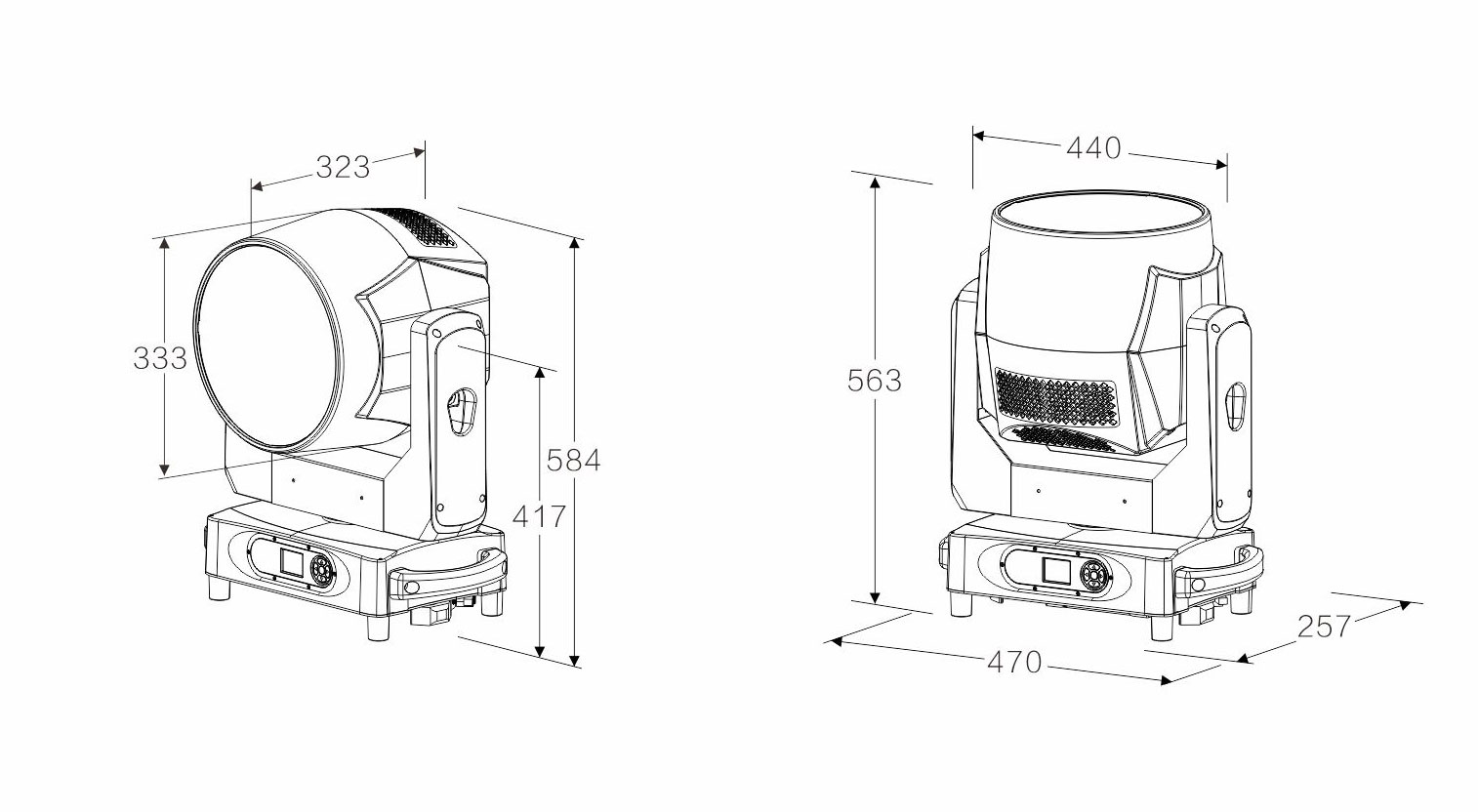

Light dimension : 470 x 333 x 563mm
N.W : 29kg/pcs
Carton dimension : 530 x 395 x 635mm
G.W with carton : 32.8 kg

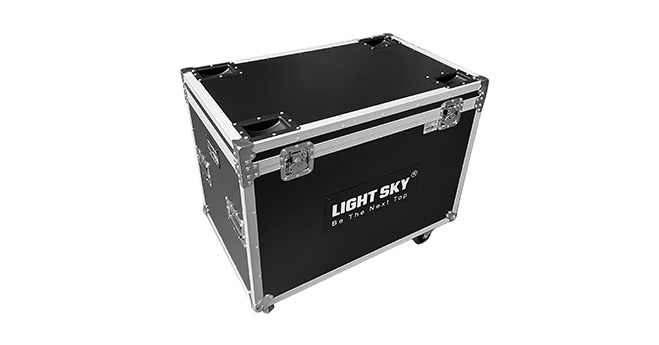

Flycase dimension : 925 x 580 x 785mm
G.W with fly case : 101.8kg (2 in 1)











Attention : All downloaded light library files on this site need to be decompressed before they can be used.
