Optical

Light Source: 14 × 20W RGBA LEDs

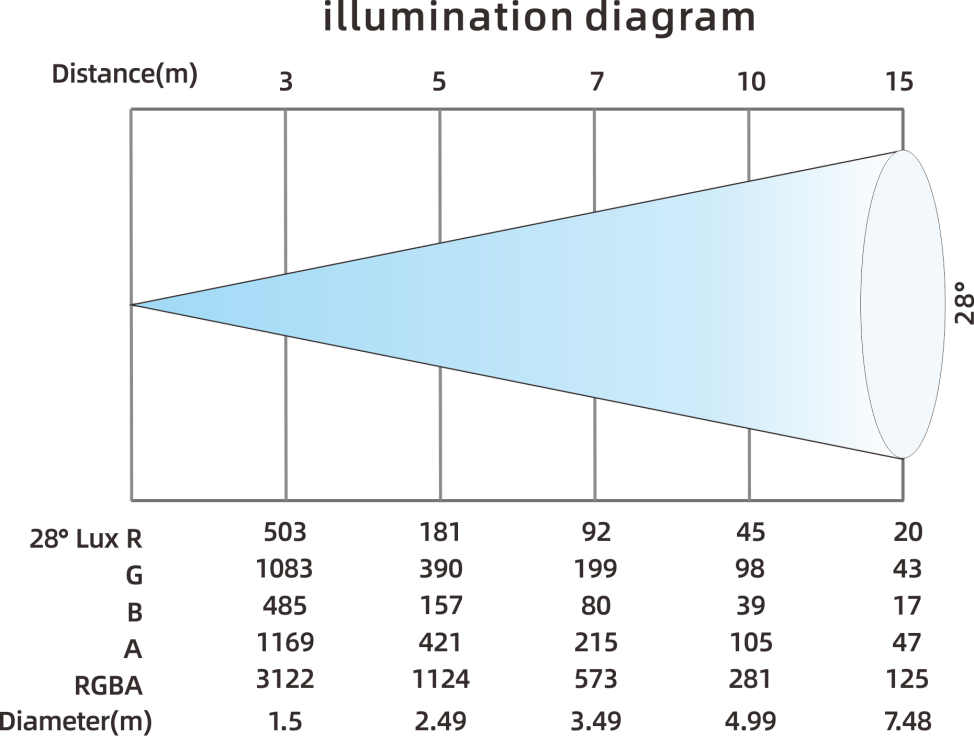

Beam Angle: 28°

Field Angle: 60°

Colour Temperature Output: 2500K–10000K

Illuminance: 1124 lx @ 5 m

Lumen Output: 11,347 lm

Lifetime: 20,000 h

Effects

Color Mixing: Uniform RGBA color mixing system with rainbow effect

Control: Light sources support zonal control of RGBA and white light with dynamic effects

Effect Macros: Static and dynamic effect macros

Dimming: Electronic dimming with four selectable dimming curves

Strobe: 1–25 Hz electronic strobe and random strobe

Control & Programming

Channel: 16 CH (default), 68 CH

Control Protocols: Standard DMX512, RDM, Art-Net (optional), sACN (optional)

Data Connection: 3-pin (default) or 5-pin DMX input/output, RJ45 Ethernet input/output (optional)

Display: LCD display

Software

Software Upgrade: Upgrade via DMX signal interface

Temperature Management: Intelligent temperature control to ensure LED lifetime

Power & Electrical

Input Voltage Range: AC 100–240V, 50/60Hz

Max Power Consumption: 343 W

Power Factor: > 0.93

Max Current: 1.6 A / 220 V; 3.4 A / 100 V

Dimensions & Weight

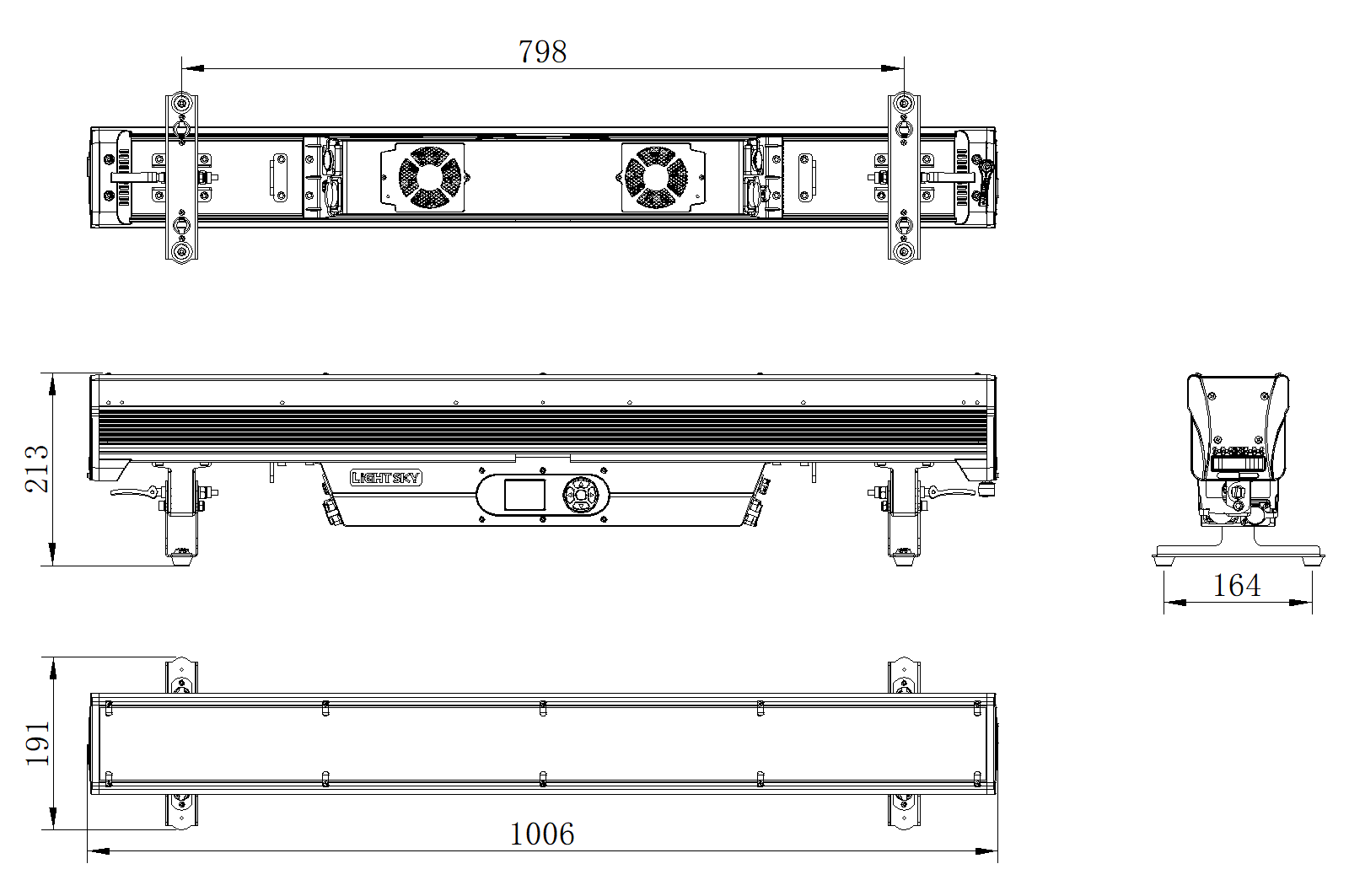

Net Dimensions: 1006 × 191 × 213 mm

Net Weight: 12.0 kg

Carton Size (Standard): 1100 × 310 × 245 mm

Gross Weight: 16.2 kg

Other

IP Rating: IP66

Operating Temperature: -20°C ~ 45°C

Max Surface Temperature: 65°C

Built-in mortise locking system for fast fixture alignment and connection

Factory Configuration

Power Cable: 1 pc

Signal Cable: 1 pc (3-pin default / 5-pin optional)

Safety Cable: 2 pcs

Quick-Lock Components: 2 sets

Clamps: 2 pcs

Optional Accessories / Packaging

Flight Case: Code B0101190001

Barn Doors

Frost Filters: C-HE20 / C-HE30 / C-HE40 / C-HE55
