OPTICAL

Light Source : OSRAM NED40
Beam Angle : 1.3°(φ5mm blank circle)/ 0.8°（φ3mm blank circle）/ 0.5°（φ1.5mm blank circle)
Optical Lens : φ174mm
Color Temperature : 7000 K
Color Rendering Index (CRI) : Ra≥80

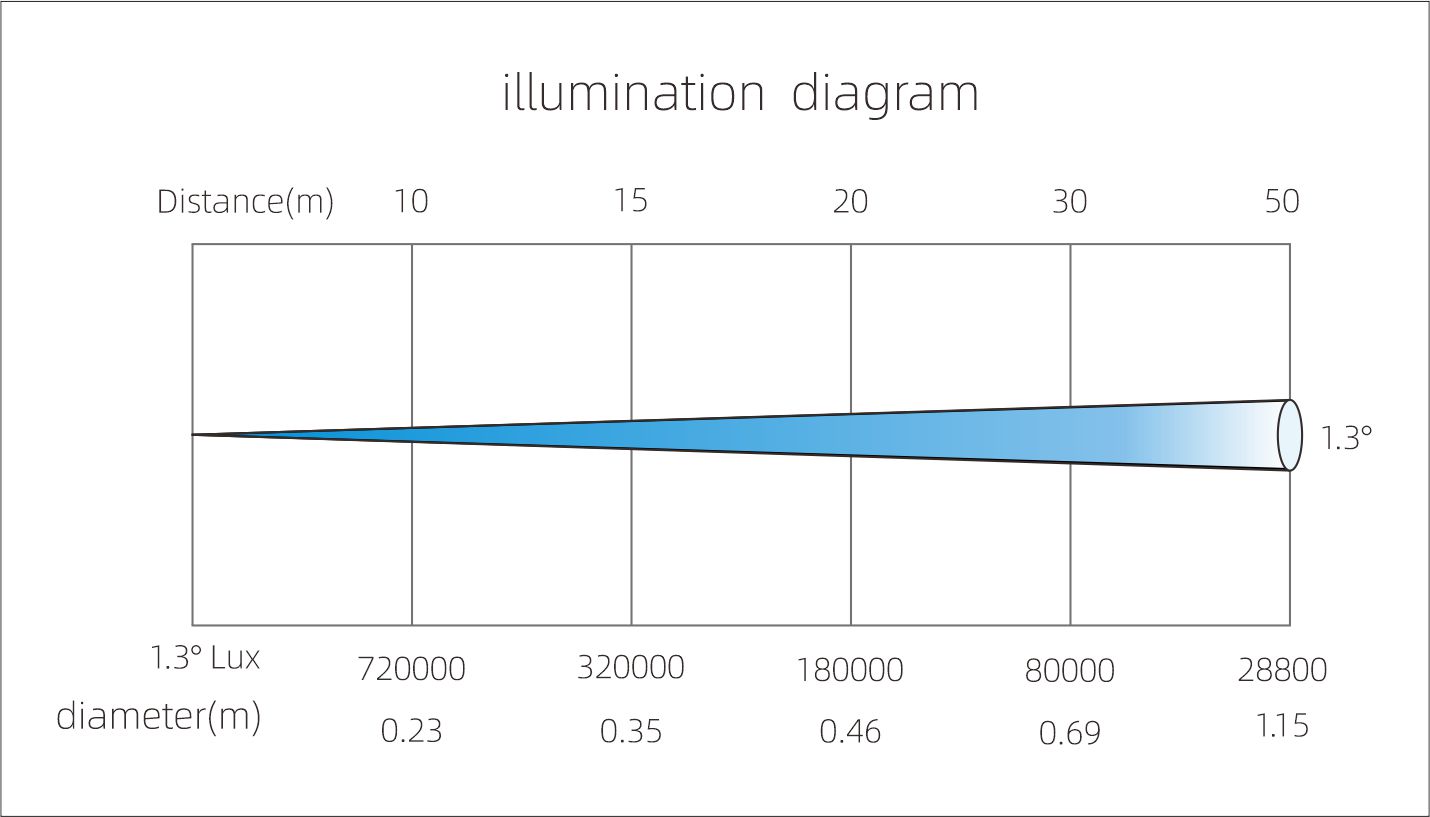

Illuminance : 720000 Lux@10m

COLOR

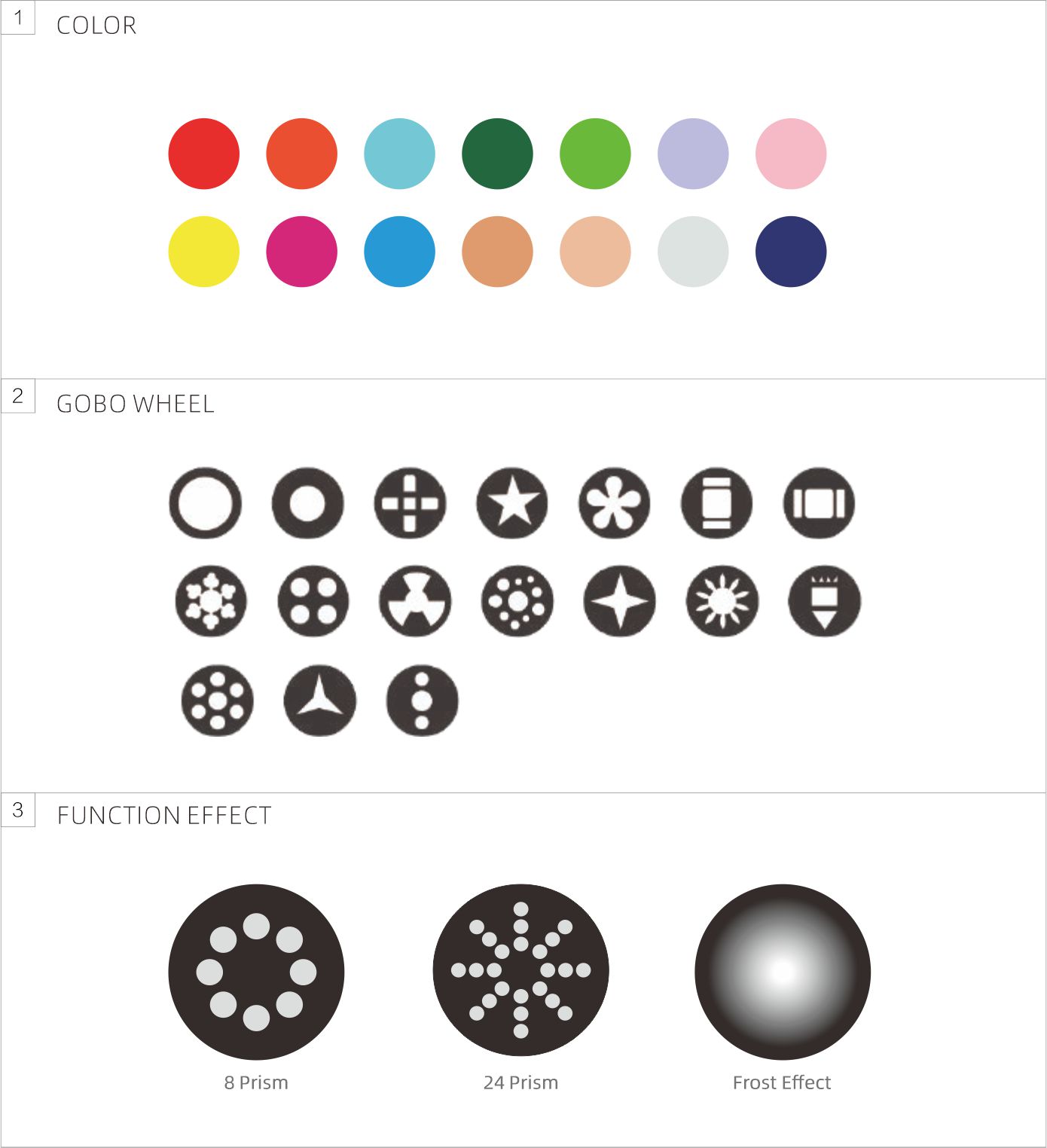

Color Wheel : 14 Colors + Blank, Bi-directional rainbow effect, dual-color stepping gradient (linear movement), and bidirectional color wheel rotation.

GOBO

Static Gobo Wheel : 17 fixed gobo +1 Blank ,supporting flowing water effect and jitter effect.

EFFECTS

Prism : 8-facet prism + 24-facet prism: Bidirectional independent rotation, individual switching, and multiple combination.
Frost : Independent Frost Effect
Focus : Motorized focus
Strobe : Adjustable pulse strobe (0.5-12Hz) and random strobe
Dimmer : 0 to 100% linear dimmer

CONTROL

Control Channels : 15CH
Protocols : DMX512, RDM, ArtNet(optional)
DMX and RDM connectors : 3 pin or 5 pin XLR IN/OUT
Display : LCD screen
Upgrade software via DMX 512 protocol

PAN/TILT MOVEMENT

Pan Axis : 540°, 8-bit/16-bit precision movement
Tilt Axis : 270°, 8-bit/16-bit precision movement

POWER

Voltage : AC 100-240V 50/60Hz
Max Power : 460W, PF0.98

SIZE & WEIGHT

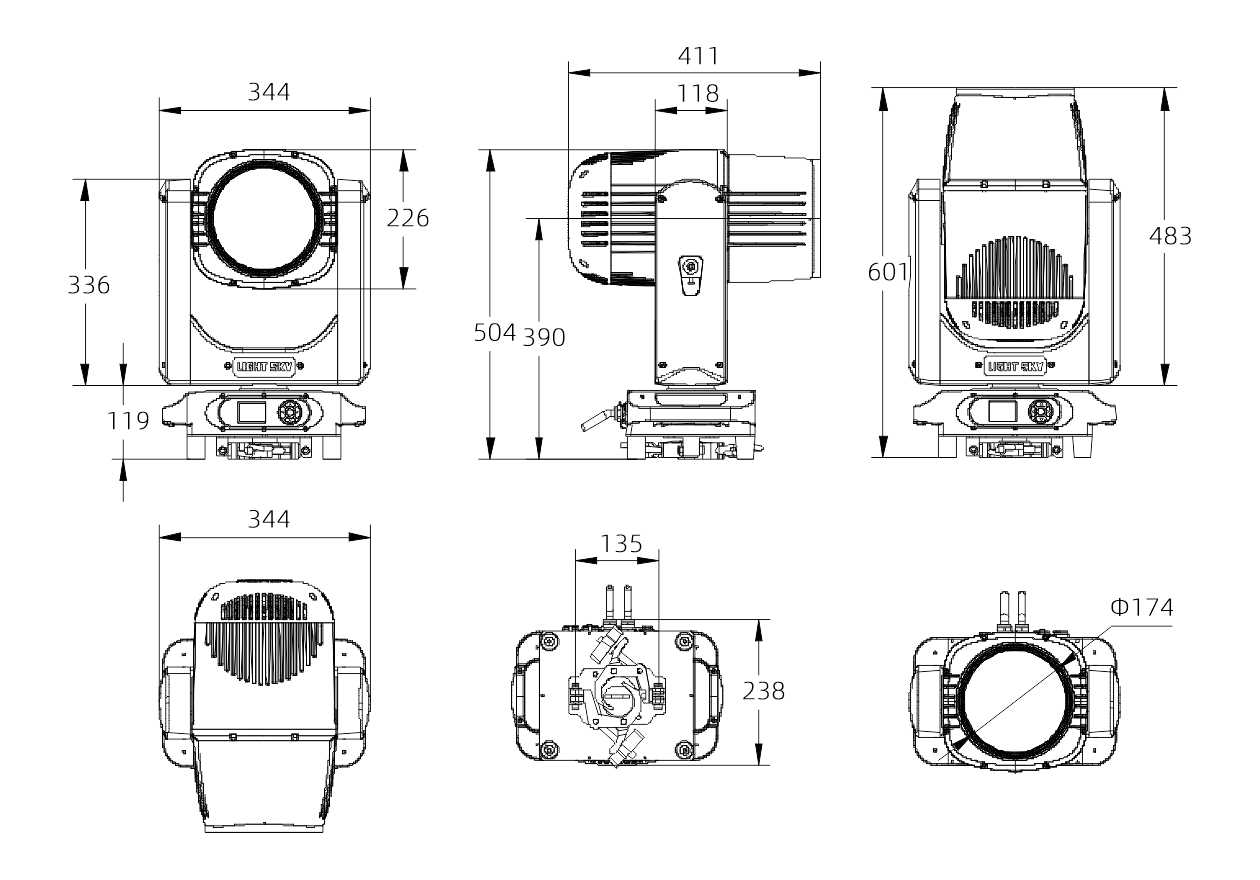

Product Size: 344×238×601mm
Net Weight: 22.1 kg
Carton Packaging (default): 425×305×750mm
Gross weight: 25.7kg

OTHERS

IP Rate: IP66
Operating Environment: -10℃~40℃
Max Surface Temperature: ≤80℃
Max. Current : 2.08A/220V, 4.56A/100V
