Description
OPTICAL
Light source : 880W white LED module
Zoom angle : 5.5°- 52°
Optical lens : coated with high anti-reflection film, 180mm diameter
Color temperature : 6800K
CRI : RA≥70
Luminous flux : 40000lm
COLOR
CMY : CMY infinite color blend
CTO : CTO color temperature linear adjustment (2800K-6800K)
Color : 6 color pieces + white light + high CRI piece, can achieve bi-directional color rainbow effect, double color step gradient(liner movement), color wheel bi-directional rotation, random color mode
GOBO
Gobo wheel : 2 rotating pattern plates, 14 glass pattern plates, dynamic stacking effect, can be inserted and replaced, can realize rotation, Flow, jitter effect;
Rotary plate 1 : 7 kinds of glass pattern + white circle, pattern sheet outer diameter 26.9mm, pattern sheet inner diameter 21.5mm
Rotary plate 2 : 7 kinds of glass pattern + white circle, pattern sheet outer diameter 26.9mm,pattern sheet inner diameter 21.5mm
Eight-way cutting : four gratings achieve fast and smooth cutting, and eight cutting directions and angles can be individually controlled. Each piece can achieve complete light closure, the whole cutting module can rotate ±55°.
EFFECTS
Prism : Four facet prism + four linear prism,bidirectional rotation,can be switched independently, can be superimposed
Frost effect : Heavy atomization+ light atomization, can be switched independently, can be superimposed
Iris : With electric aperture, 5-100% linear adjustment, with macro function and multiple effect changes
Dimming : Electronic dimming, 0-100% linear dimming, uniform spot
Strobe : Electron strobe – speed is 1-25 times/S
LED refresh frequency : 1000Hz ~ 25KHz
CONTROL
Control channel : 43CH, 55CH
Protocol : DMX512 protocol, RDM protocol, Art Net (optional)
Data connection : Three core or five core signal input/output
Interface :RJ45 interface (optional)
Display : LCD liquid crystal display
SOFTWARE
Software :Upgrade software via DMX signal or USB interface
Silent fan : Three working modes (high brightness/mute/ultra-quiet)
Intelligent temperature control : Intelligent temperature control to extend LED lifespan
X/Y ANGLE OF MOTION
X axis : 540° 8bit/16bit precision scan
Y-axis : 270° 8bit/16bit precision scan
POWER
Input voltage : AC 100-240V 50/60Hz
Maximum power : 1280W PF 0.996
SIZE & WEIGHT

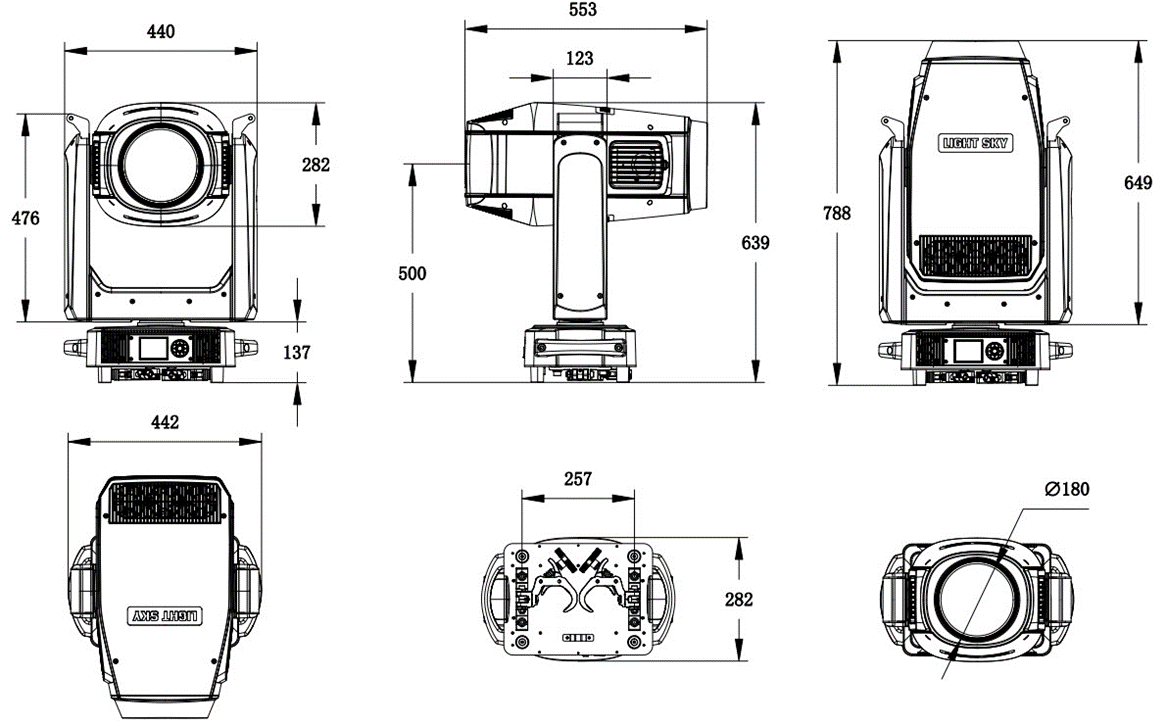

Light size : 442x266x781(mm)
N.W. : 37.5kg
Carton size(default carton packing) : 520x370x870(mm)
G.W. : 42.0kg
OTHERS
IP rating : IP20
Working environment : -10℃ ~ 40 ℃
Maximum temperature of light body surface : 80 ℃
Maximum number of connections : none
Maximum current; 6.4A/220V;12.8A/110V
