Description

OPTICAL

Light source : OSRAM 550W LAMP
Average lifespan : 1500h

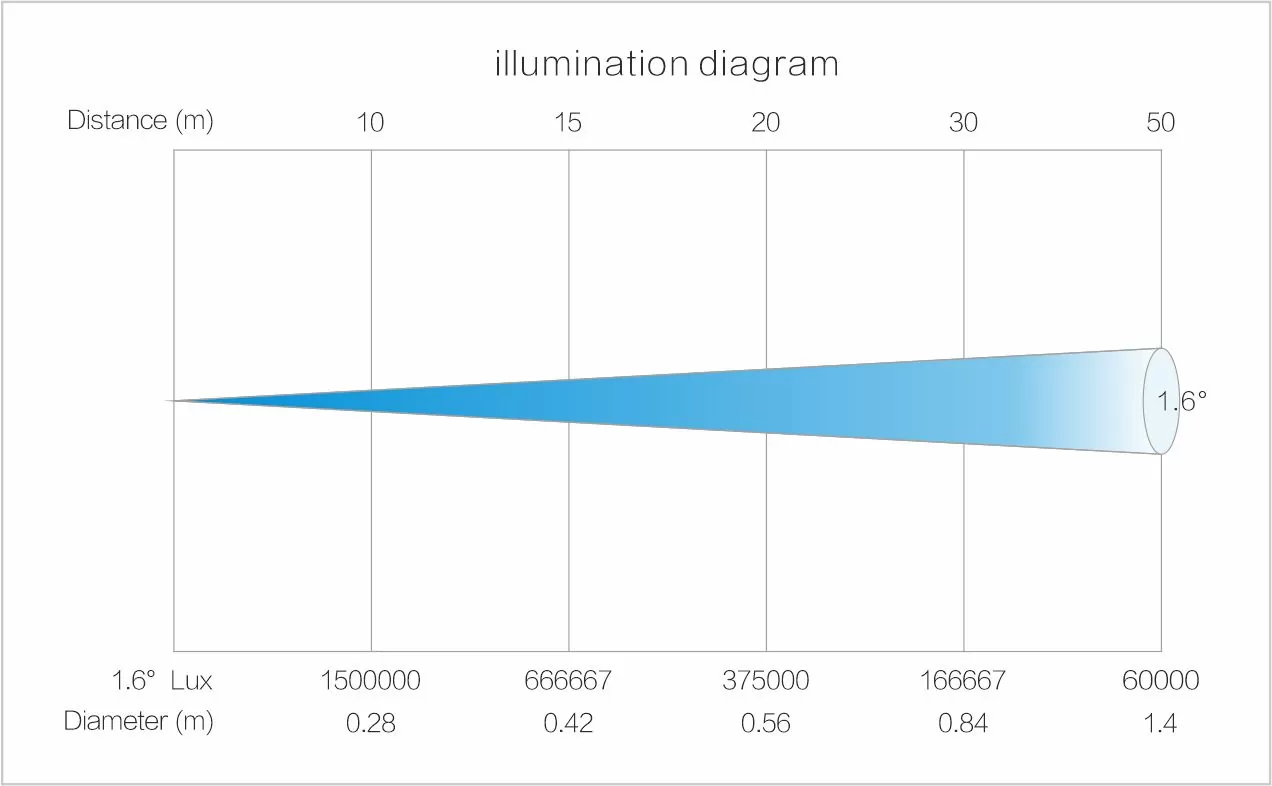

Beam angle : 1.6°
Optical lens : dia. 252mm
Color temperature : 7400K
CRI : Ra≥76
Fixture output : 18700 Lm





COLOR

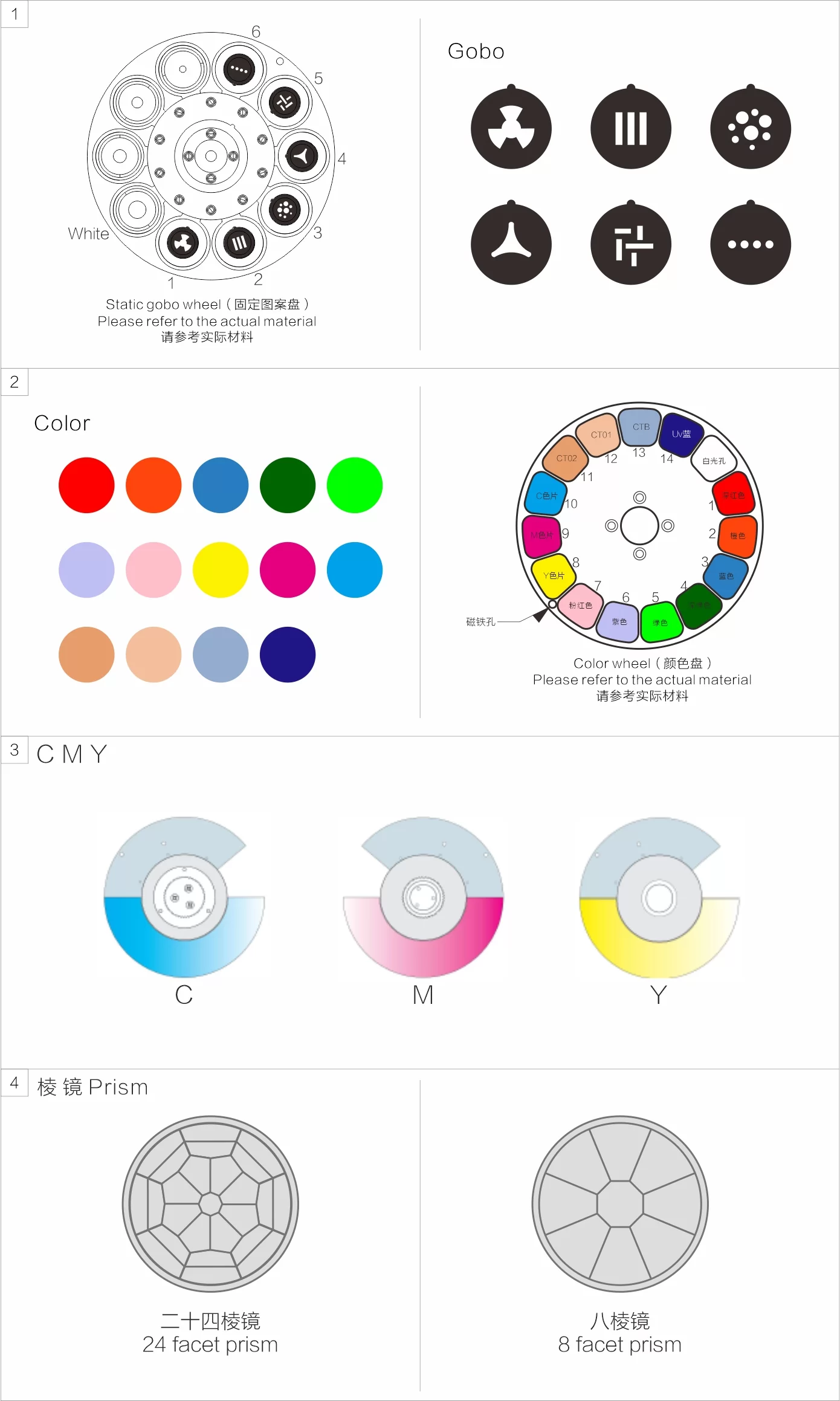

Color : 14 colors+ white light, two-way color rainbow, two-color step-by-step gradient (linear movement), two-way rotation of the color wheel, random color mode
C M Y : CMY infinite color mixing system





GOBO

Fixed Gobo : 9 gobos + white, two-way shaking and flowing water effect, pluggable and replaceable (the outer diameter of the gobo is 14mm, the inner diameter of the gobo is 8mm)





EFFECTS

Prism : 8-facet prism and 24-facet prism, can be rotated in both directions and superimposed
Frost : independent frost effect
Dimming : 0-100% linear dimming
Strobe : 0.5-12 times/second adjustable pulse strobe and random strobe
Focus : high-precision electric focus





CONTROL

Control channel : 18CH
Control mode : DMX-512, RDM
DMX and RDM data input/output : 3-pin XLR (optional 5-pin)
Display : OLED screen





SOFTWARE

Software upgrade : Upgrade with DMX
Intelligent temperature control : Intelligent temperature control to extend Lamp lifespan





X/Y ANGLE OF MOTION

Pan movement : 540°
Tilt movement : 270°





POWER

Input voltage : AC 100-240V 50/60Hz
Maximum power : 770W





SIZE & WEIGHT

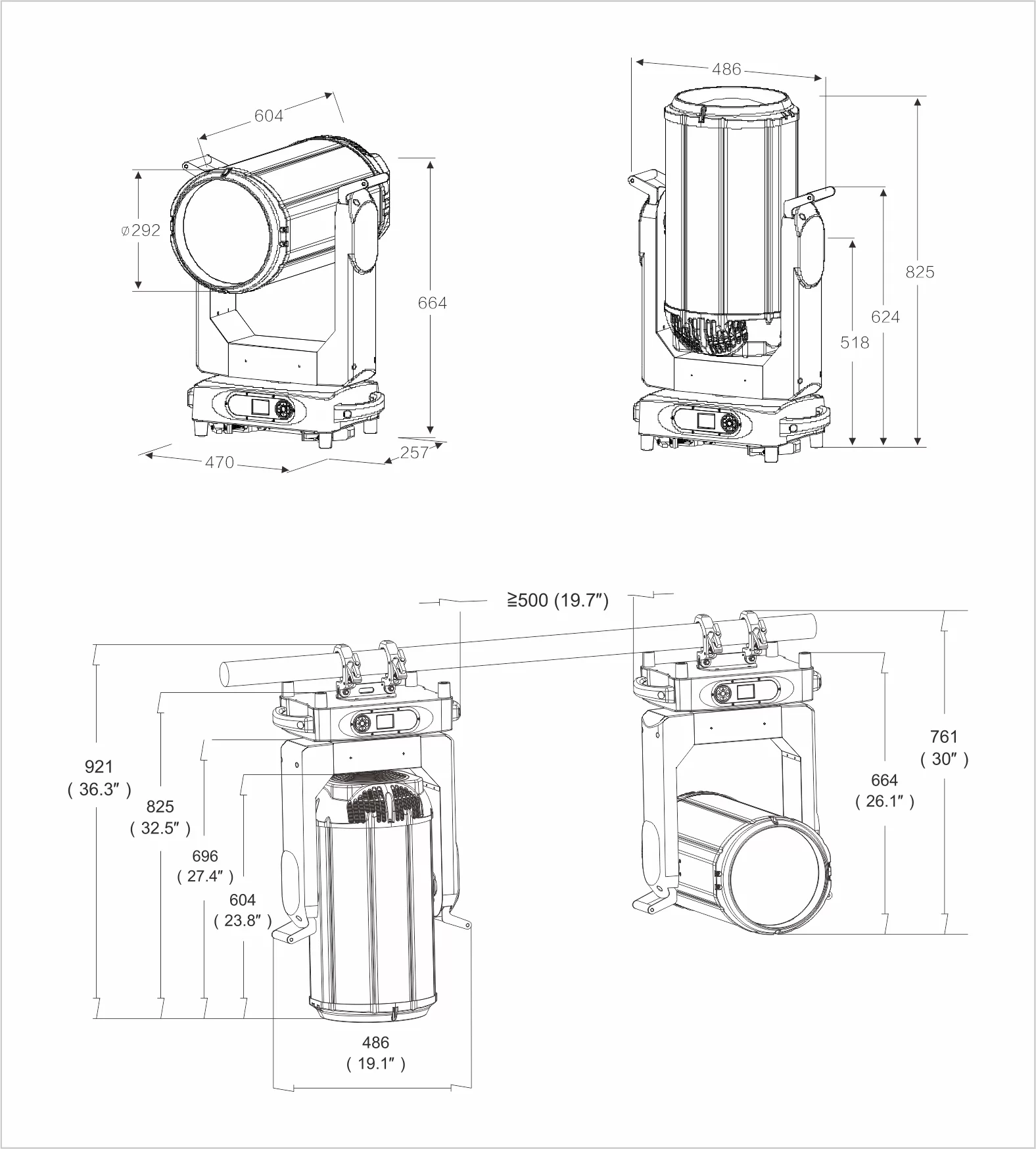

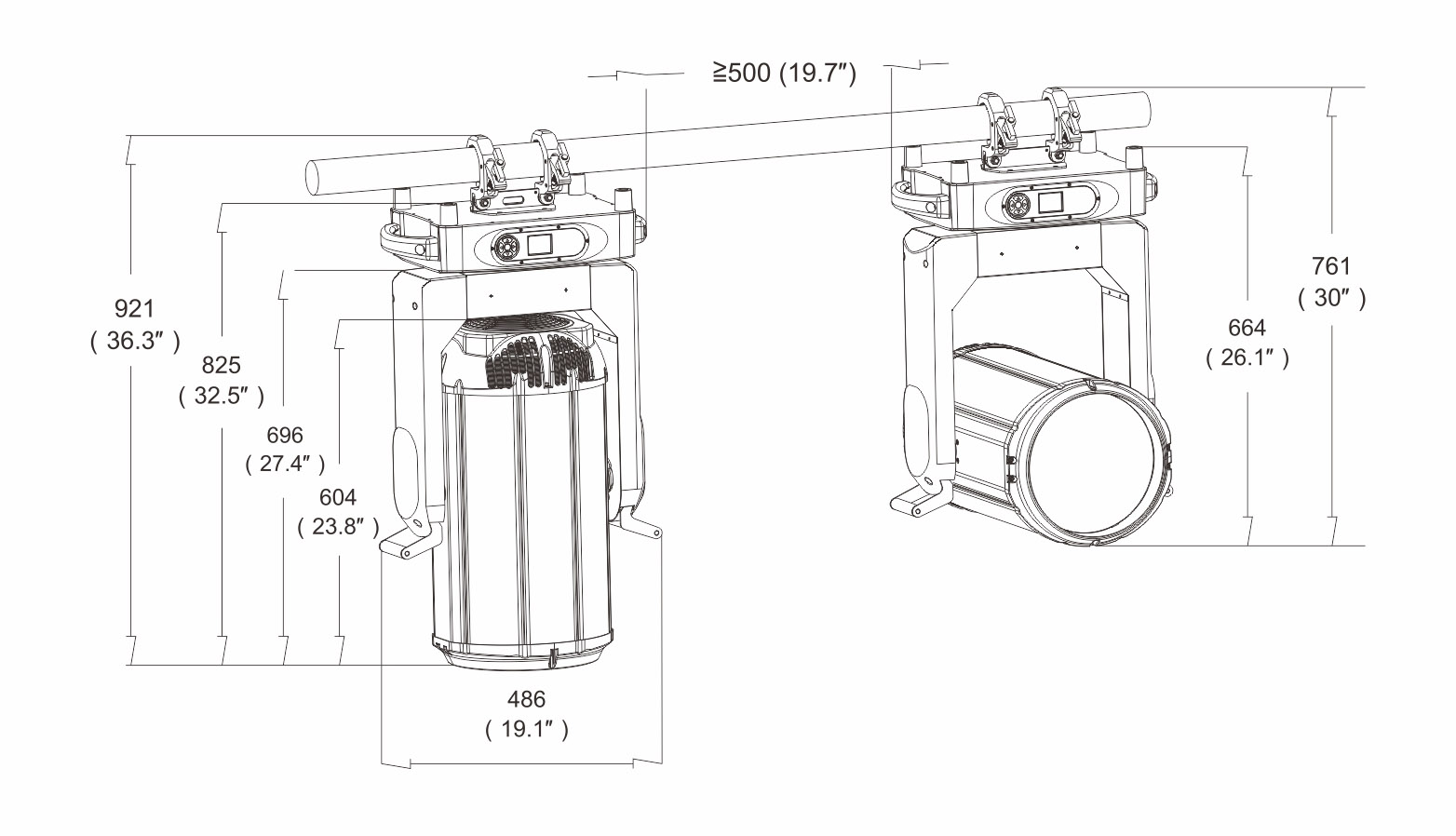

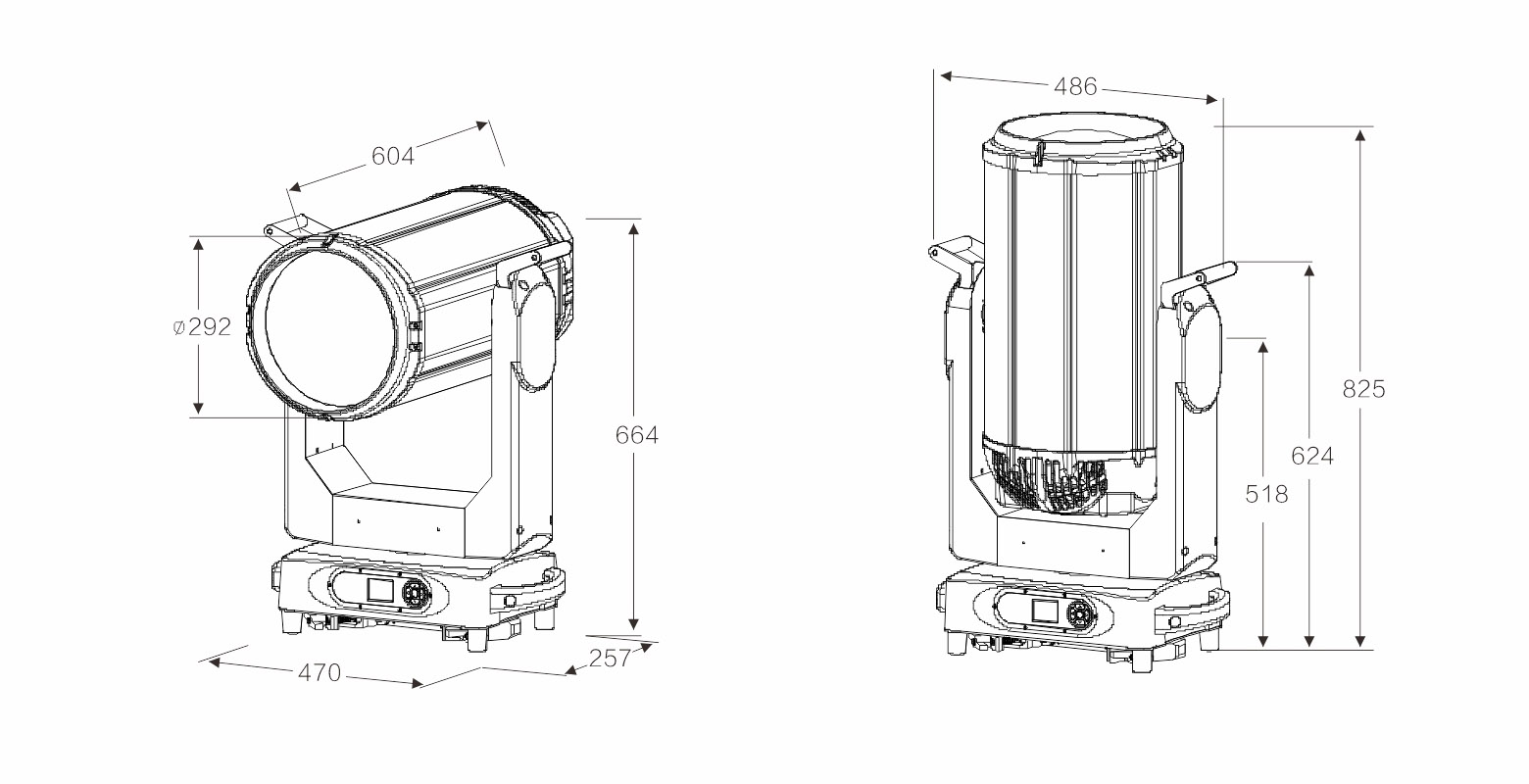

Product size : 486×257×825(mm)
Carton packaging (single unit) : 910×560×375(mm)
Net weight : 39.0 Kg
Gross weight : 43.2 Kg





OTHERS

Protection class : IP66
Working environment : -20℃ ~ 40℃
Maximum surface temperature of the lamp body : 80°C















Attention : All downloaded light library files on this site need to be decompressed before they can be used.
