Optics

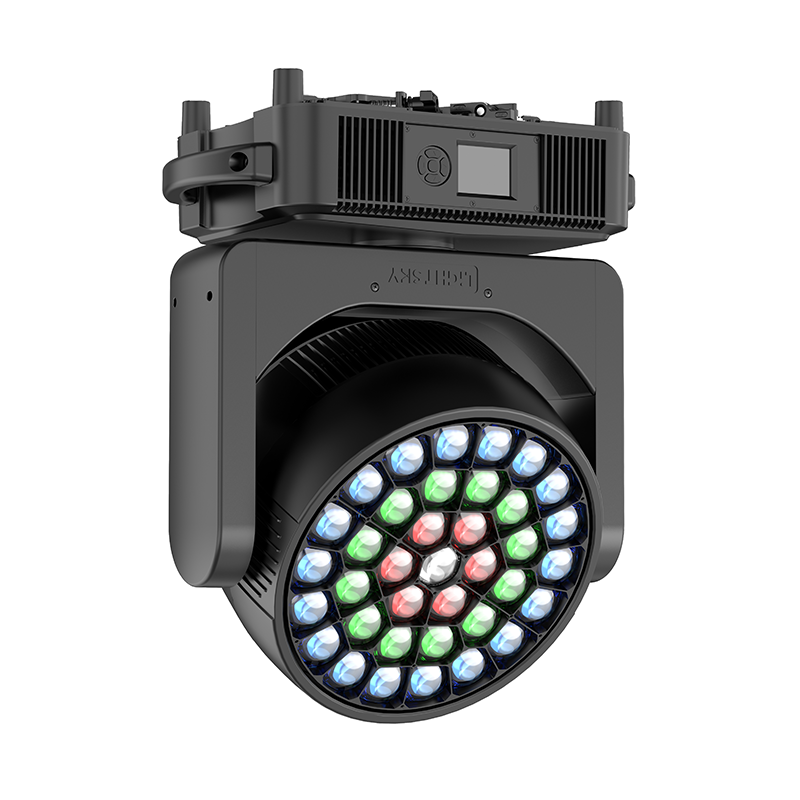

Light Source: 37×60W RGBWLA LED

Beam Angle: 5°~42°

Field Angle: 7.8°~65°

Colour Temperature Output: 2500K – 10000K

Color Rendering Index (CRI): Ra ≥ 95

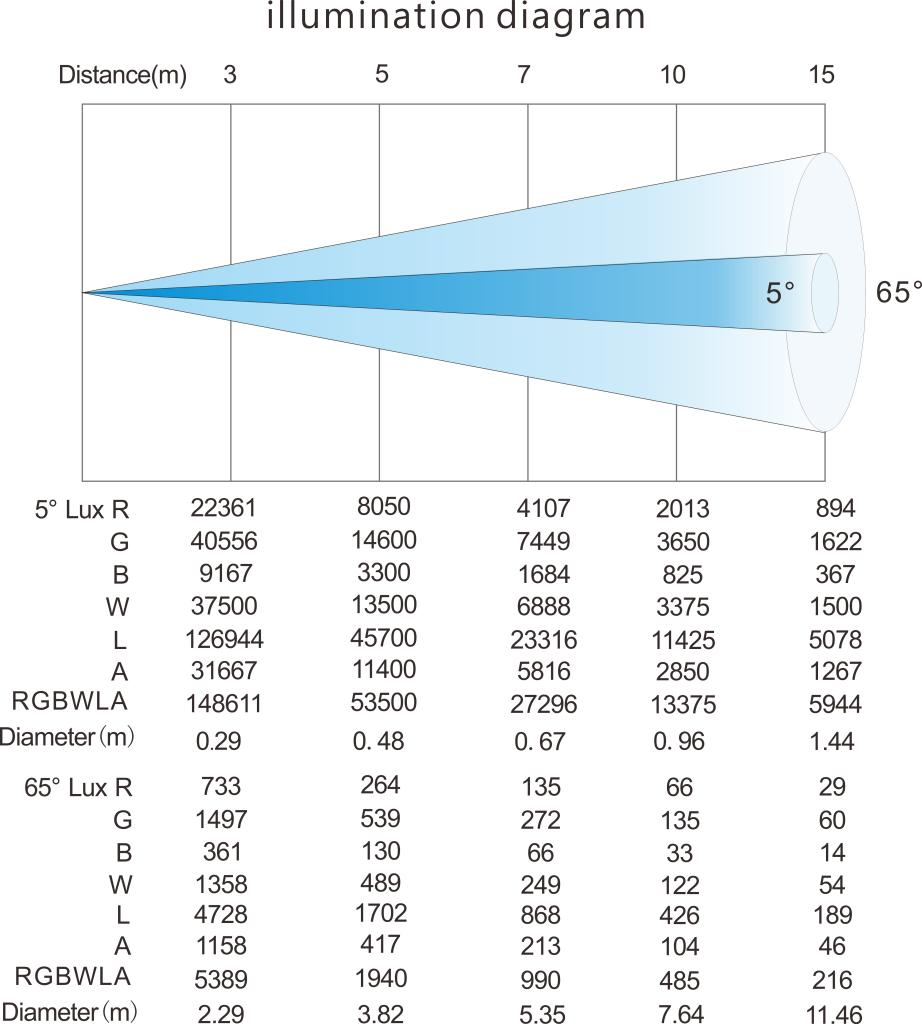

Illuminance : 53, 500 lx@ 5m

Lumem Output: 20, 000 lm

Light Source Theory Life Span: 30, 000 h

LiGHTSKY Colorfy Calibration

Effects

Color Mixing System: Uniform RGBWLA color mixing system and rainbow effect

Zoom System: Linear electronic zoom

Ring Control: Light source supports ring control with dynamic ring effects

Effect Macros: Includes static and dynamic effect macro functions

Dimming: Electronic dimming with four dimming curves, four dimming frequencies, and four dimming speeds

Strobe: 1-25Hz electronic strobe and random strobe effects

Control and Programming

Control channels: 26CH, 44CH, 56CH, 39CH(see channel chart for details)

Protocols: DMX512, RDM, Art-Net, sACN

Control Protocols: 3 pin or 5 pin XLR IN/OUT, RJ45 IN/OUT

Display: LCD screen

Software

Software Upgrade: Via DMX/USB interface

Temperature Intelligent Control: Ensures LED longevity

Pan/Tilt Movement

Pan: 540°, 8-bit / 16-bit precision

Tilt: 215° , 8-bit / 16-bit precision

Automatic reset with error correction

Pan/Tilt Lock

Power and Electrical

Input Voltage Range: AC 100-240V 50/60Hz

Max Power Consumption: 1500W

Power Factor: 0.977

Maximum Current of Fixture: 6.63/220V,15A/100V

Size and Weight

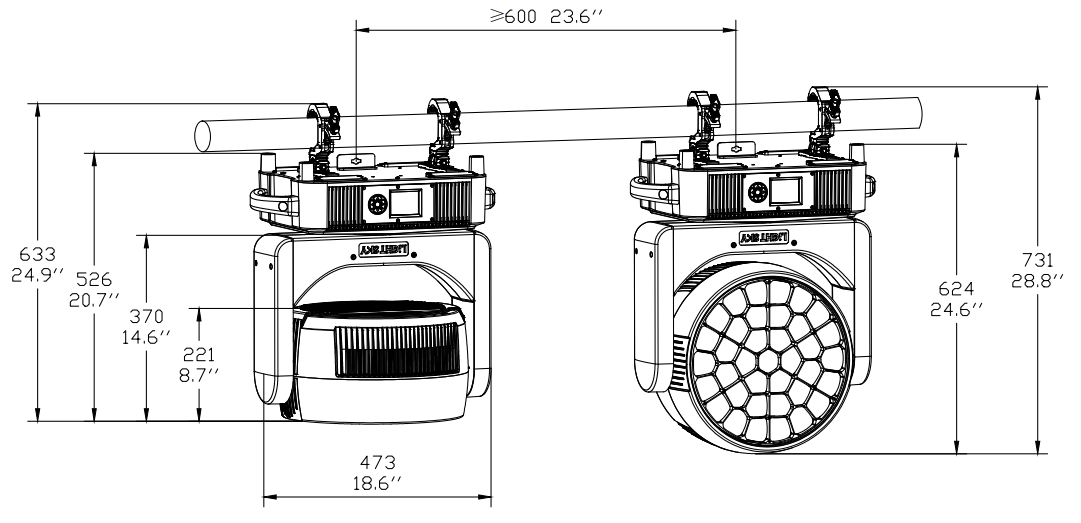

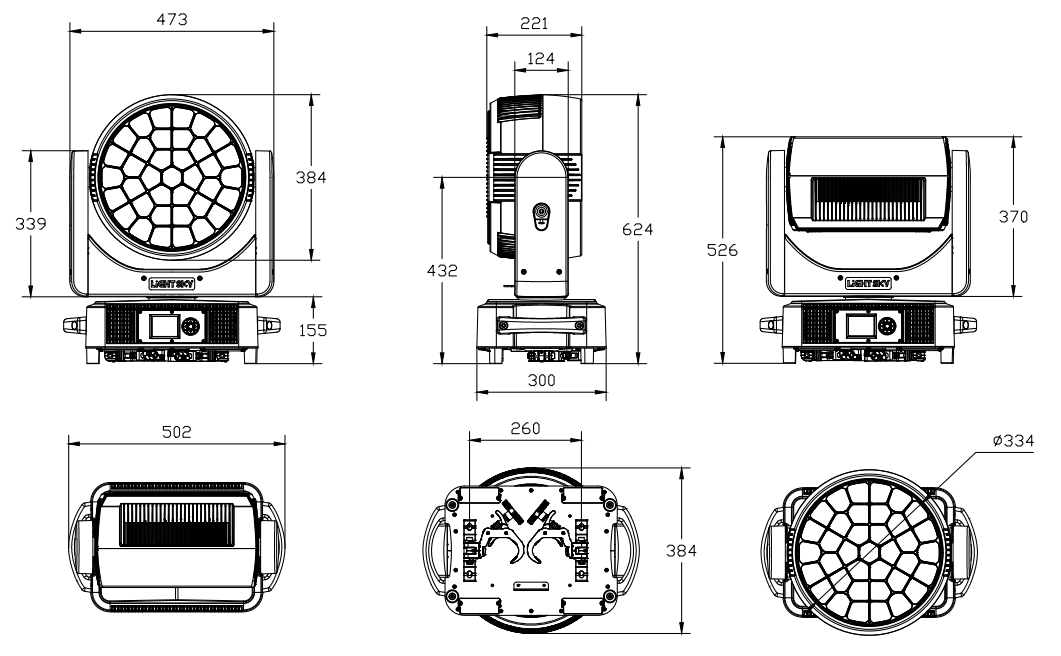

Product Dimensions: 502mm × 384mm × 624mm

Net Weight: 28.6kg

Carton Dimensions: 620mm × 470mm × 655mm

Gross Weight: 35.7kg

Other

IP Rate: IP20

Operating Environment: -10℃ ~ 45℃

Maximum Surface Temperature of Fixture: 55°C

Factory Configuration

Power Cable: 1 pc (Part No.: C1400050050)

Signal Cable: 1 pc (Part No.: C1400060031)

Safety Rope: 2 pcs (Part No.: F0200010010)

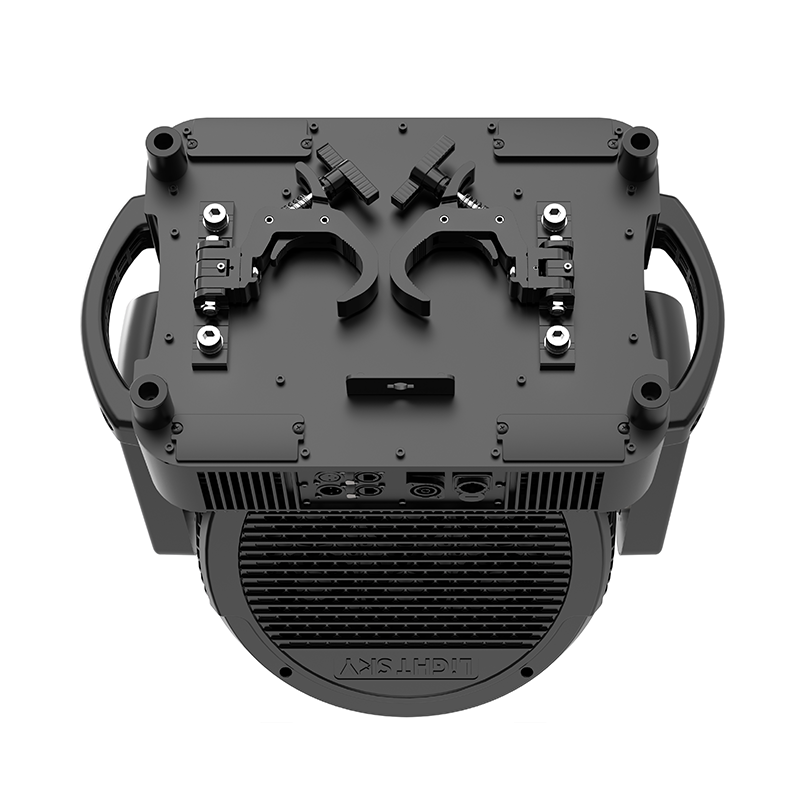

Clamp: 2 pcs Compatible with tubes of Ø50-60 mm(Part No.: C0499990061)

Optional Accessories/Packaging

Flycase Part No.: B0101160001

Flycase Dimensions(2 in 1): 970mm × 660mm × 815mm

Flycase Gross Weight(2 in 1): 99.8kg
