LIGHT SOURCE & OPTICAL

Light source: 300W white LED module
Beam angle : 1.77° (φ6.5mm Beam reducer) / 1.3° (φ5mm Beam reducer)/ 0.8° (φ3mm Beam reducer)/ 0.5° (φ1.5mm Beam reducer), switchable
Optical lens: High-transmittance coating, φ174mm
Color temperature: 7400K ±250K
Color Rendering Index: RA≥70

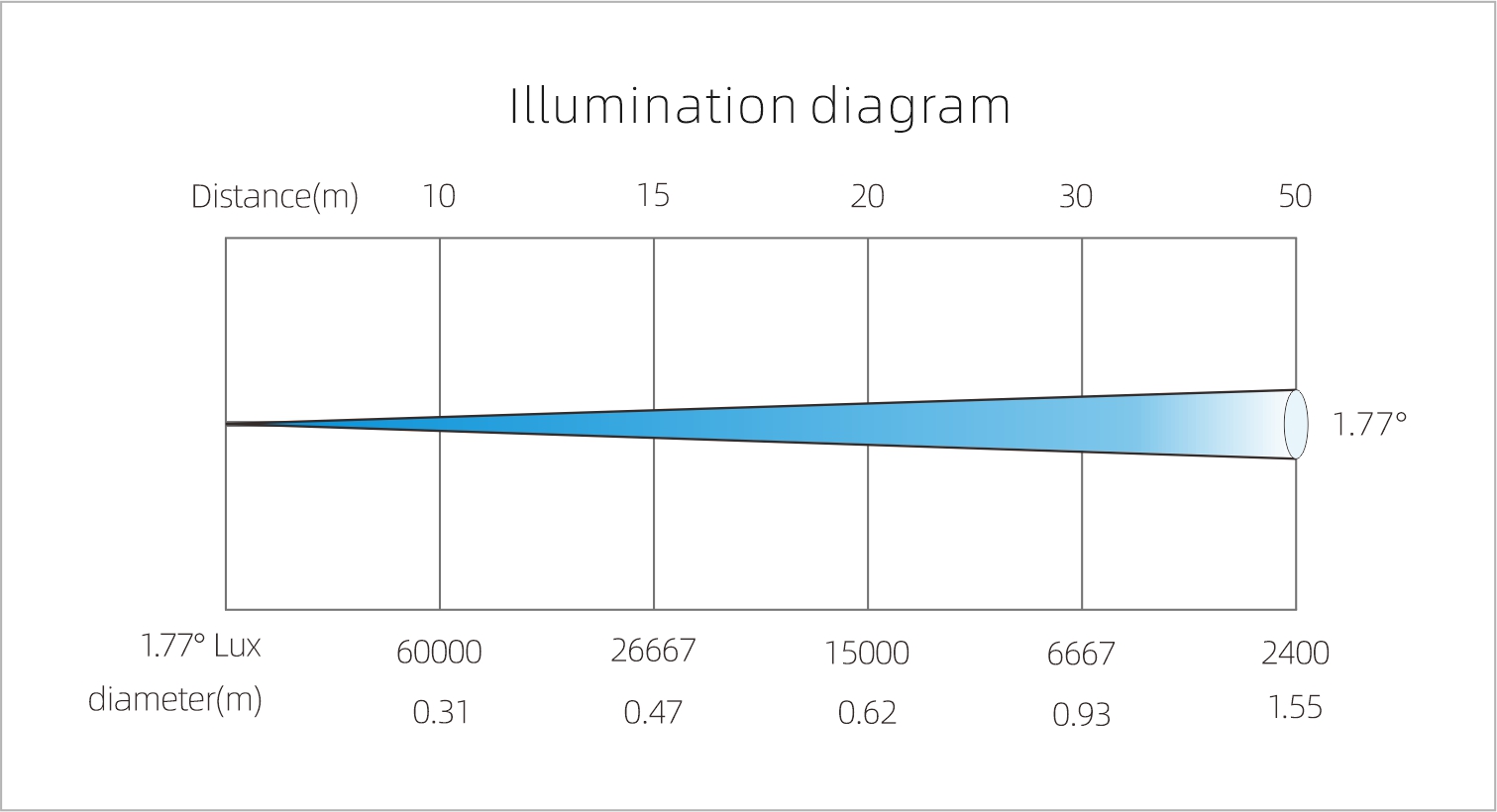

Illuminance: 60,000 Lux@10m
LED source life expectancy: 50,000 hours*

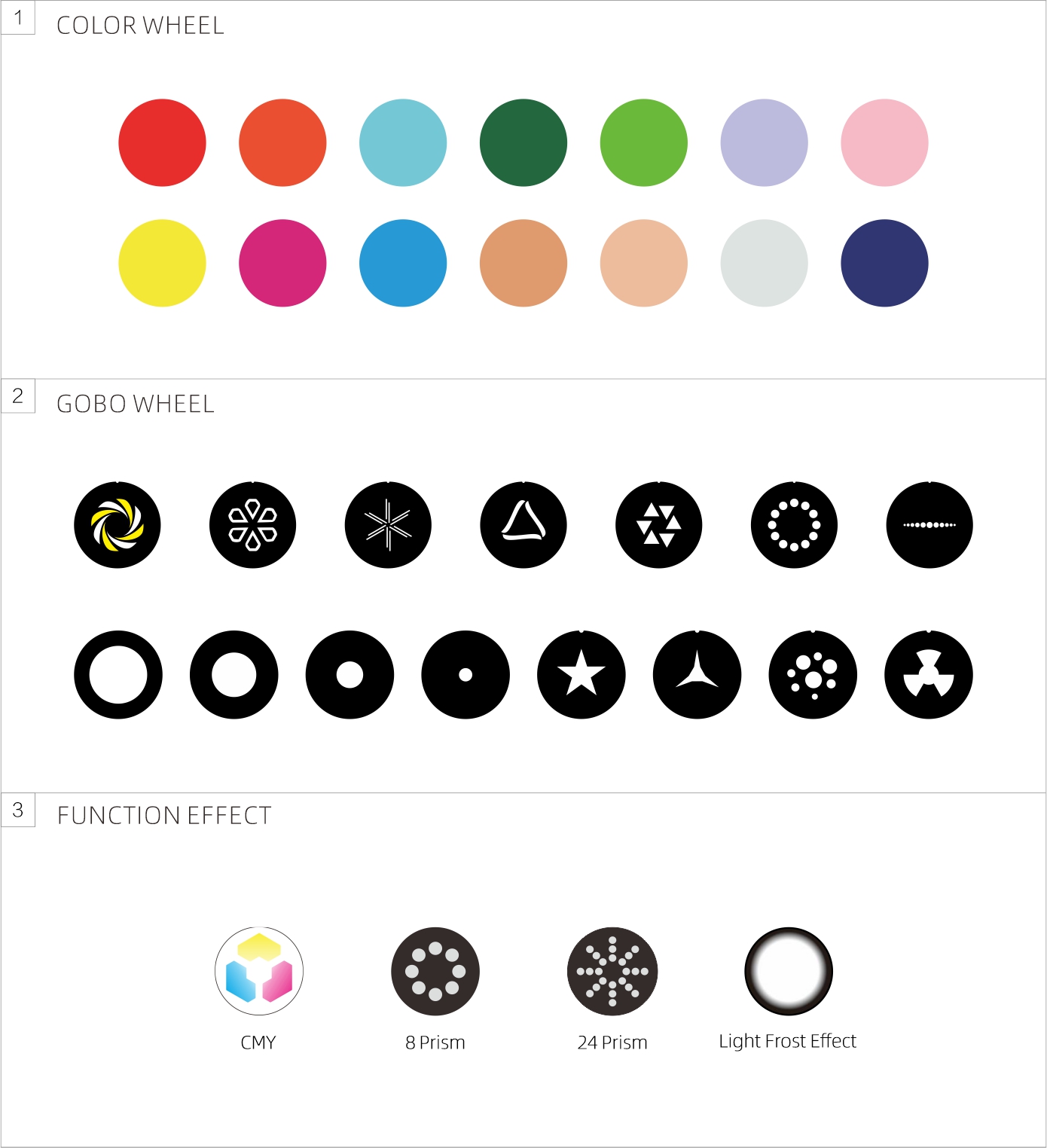

COLOR

CMY infinite color mixing
14 color filters + blank: Bidirectional color rainbow, dual-color gradient, color wheel rotation, random modes

GOBO

7 fixed gobos + blank + 7 removable glass gobos (self-rotation/flow/jitter effects)

EFFECTS

Prism: 24-facet prism + 8-facet prism, bidirectional rotation
Frost effect: Light Frost
Dimming : 0-100% linear dimming with uniform spot
Strobe speed: 0.5-25 times/sec
LED refresh rate: 1000Hz~25KHz

CONTROL AND PROGRAMMING

Control channels: 23CH (see channel chart for details)
Protocols: DMX512, RDM, ArtNet (optional)
Data connection: 3-pin or 5-pin
Display: LCD screen

SOFTWARE

Software upgrade via DMX signal
Intelligent temperature control for LED lifespan
Silent fan with three modes: High-brightness/Standard/Silent

PAN/TILT MOVEMENT

Pan axis : 540° (8bit/16bit precision)
Tilt axis: Infinite rotation
Auto-correction reset function
Fixed Lock: Tilt lock

POWER AND ELECTRICAL

Input voltage: AC 100-240V 50/60Hz
Max power: 562W
Power factor: 0.99
Max current : 2.55A/220V, 5.62A/100V

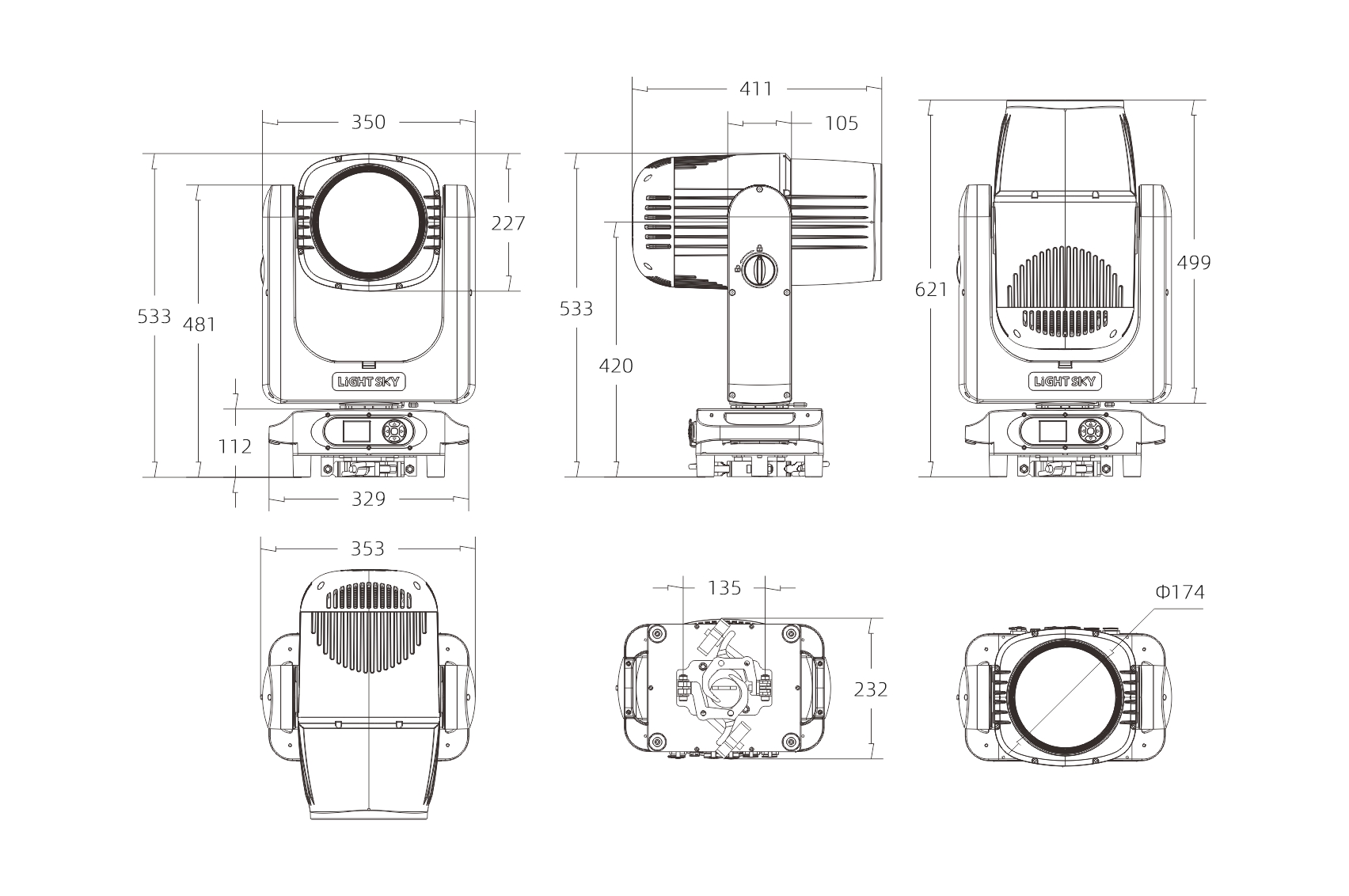

SIZE & WEIGHT

Product size: 353X232X621mm
Net weight: 22.0KG
Carton packaging (default): 425X305X750mm
Gross weight: 26.1KG

THERS

Protection level: IP66
Operating environment: -20℃~45℃
Max surface temperature: ≤60℃

FACTORY CONFIGURATION

Power Cable: 1 pc (Part No.: F0200030016)
Signal Cable: 1 pc (Part No.: F0200020008)
Safety Rope: 2 pcs (Part No.: F0200010002)

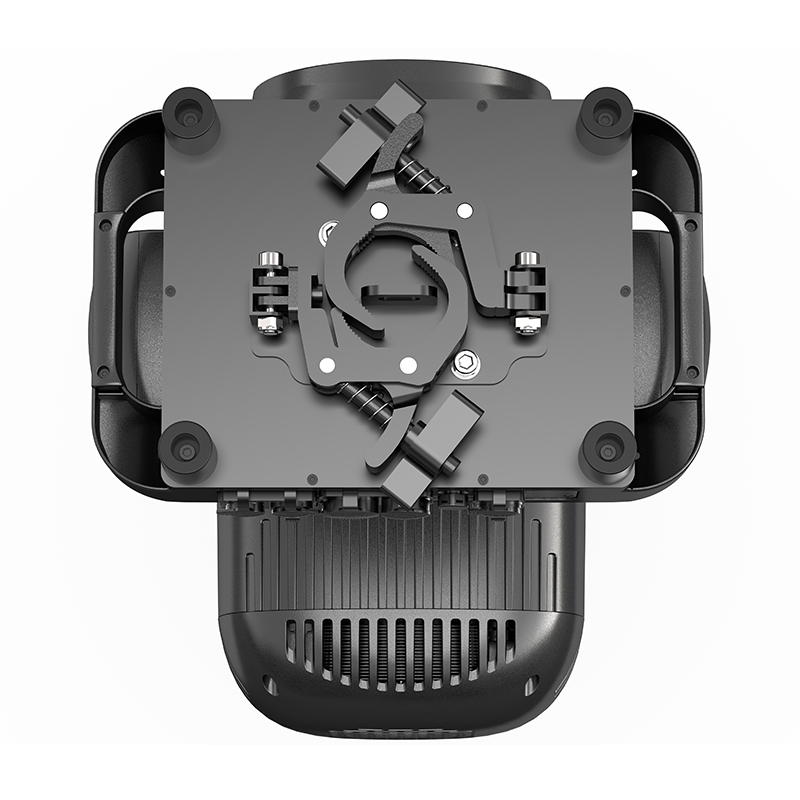

Lamp Hook: 1 set Lamp comes with a collapsible hook(Part No.: C0499990051)

Optional Accessories/Packaging

Packaging(Fly case): 650×440×830 mm

Gross Weight: 77.4kg(2 in 1)
