OPTICAL

Light source : 7pcs * 60W RGBW 4 in 1 LED
Beam angle : 4° to 32°
Zoom angle : 5° to 50°
Light color temperature range : 2500K to 10000K
Illuminance : 23500lux@ 5m
Total lumen output : 7100LM
Light source average life span : 20000H

COLOR

Color mixing : RGBW color mixing system, can make rainbow effect

EFFECTS

Zoom system : Linear electric zoom
Individual LED control : Individual LED control, outstanding effect
Front ring AURA : The front ring AURA’s LED chip can be controlled individually, can make flow color effect
Effect macro : Static effect macro function and dynamic effect macro function
Dimmer : Electronic dimmer, provides four dimming options
Strobe : 1-25Hz electronic strobe and random strobe

CONTROL

Control channels: 31CH, 55CH, 21CH, 35CH, 28CH (see channel chart for details)

Protocols: DMX512, RDM, Art-Net

DMX and RDM connectors: 3-pin or 5-pin XLR IN/OUT

Display: LCD screen

SOFTWARE

Software Upgrade: DMX signal interface or USB interface (optional)

Temperature Intelligent Control: Ensures LED lifespan through temperature intelligent control

Pan/Tilt Movement

Pan: 540°, 8-bit / 16-bit precision

Tilt: 250° , 8-bit / 16-bit precision

Automatic reset with error correction

Tilt Lock

POWER

Input Voltage Range: AC 100-240V 50/60Hz

Max Power Consumption: 480W

Power Factor: 0.9

Maximum Current of Fixture: 2.4A/220V; 4.8A/110V

SIZE & WEIGHT

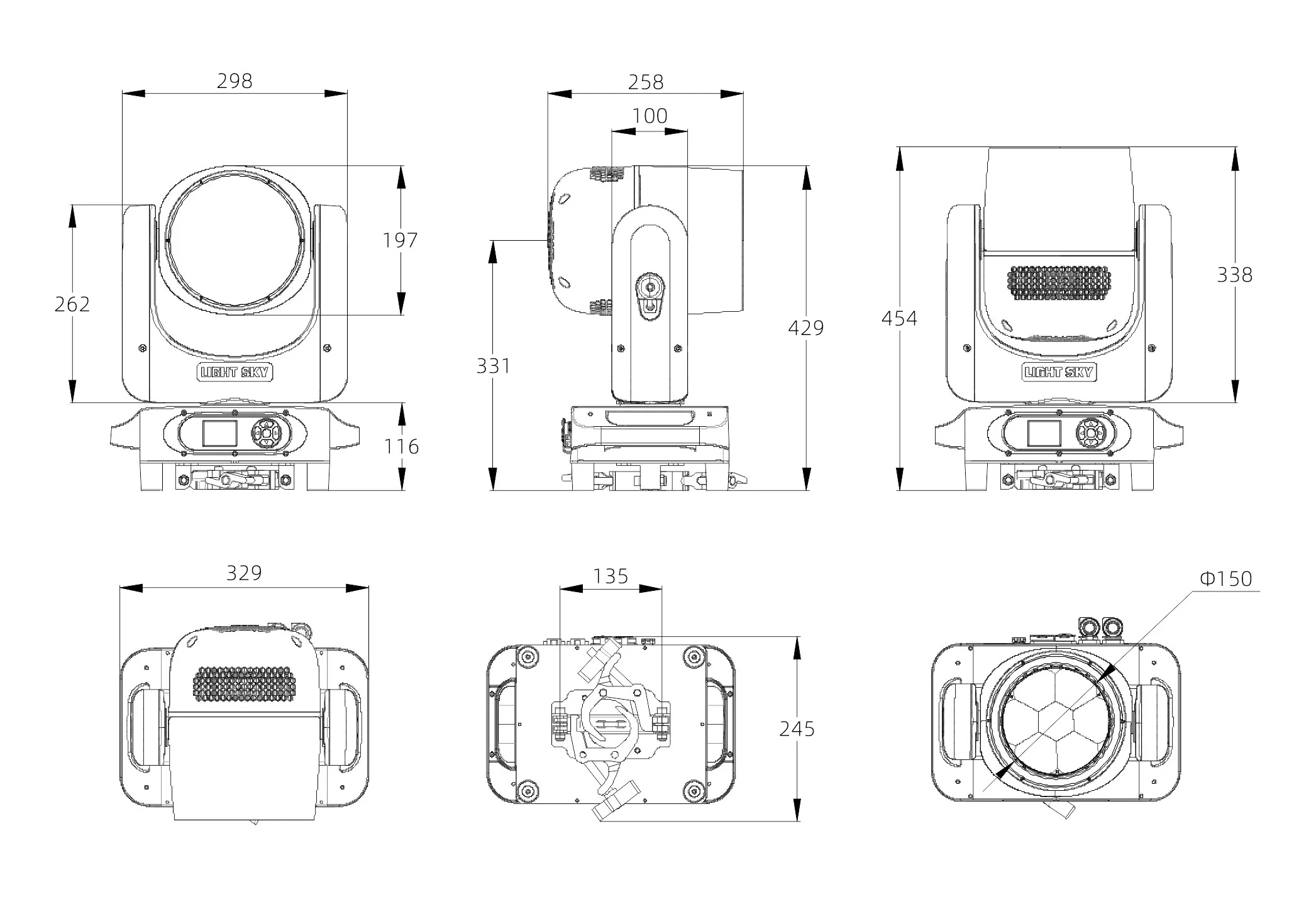

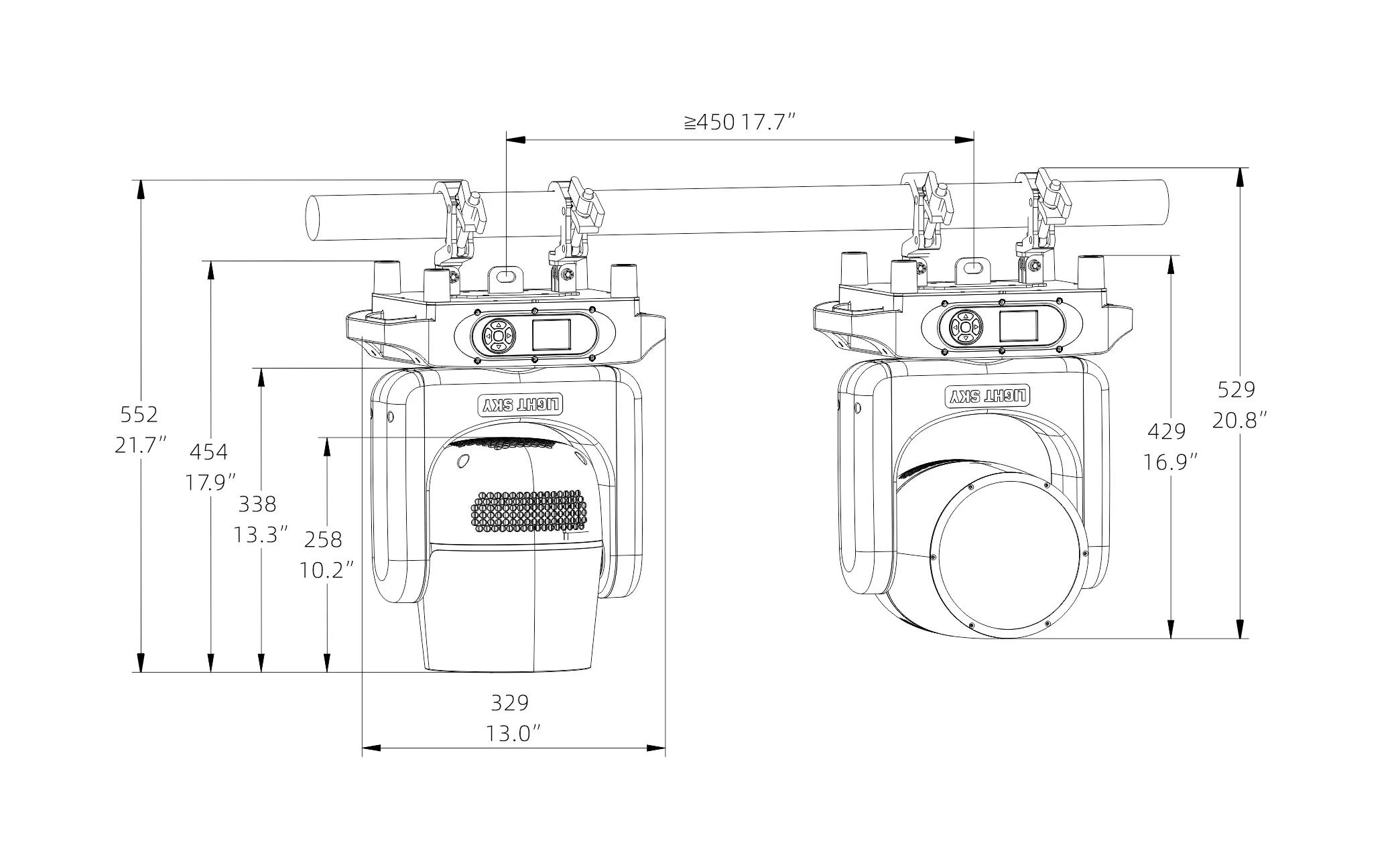

Product Dimensions: 329mm × 245mm × 454mm

Net Weight: 12.3 kg

Carton Dimensions: 410mm × 290mm × 625mm

Gross Weight: 15.7 kg

Factory Configuration

Power Cable: 1 pc (Part No.: F0200030016)

Signal Cable: 1 pc (Part No.: F0200020008)

Safety Rope: 2 pcs (Part No.: F0200010010)

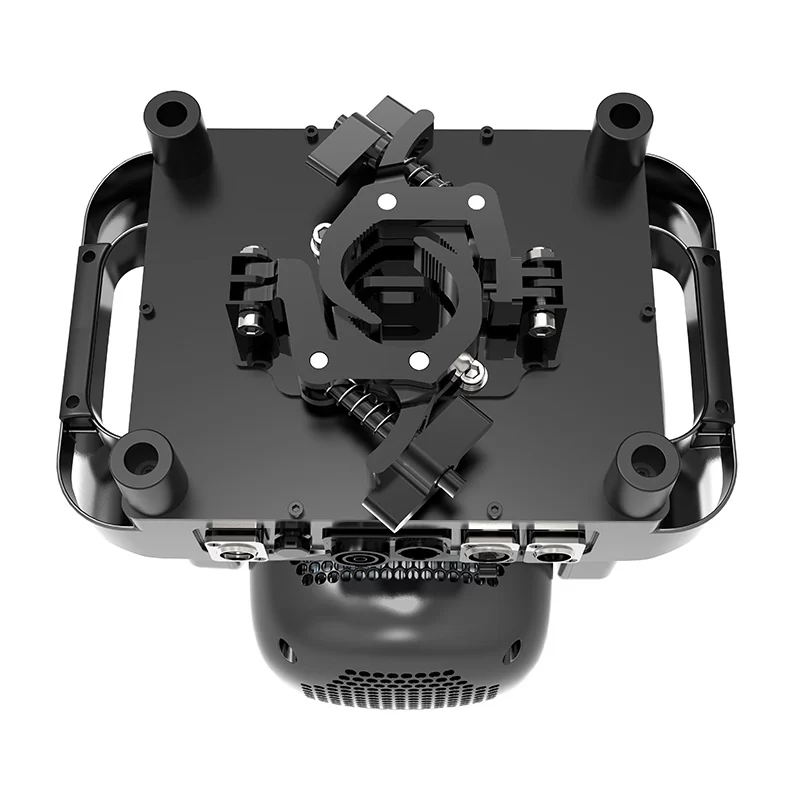

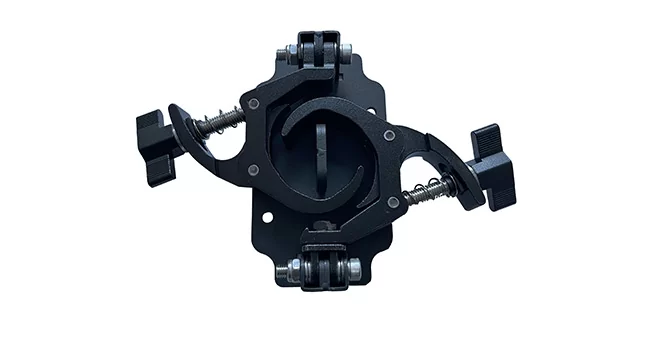

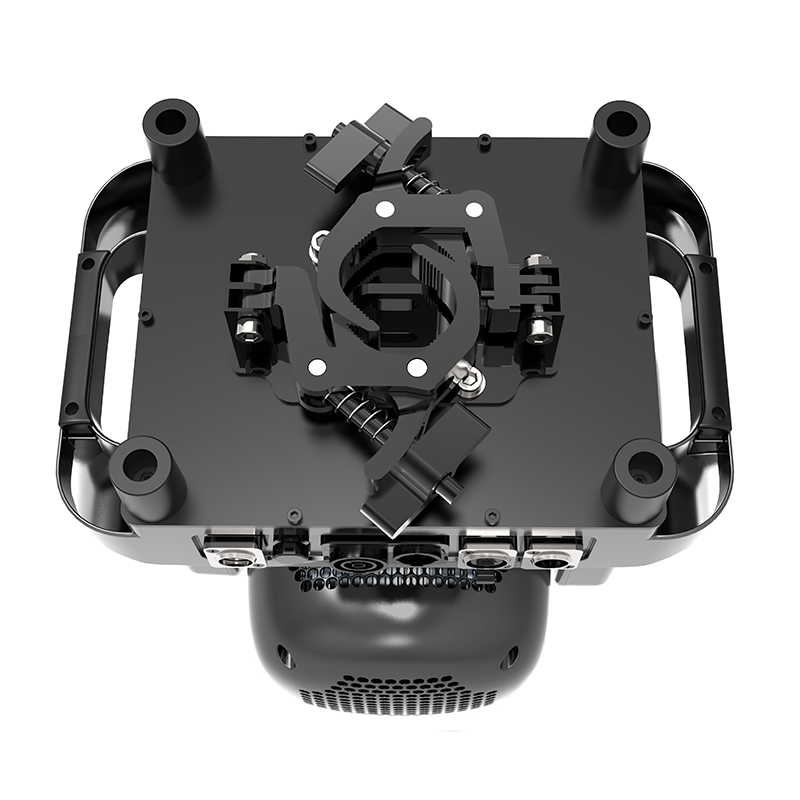

Clamp: 1 set. Compatible with tubes of Ø38–52 mm (Part No.: C0499990057)

OTHERS

IP Rate: IP66

Operating Environment: -10°C ~ 40°C

Maximum Surface Temperature of Fixture: 80°C

Optional Accessories/Packaging

Flycase Part No.: B0100730001

Flycase Dimensions(4 in 1): 850mm × 660mm × 725mm

Flycase Gross Weight(4 in 1): 100.4kg

APPROVALS

The product implementation standard : GB 7000.1-2015 GB7000. 217-2008
Approved certifications : CE、RoHs
The product complies with the following EU directives:
Low Voltage Directive 2014/35/EU . EMC Directive 2014/30/EU
