Optics

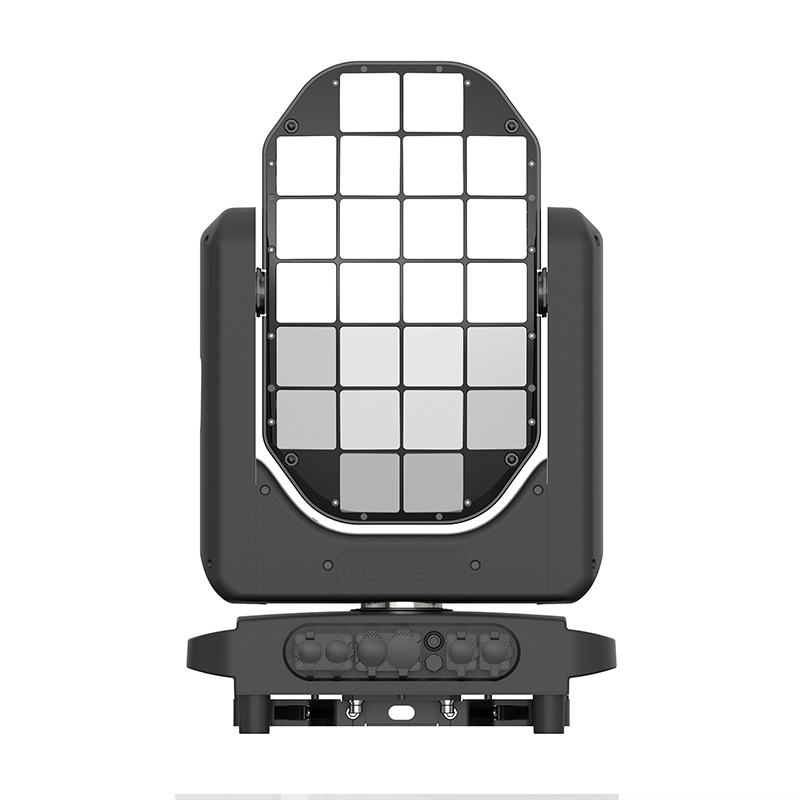

Optical Mirrors: Consists of 1 large mirror (407mm x 232mm) and 24 small mirrors (55.5mm x 55.5mm). Reflectivity of the mirrors is greater than 92%.



Control and Programming

Control Channels: 8CH (see channel chart for details)

Protocols: DMX512, RDM, Art-Net (optional), sACN (optional)

Data connection: 3 pin or 5 pin signal input/output

Display: LCD screen

Upgrade software via DMX protocol



Pan/Tilt Movement

Pan: 540°, 8-bit / 16-bit precision

Tilt: infinite movement

Automatic reset with error correction

Tilt Lock



Power and Electrical

Input Voltage Range: AC 100-240V 50/60Hz

Max Power Consumption 42W

Power Factor: ≥0.9

Maximum Fixture Current: 0.2A/220V; 0.5A/100V



Dimensions and Weight

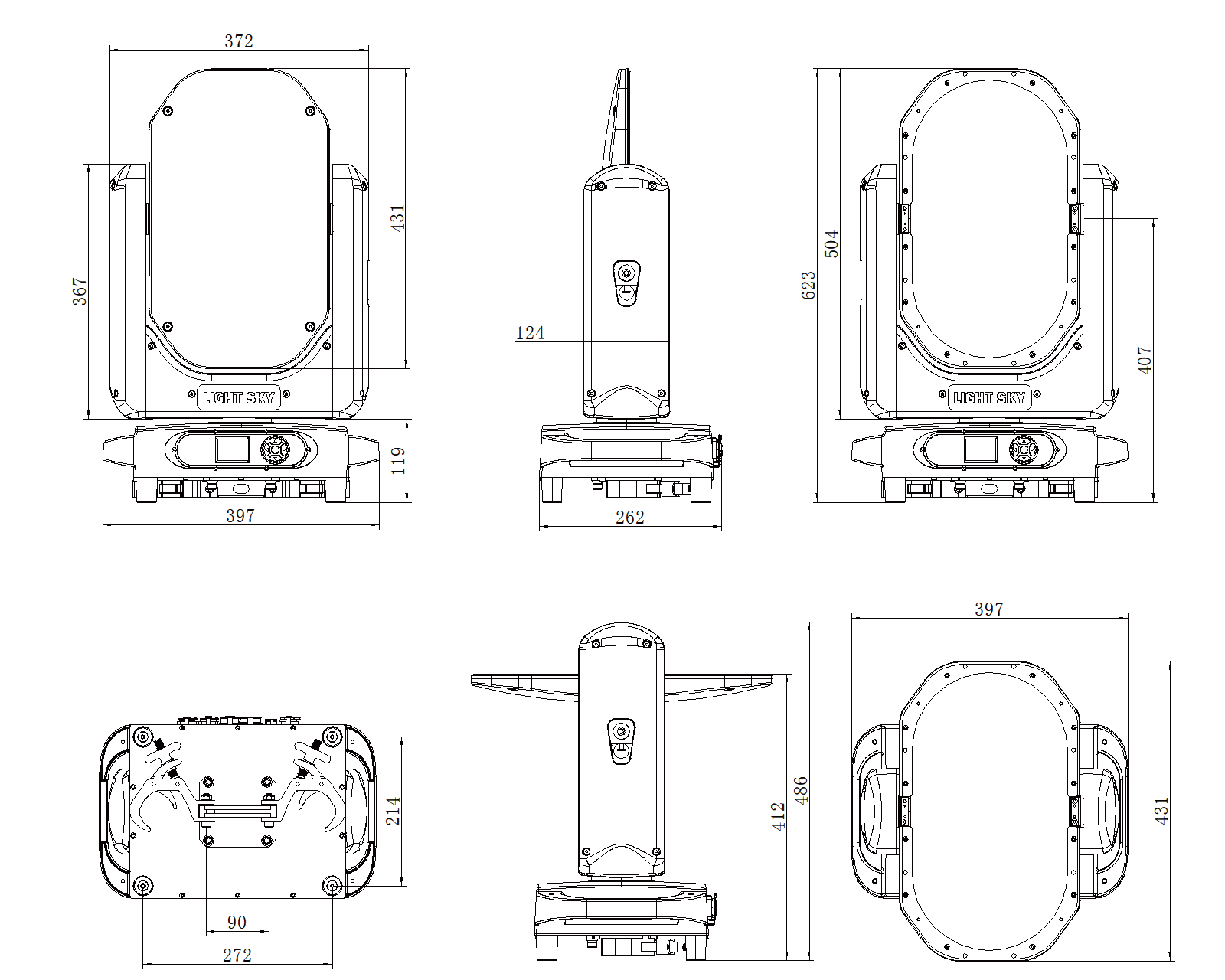

Product Dimensions: 397mm × 262mm × 623mm

Net Weight: 13.7 kg

Carton Dimensions: 475mm × 325mm × 750mm

Gross Weight: 17.6 kg



Others

Protection Level: IP66

Operating Environment: -20°C ~ 45°C

Maximum Surface Temperature of Fixture Body: ≤55°C



Factory Configuration

Power Cable: 1 pc (Part No.: F0200030016)

Signal Cable: 1 pc (Part No.: F0200020008)

Safety Rope: 1 pc (Part No.: F0200010002)

Clamp: 1 set (Part No.: C0499990040)



Optional Accessories/Packaging

Flycase Part No.: B0101130002

Flycase Dimensions(2 in 1): 720mm × 520mm × 845mm

Flycase Gross Weight(2 in 1): 63.4kg
