Light source & Optics

Light source: 160×5W CW + 800×0.5W RGB

Beam Angle: 74°

Field Angle: 114°

Color Rendering Index: Ra≥71

Lumem Output RGB: 14,391 lm

Lumem Output W: 28,895 lm

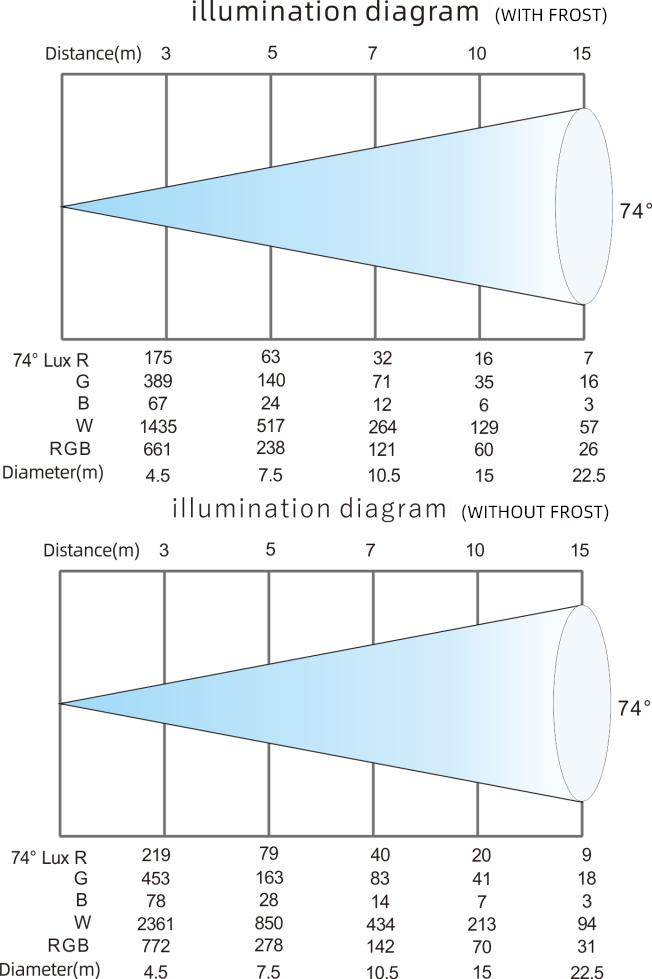

Illuminance: RGB：278 lx @ 5m W：850 lx @ 5m

Light Source Theory Life Span:≥ 30,000 h

EFFECTS

Color Mixing System: Uniform RGB color mixing system with independent control of each color, enabling a wide variety of visual effects.

Intelligent Frost: Linearly adjustable frost function to enhance color mixing effects.(optional)

Effect Macros: Static effect macros and dynamic effect macros functions

Dimming: Electronic dimming with four dimming curves

Strobe: 1-25Hz electronic strobe and random strobe

CONTROL AND PROGRAMMING

Control Channels: Standard 21CH，15CH，158CH (see channel chart for details)

Control Protocols: DMX512, RDM, Art-Net, sACN

Data Connection: 3 pin or 5 pin XLR IN/OUT, RJ45(Art-Net) In/Out

Display: LCD screen

SOFTWARE

Software upgrade: via DMX interface

Temperature control: Intelligent system for LED lifespan

POWER AND ELECTRICAL

Input Voltage Range: AC 100-240V 50/60Hz

Max Power Consumption：790W

Input Voltage Range：1200W

Power Factor: 0.97

Maximum Current: 8.1A/100V ; 3.6A/220V

SIZE & WEIGHT

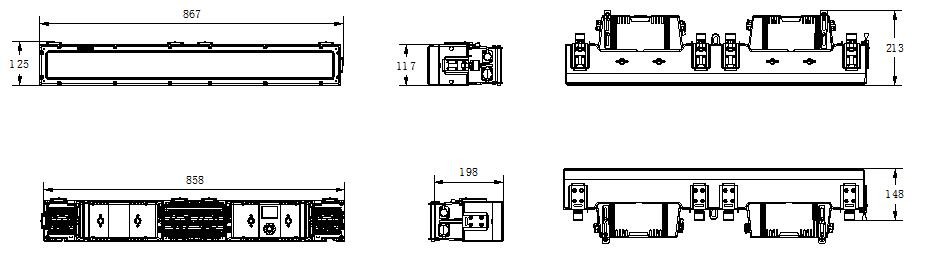

Product Dimensions: 867mm x 125mm x 213mm

Net Weight: 14.0 kg

Carton Dimensions: 955mm × 215mm × 345mm

Gross Weight: 17.4 kg

OTHERS

Protection Level: IP66

Operating Environment: -20℃ ~ 45℃

Maximum Surface Temperature: 65℃

Locking System: LiGHT SKY Mortise Locking System

FACTORY CONFIGURATION

Power Cable: 1 pc (Part No.: F0200030016)

Signal Cable: 1 pc (Part No.: F0200020008)

Safety Rope: 1 pc (Part No.: F0200010002)

Optional accessories/packaging

Clamp(LiGHT SKY): Part No.: C0499990075 (Compatible with tubes of Ø40–60 mm)

Clamp(Neutral): Part No.: C0499990021 (Compatible with tubes of Ø40–60 mm)

Flycase Part No.: B0101460001 (Without Quick-Release Clamp)

Flycase Dimensions(4 in 1): 920mm x 790mm x 460mm Gross Weight: 89.3 kg

Flycase Part No.: Part No.B0101460002 (With Quick-Release Clamp)

Flycase Dimensions(4 in 1): 920mm x 830mm x 460mm Gross Weight: 92 kg
