Description

OPTICAL

Light source : 150W lamp

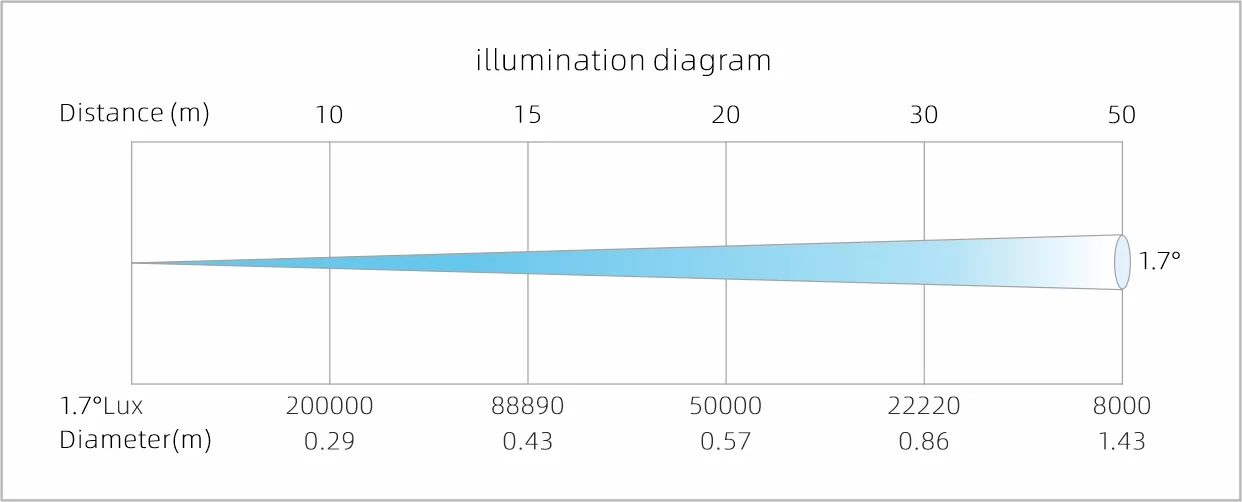

Beam angle : 2°
Output lens diameter : φ128mm
Light Luminous Flux : 230000lux@10 meters



EFFECTS

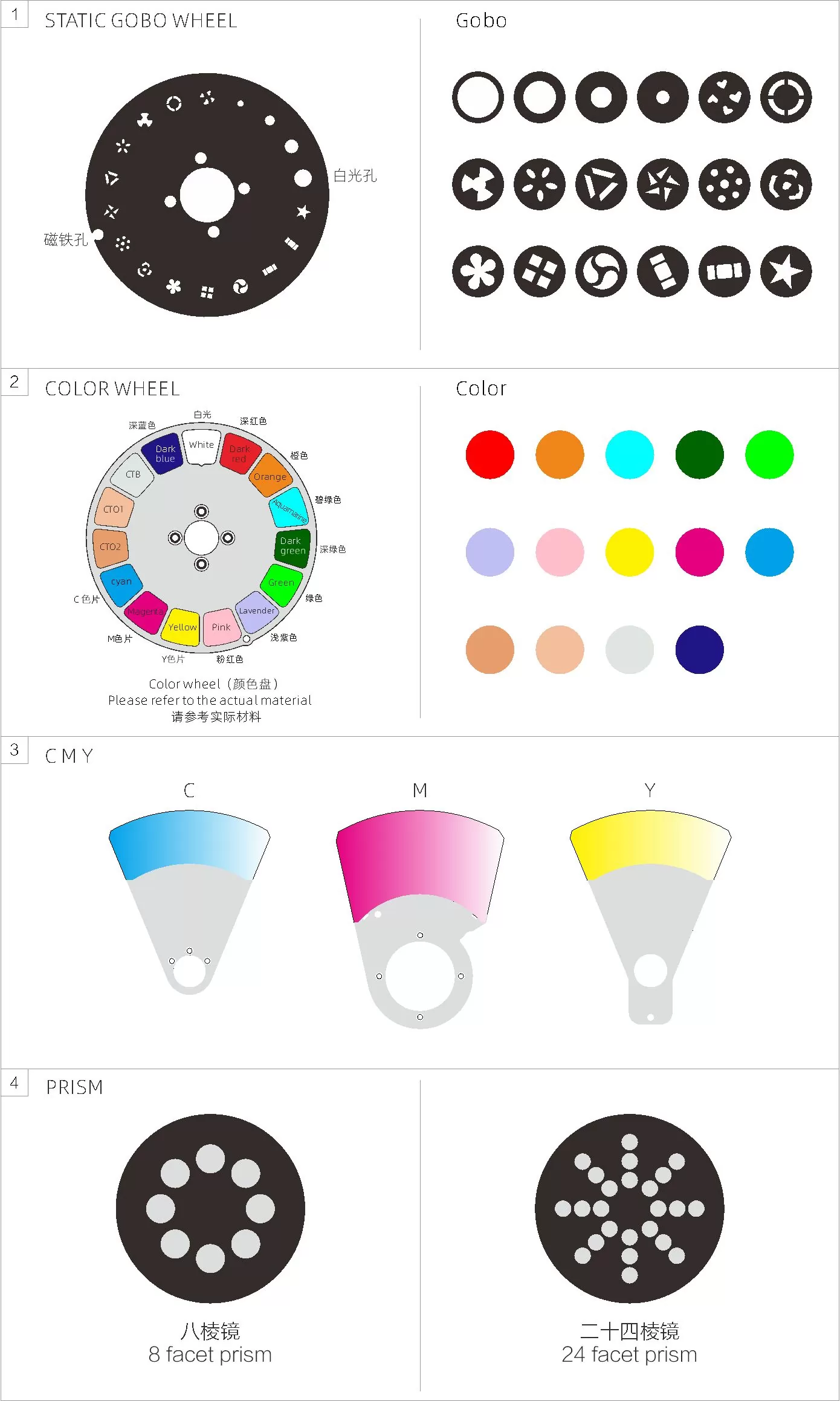

Color wheel : 14+1, Bi-direction rainbow effect
Fixed gobo : 17+1, Bidirectional rotation effect
Soft light effect : individual soft light
Prism : 8 facet prism+24 facet prism, Multiple prism combination
Dimmer : 0-100% Linear electronic dimmer
Strobe : Pre-programmed random strobe & pulse effects(0.5-12Hz/second)
Focus : High precision electric focusing



CONTROL

Controlled Channel : see channel table for details
Control Mode : DMX512, RDM
Data connection : 3-pin and 5-pin input and output
Display : LCD Lattice screen



SOFTWARE

Upgrade : DMX or USB
Intelligent temperature control to ensure long lifespan of Lamp



PAN/TILT MOVEMENT

Pan movement : 540°16bit precision scan
Tilt movement :245°16 bit precision scan



POWER

Voltage : AC 100-240V 50/60Hz
Power : 235W PF:>0.9



SIZE & WEIGHT

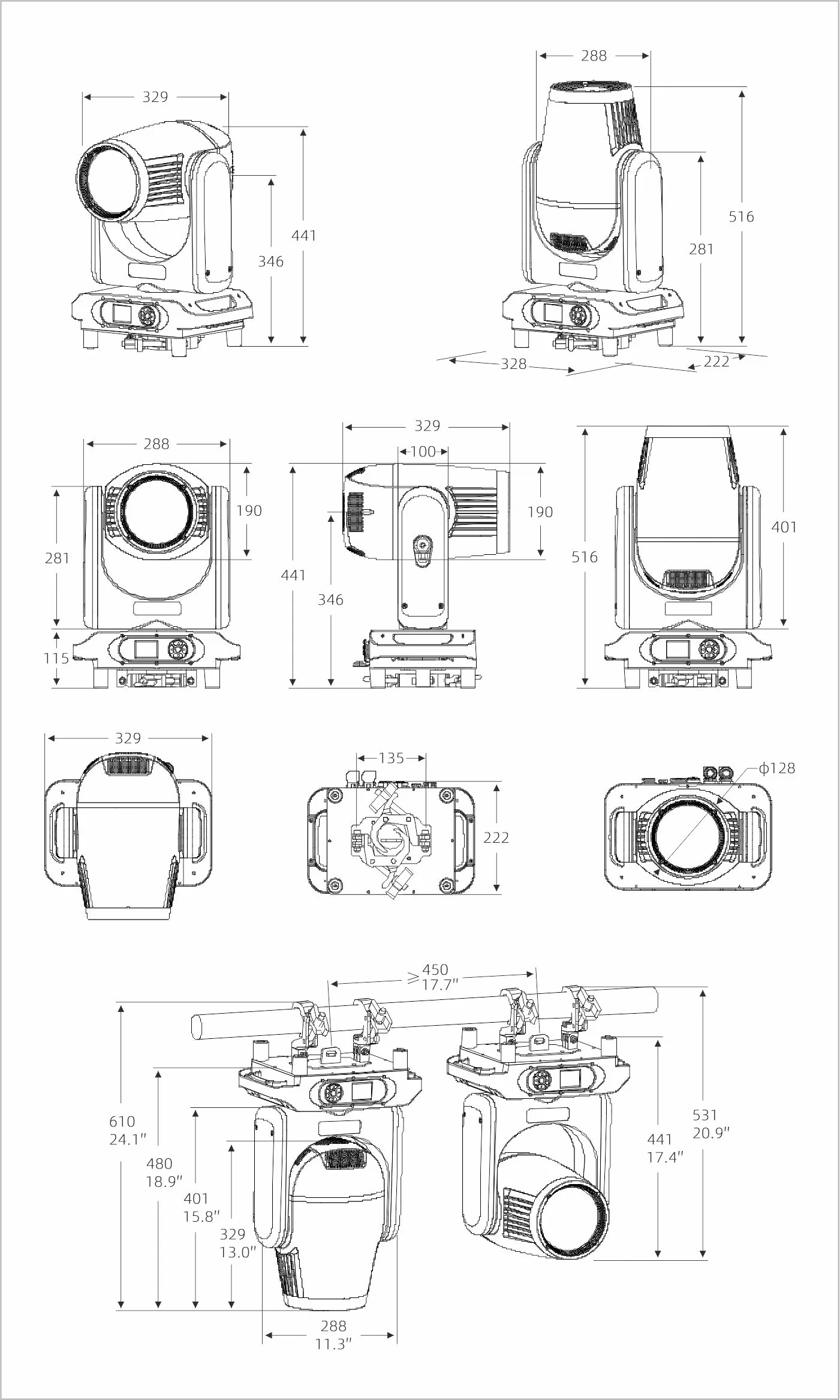

Light Size : 316×238×510(mm)
N.W : 13kg
Carton size : 410×290×575(mm)
G.W : 18kg



OTHERS

IP rate : IP64
Working environment : 0℃ ~ 45℃
Maximum temperature of fixture body surface : 80℃
Maximum on-line quantity : 4pcs/110V 8pcs/220V
Maximum current : 2.14A/110V; 1.07A/220V













Attention : All downloaded light library files on this site need to be decompressed before they can be used.
