Description

Light Source / Power System

Voltage : AC100-240V 50/60Hz;
Power :1430W;PF: 0.987

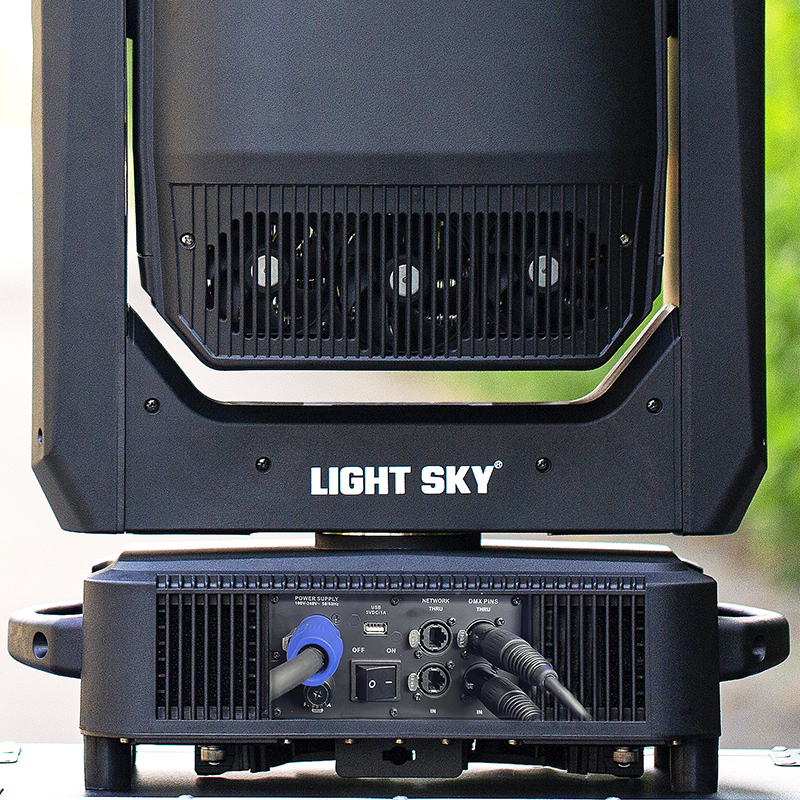

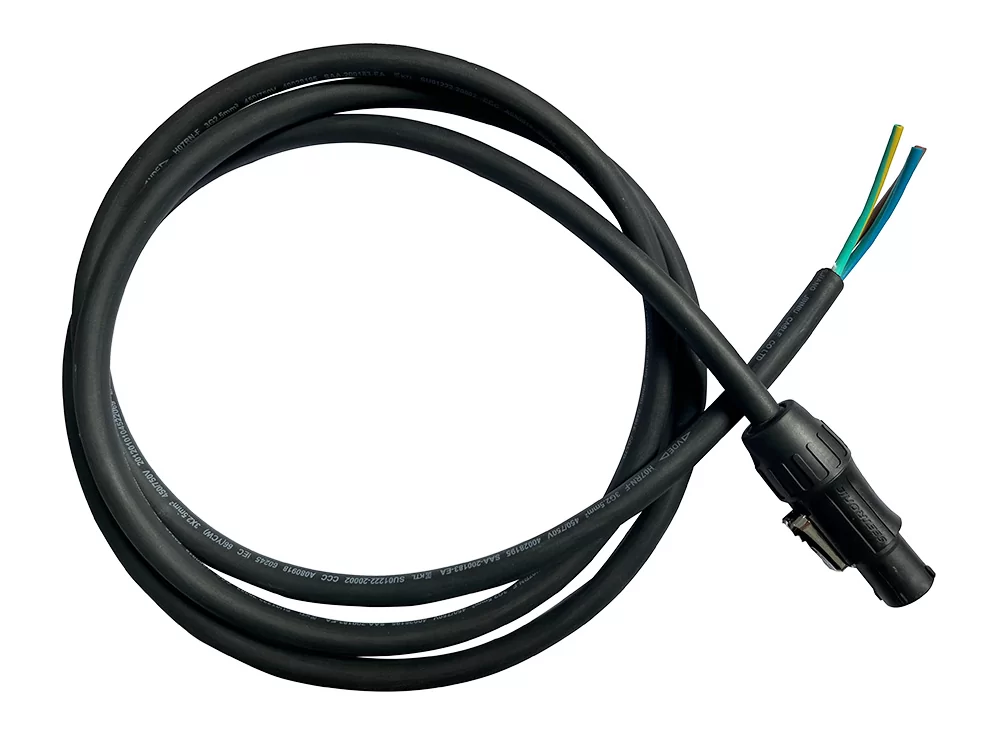

Power input interface : PG power input (optional blue and white head input and output power plug; 16A waterproof PG power input and output plug)

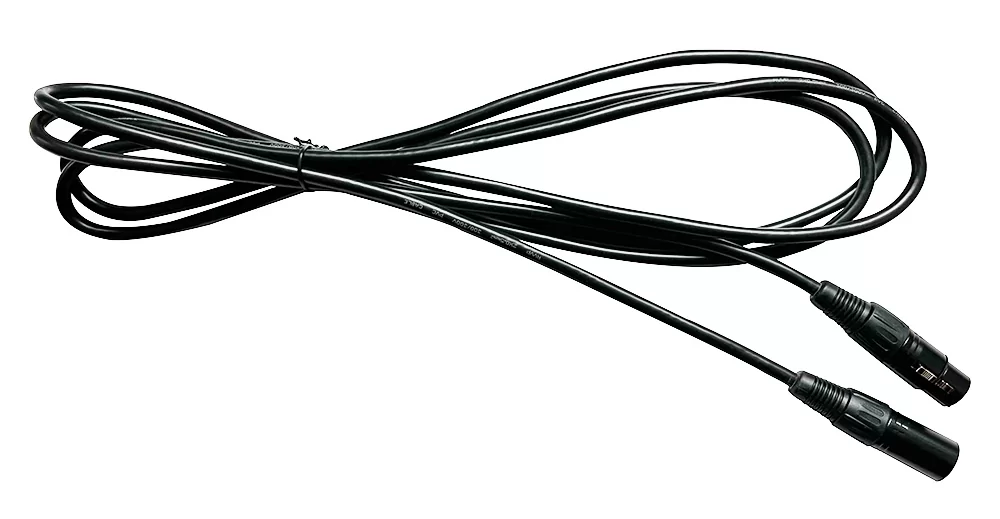

DMX and RDM data input/output : 3-pin XLR (optional 5-pin XLR; 3-pin and 5-pin XLR coexist)
Light source :White light LED module
Light source power :1200W
Average Lifespan :20000h
Light source luminous flux : 86000 lm
Light source color temperature : 8000 K
Fixture output : 50700 lm
Lamp color temperature : 6800 K
CRI : >70 (CRI improved color rendering film: can be increased to more than 88)



Color / GOBO / Effects

Output lens diameter :φ186mm
Zoom angle :6°~ 50°(ratio 8.3:1)
Brightness : 29000 lux@10m (the illumination can be reach 18300 lux@10m when using HIGH CRI filter)

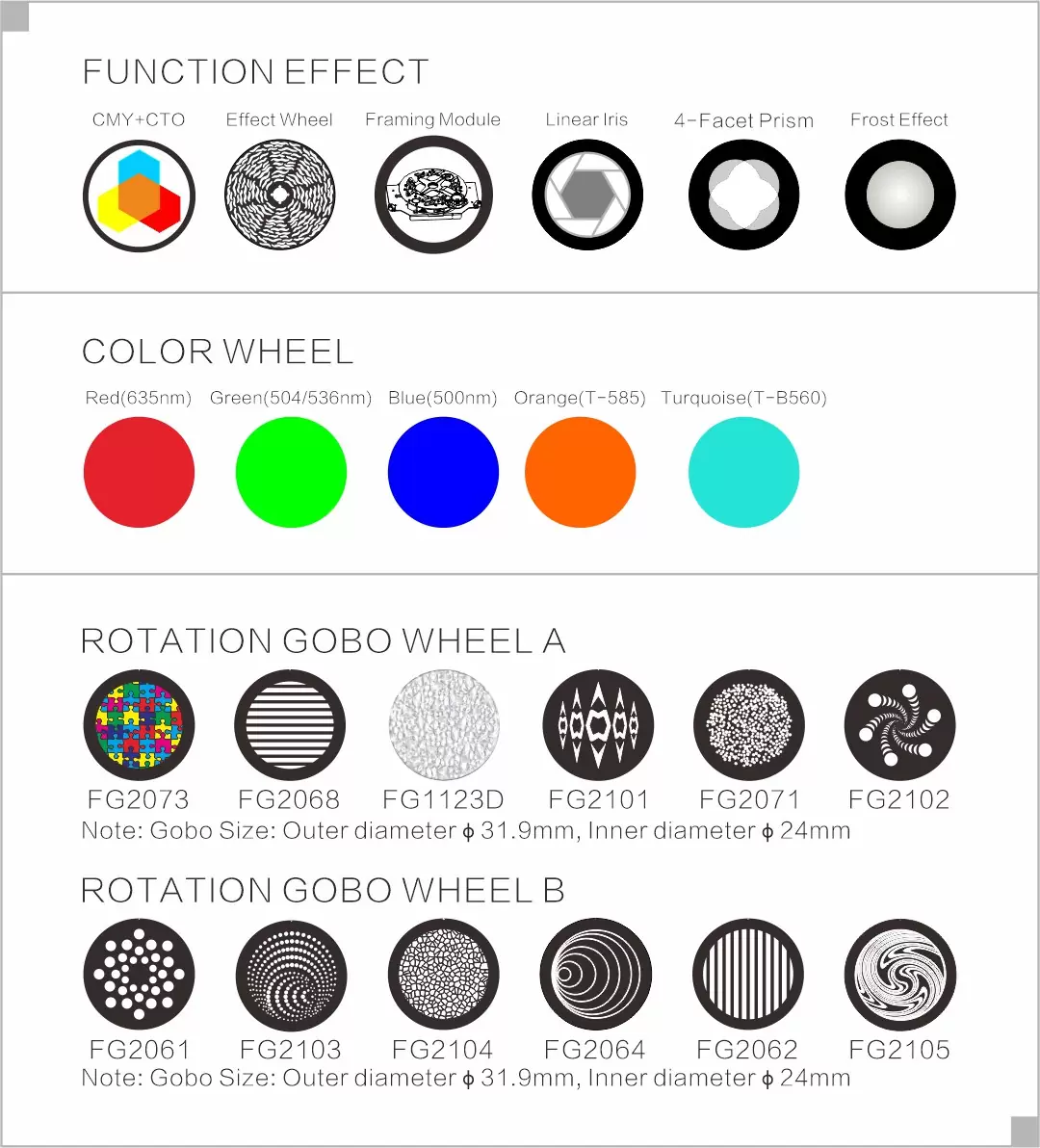

Color wheel : 5 colors + white light
C M Y : 0–100% linear adjustment
C T O : color temperature adjust from 3000K~6500K
Shutters : 4 Blades, each with separate movement and +- 45° of the complete framing system
Iris : 5-100% linearly adjustable with macro
Strobe : 1-25 times/second adjustable electronic pulse strobe and random strobe.
Focus and Lens : High Precision Motorized Zoom and Focus
Dimming : 0-100% linear adjustment, dimming without flicker
Effect wheel : 1 dynamic wheel, excellent flame effect
Rotating gobo wheel : Double rotating gobo wheel, each with 6 removable glass patterns for quick change,
Rotating Gobo size : the maximum outer diameter of the glass substrate is 31.9mm, and the maximum outer diameter of the pattern is 24mm
Prism : 1 quadrangular prism that can be rotated in both directions
Frost : (1°-20°) Two high-transmittance atomizing sheets (1° for light atomization, 20° for heavy atomization)
Noise management : high brightness mode 52Db; silent mode 45Db; super silent mode 40Db



Control System

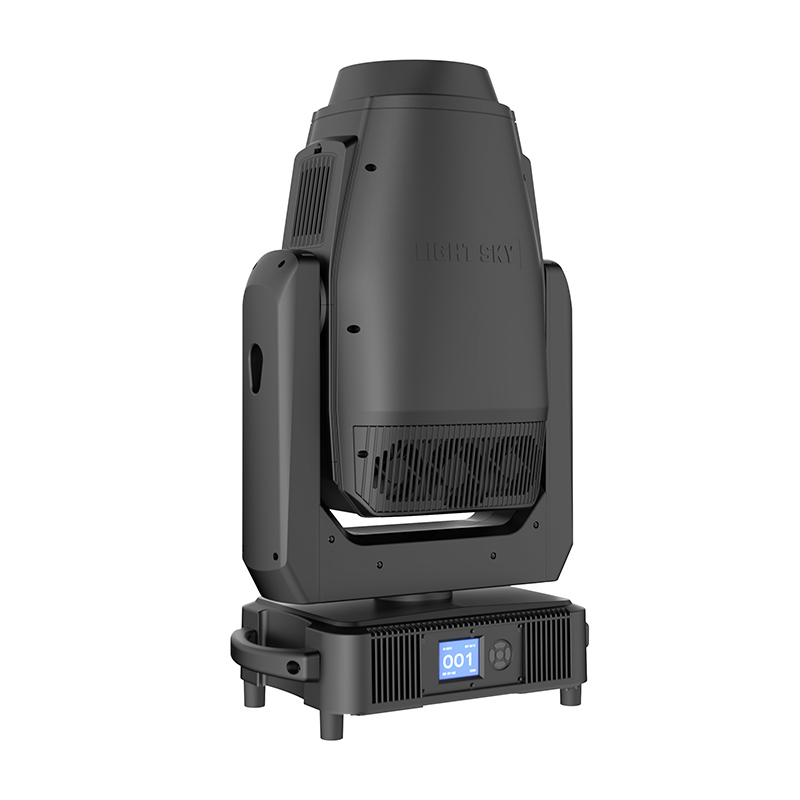

Display : LCD touch screen
Set address code : RDM two-way data transmission, the console can remotely reset the DMX address code
Intelligent management and control : The menu can record the use time and lighting time of the device, and display the device temperature, channel data and software version information
Software upgrade : software can be upgraded through the USB interface
Control mode : DMX-512, RDM
Control channels : 42CH,56CH
Pan movement : 540°
Tilt movement : 270°
Pan/Tilt : 16 bit precision scan
Movement control : Standard and Speed ;Automatic Pan/Tilt position correction



Other functions

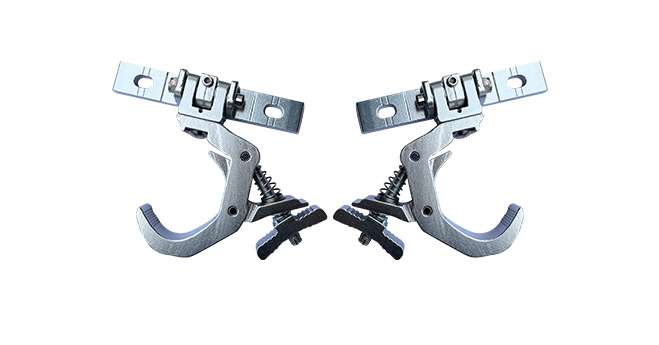

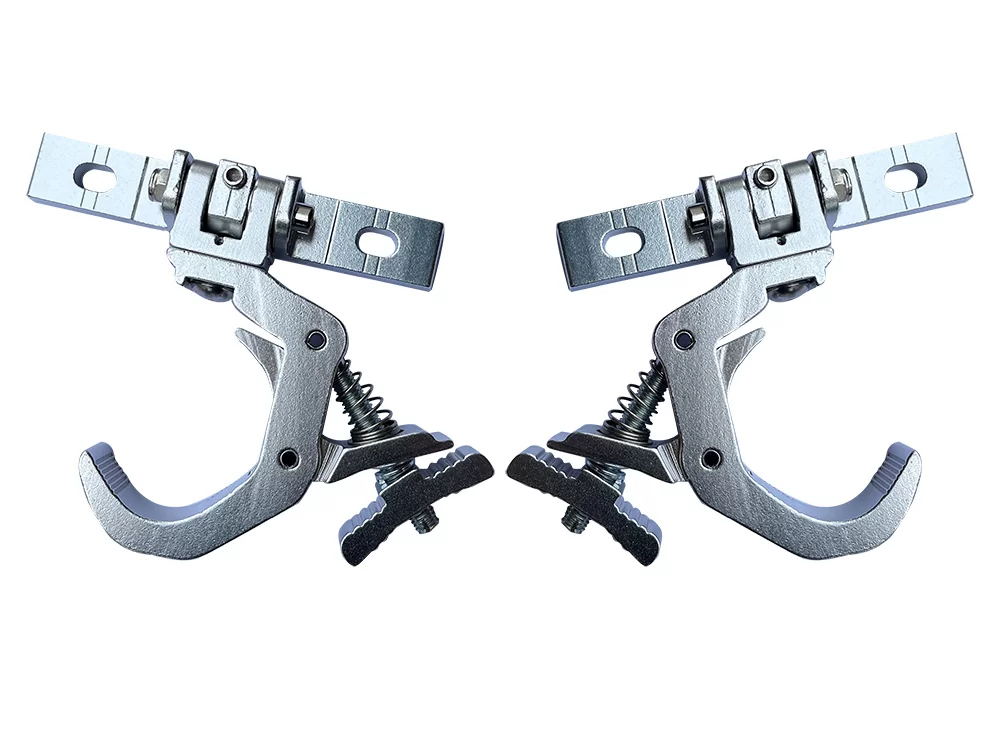

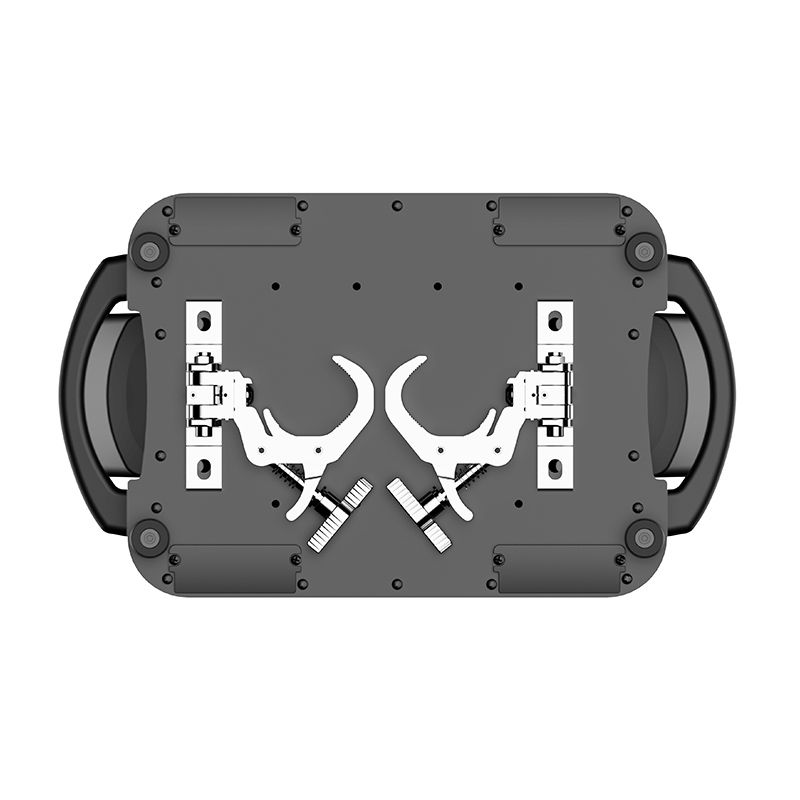

Light hook design : The integrated foldable light hook design is more convenient for disassembly and transportation
CE Mark : Complies with EU Low Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU



Appearance Parameters

Appearance : The shell plastic parts are all made of engineering plastic PA66+GF, which has the characteristics of fire prevention, noise reduction, impact resistance, high temperature resistance and aging resistance.
IP rate : IP20

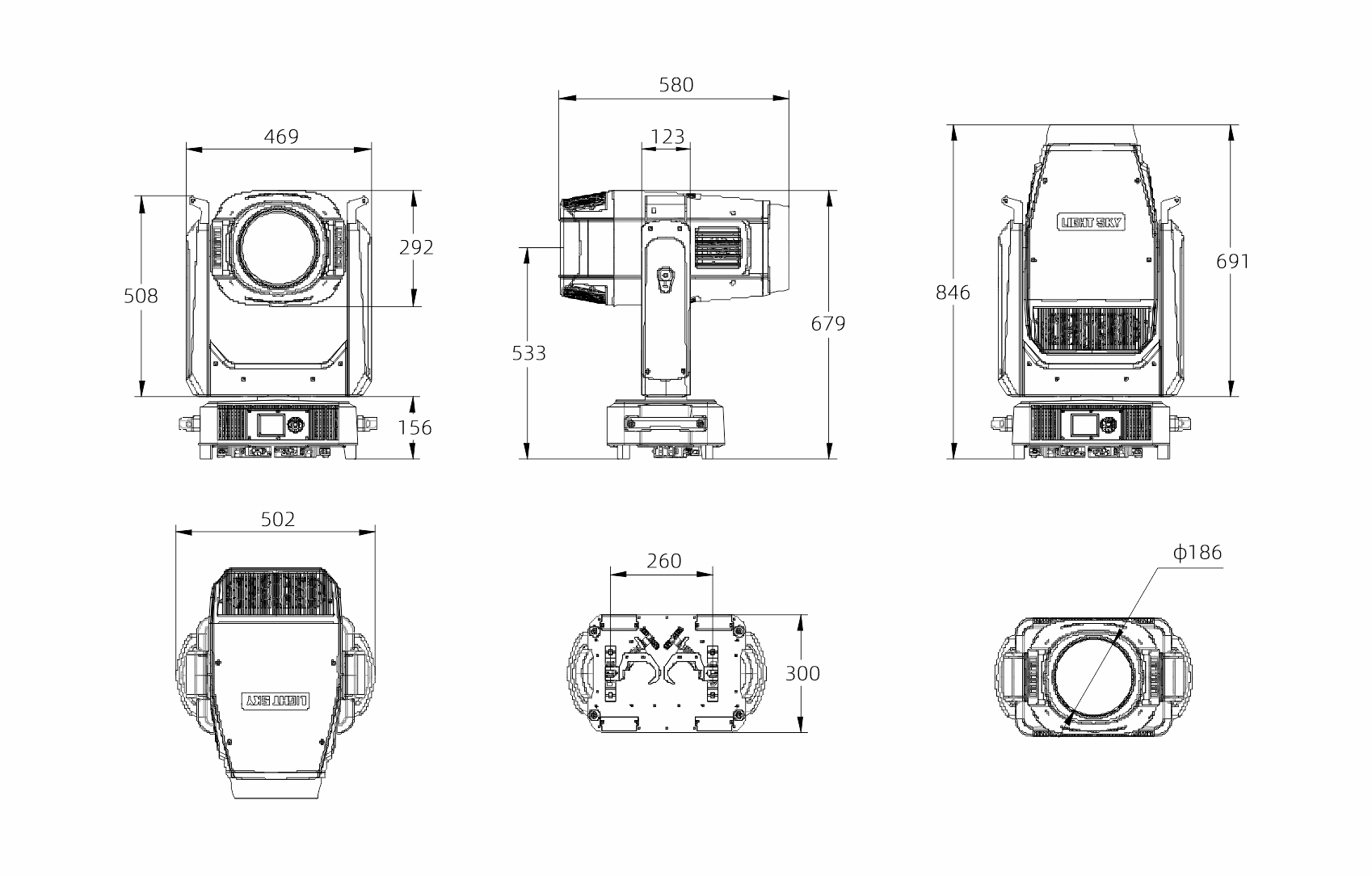

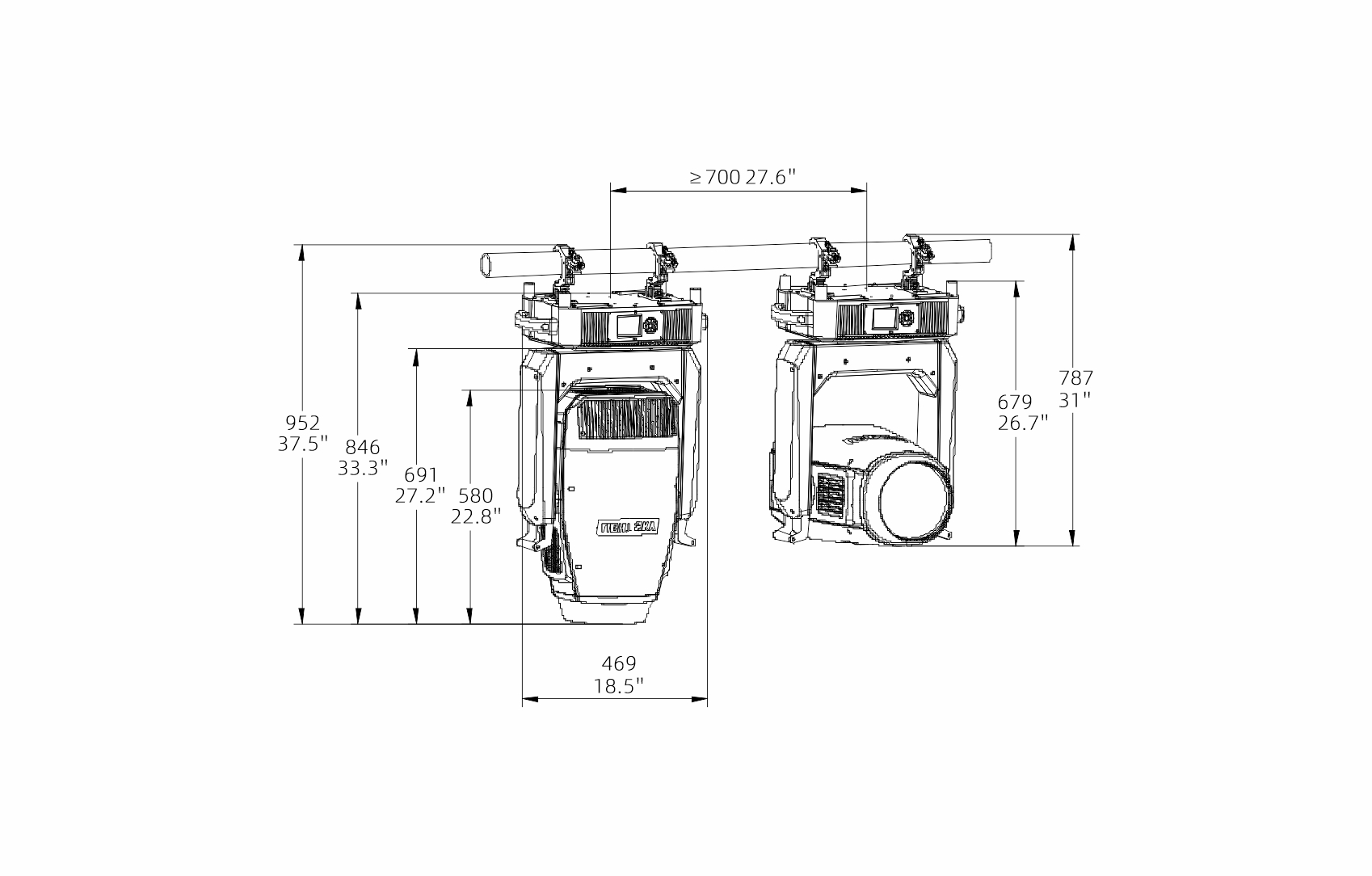

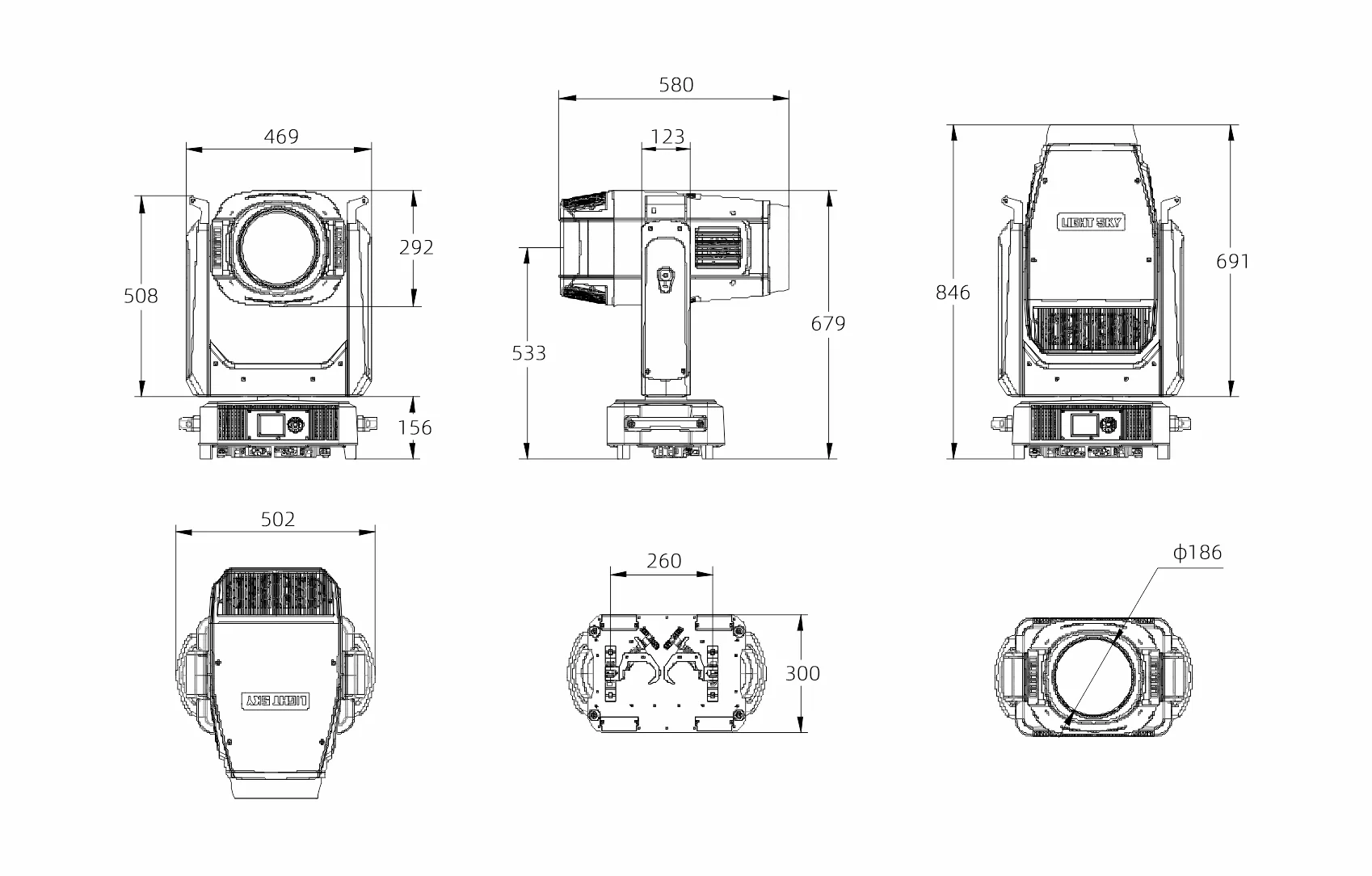

Light size : 845×502×300(mm)
Net weight : 44Kg
Single carton size : 920×570×375(mm)
Gross Weight : 48.8Kg
