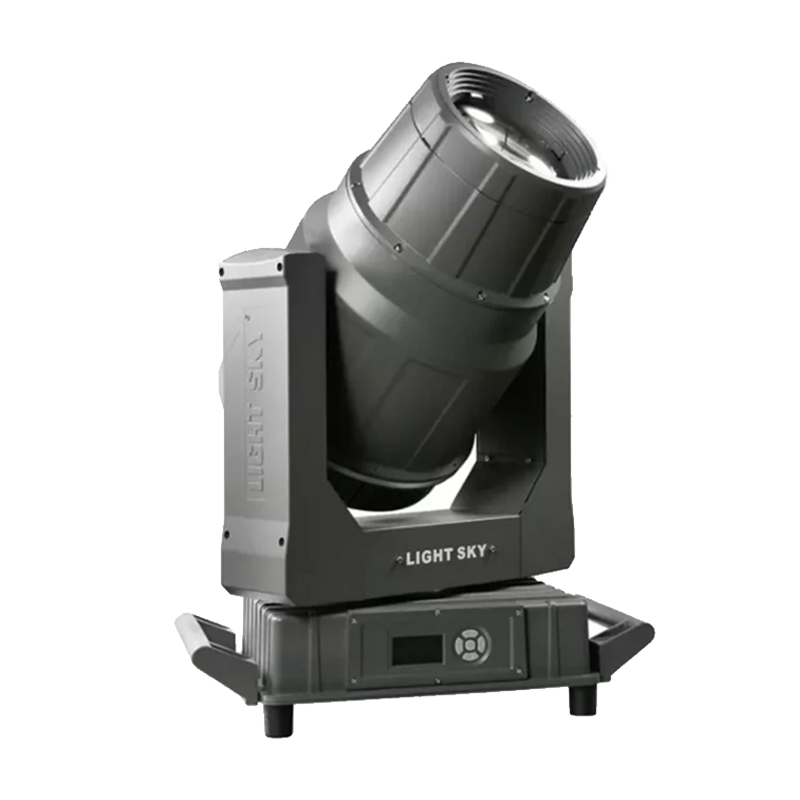

Description

Light Source / Power System

Voltage : AC100-240V 50/60Hz;
Power : 380W
Power con : IP66 Neutrik power CON in/out (SAC3PX 16A 250V)
DMX and RDM : 3-pin (standard ) , 5-pin( Option)
Light source : 260W white Laser module
Light source power : 260W
Average Lifespan : 12000H
Total laser source output Lumen : 12000LM
Laser source CCT : 7000K
Total laser fixture output Lumen : 10090 Lm
Color temperature : 7490K
CRI : >64



Optical System

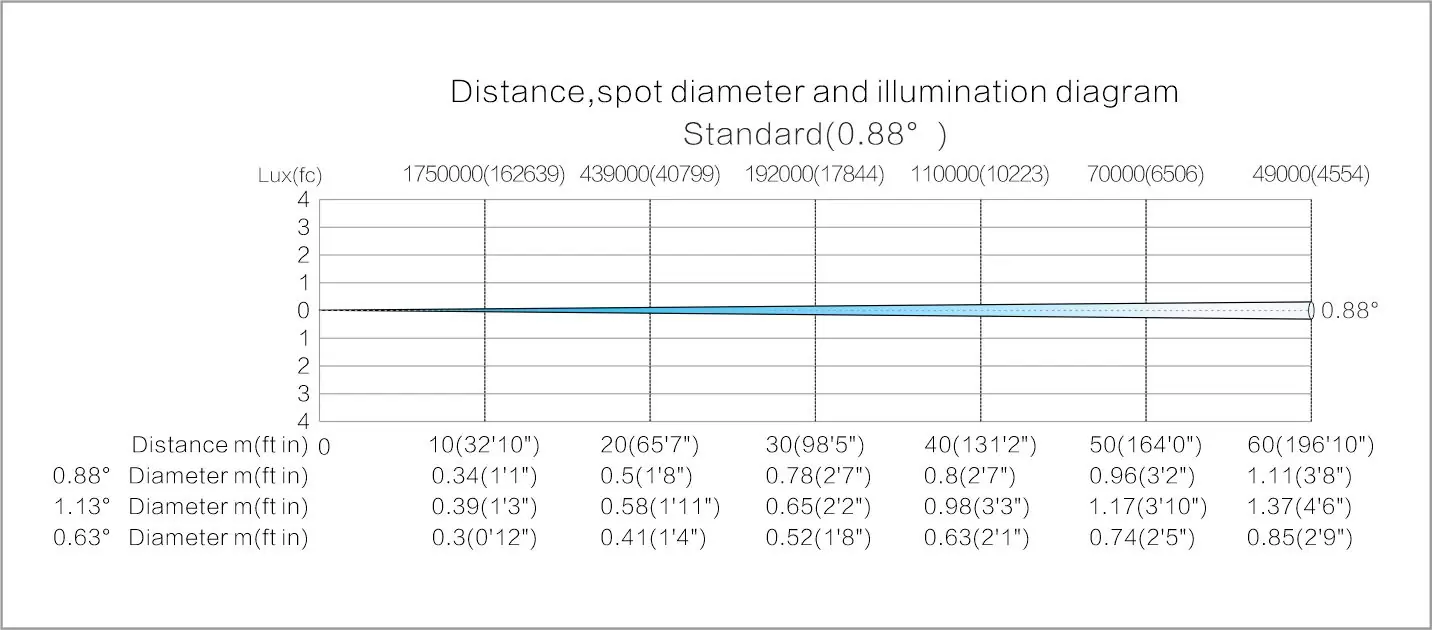

Light output : 439000lux @20m
Beam angle : 0.88°( 0.63°/1.13°beam angle selection)
Out put lens diameter : φ190 mm
Light output : 1750000 lux @10m    7680lux @150m



Dynamic Effects

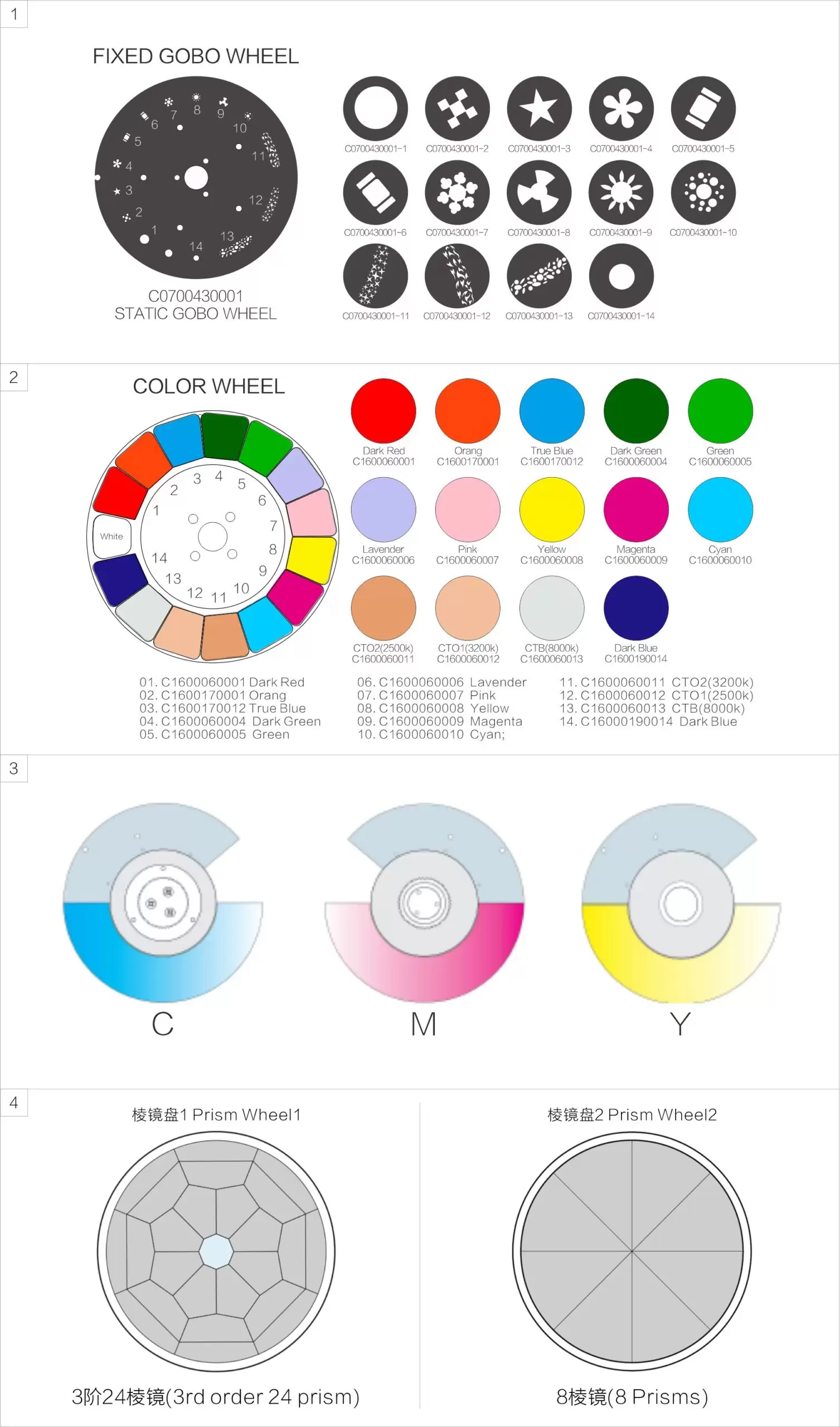

Color Wheel : 14 colors + white,Bi-direction rainbow effect
CMY : CMY system
Fixed gobo wheel(φ106) : 11 patterns + white + 3 animation range,Bi-direction flow
Prism : 8 facet Prism + 24(8+8+8) facet Prism + multi combination effect
Frost Effect : Adjustable independent frost effect
Focus : Electric focus
Strobe : 1-25 times/second pulse strobe and random strobe
Dimmer : 0-100% linear adjustment



Movement

Pan movement : 540°
Tilt movement : 240°
Pan / Tilt Resolution : 2.11°/0.94°
Pan/Tilt Movement control : Standard and Speed option Pan/Tilt
Automatic Pan / Tilt position correction system Pan/Tilt



Control And Programming

Setting IP Address : RDM two-way data transmission, Remote reset DMX address。
Display : The display panel adopts a 2.0-inch LCD12864 LCD screen
Intelligent control : Display board can record device’s using time , show device’s temperature, channel data and software version .
Software upgrade : Insert USB upgrade software
Control mode : DMX512, RDM
Channel : 17CH



Appearance Parameters

Structure : The fixture adopted all aluminum alloy shell, anti-oxidation treatment, high salt spray protection level.
IP Rating : IP66

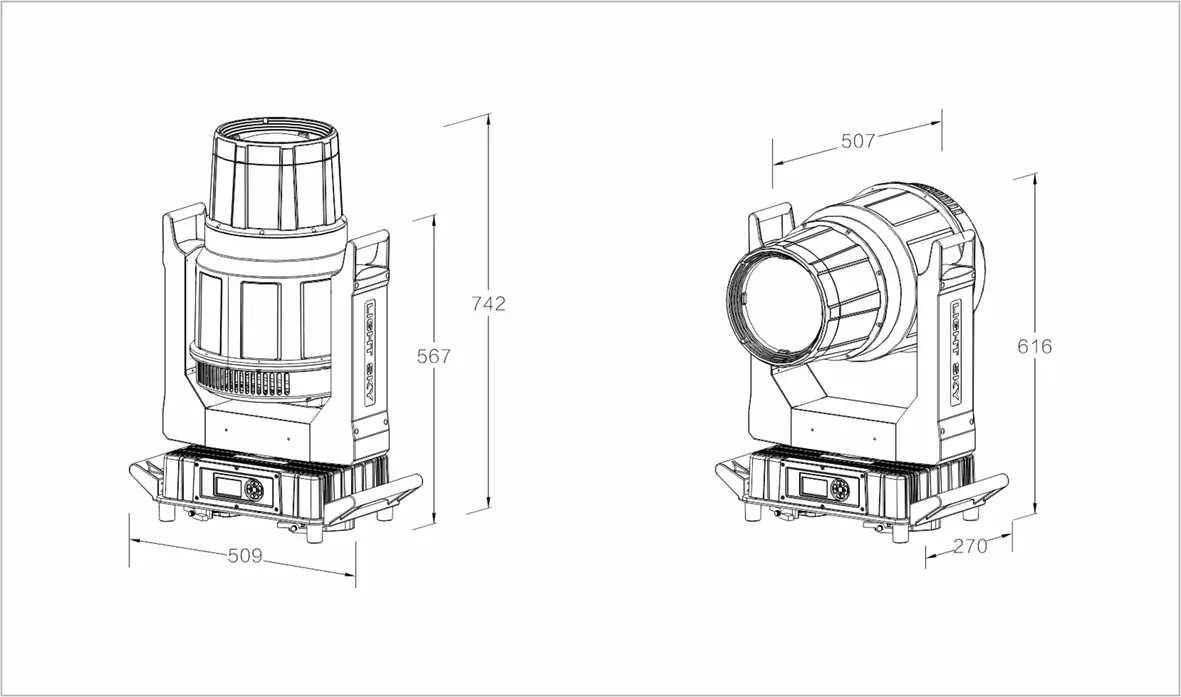

Product dimension : 509×320×742mm
Net weight : 36Kg
Packing dimension (carton) : 810×580×395mm
Gross weight (carton) : 41Kg
Packing dimension (Flycase) : 640×620×825mm
Gross weight (Flycase) : 71Kg
