OPTICAL

Light Source: 520W White LED module
Zoom Range: 3.8°- 50°
Optical Lens: High-transmission coated lens, diameter 140mm
Color Temperature: 7000 K
Color Rendering Index (CRI): RA≥72 (High CRI filter up to 88)

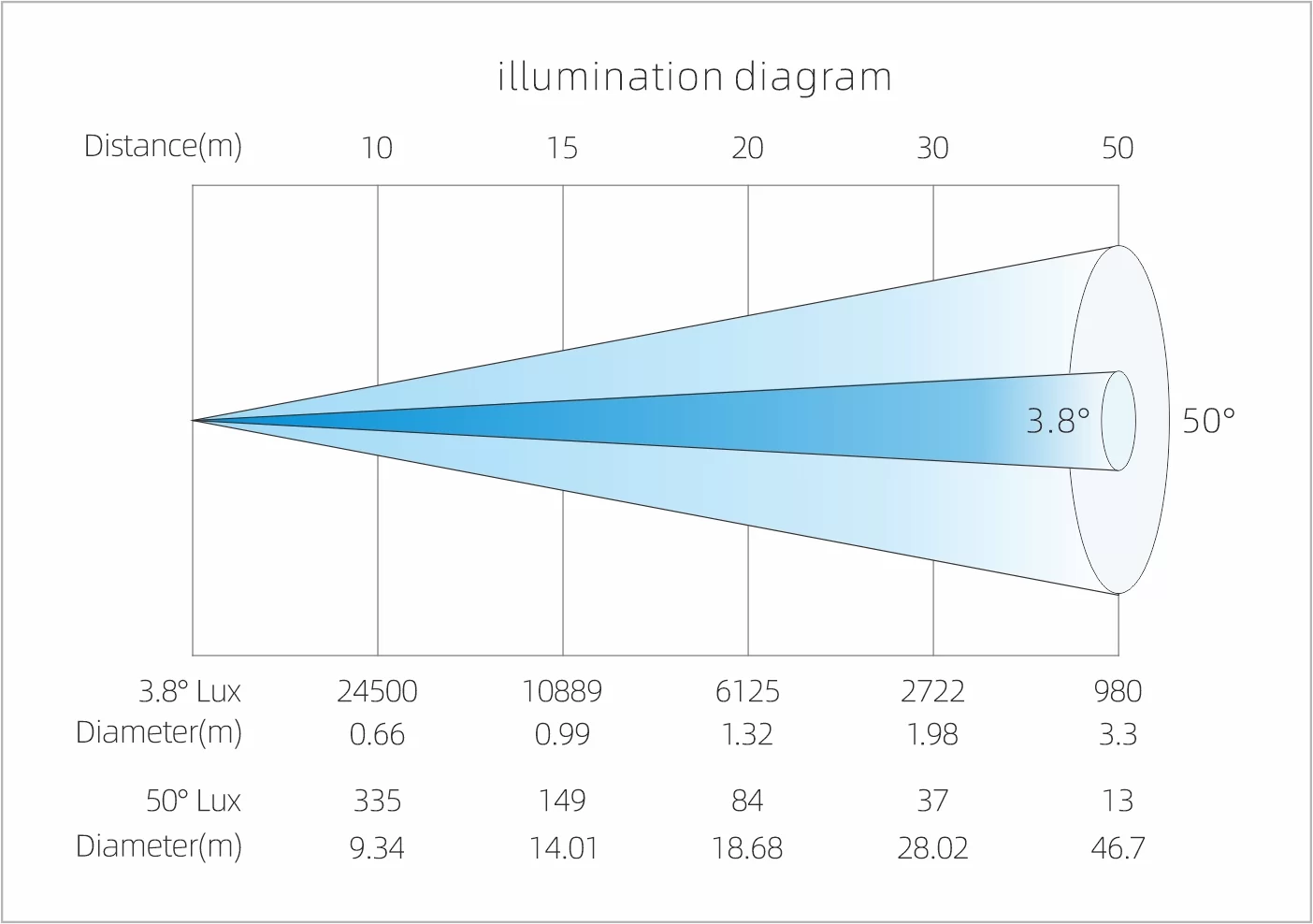

Illuminance: 24,500 Lux@10m
Total lumen output: 20000 Lm
LED source life expectancy: 50,000 hours*

COLOR

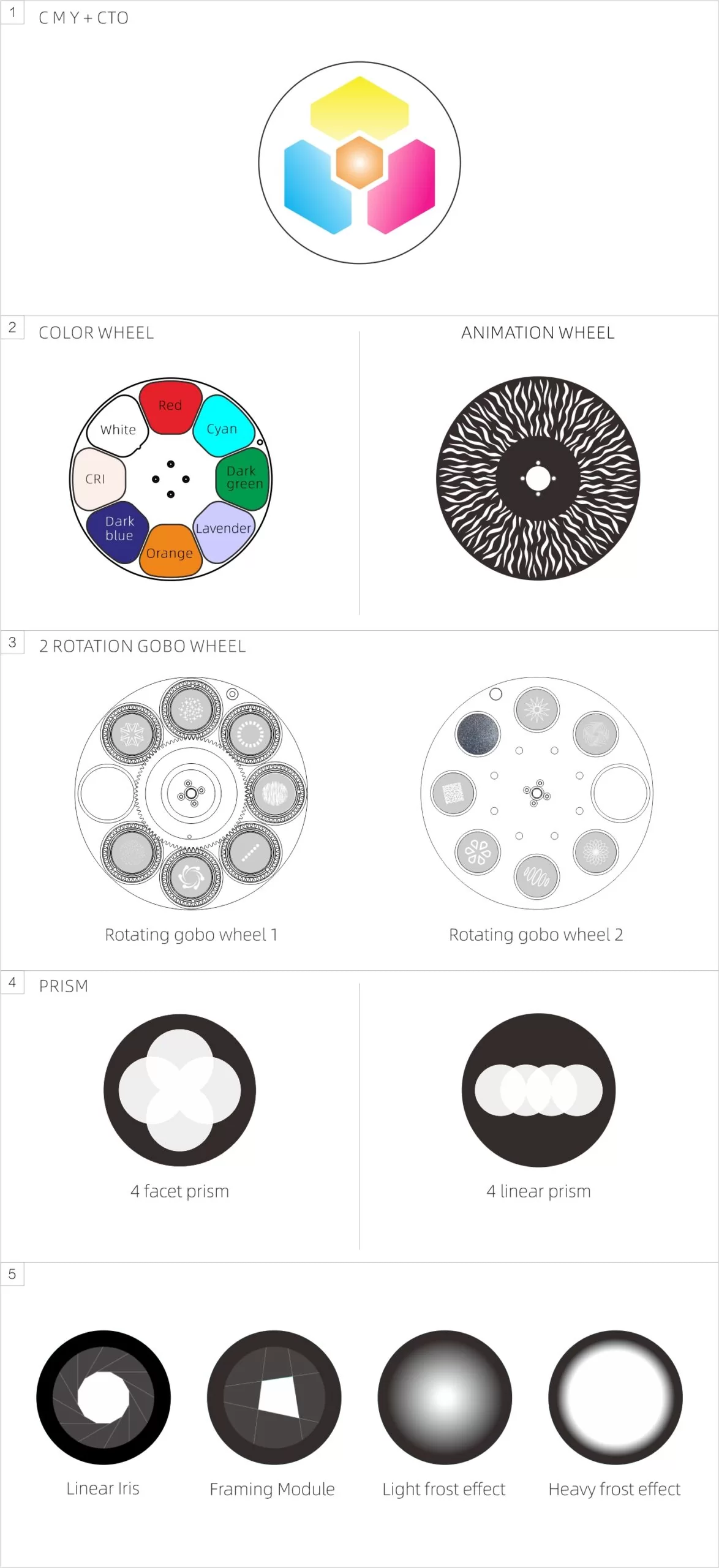

C M Y: CMY infinite colour mixing
C T O: Linear CTO from 3000K to 7000K
Color wheel: 6 Color pieces + High CRI filter + Blank, can achieve bi-directional color rainbow effect, double color step gradient(linear movement), color wheel bi-directional rotation, and random color mode.

GOBO

Rotation gobo wheel: 2 rotation gobo wheels, each with 7 pcs interchangeable gobo, gobo piece outer diameter φ22.9mm, gobo piece inner diameter φ15mm;
Animation wheel: 1 dynamic animation wheel -flow water effect
Framing system: 4-blade, each blade can rotate in eight directions and +/- 60° degrees

EFFECTS

Prism: 4-Linear Prism + 4-facet prism, bidirectional rotation
2 frost system: light frost and Heavy frost
Electric Iris: Linear adjustment from 5% – 100%, with macro function for multiple effects
Electronic Dimmer: Linear dimming from 0% to 100%, uniform light spot
Electronic Strobe: Speed adjustable from 0.5 to 25 flashes per second
LED Refresh Rate: 1000Hz ~ 25KHz

CONTROL

Control Channels: 42CH, 54CH (see channel chart for details)
Protocols: DMX512, RDM, Art-Net
DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Display: LCD screen

SOFTWARE

-Software Upgrade via USB or DMX interface
-Temperature Intelligent Control, ensuring LED lifespan
-Noise level control: High brightness mode, Standard mode, Silent mode

Pan/Tilt Movement

Pan axis: 540°, 8-bit/16-bit precision scan
Tilt axis: 270°, 8-bit/16-bit precision scan
Reset function with automatic error correction
Fixed lock: Pan/Tilt

POWER

Input Voltage: AC 100-240V 50/60Hz
Maximum Power: 960W
Power Factor: 0.99
Maximum Current of Fixture: 9.6A/100V; 4.36A/220V

SIZE & WEIGHT

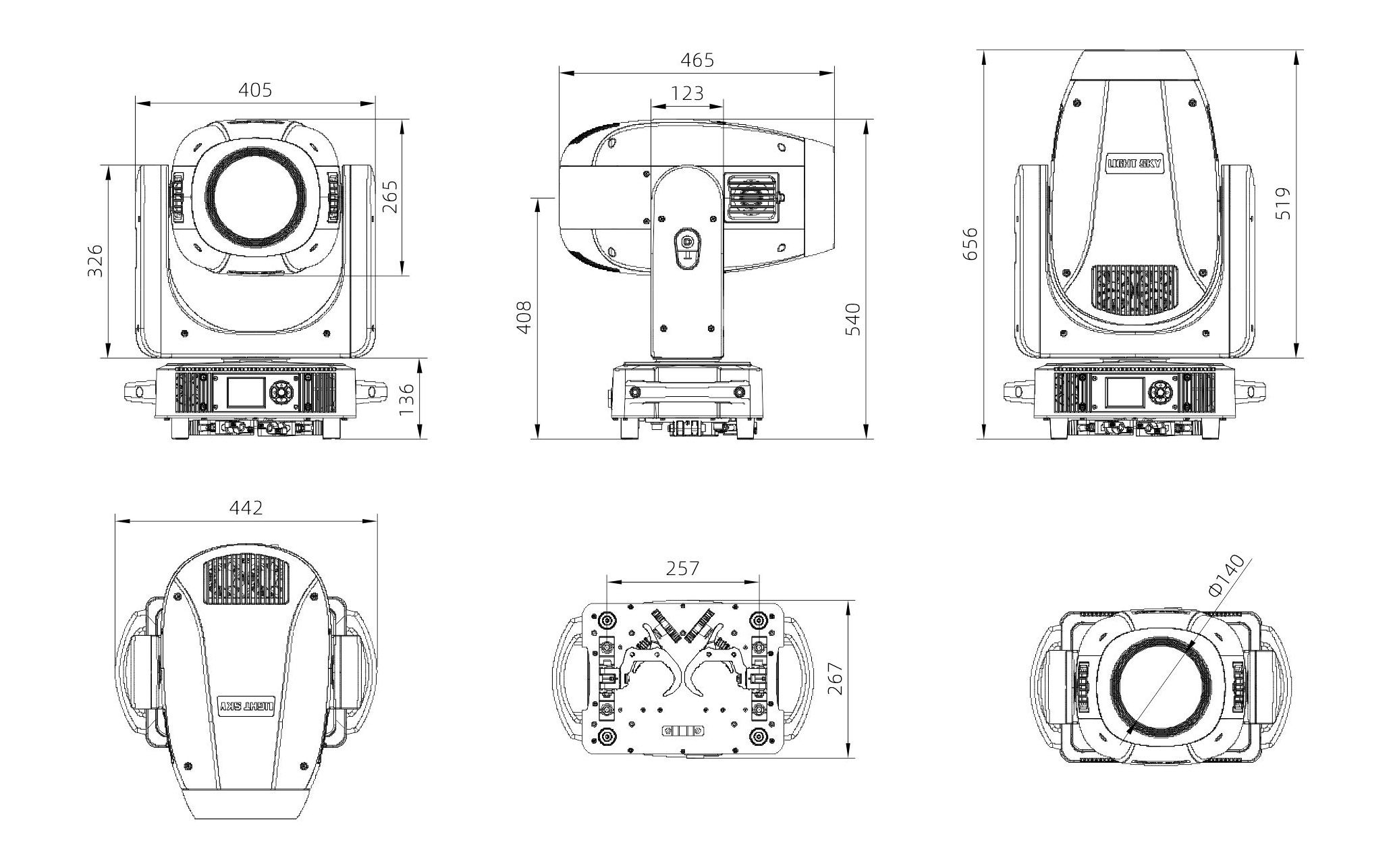

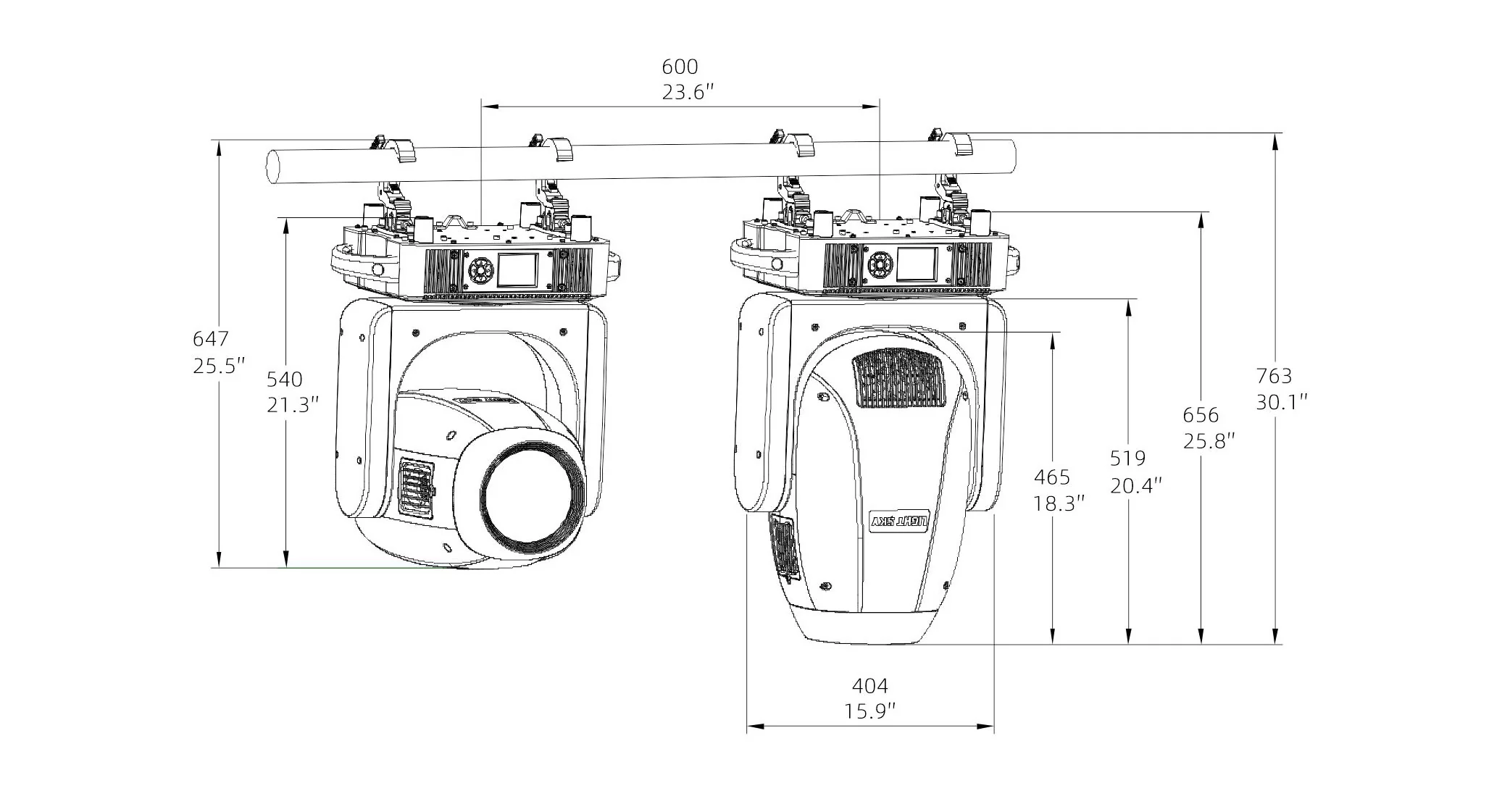

Product Dimensions: 442 × 267 × 656mm
Net Weight: 28.3kg
Carton Packaging: 495mm × 345mm × 775mm
Gross Weight: 34.7 kg (including folding hook)

OTHERS

IP Rate: IP20
Operating Environment: -10°C ~ 45°C
Maximum Surface Temperature of Fixture: 80°C

Factory Configuration
Power Cable: 1 pc (Part No.: F0200030016)
Signal Cable: 1 pc (Part No.: C1400060031)
Safety Rope: 2 pcs (Part No.: F0200010002)

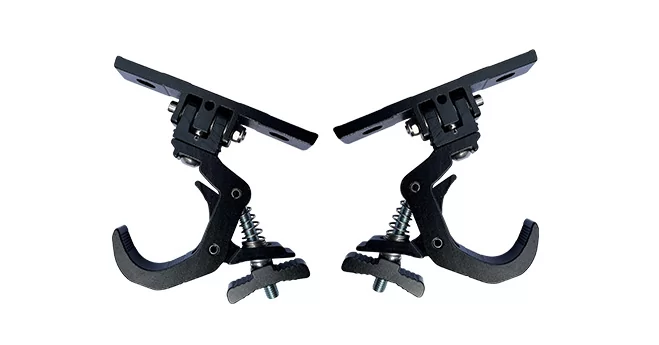

Lamp Hook: 2 sets (Part No.: C0499990023)

Optional Accessories/Packaging

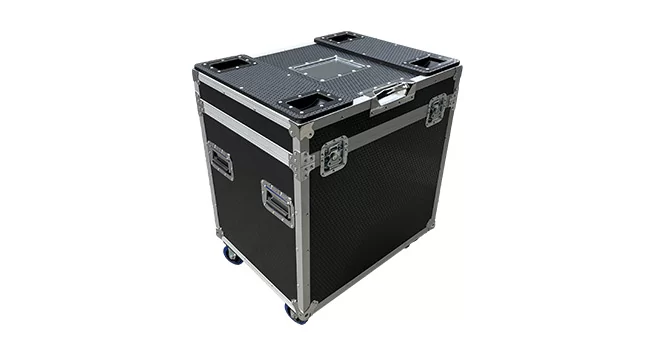

Flight Case: Code B0100810001

Packaging(Fly case): 730x575x850mm
Gross Weight: 97.9kg(2 in 1)
