Light Source / Power System

Voltage : AC100V~240V 50/60Hz
Power : 632W
Total lumen output : 10715 Lm
Power factor : PF0.985
Light source : OSRAM 40W,RGBW 4 in 1 LED chip
Lifespan : 30% weaker after 20000h.


Color / GOBO / Effects

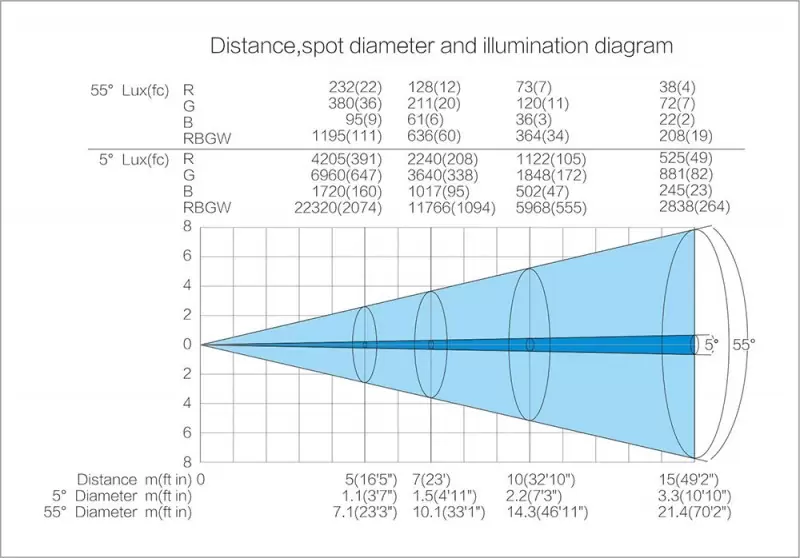

Beam angle : Zoom function min.5°,max.55°.
Color : RGBW macro color system.
Strobe : 1-30 times/ second electronic strobe and random strobe.
Dimmer : 65536 class electronic dimmer


Control System

Pan/Tilt : 540°/2.5 s, 220°/1.0s
Control protocol : DMX512, RDM, Stand-alone mode ,Wireless DMX512(optional)
Channel mode : Standard(13CH)、Extended(23CH)、Simple Mode(9CH)、HSIC Mode(12CH)
Focus and Lens : Combination lens with high precision,linear adjustment


Other functions

Display Menu : 1、The display panel adopts a 2.0-inch LCD12864(LCD screen) in both Chinese and English, which facilitates the operation and browse.
2、Menus can record fixture’s using time and show its temperature, channel data and software version .
3、The display menu setting can edit the procedure
IP set : equipped with long-life battery, IP could be set without power.
Software upgrade : upgrading software by USB.
IP rate : IP20
Fixture Protection : The power would be turned off automatically for fixture’s overheating or failed operation of cooling system.
Cooling : Forced ventilation via axial fans.


Appearance Parameters

Housing : adopt ABS anti-fire plastic.

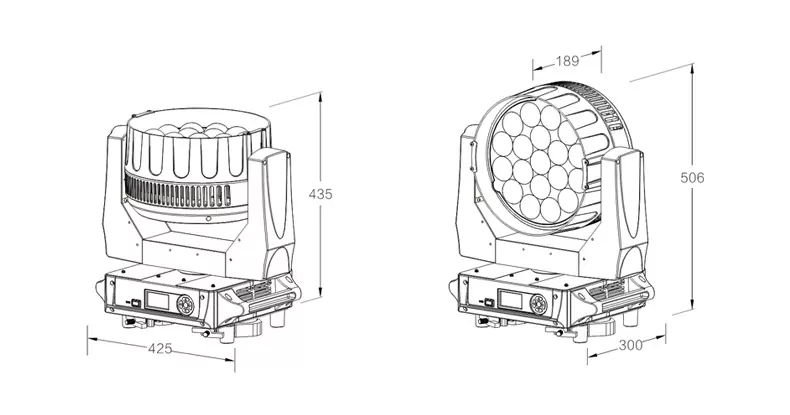

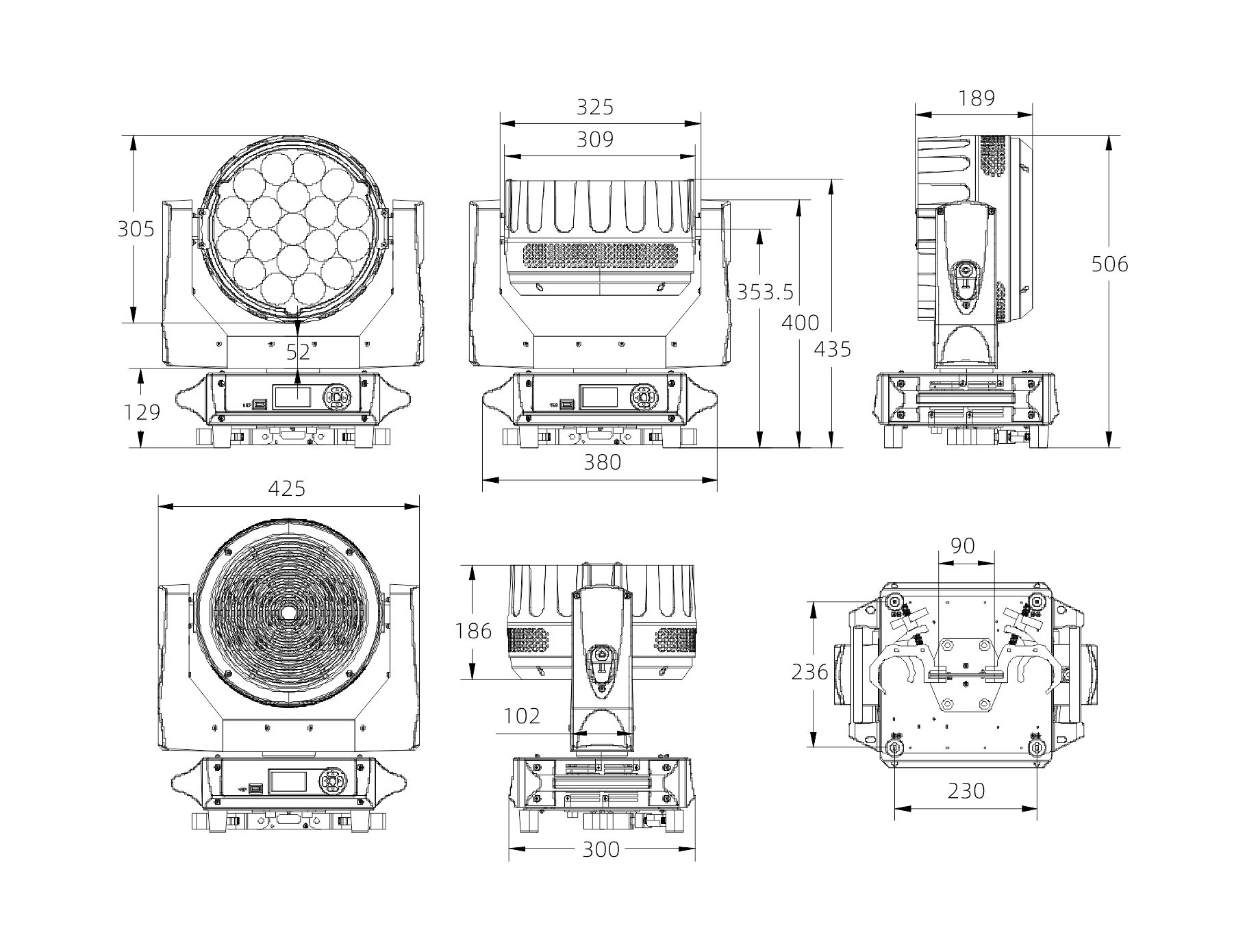

Light Dimension : 425×300×506 (mm)
N.W : 21kg
Carton dimension : 580×500×375(mm)
G.W with carton : 25.8kg
Flycase dimension : 880X500X640(mm)
G.W with fly case : 75kg(2 in 1)
