Light Source / Power System

Voltage : AC100~240V 50/60Hz
Power : 345W
Color Temperature : 8000K
Light source : 230W(OSRAM SIRIUS HRI 230W)
Light source average life span : 2000H

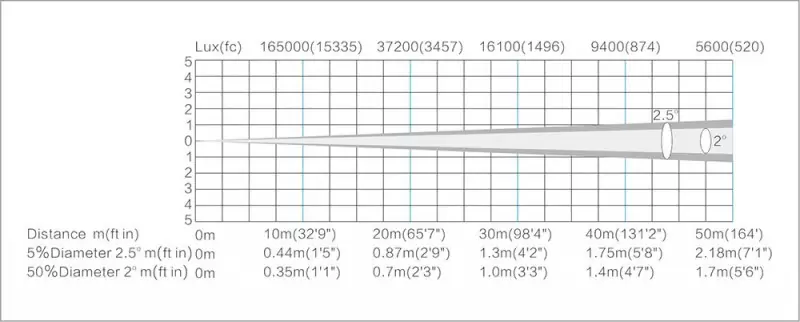

Luminance : 165000lux@10M


Color / GOBO / Effects

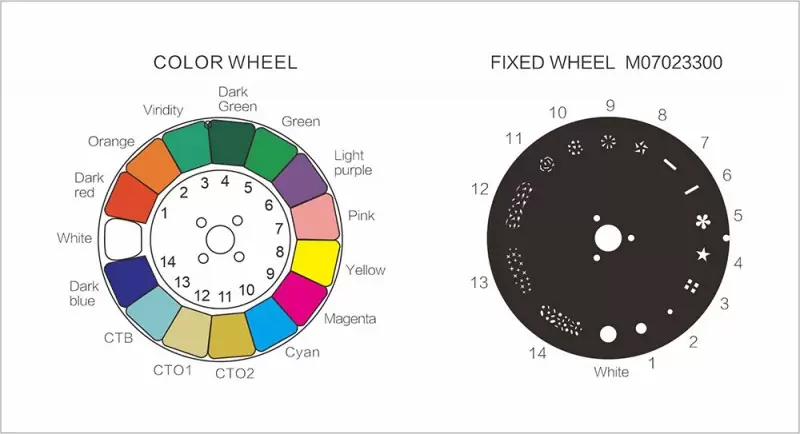

Color : 1white color+14 color wheel
Static gobo wheel : 1blank gobo+11gobo+3animation range
Prism : 8 prism+16 double prism +prism combination
Beam angle : 2.5°
Stobe : double strobe structure,0.5-9 times/second(adjustable)


Control System

Control protocol : DMX512、RDM
Channel mode : 14CH/16CH/16PLUS


Other functions

IP set : Automatic chang battery,IP could be set without electricity.
Software upgrade : Insert USB upgrade software.
Features : Remote control lamp’s swith function display light and lamp’s using time.
automaticallay adjust cooling-fan’s speed,Drop power when strobe lens.
Safety Devices : 1、BIPOlar circuit breaker with thermal protection.
                           2、Automatic break in power supply in case of overheating or failed operation of cooling system.
Cooling : Forced ventilation with axial fans
The vertical direction : The vertical direction of the use of hidden locking device,
convenient transportation and maintenance.

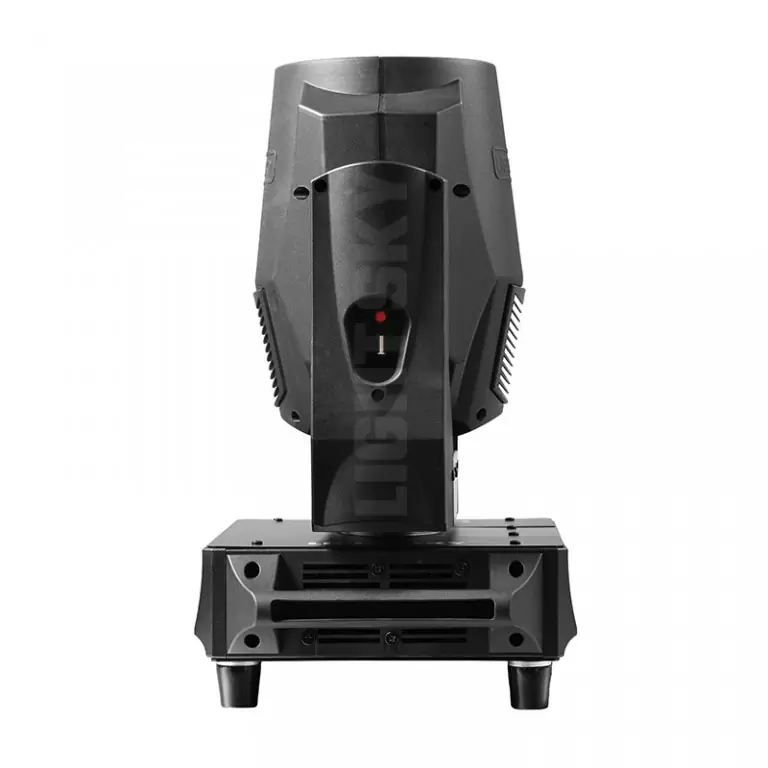

Appearance Parameters

Housing : Heat-proof plastic+module pressing alloy materials.

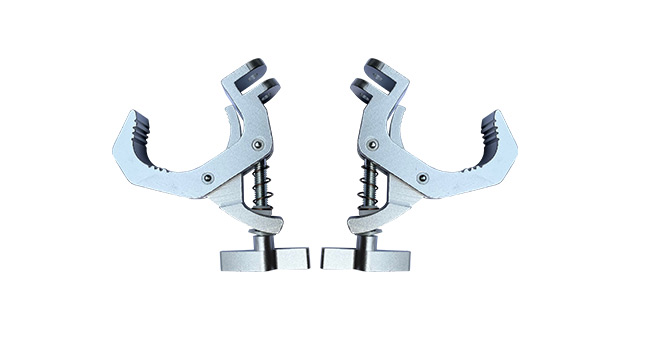

Hanging system : foldable light hook

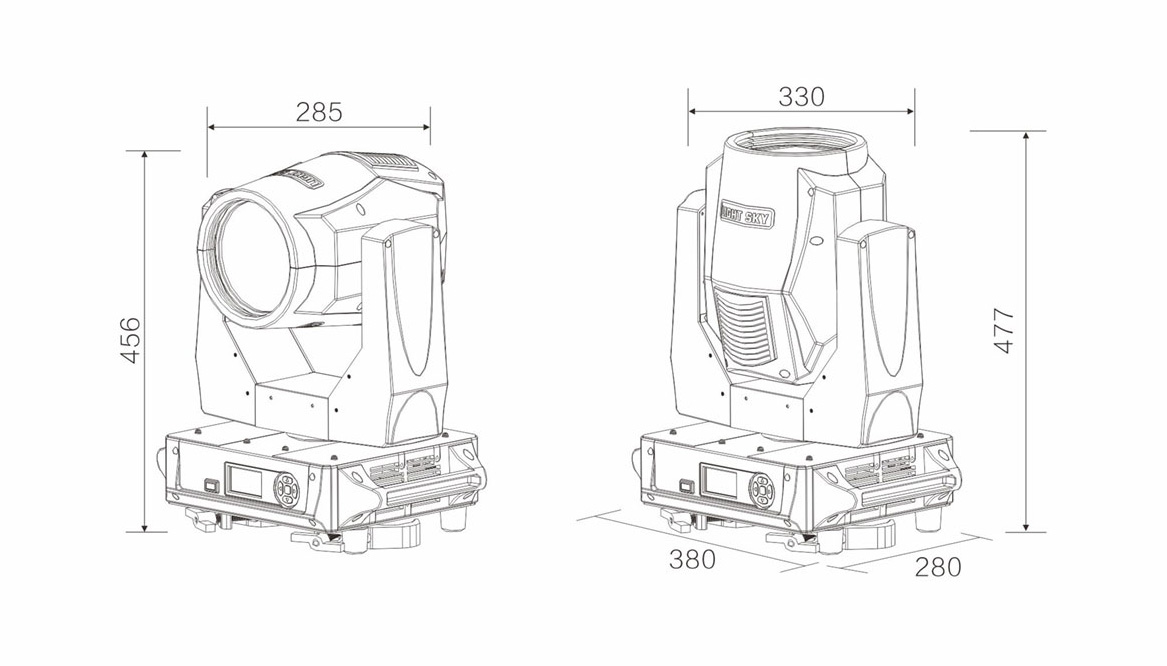

Light Dimension : 380 x 280 x 477mm
N.W : 17.5Kg/pcs
Carton dimension : 400x345x570mm
G.W with carton : 19.9Kg

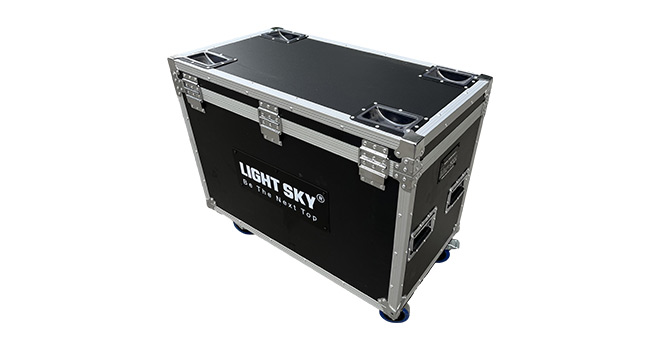

Flycase dimension : 865x470x740mm
G.W with fly case : 69Kg (2 in 1)
