Description

Light Source / Power System

Voltage : AC100-240V,50/60Hz
Power : 100W
Power factor : PF 0.988
LED chip : Tian xin 15W,RGBW 4 in 1 LED chip
LED QTY : 10PCS.
Average life : >50000h
Strobe : 1-30 times/second electronic strobe and random strobe.
Dimmer : 65536 class dimmer



Color / GOBO / Effects

Color : RGBW macro color system. LED can be controlled pixel by pixel, delivering versatile effects。
Lens degree : 22°(standard); (optional)8°; 15° ; 45°.



Control System

Control Mode : DMX512, RDM
Channel : Standard channel : 9CH; Extend channel : 45CH; 25; 18CH; 40CH.



Other functions

Attachment Devices : Quick lock seamless splicing (same light source distance after splicing)



Appearance Parameters

IP rate : IP65
Light size : 1000×86×190 (mm)
Box Size : 1020X100X215 (mm) (1 sets- The inner packing)
N.W. : 7.3Kg         G.W. : 9.45Kg
1035X580X235 (mm) (5 sets-The outer packing)
N.W. : 36.5Kg       G.W. : 41.5Kg
Flycase Size (5SETS-standard) : 1065X630X385(mm)
N.W. : 36.5Kg       G.W. : 65.00Kg
Flycase Size (8SETS-optional) : 1060X510X640 (mm)
N.W. : 58.4Kg       G.W. : 99.5Kg

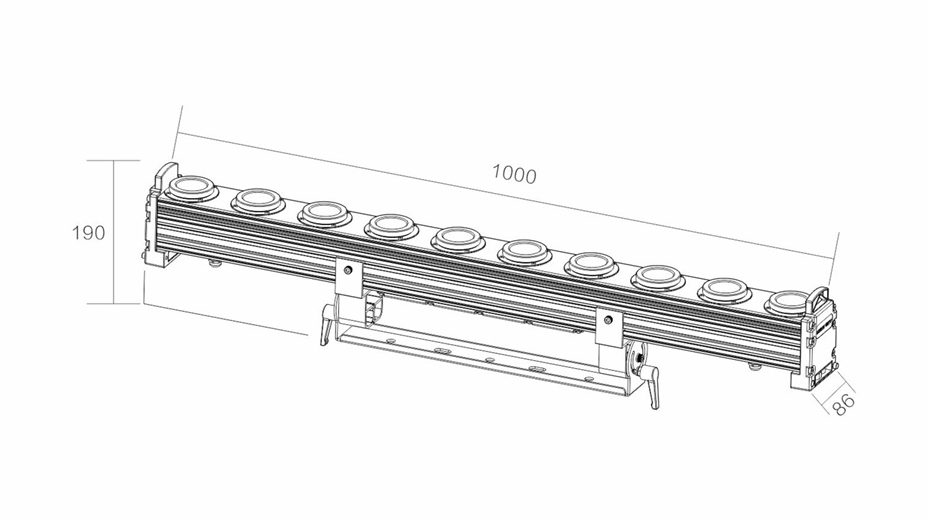

Dimension drawing
Hanger picture

Fly case(optional)

Inventory code:B0100250002

Lighting quantity on one flycase:5 in 1

Flycase dimension: 1150 x 630 x 420mm

N.W : 40.3kg/pcs

G.W with fly case: 70.8kg (5 in 1)

Light HookPower Cable

Safety RopesSignal cable




LIGHT SKY CAD DRAWINGS









Attention : All downloaded light library files on this site need to be decompressed before they can be used.
