Light Source / Power System

Voltage : AC100V~240V/50Hz~60Hz
Power : 91W
LED chip : 6 pcs *10W ， RGBW 4 in 1 LED chip
LED life span : 30000h
Lens : Aspheric lens
Strobe : 1~30 times/ second electronic strobe and random strobe
Dimmer : 65536 class dimmer

Color / GOBO / Effects

Beam angle : 1.5°
Facula angle : minimum 6°, Maximum 51°
Color rotation system : RGBW 4in 1 rotation , Marco color system

Control System

Pan/Tilt : Pan : 540°/1.5 seconds Tilt : 180°/0.5 seconds
Control Mode : DMX512, RDM, Stand-alone mode ,Voice Control
mode , Mater-Slave mode , Wireless DMX512.
Channel : Standard Channel : 11 , Extend Channel : 17

Other functions

Display Menu :
1 、2.4 inches TFT touch screen , Chinese and English two version language.
2 、display board can record device’s using time , show device’s
       temperature, channel data and software version .
3 、Edit the procedure
Other feature :
1 、Extend IP address function , each IP address maximum can set 64 ID
2 、Support DMX signal priority identification, when lose the
       signal it would be turn into Black , default scene , Automatic
       function etc according to setting
3、 software upgrade : upgrade software by XRL cable

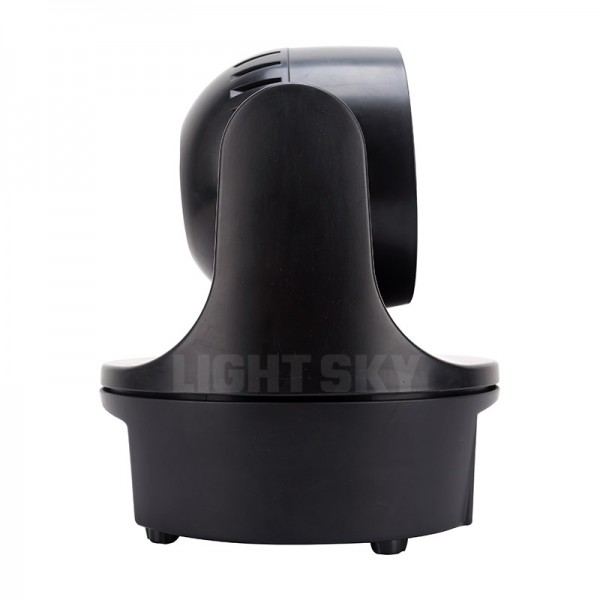

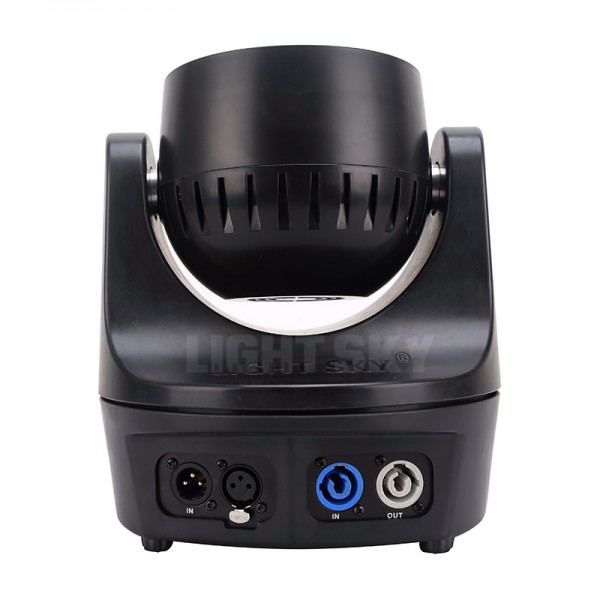

Appearance Parameters

Outlooking : adopt ABS anti-fire plastic
Light size : Φ226×268(mm)
Carton Size : 270x260x350(mm)
N.W : 3.8Kg     G.W : 5.7Kg
Carton dimension : 570x560x385(mm)
G.W with carton : 24.6KG(4 in 1)
