Description

OPTICAL

Light source : 600W five color LED module (RGBAL)

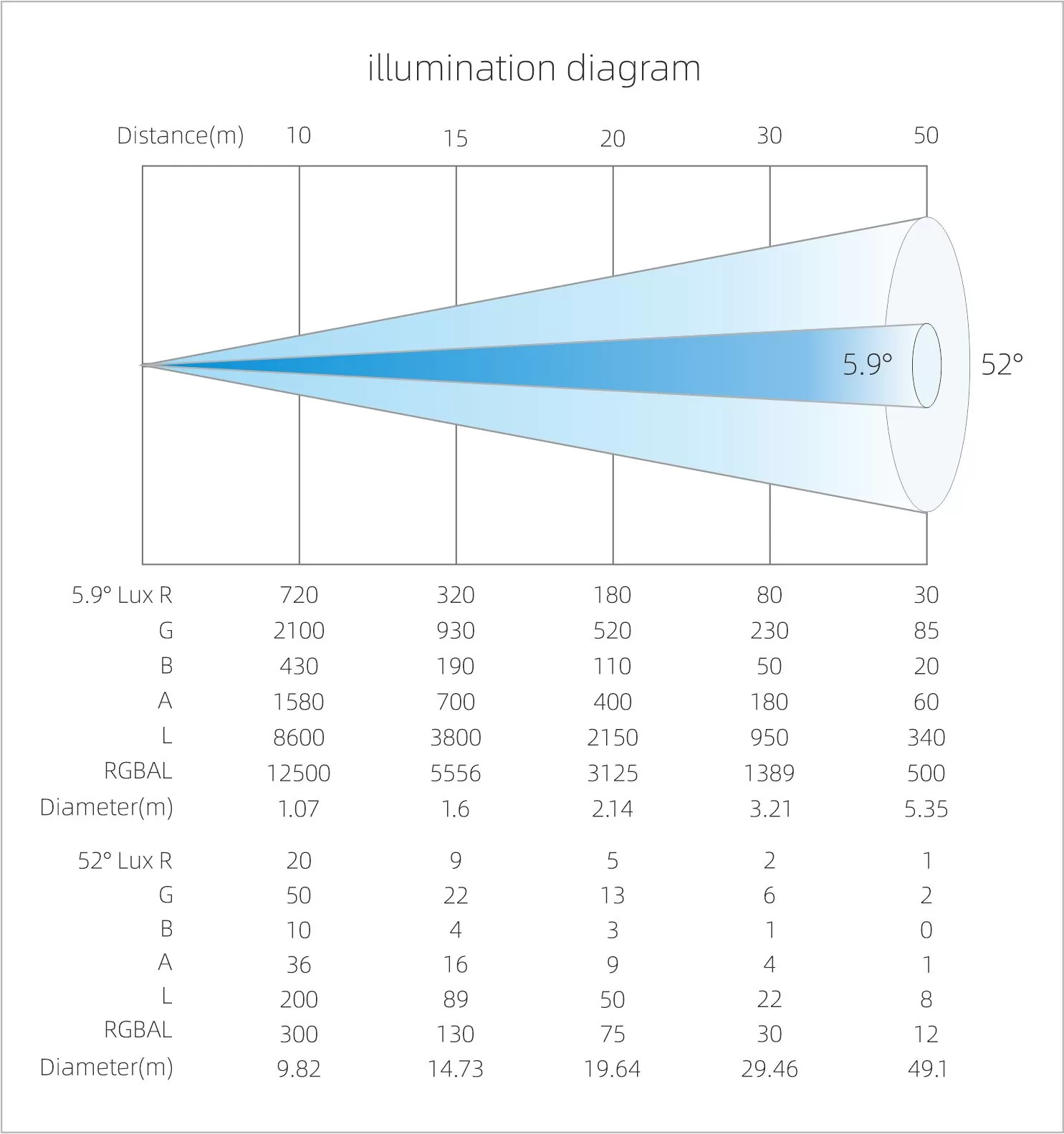

Zoom range : 5.9 ° -52 °
Optical lens : coated with high anti reflective film, diameter 180mm
Color temperature : 2500-10000 K
Color rendering index(CRI ) : up to 95
Luminance : 12500lux@10m
Total lumen output : 17600 Lm
LED source life expectancy: 40,000 hours*





COLOR

66 electronic color chips, rich in color
Virtual CMY
Virtual CTO

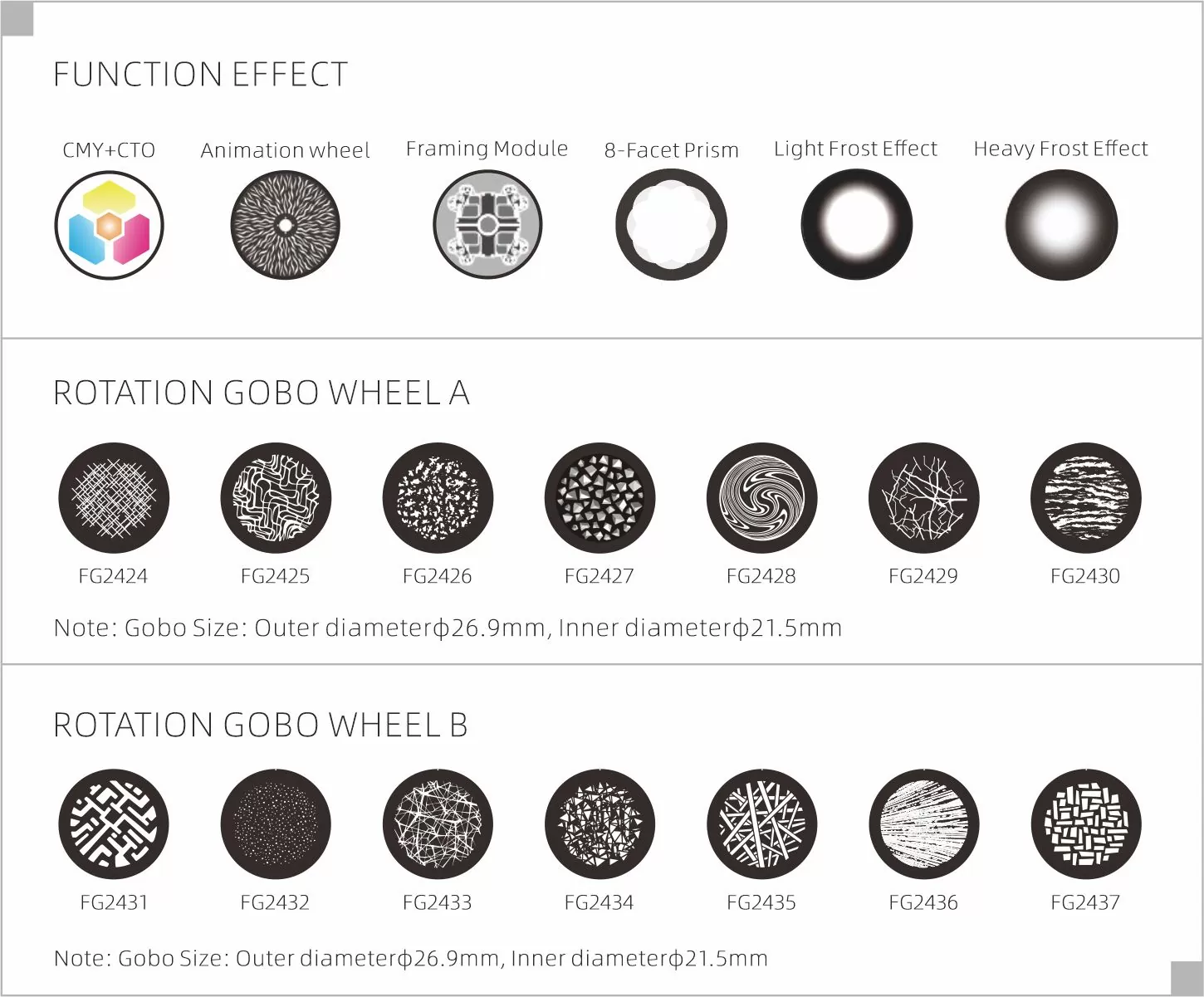

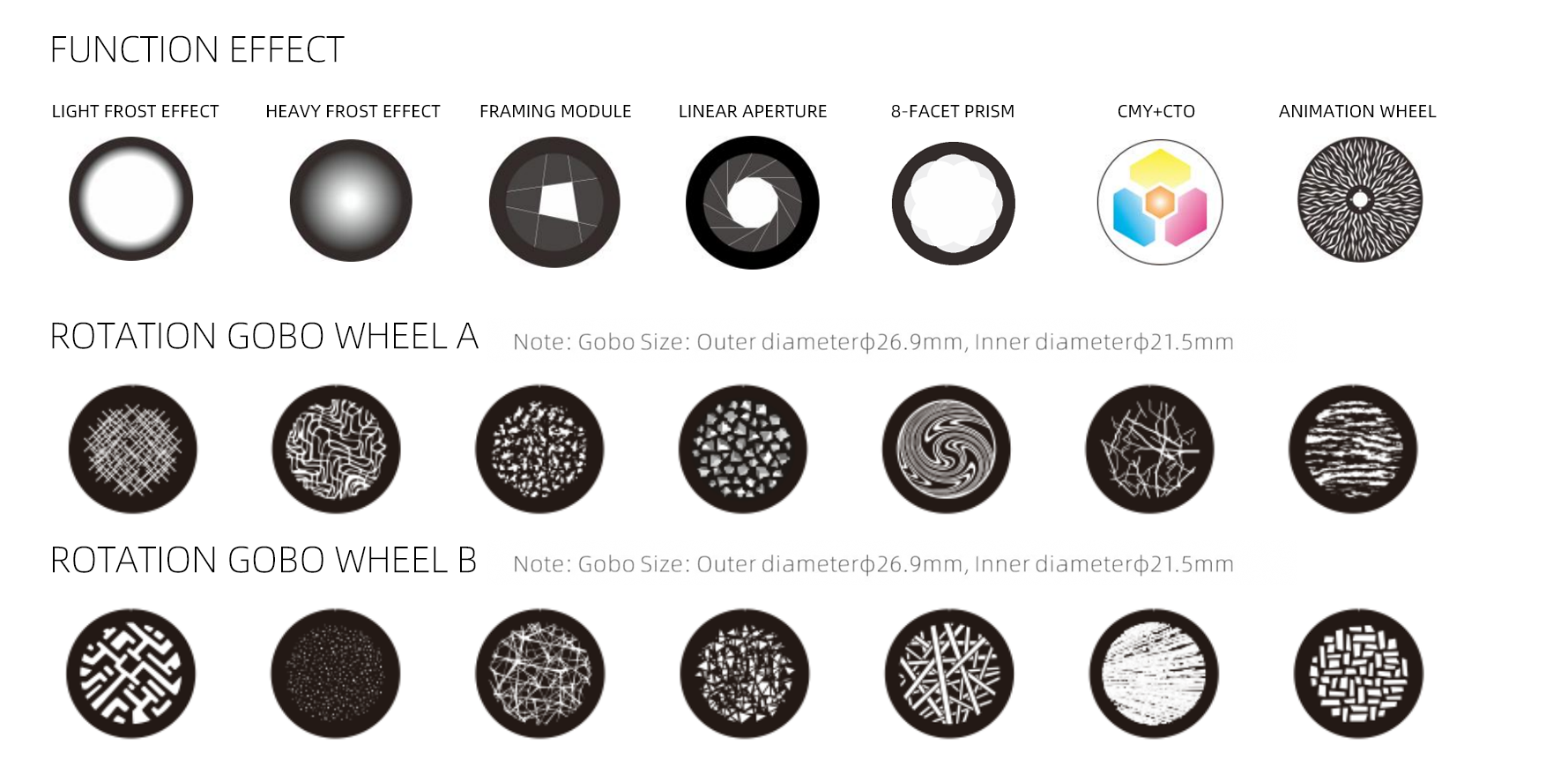

GOBO

2 Rotating Gobo Wheels, each with 7 Glass Gobo Patterns, allowing dynamic overlay effects, interchangeable and capable of rotation, flowing, and shaking effects.
Animation wheel
Framing system : 4 blade plates enable quick and smooth cutting, with eight independent control directions and angles, each plate capable of complete blackout, and the entire cutting module can rotate ±55º





EFFECTS

Prism : 8-facet Prism
2 frost system : light frost 1° and Heavy frost 20°.
Iris : Motorized Iris, 5-100% linear adjustment, with macro function for multiple effect changes.
Dimmer : Electronic Dimmer, 0-100% linear dimming, uniform light spot.
Electronic Strobe Speed : 1-25 times per second.
LED Refresh Rate : 1000Hz ~ 25KHz.





CONTROL

Control Channels : 43CH, 58CH
Protocols : DMX512, RDM, Art-Net
DMX and RDM connectors : Locking 3 pin or 5 pin XLR IN/OUT
Display : LCD screen





SOFTWARE

Software : Software upgrades via DMX signal or USB interface
Silent fan : Silent fan with three working modes (high brightness / silent / ultra-silent)
Temperature control : Intelligent temperature control to ensure LED lifespan





PAN/TILT MOVMENT

Pan axis : 540°, 8-bit/16-bit precision scan
Tilt axis : 270°, 8-bit/16-bit precision scan
Reset function with automatic error correction
Fixed lock : Tilt axis lock





POWER

Input voltage : AC 100-240V 50/60Hz
Maximum power : 1050W (100V input)
Power factor : 0.996





SIZE & WEIGHT

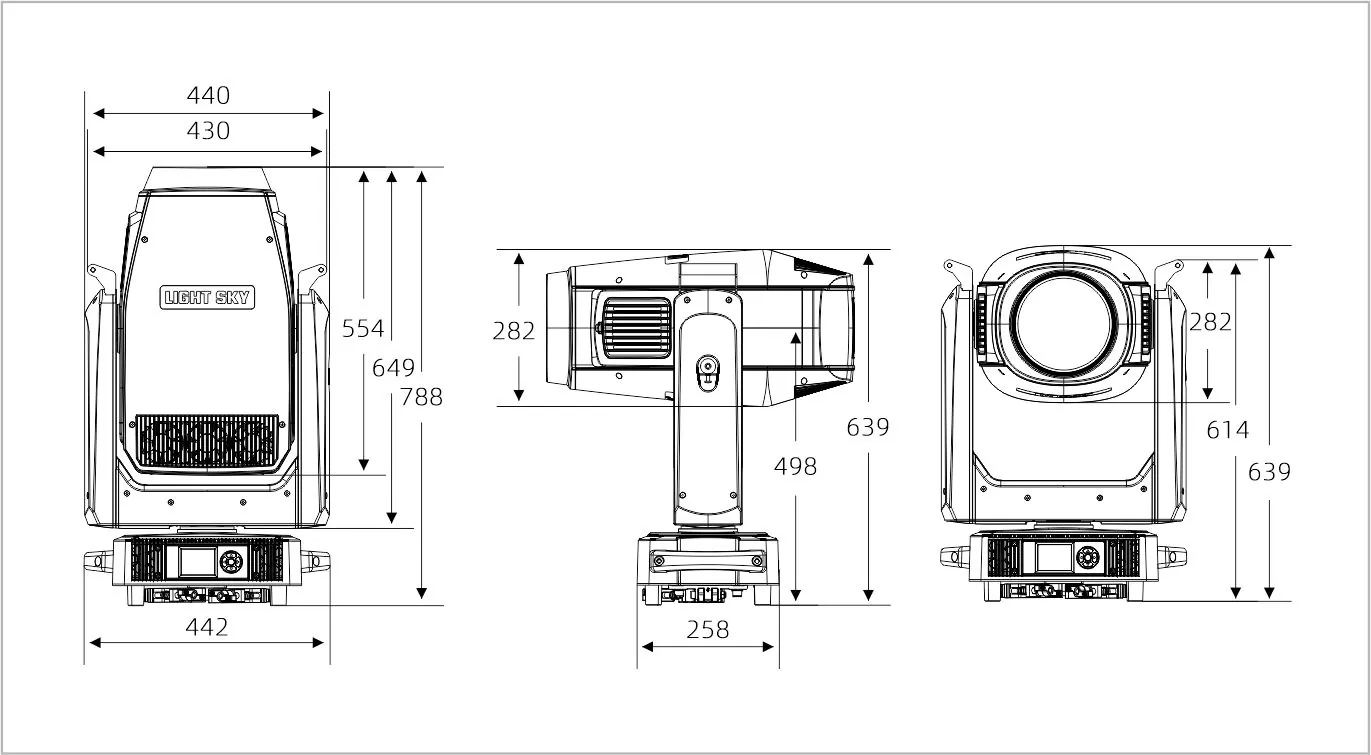

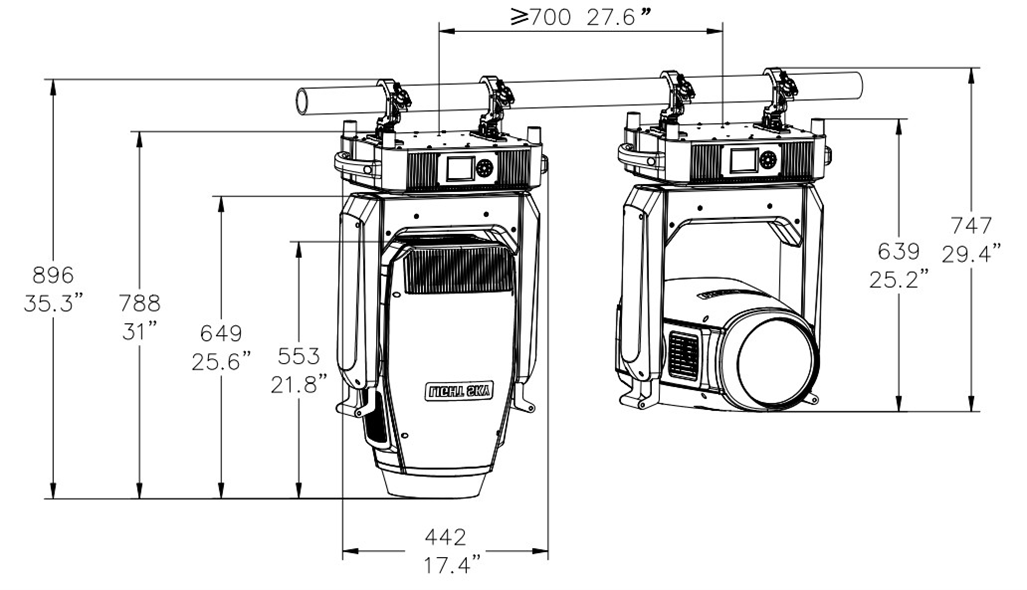

Product dimensions : 442×282×788(mm)
Net weight : 37.6kg
Carton packaging : 520×370×870(mm)
Gross weight : 43.0kg
Packaging(Fly case 1 in 1) : 660×520×840(mm)
Gross Weight : 70.5kg





OTHERS

IP Rate : IP20
Operating environment : -10℃ ~ 45℃
Maximum surface temperature of the lamp body : 75℃
Maximum current : 10.5A (100V input)





LIGHT SKY SUPER SCOPE COLOR

LIGHT SKY SUPER SCOPE COLOR

LIGHT SKY SUPER SCOPE COLOR



LIGHT SKY CAD DRAWINGS
