Description

OPTICAL

Light source : 450W white LED module

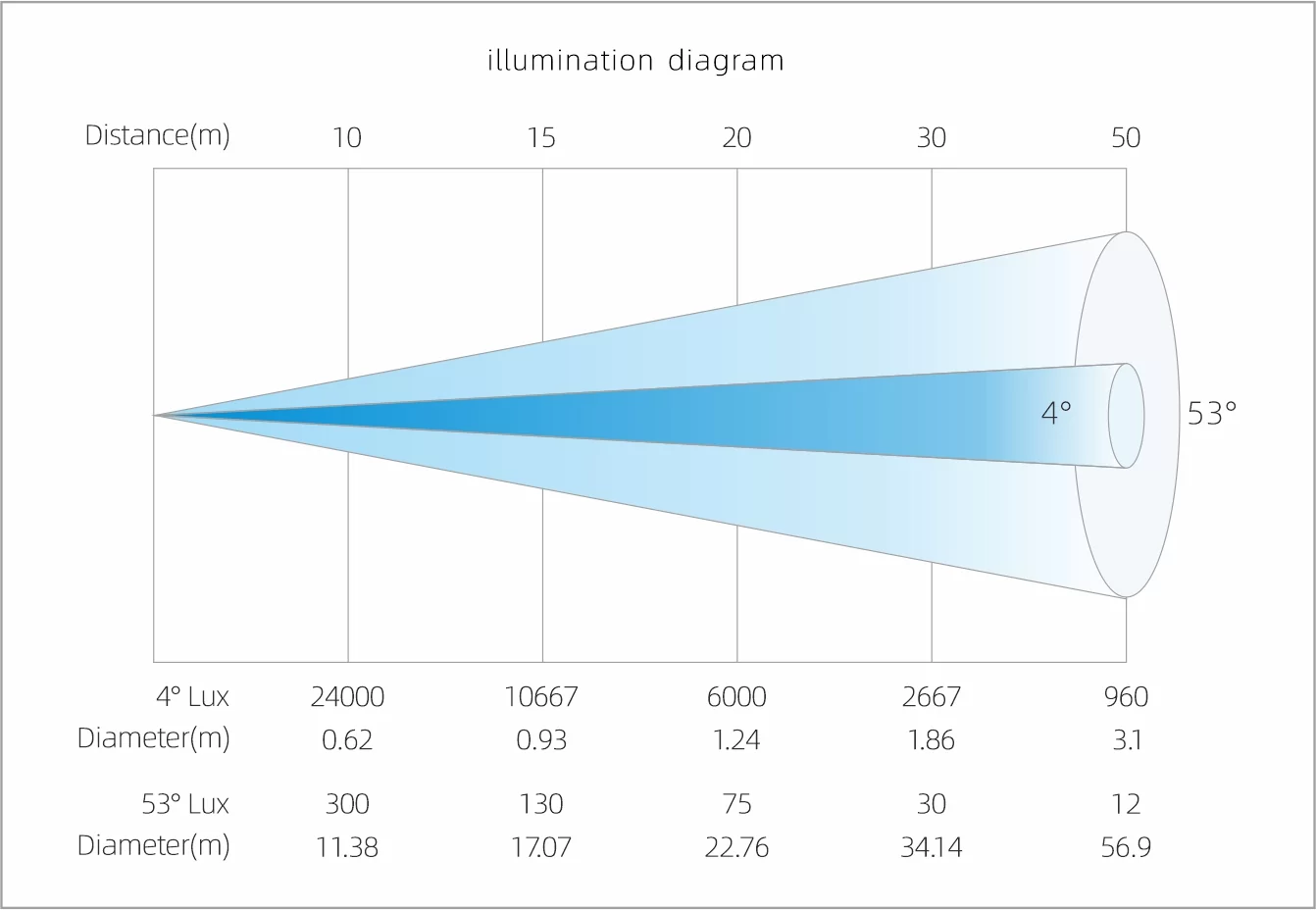

Zoom angle : 4°- 53°
Optical lens : coated with high anti-reflection film, 133mm diameter
Color temperature : 6500K
CRI : RA≥70 / RA≥90(Via high CRI filter)
Luminous flux : 26000lm@10m





COLOR

CMY : CMY infinite color blend

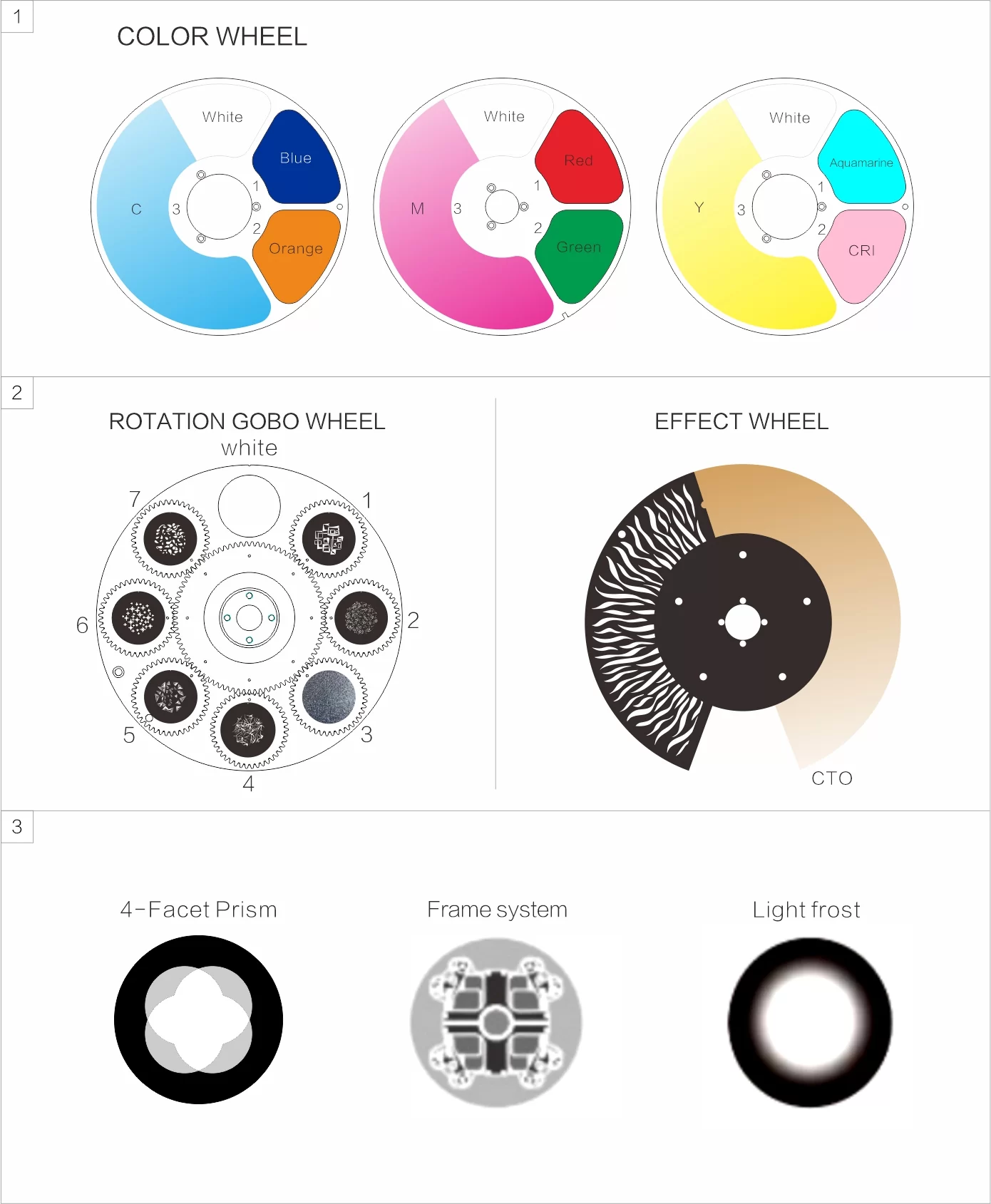

Color : 6 color pieces + high CRI piece + white light, can achieve bidirectional color rainbow effect, double color step gradient(liner movement), color wheel bidirectional rotation, random color mode





GOBO

Rotation gobo wheel : 7 kinds of glass pattern + white circle, can be inserted and replaced, can realize rotation, flow, jitter effects. Pattern sheet outer diameter 22.9mm, pattern sheet inner diameter 12.5mm.
Fixed gobo wheel : 7 kinds of fixed pattern + flame + white circle, can realize flow, jitter effects.
Eight-way cutting : four gratings achieve fast and smooth cutting, and eight cutting directions and angles can be individually controlled. Each piece can achieve complete light closure, the whole cutting module can rotate ±60°.





EFFECTS

Prism : Four prism, bidirectional rotation
Frost : Adjustable independent soft light effect
Single channel : Single channel high color render index -CRI 90
Iris : With electric aperture, 5-100% linear adjustment, with macro function and multiple effect changes
Dimming : Electronic dimming, 0-100% linear dimming, uniform spot
Strobe : Electron strobe – speed is 1-25 times/S
LED refresh frequency : 1000Hz ~ 25KHz





CONTROL

Control channel : 27CH, 32CH
Protocol : DMX512 protocol, RDM protocol, Art Net (optional)
Data connection : Three core or five core signal input/output, RJ45 interface (optional)
Display : LCD liquid crystal display





SOFTWARE

Software upgrade : Upgrade software via DMX signal or USB interface
Intelligent temperature control : Intelligent temperature control to extend LED lifespan





X/Y ANGLE OF MOTION

X axis : 540° or 630°16bit precision scan
Y-axis : 270°8bit/16bit precision scan





POWER

Input voltage : AC 100-240V 50/60Hz
Maximum power : 510W PF0.987





SIZE & WEIGHT

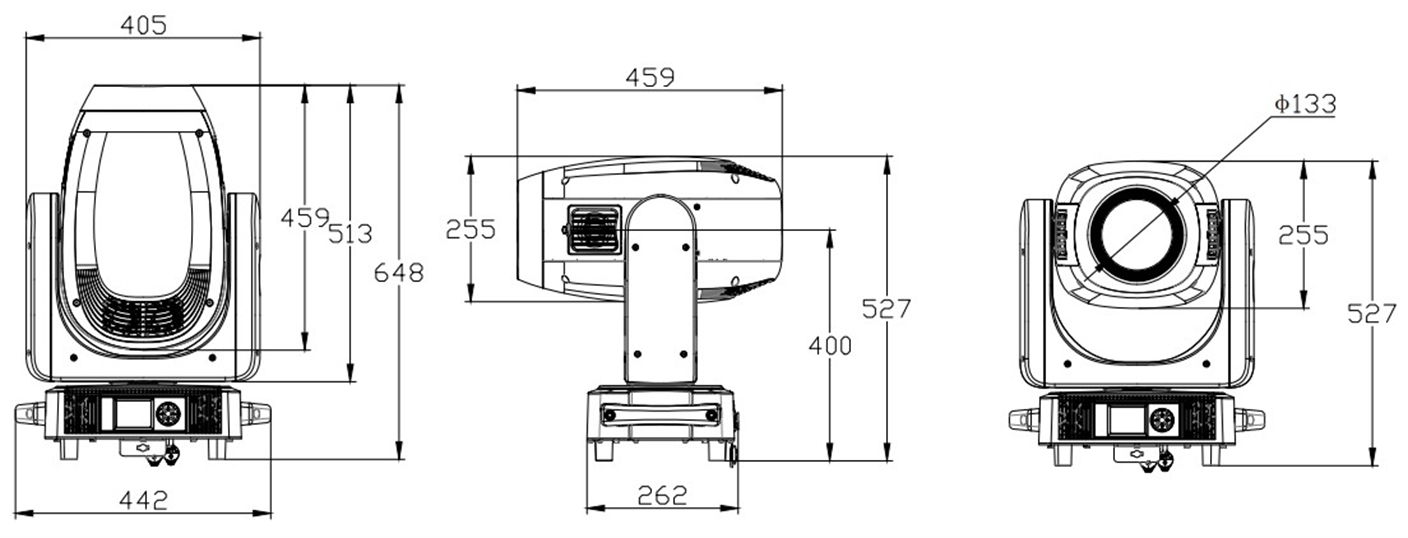

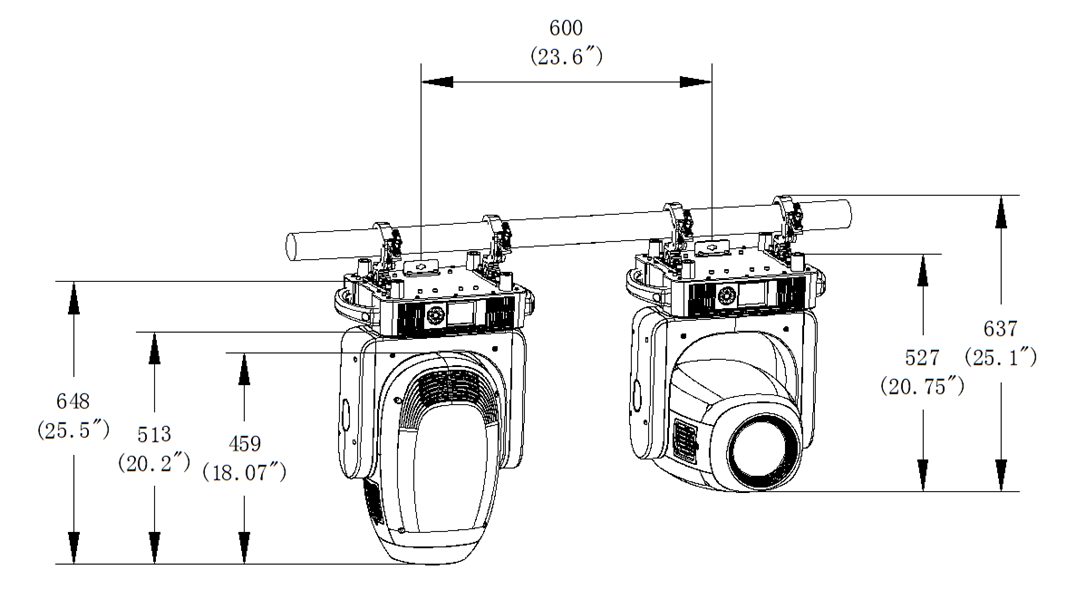

Light size : 442X255X648(mm)
N.W : 27kg
Carton size(default carton packing) : 495X355X740(mm)
G.W : 30.5kg





OTHERS

IP rating : IP20
Working environment : 0℃ ~ 40 ℃
Maximum temperature of light body surface : 80 ℃
Maximum current; 4.7A/110V;2.35A/220V
