Description

LIGHT SOURCE AND OPTICS

Light source : 672pcs x 0.5W RGB LED and 112 x 3W Cold White LED

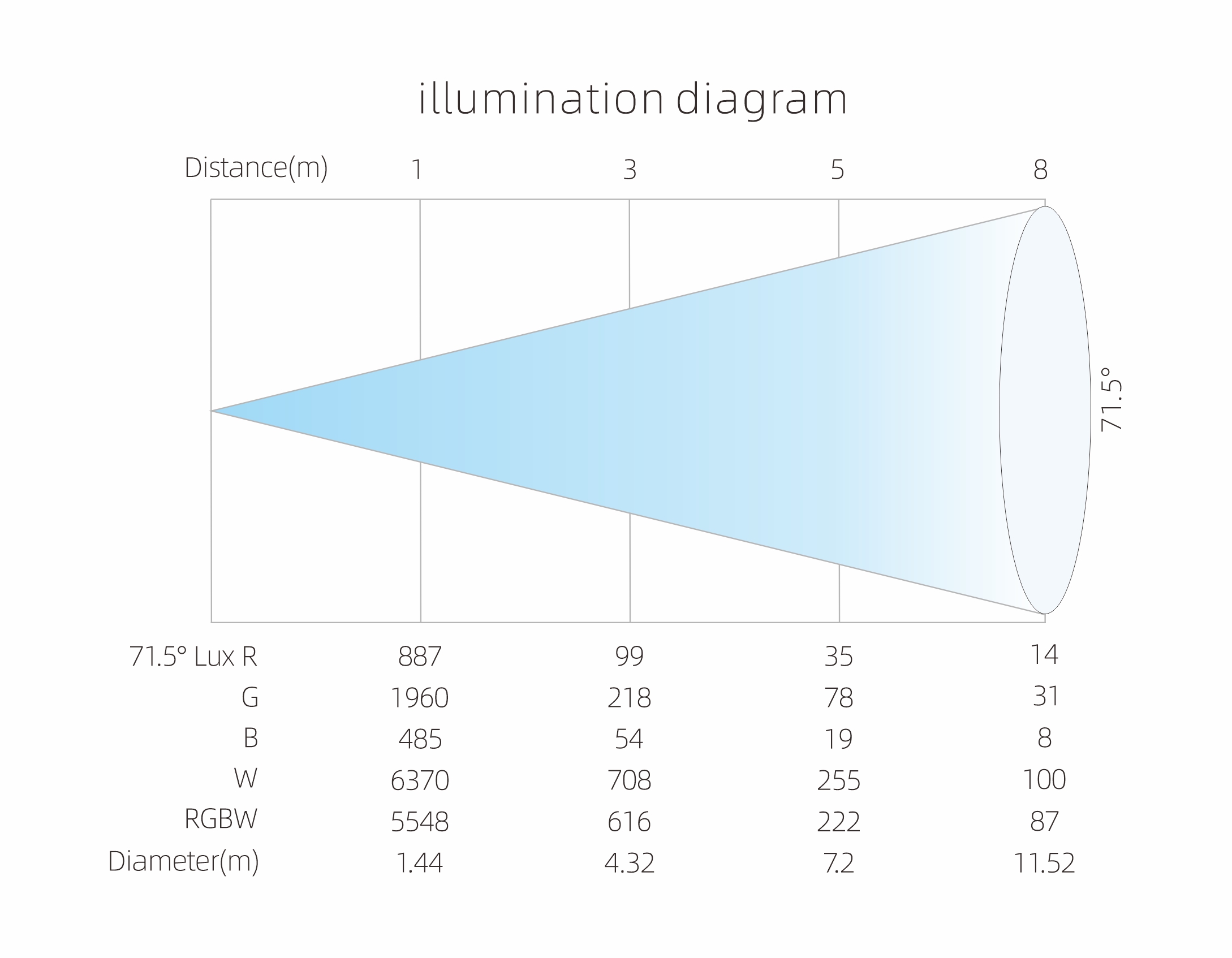

Beam angle : 71.5°
Spot angle : 114°
CRI : RA≥80
LED source average lifespan : 20,000 hours





EFFECTS

Color mixing system : Uniform RGB color mixing system and rainbow effect
LED Control : RGB LED zone and white LED zone can be controlled individually, create outstanding transformation effect
Effect macros : Static effect macros and dynamic effect macros
Dimming : Electronic dimming with four dimming curves
Strobe : 1-30Hz electronic strobe and random strobe





CONTROL AND PROGRAMMING

Control channel : 15CH (standard), 07CH, 70CH, 117CH, 68CH, 65CH, 33CH, 17CH, 112CH, 39CH, 21CH (see channel chart for details)
Protocol : DMX512 protocol, RDM protocol, Art Net (optional)
Data connection : 3pin or 5 pin(optional) , Artnet In &Out
Display : LCD screen





SOFTWARE

Software upgrade : DMX interface
Temperature control : Intelligent system for LED lifespan





POWER AND ELECTRICAL

Rated voltage : AC 100-240V 50/60Hz
Maximum power : 450W
Power factor : > 0.96
Maximum current : 2.1A/220V; 4.5A/100V





SIZE & WEIGHT

Product size : 1000×93×225mm
N.W.: 8.5kg
Carton packaging size(default) : 1090×198×323mm
G.W.: 11.9kg





OTHER

IP rate : IP66
Operating environment :-20 ℃ ~ 45 ℃
Maximum Surface Temperature of Fixture : 60 ℃
Connection System : Built-in splicing pins for quick connection between fixtures





STANDARD PACKING ACCESSORIES(CARTON)

Power Cable : 1 pcs
Signal Cable : 1 pcs(3 core (default)/5 core (optional)
Safety Rope : 2 pcs
Clamps system : 2 pcs (folding lamp hook)





OPTIONAL PACKAGING : FLY CASE

Packaging(Fly case) : 1070 x 670 x 660 mm (Part No.: B0101180001)
G.W.: 142kg (10 in 1)

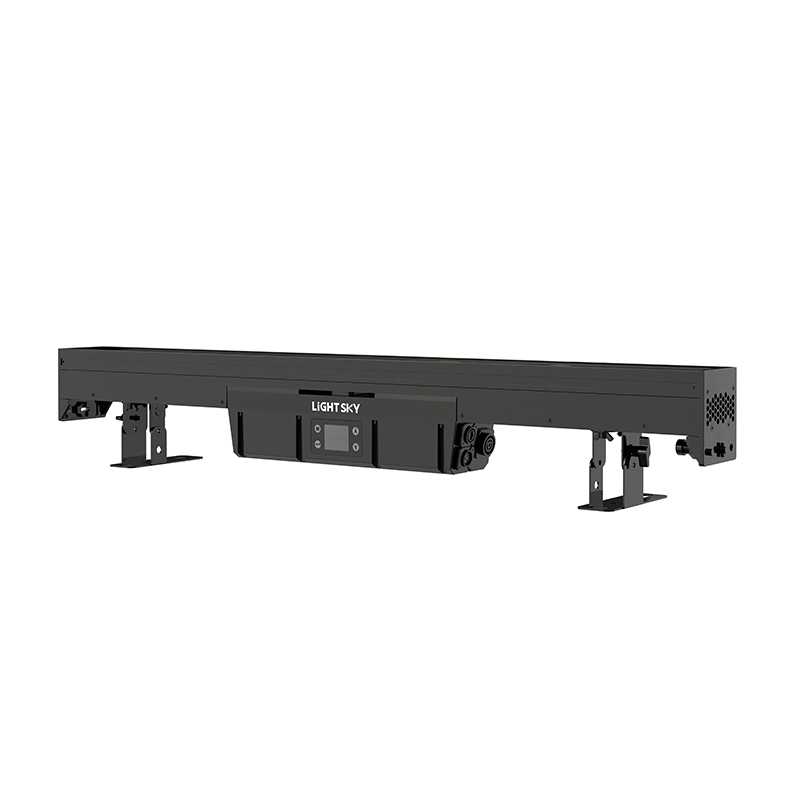

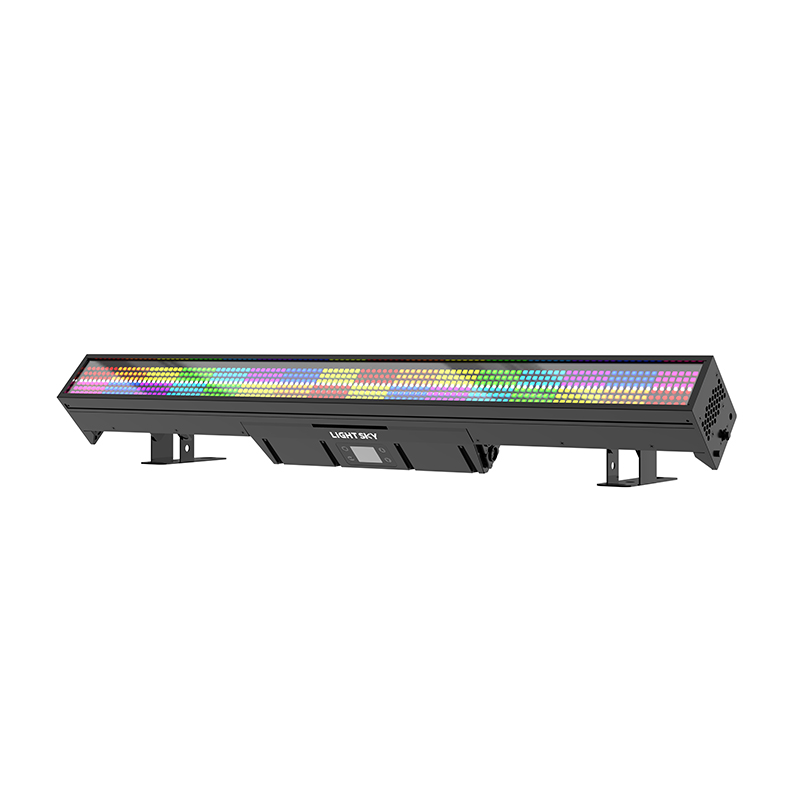

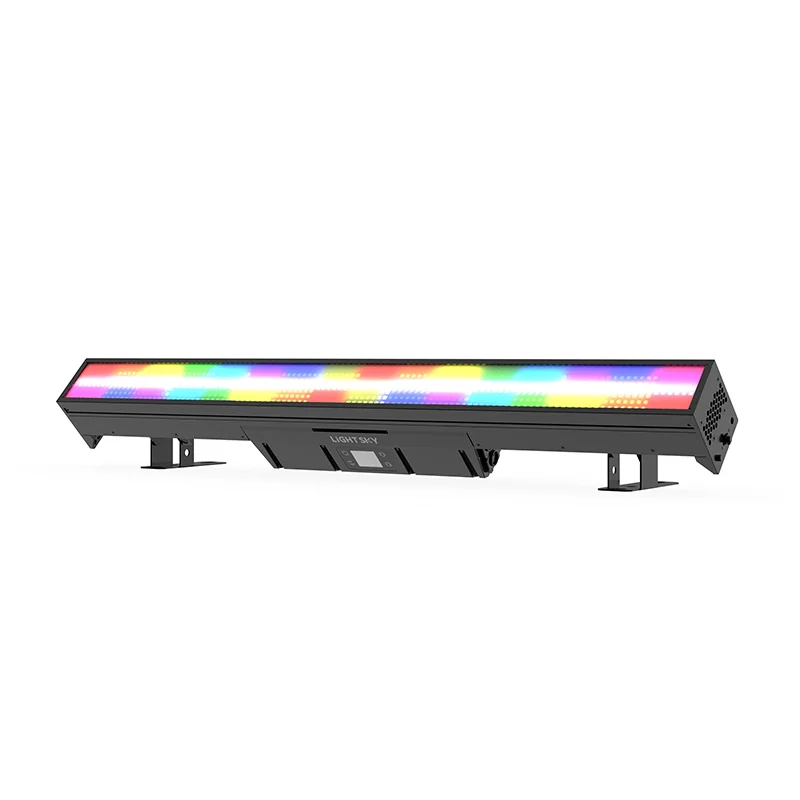

Strobe Bar Aqua

Strobe Bar Aqua

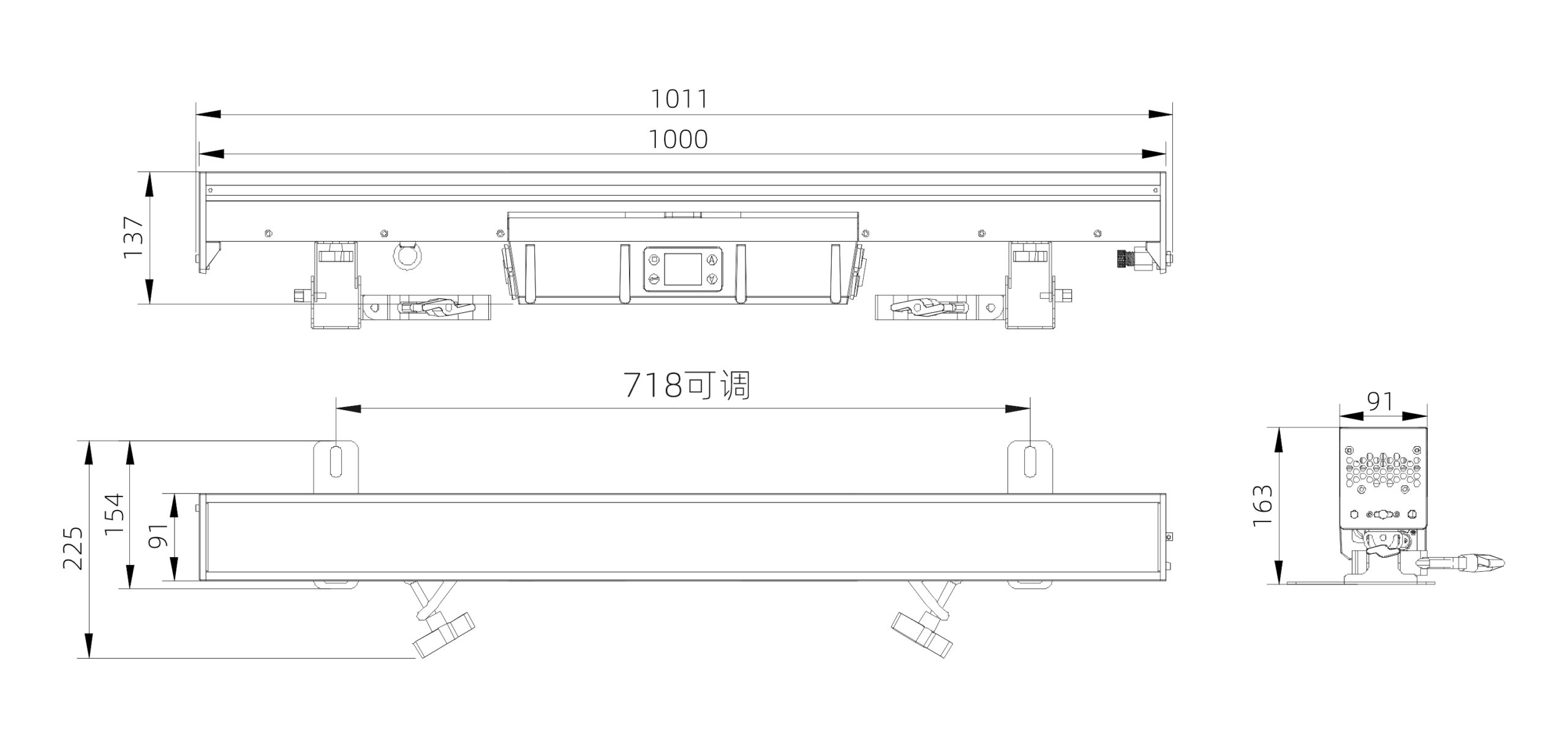

LIGHT SKY CAD DRAWINGS









Attention : All downloaded light library files on this site need to be decompressed before they can be used.
