Description

Electrical Specifications and Connections

Power supply: Electronic auto-ranging
Input Voltage Range: 100-240V 50/60Hz
Maximum Power: 300W
Power Input Interface: PG power input
DMX and RDM Data Input/Output: PG signal input/output



Light Source

Light Source: 19 x 15W RGBL LED
LED Power: 15W
Number of LEDs: 19
Light source average life span: ≥20,000h

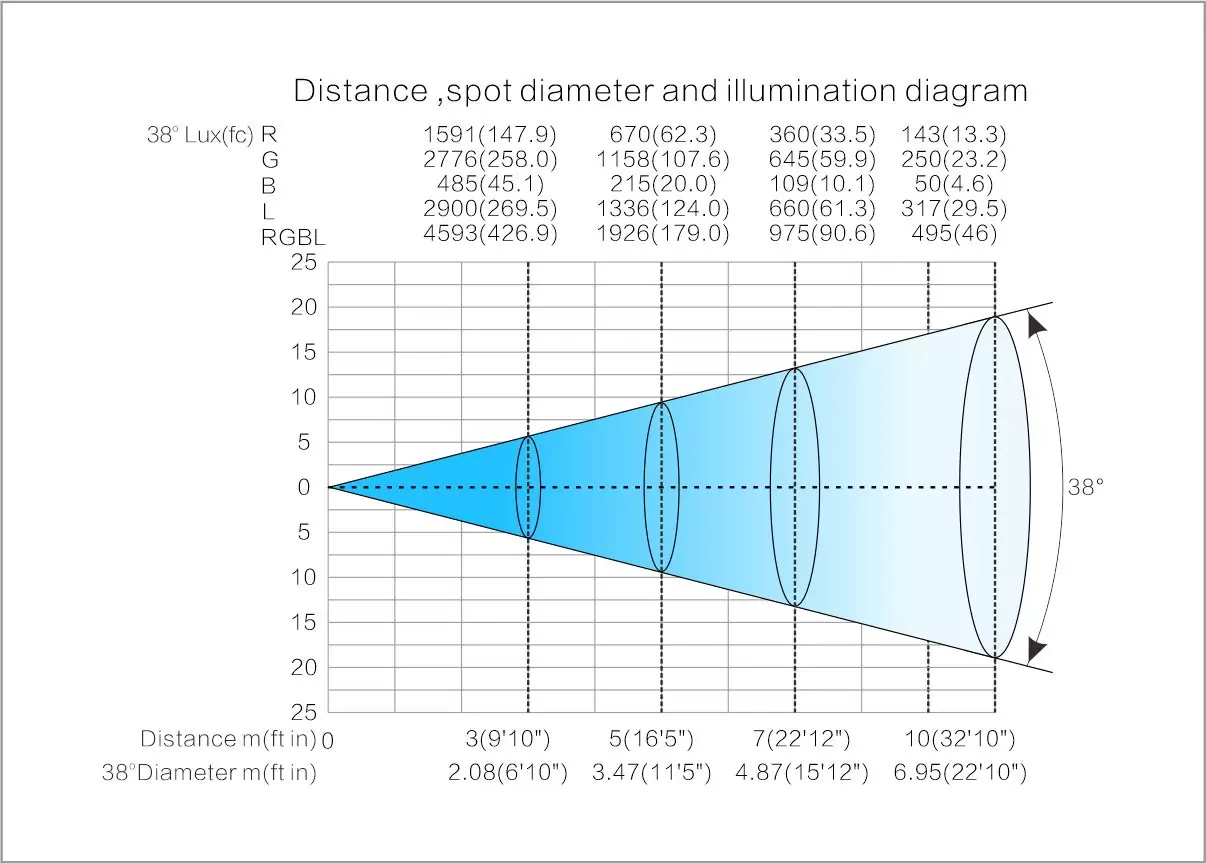

Total Lumen Output: 6,109 lm
CRI: Up to 83 (RGBL)
Lens Angle: 25° (20°/30°/40° optional)
Lens Material: PMMA
Vertical Tilt Angle: ±90°
Beam Angle: 38°



Control System

RDM Bidirectional Data Transmission
Menu Display: Shows device temperature, channel data, and software version information.
Protocols: DMX512, RDM
Channel Modes: 9CH (standard), 4CH (see channel chart for details)



Standards and Certifications
Product Standards: GB 7000.1-2015 and GB 7000.217-2008
Certifications: CE, RoHS
EU Directives Compliance:
Low Voltage Directive 2014/35/EU
EMC Directive 2014/30/EU



Operating Temperature
Maximum Ambient Temperature: 40 °C
Minimum Operating Temperature: 0 °C
Maximum Surface Temperature of Fixture: 80℃



Appearance Parameters

Design: Die-cast aluminum alloy integrated structure with good heat dissipation performance.
IP Rate: IP20

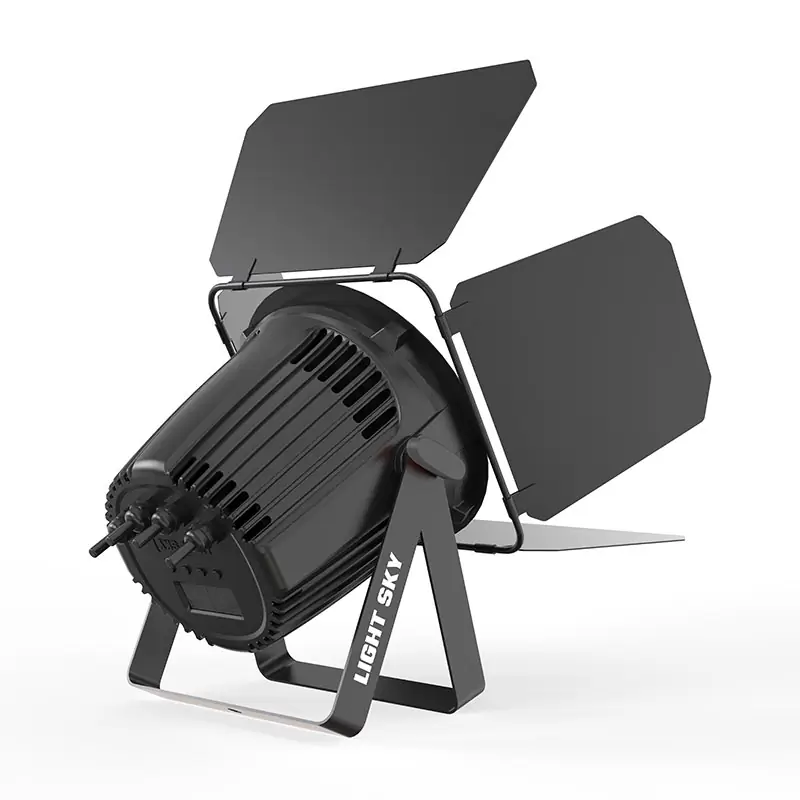

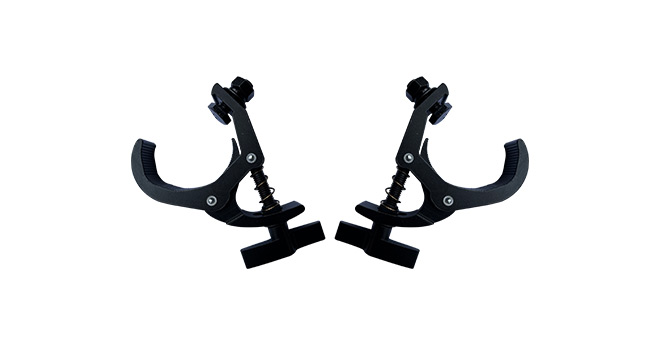

Accessories: Barn doors (optional), clamps (optional)
Product size: 231mm × 194mm × 279mm
Net Weight: 3.4Kg
Packaging size(1 in 1): 220mm × 220mm × 255mm
Gross Weight (Carton): 3.8Kg
Packaging size (4 in 1): 465mm × 465mm × 280mm
Net Weight (4 in 1): 13.6Kg
Gross Weight (4 in 1): 16.2Kg
Fly Case (optional)

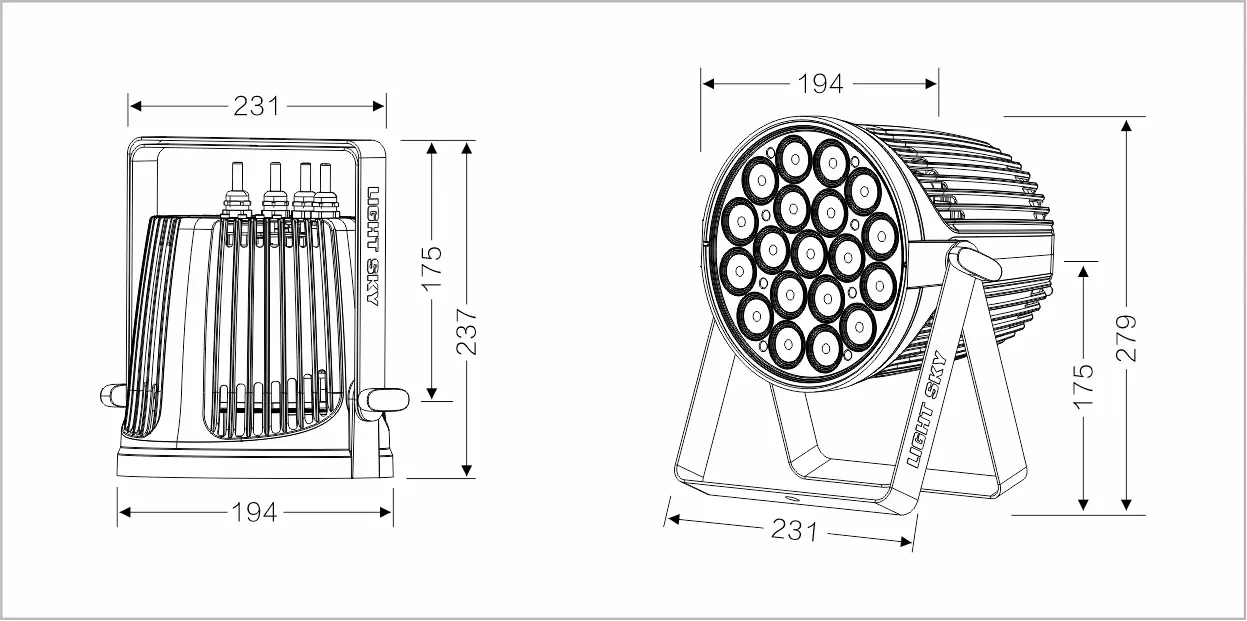

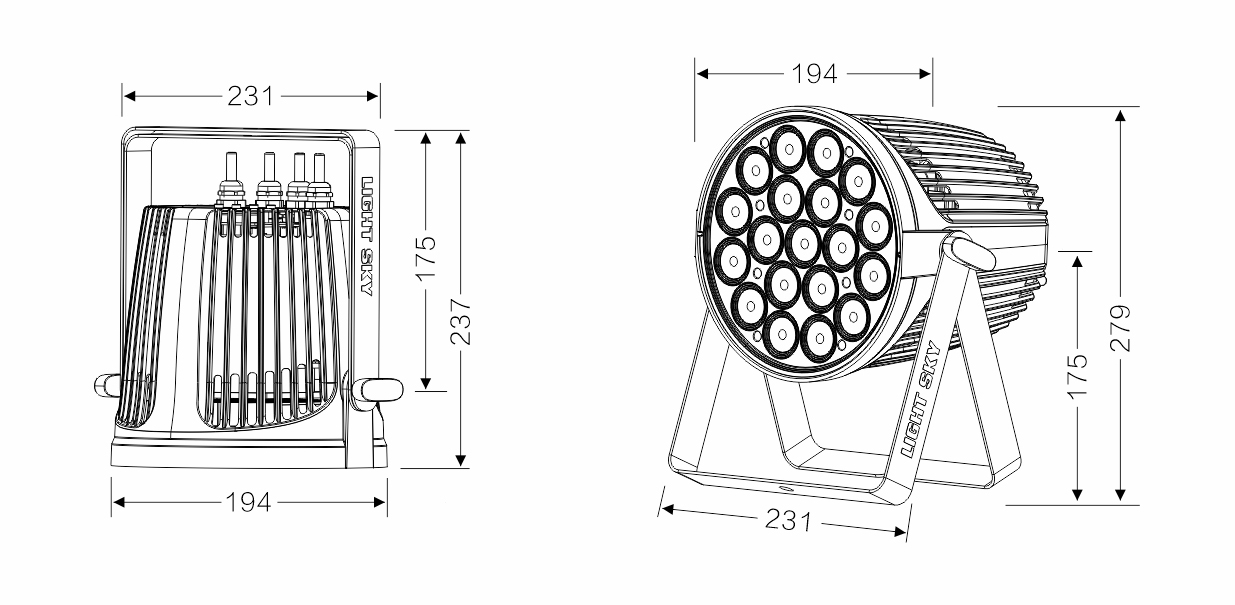

Dimension drawing



LIGHT SKY CAD DRAWINGS
