Light Source / Power System

Voltage : AC100V~240V 50/60HZ
Power : 495W
Light source : LIGHT SKY NSL-360 USHIO
Light source power : 360W
Light source average life span : 1500h
Output color temperature : 6900K

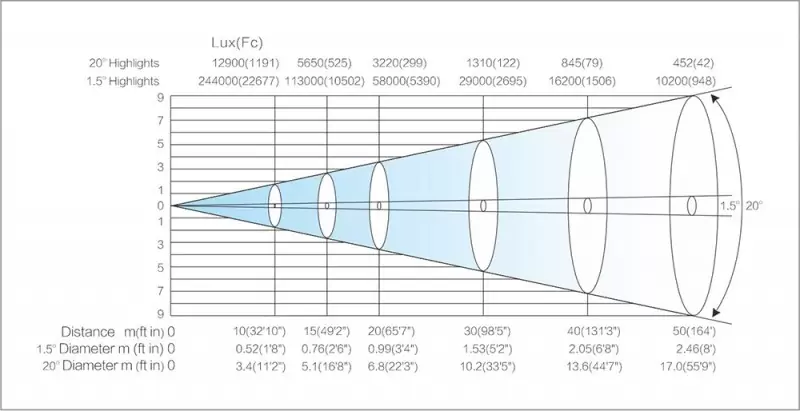

Luminance : 244000lux@10m at beam mode


Color / GOBO / Effects

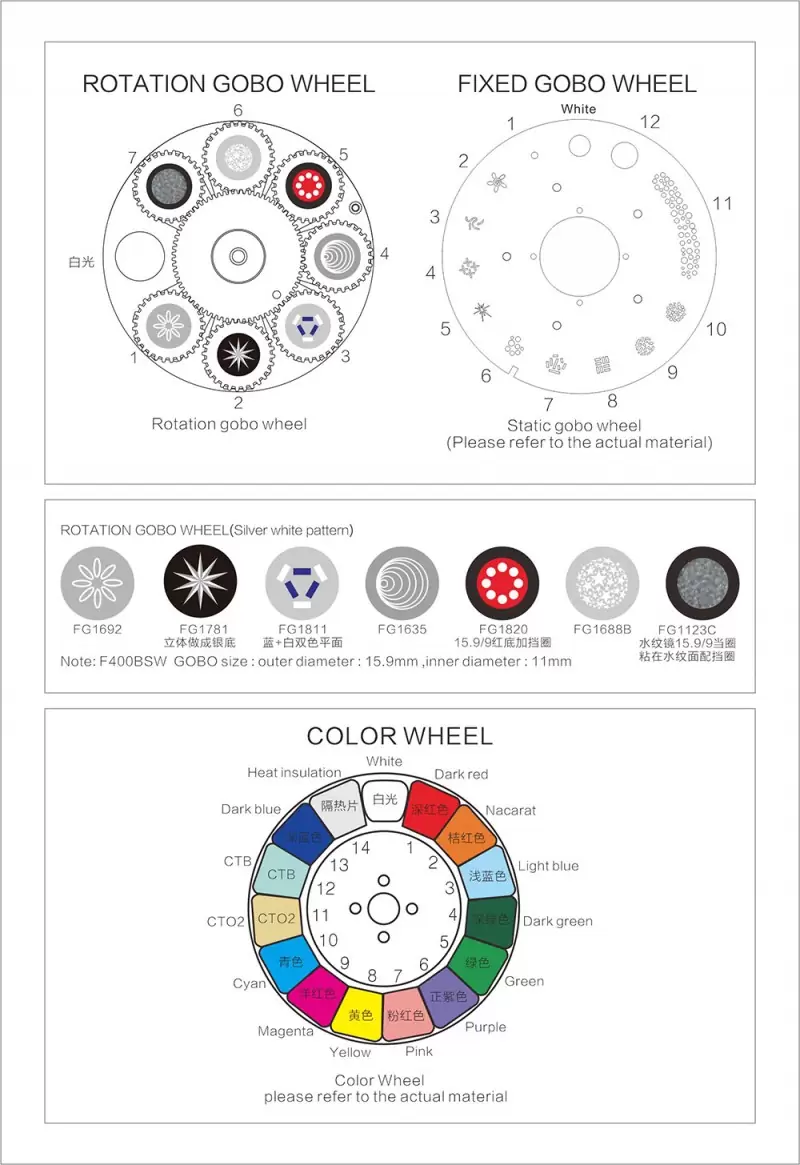

Color : 14 colors + white,Bi-direction rainbow effect
Static Gobo Wheel : 11 fixed gobos+blank +animation range, Bi-direction flow water animation effect.
Rotation Gobo Wheel : 7 rotating Gobos+blank ,Bi-direction flow water animation effect.
Prism : 12 facet round Prism(zoom from 10 to 20 degree)
Beam angle : Beam Projection 0-1.5°,Spot Projection 1.5-20°
Wash angle : 8-60°independent Wash effect.
Focus : linear adjustment
Lens : High precision optical lens,
Strobe : Double lens strobe(0.5-9 times/second)
Dimmer : 0 to 100% linear dimmer


Control System

Control protocol : DMX512
Channel mode : 20CH、18CH
DMX and RDM connectors : Locking 3 pin or 5 pin XLR IN/OUT

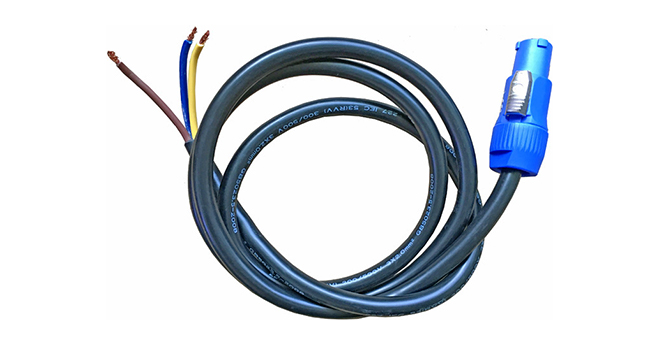

Power connector : Seetronic one in one out
Motors : 15 super quiet motors
Pan / Tilt : 540°/250° Pan/Tilt Fine : 2.11°/0.98°;Pan/Tilt Speed : 2.7 S/1.6 S
IP set : Built-in battery,IP could be set without electricity.
Software upgrade : Via USB
Features : Remote control the lamp’s ON/OFF , Intelligent adjust the cooling fan’s speed and the lamp Enter into Energy-saving model when in Shutter
Safety of Devices : Intelligent protection of overcurrent and overheating,Automatic break in power supply in case of, overheating or failed operation of cooling system.
Cooling : Forced ventilation with axial fans.


Other functions

Other functions : 1、The lamp’s switch can be controlled remotely; the cooling fan can be adjustable automatically; the lamp power will decrease when the fixture turns off.
2、DMX address can be reset remotely via control panel
3、The lamp’s heat dissipation can be adjustable with G-sensor system
Lamp safety : overcurrent and overheat protection; automatically interrupts lamp power when the lamp overheats or the cooling system fails.
Cooling System : Forced ventilation with an axial-flow fan
vertical direction : The locking device of vertical arm is used for convenient transportation and maintenance.


Appearance Parameters

Hanging system : foldable light hook
Housing : Heat-proof plastic+module pressing alloy materials.

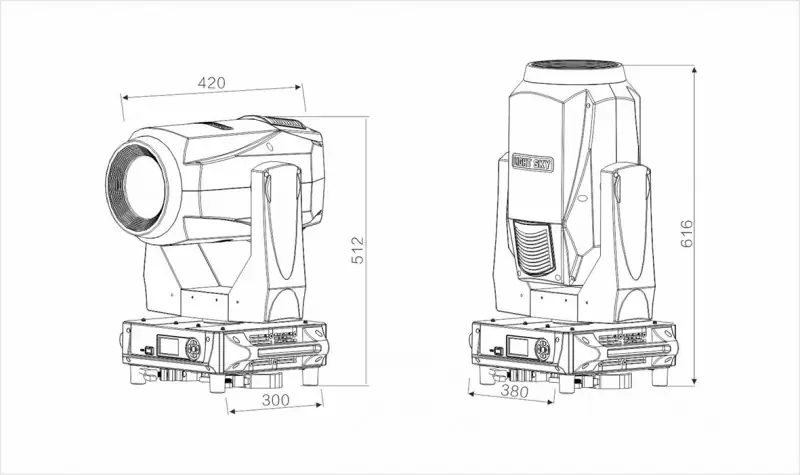

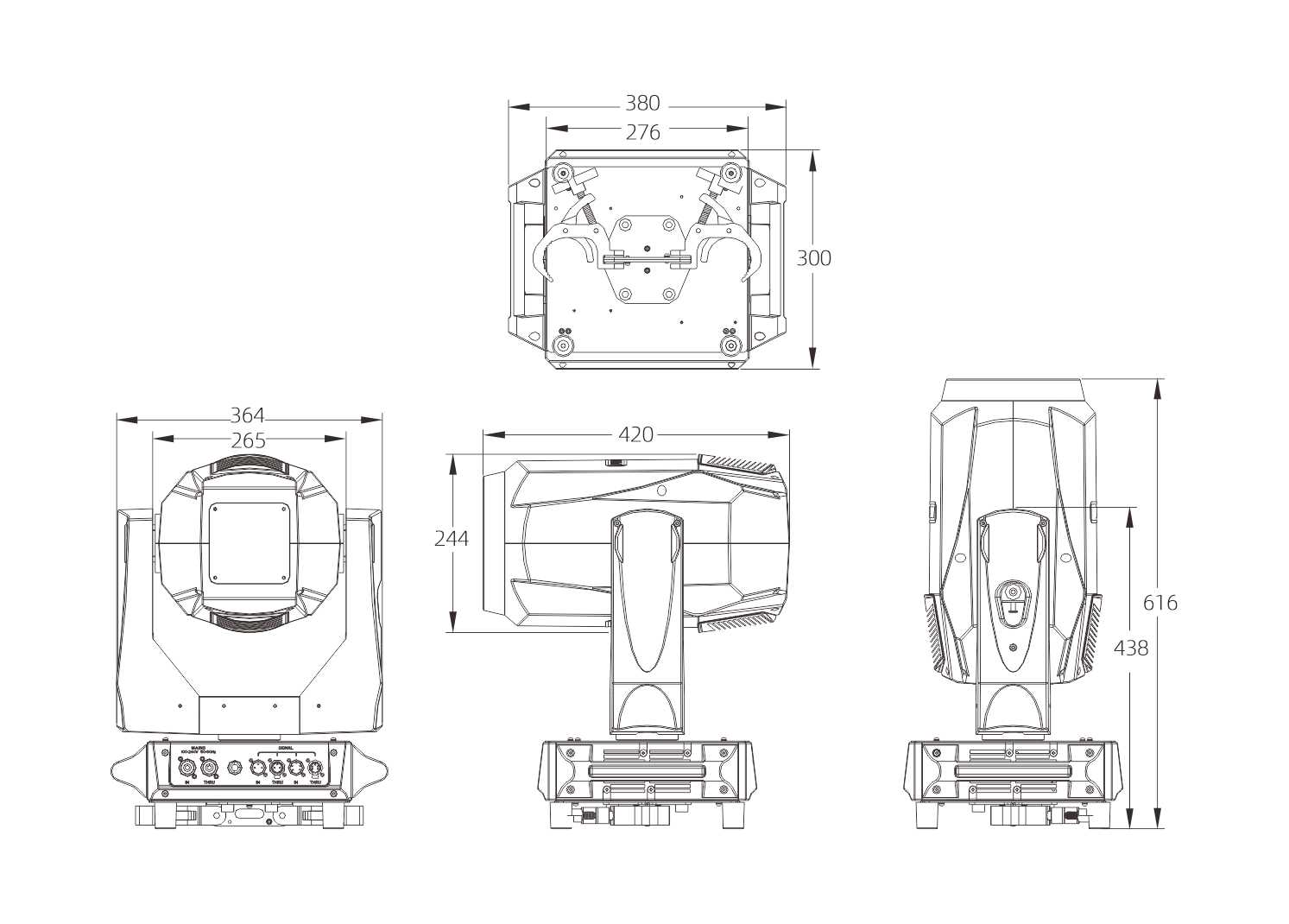

Light Dimension : 380X300X616mm
N.W : 22.5kg/pcs
Carton dimension : 450X370X700mm
G.W with carton : 25.5kg
Flycase dimension : 820 X 535 X 810(mm)
G.W with fly case : 80.3Kg(2 in 1)
