Specifications

Voltage: AC100–240V~, 50/60Hz

Rated Power Consumption: 100W

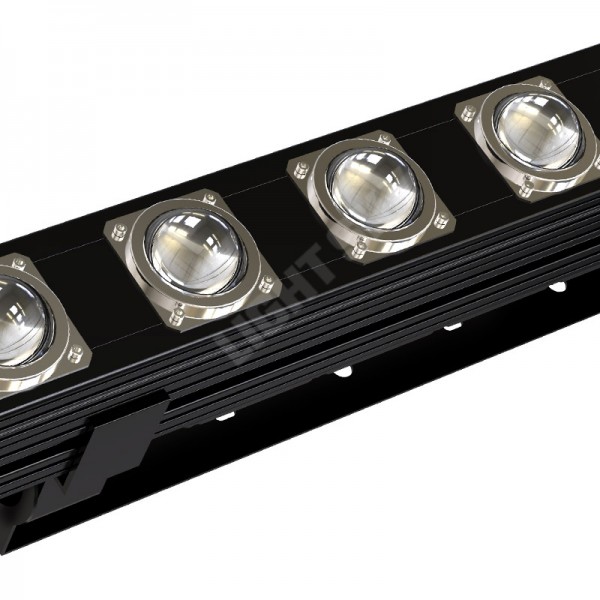

LED Source: Tianxin 4-in-1 LED, 15W per LED

LED Quantity: 10 pcs

Chip Driving Current: 1A

LED Lifetime: Over 50,000 hours

Color Mixing System: Individual pixel control and single-color control, enabling rich visual effects and three-dimensional beams

Strobe: 1–30 flashes/sec electronic strobe and random strobe

Dimming: 65536-step smooth electronic dimming, flicker-free

Control Protocol: DMX512, RDM

Channel Modes: Standard 9CH; Extended 45CH / 25CH / 18CH (see IPL1015B channel table for details)

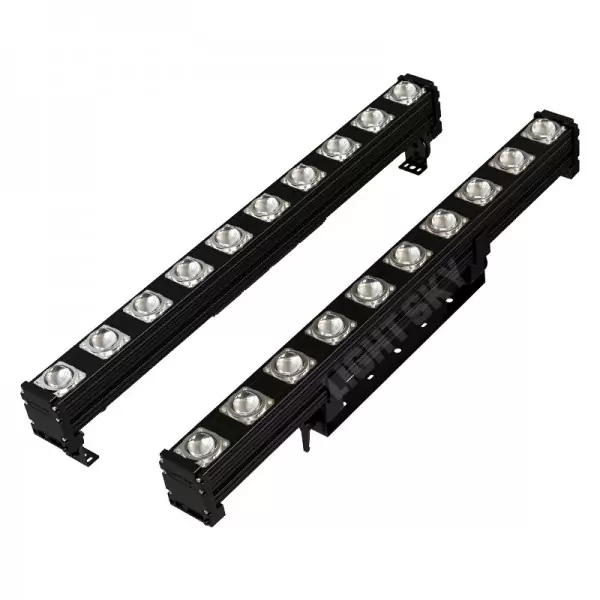

Installation: Quick-lock seamless connection (consistent LED spacing after linking), allowing faster and easier installation

Protection Rating: IP65

Certification: CE
Compliant with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU

Appearance Parameters

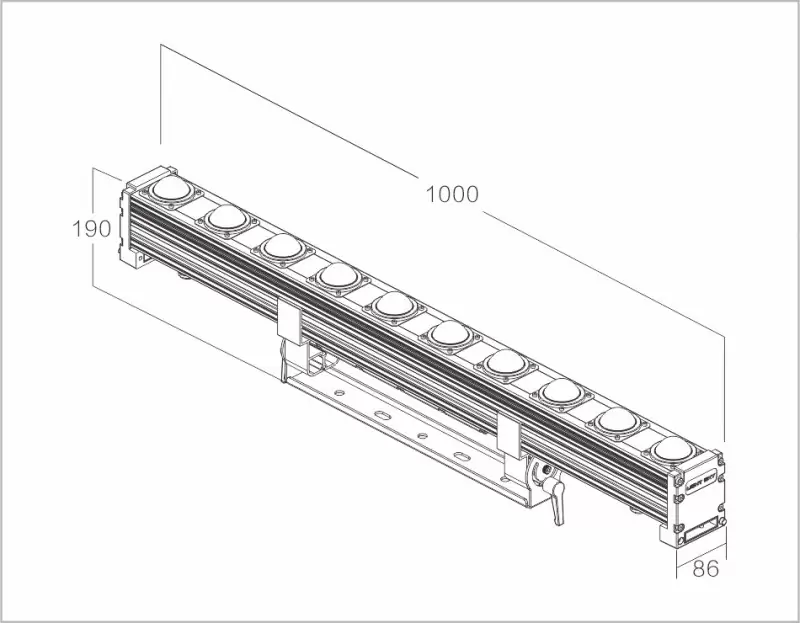

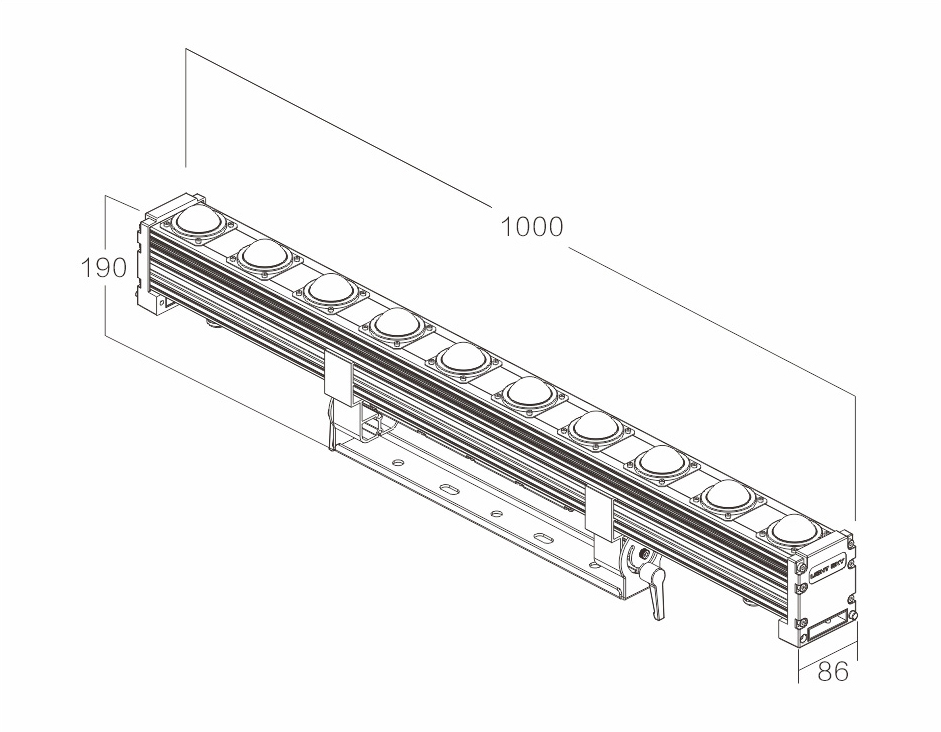

Fixture Dimensions: 1000 × 86 × 190 mm

Inner Carton Size (1 unit): 1020 × 100 × 215 mm
Net Weight: 7.3 kg
Gross Weight: 9.45 kg

Outer Carton Size (5 units): 1035 × 580 × 235 mm
Net Weight: 36.5 kg
Gross Weight: 41.5 kg

Flight Case Size (5 units – standard, without clamps): 1065 × 630 × 385 mm
Net Weight: 36.5 kg
Gross Weight: 65 kg

Flight Case Size (5 units – with clamps): 1150 × 630 × 420 mm
Net Weight: 40.3 kg
Gross Weight: 70.75 kg

Flight Case Size (8 units – optional): 1060 × 510 × 640 mm
Net Weight: 58.4 kg
Gross Weight: 99.5 kg
