OPTICAL

Light source : OSRAM SIRIUS HRI® 480 SL
Light source average life span : 2500H
Output color temperature : 6500K
Illuminance : 880000 lux@10m
CRI : Ra≥80
Front lens diameter : 200mm

EFFECTS

Beam angle : 1.6°(φ6mm)/1.2°(φ4.5mm)/0.8°(φ3mm) , 3 angles available

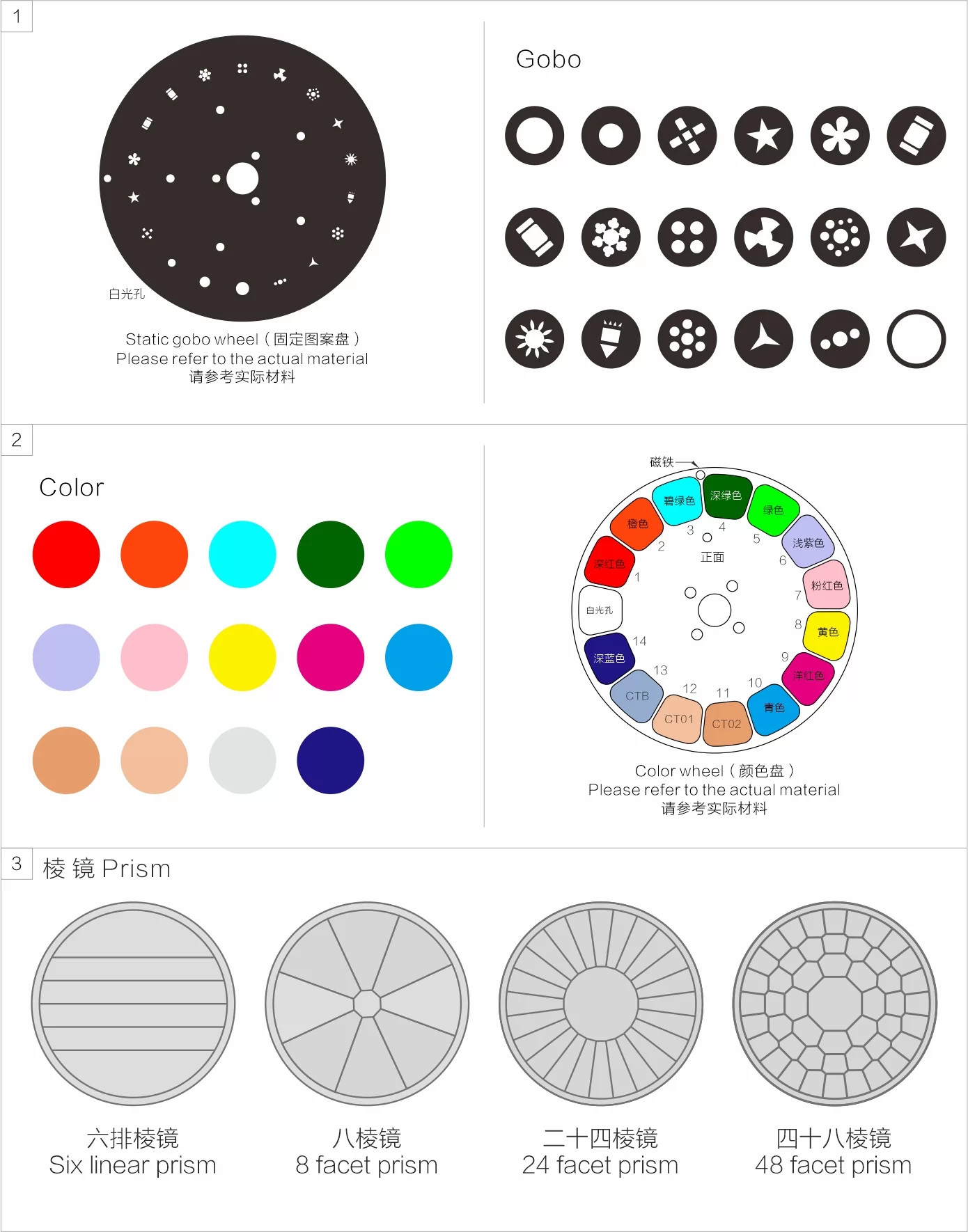

Colour wheel : 12 color + 2 CTO + 1 blank
Static gobo wheel : 17 fixed gobo + 1 blank
Prism : 4 pcs prism : 6 facet liear prism + 8 facet round prism +24 facet round prism +48 facet round prism
Frost : 15° heavy frost
Focus : Motorized focus
Strobe : Electronic pulse strobe and random strobe
Dimmer : 0 to 100% linear dimmer

CONTROL

Channel mode : 14CH，16CH，16CH PLUS
Control protocol : DMX512, RDM

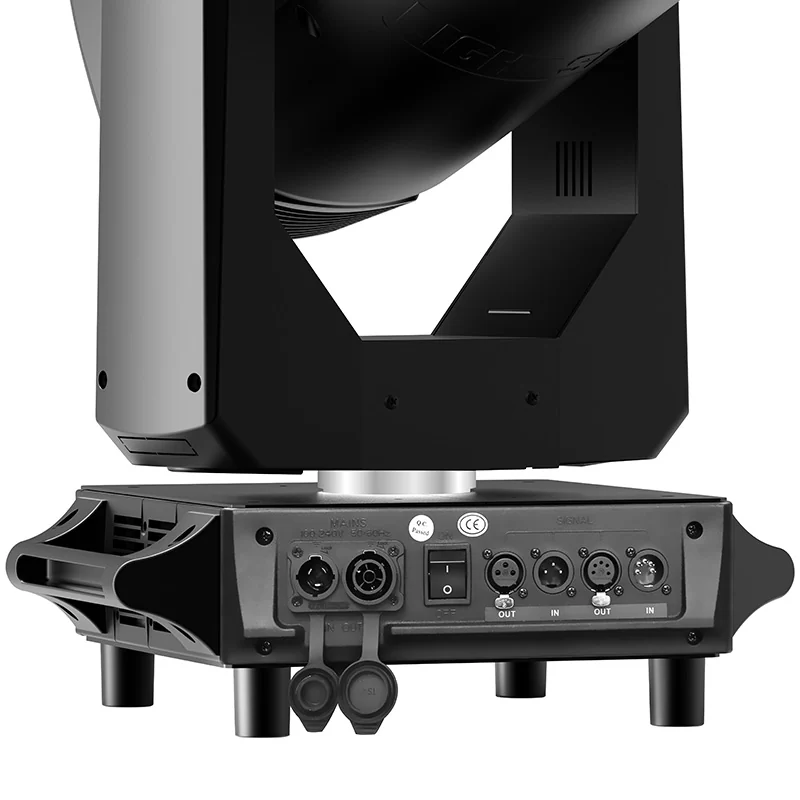

DMX and RDM connectors : Locking 3 pin or 5 pin XLR IN/OUT
Power connector : Seetronic one in one out

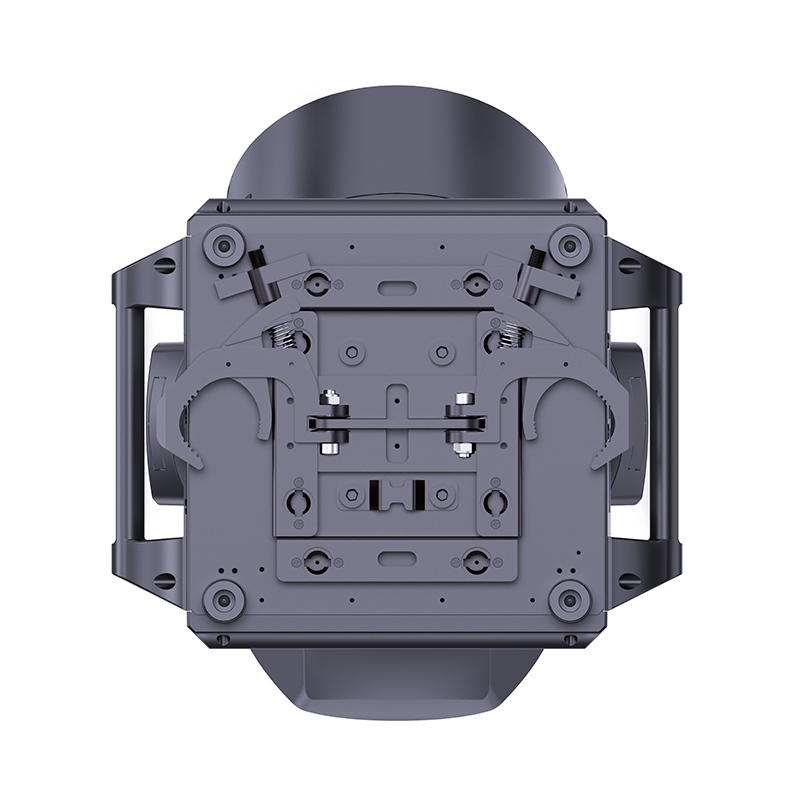

Hanging system : foldable light hook
Display : LCD Menu Display

SOFTWARE

Software upgrade : Use DMX signals or Insert USB upgrade software
Control : Intelligent temperature control

PAN/TILT MOVEMENT

Pan / Tilt : 540°/270°  8bit/16bit

POWER

Voltage : AC100-240V 50/60Hz
Power : 535W, PF 0.987

SIZE & WEIGHT

Housing : Engineering plastic PA66
Light dimension : 380×300×623(mm)
N.W : 22.5 kg/pcs
Carton dimension : 450×390×765mm
G.W with carton : 26kg
Flycase dimension : 810×530×845(mm)
G.W with fly case : 84.5kg(2 in 1)

OTHERS

IP Rate : IP20
Working Environment : 0℃-40℃
Maximum temperature of fixture body surface : 80℃
Maximum fixture current : 5.35A/110V；2.68A/220V

LiGHT SKY is one of the top moving head lights manufacturers in professional lighting solutions, dedicated to pushing the boundaries of performance and reliability. The LUNAR MAX Moving Head LED Beam embodies our engineering excellence – delivering unparalleled brightness, precision optics, and groundbreaking prism effects for transformative stage productions.

Contact us today — let LiGHT SKY China moving head lights illuminate your next breakthrough moment.
