Description

Light Source / Power System

Voltage : AC100V-240V~/ 50-60Hz
Power : 403W,PF0.98
LED chip : TYANSHINE 19×20W RGBW 4 in 1 LED
Average life span : 30000h
Optical system : High precision combination structure,
high permeable glass light rod +PMMA lens



Color / GOBO / Effects

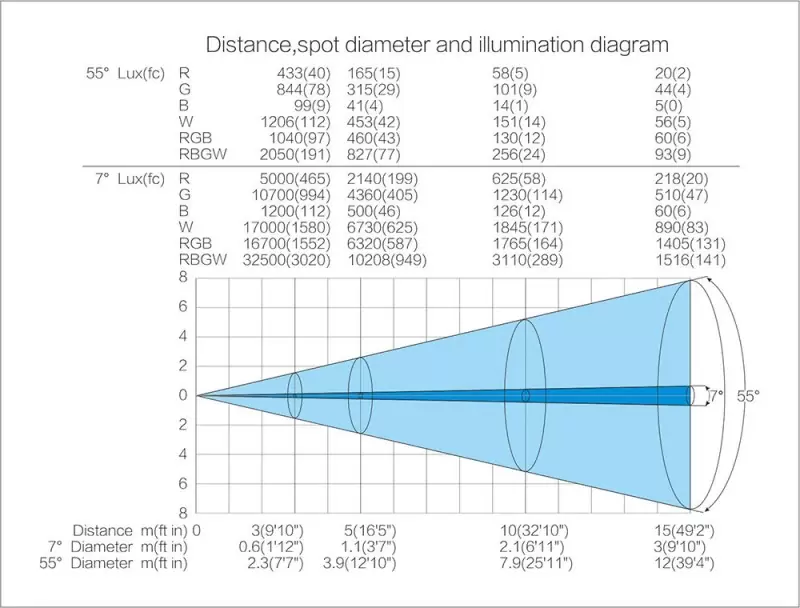

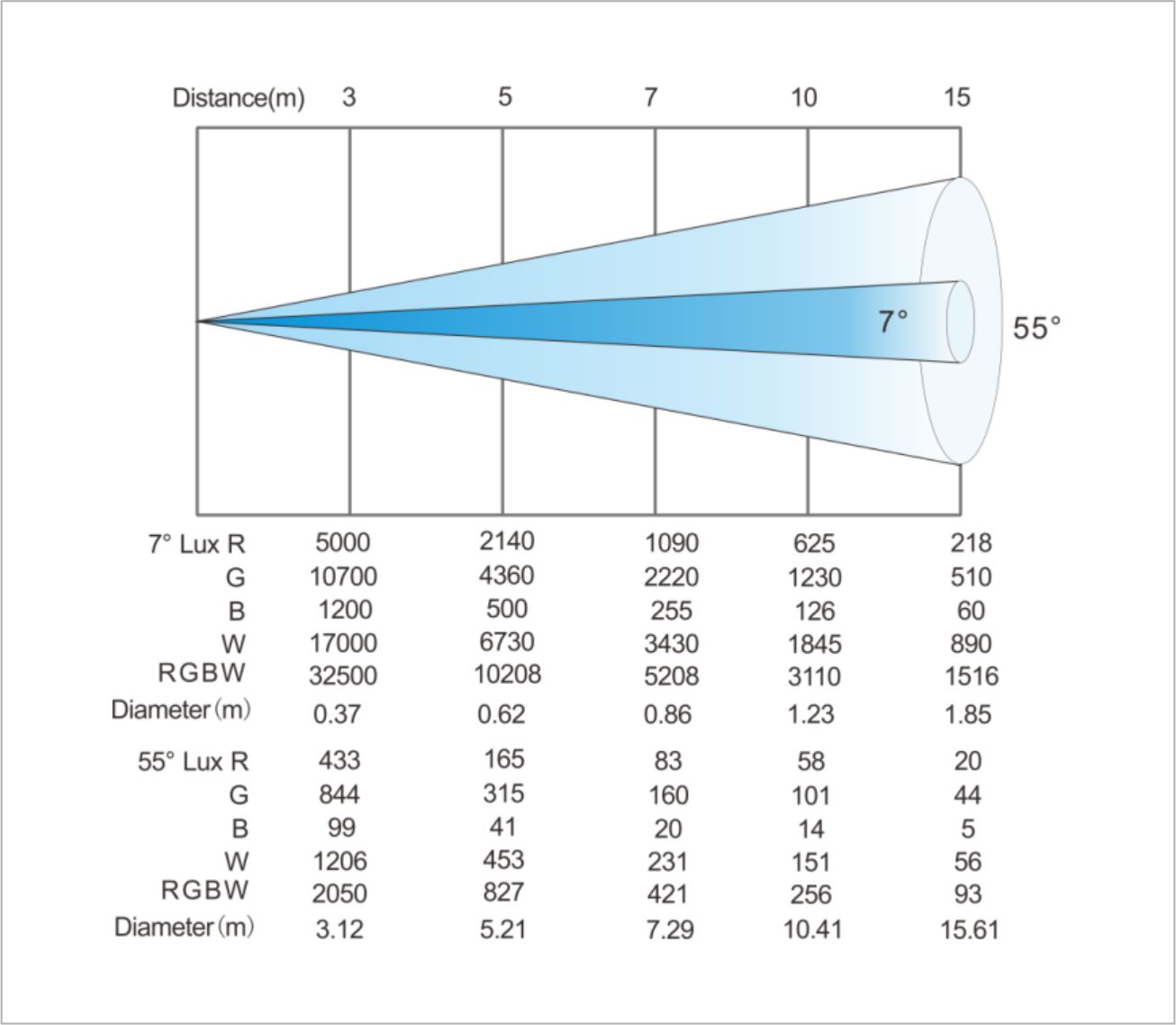

Zoom angle : 7°-55°
Color : RGBW macro color system.
Color temperature adjustable range : 2500~10000K
CRI : Ra≥75
Zoom system : Linear electric zoom
Ring Control : Yes Independent control of outer and inner ring
Effect macro : Static effect macro functions and Dynamic effects
                       macro function
Strobe : 1-30Hz electronic strobe and random strobe
Dimmer : Electronic dimmer,provides four dimming options



Control System

Pan/Tilt : Pan/Tilt Travel: 540°/210°;Pan/Tilt Fine: 2.11°/0.82°;
       Pan/Tilt Speed : 2.5S/1.0S
Control Mode : DMX512、RDM
Channel : Standard-15CH、Extend-24CH
Display : 2.4 inches LCD12864 display screen. With
       Chinese and English two version language.
Working mode : Silent mode; Standard mode; High Brightness mode
Intelligent control : Display board can record device’s using time ,
       show device’s temperature, channel data and software version .



Other functions

Error alarm : Automatic alarming for fixture error
Software upgrade : Upgrade via DMX connector
Magnetic encoder : non-touch magnetic rotation encoder ,
                                100% correct position memory
RDM : RDM signal two-way transmission
Safety Devices : Over current and overheat protection



Appearance Parameters

Outlooking : Metal base and anti-fire plastic
IP rate : IP20

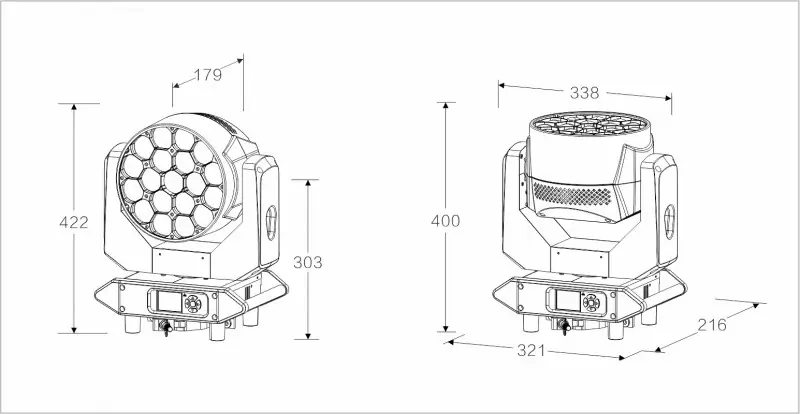

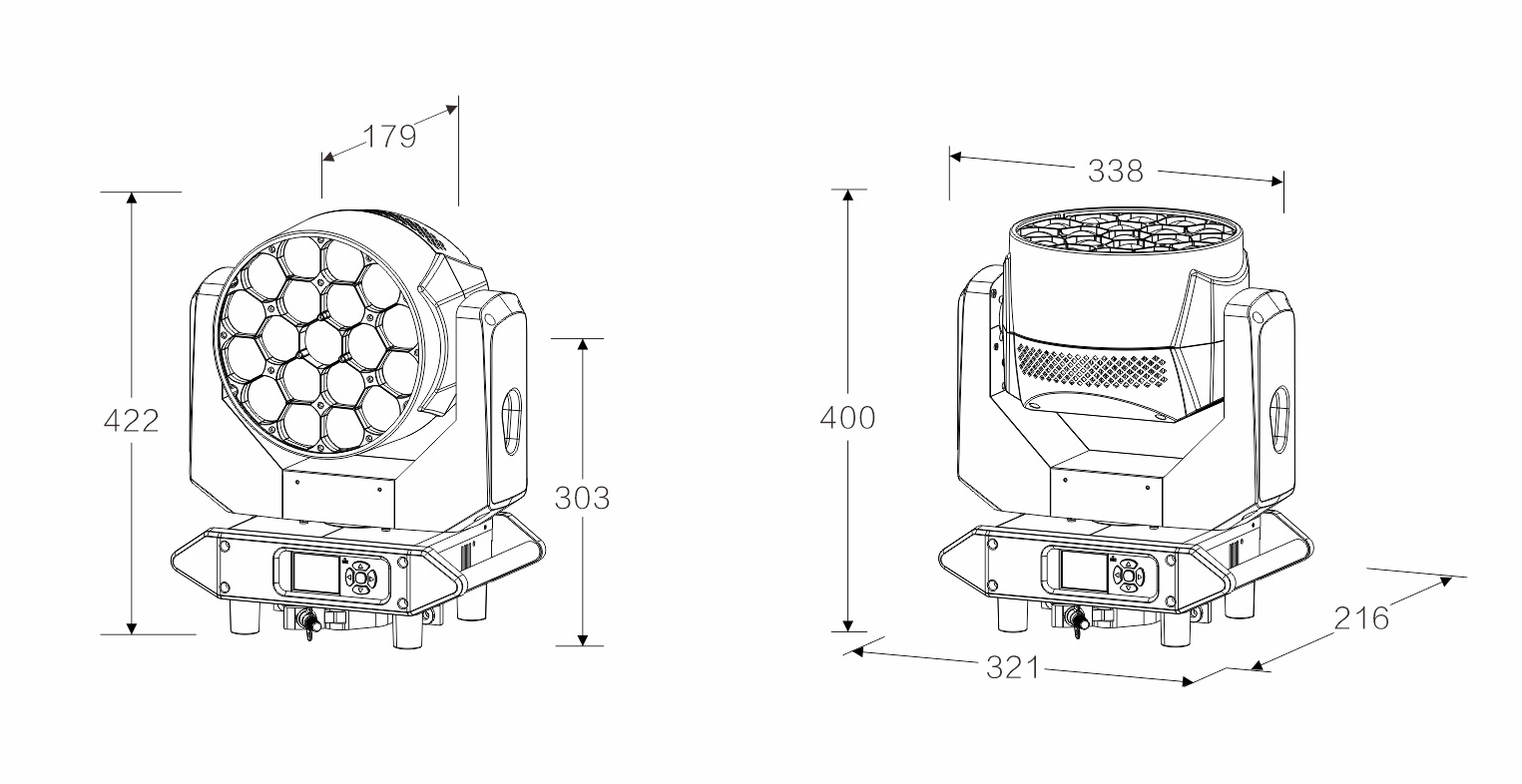

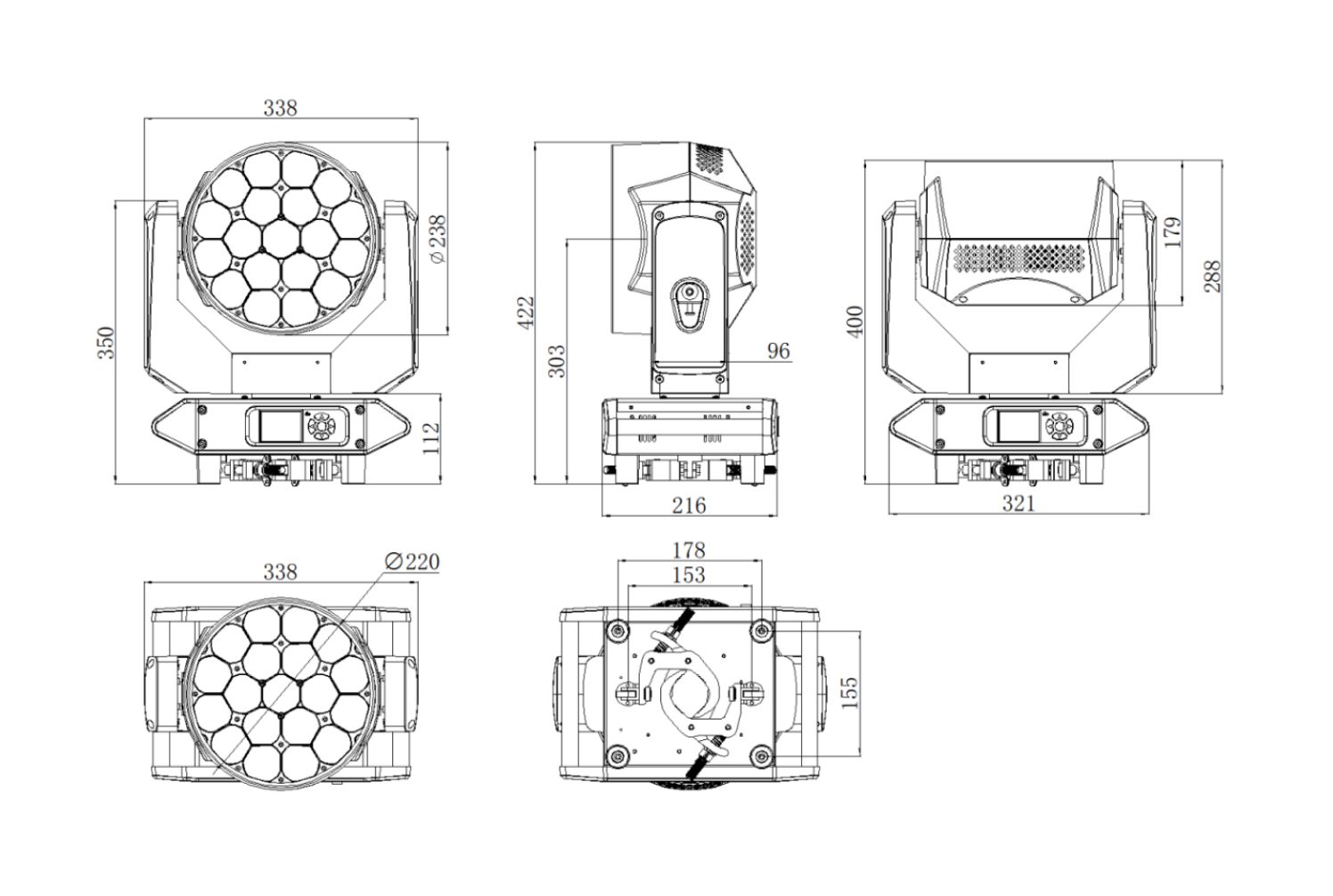

Light size : 338×216×422mm
Box Size : 400×270×495mm
N.W : 10.6kg      G.W : 12.6kg

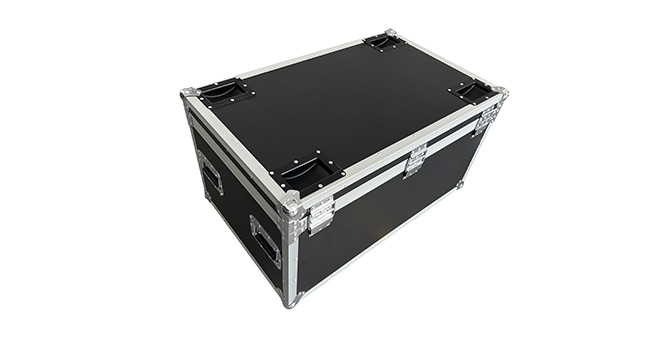

Flycase Size(4pcs in 1) : 920×580×615mm
N.W : 42.4kg      G.W : 78.8kg
