Description

Light Source / Power System

Voltage : AC100-240V ~/50-60Hz
Power : 620W, PF0.98;
Lamp : 400W USHIO NSL 400L
Lamp Temperature : 7300K
Lamp life Span : 2000 hours / normal 6000 hours/eco
E-ballast : 400W Ushio E-ballast



Color / GOBO / Effects

Beam Angle : 2°
Frost : Adjustable independent frost effect

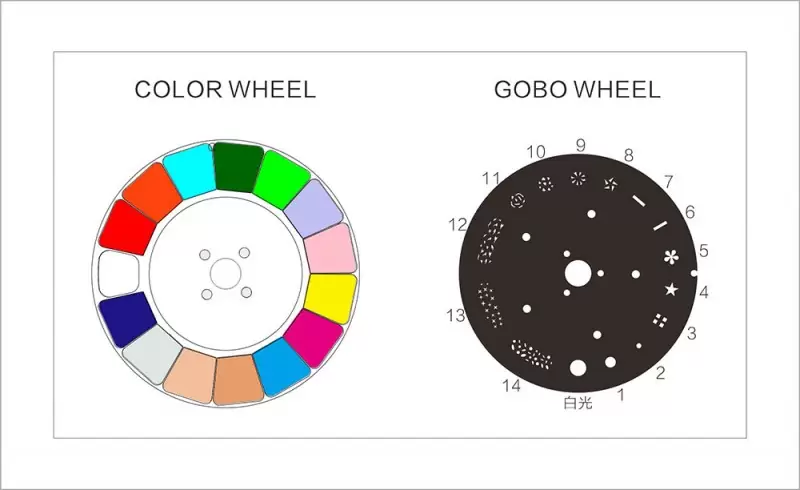

Color : 14 color + blank , inner build in with 2500K , 3200K CTO ,
Fixed gobo wheel : 11 gobo + blank + 3 animation gobo
Prism : 8 facet prism +16 facet prism + prism combination (standard) 3 facet prism + 8 facet prism (optional)
Focus : linear electronic focus
Lens : φ168 optical lens , high precision optical lens structure
Strobe : 1-9Hz synchronization, pulse, random stroboscopic.
Dimmer : 0 – 100% super smooth dimmer



Control System

Pan/Tilt : 540°/270°
Pan/Tilt Fine : 2.11°/1.05°
Pan/Tilt Speed : 2.9 S/1.2 S
Control : DMX512 RDM
Standard : 17 CH
Software upgrade : upgrade via DMX connector



Other functions
Display board : 2.0 inch color LCD12864, English/Chinese two version language ;Display board can record device’s using time , show device’s temperature, channel data and software version .
Display : Display board has record function, which can record lamp using time ,fan’s speed 100W power would lower automatically under full shutter condition
Magnetic encoder : non-touch magnetic rotation encoder , 100% correct position memory
RDM : signal two-way transmission
Clamps : Flexible clamps design , convenient for use



Appearance Parameters

IP rate : IP54
Outlooking : Independent shape design engineering plastic , Anti-UV, anti-aging, hot temperature resistant
Light Size : 410×300×635mm
Carton Size : 450×430×750mm
N.W : 24.2Kg G.W : 29.5Kg
2 in 1 fly case Size : 940×635×845mm
N.W : 48.5kg G.W : 100Kg
