Description

Light Source / Power System

Voltage : AC100-240V 50/60HZ
Rated : 630W PF : 0.987
Light source : LIGHT SKY NSL400S USHIO
Lamp power : 380W
Light source average life span : 1500h
Output color temperature : 6500K
Ballast : Electronic ballast
Luminance : 236000lux@10M at beam mode
CRI : 70
Front lens diameter : 160mm



Color / GOBO / Effects

Beam angle : 2°to 21° (Beam mode)
Zoom angle : 3° to 42 ° (Spot mode)
Color wheel : 11 color + 2 CTO + blank
C M Y : Linear CMY colour mixing
Iris : Motorized with variable pulse and random effects
Strobe : Electronic pulse strobe and random strobe
Focus : Motorized focus
Dimmer : 0 to 100% linear dimmer
Static Gobo Wheel : 10 Gobo + 1 white + animation range Bi-direction flow water animation effect
Rotation Gobo Wheel : 8rotating Gobos + white, Bi-direction flow water animation effect
Prism : 4pcs prism (3+1 double prism wheel)& Multiple prism combinations
Frost : Heavy frost 5°



Control System

DMX and RDM connectors : Locking 3 pin or 5 pin XLR IN/OUT
Power connector : Seetronic one in one out
Control protocol : DMX 512, RDM ,Wireless(option)
Channel mode : 28CH
Pan/Tilt : 540°/250°
X/Y Speed : 2.7 S/1.6 S
Software upgrade : 1、Insert USB to upgrade software
2、Integrated and foldable clamp is easily installed and transported
Other Features : 1、Remote control of the lamp on and off.
2、Cooling fan speed adjust automatically .
3、Lamp power lower automatically when turning the light off .
4、Remote reset DMX address



Other functions

IP set : Equipped with in-built long-life battery, IP could be set without power.
Display Menu : 1、The display panel adopts a 2.0-inch LCD12864 LCD screen with message in Chinese and English
2、The using time, fixture’s temperature and channel data as well as software’s version
are showed in the display panel.
Other Features : The lamp’s switch can be remotely control and the cooling system
can be adjustable automatically. The power will be decreased when the fixture is on standby.
Safety Devices : OPC & Over-temperature Protection
Vertical direction : convenient locking device for transportation and maintenance.



Appearance Parameters

Housing : Aluminum
Hanging system : foldable light hook
IP rate : IP66

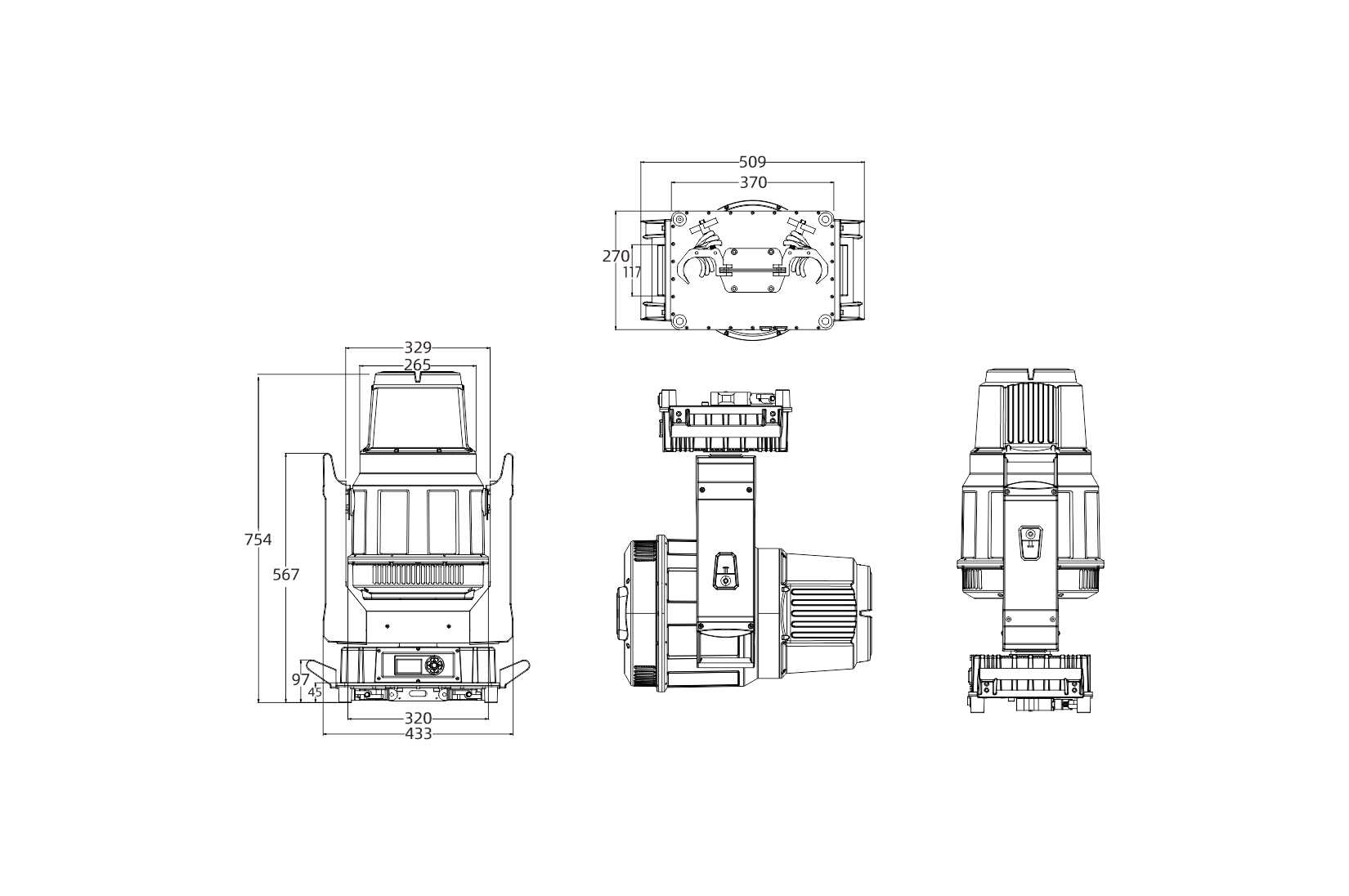

Light Dimension : 509 x 320 x 754mm
N.W : 38.5kg/pcs
Carton dimension : 810 x 580 x 395mm
G.W with carton : 42.5kg

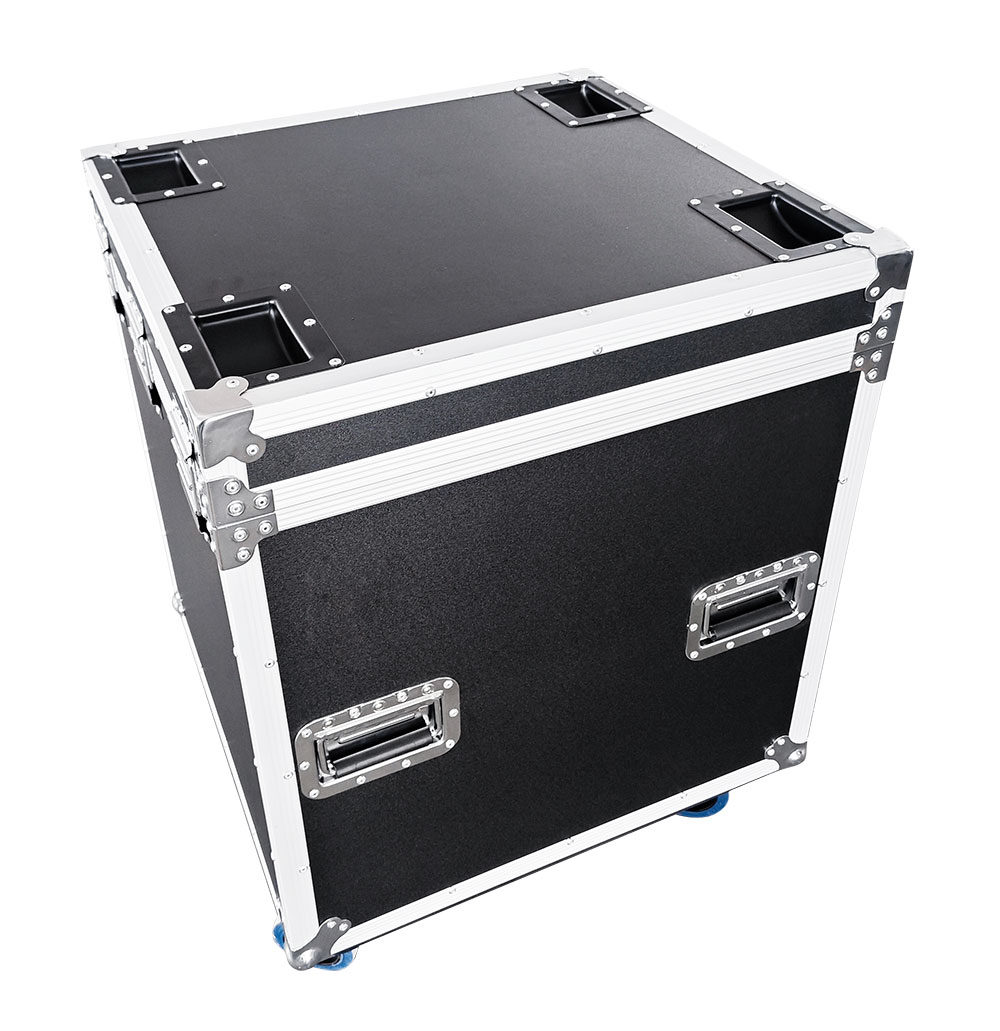

Flycase dimension : 620 x 665 x 830mm
G.W with fly case : 74.0kg (1 in 1)
