OPTICAL

Light Source : 520W White LED Module
Zoom Range : 3.8°- 50°
Optical Lens : High transmission coating, diameter 140mm
Color Temperature : 7000K
Color Rendering Index (CRI) : RA≥72 (High CRI filter up to 88)

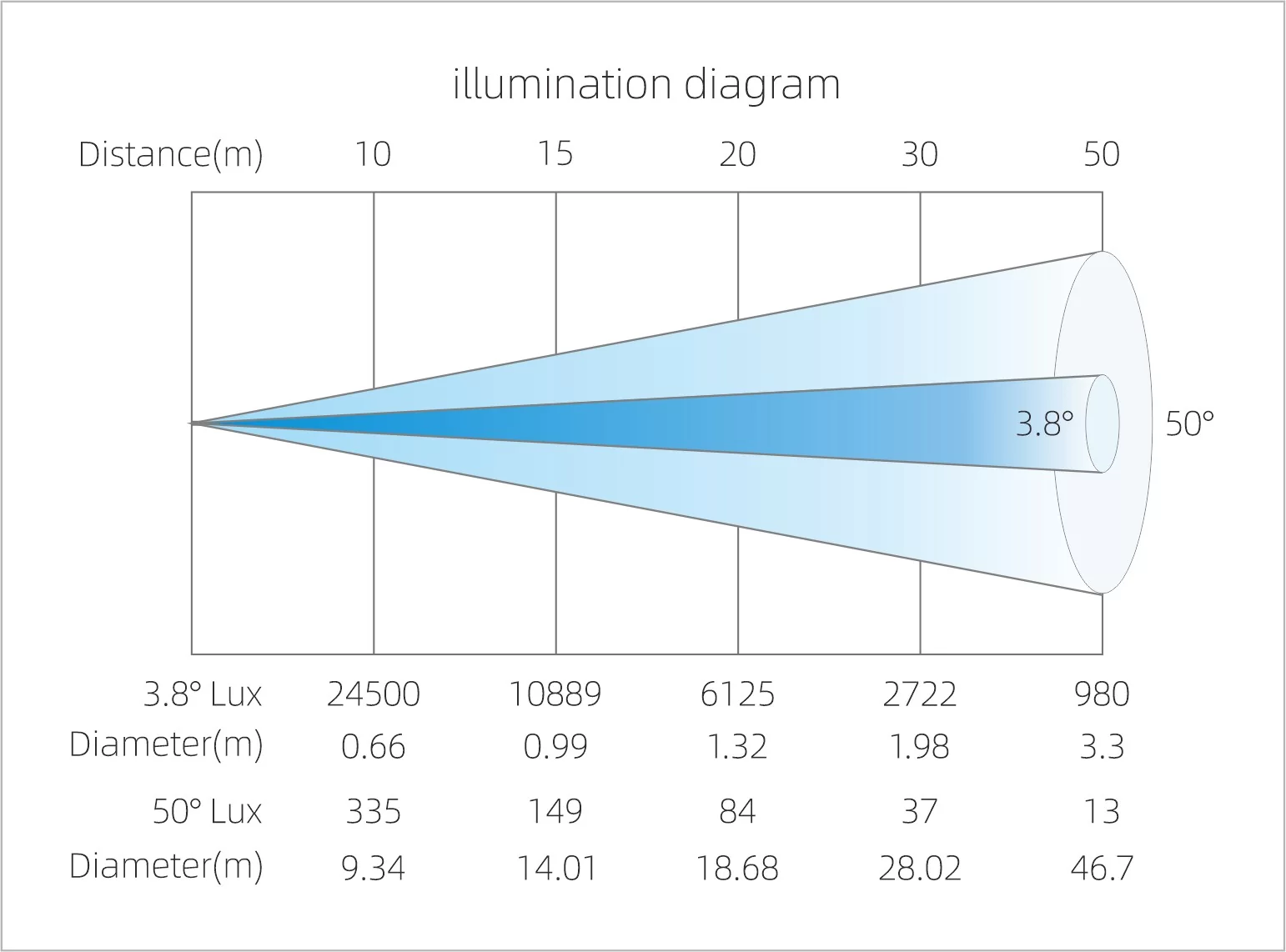

Illuminance : 24500 Lux @ 10 meters
Total Lumen Output : 20000 Lm
Light source average life span : ≥20000 hours

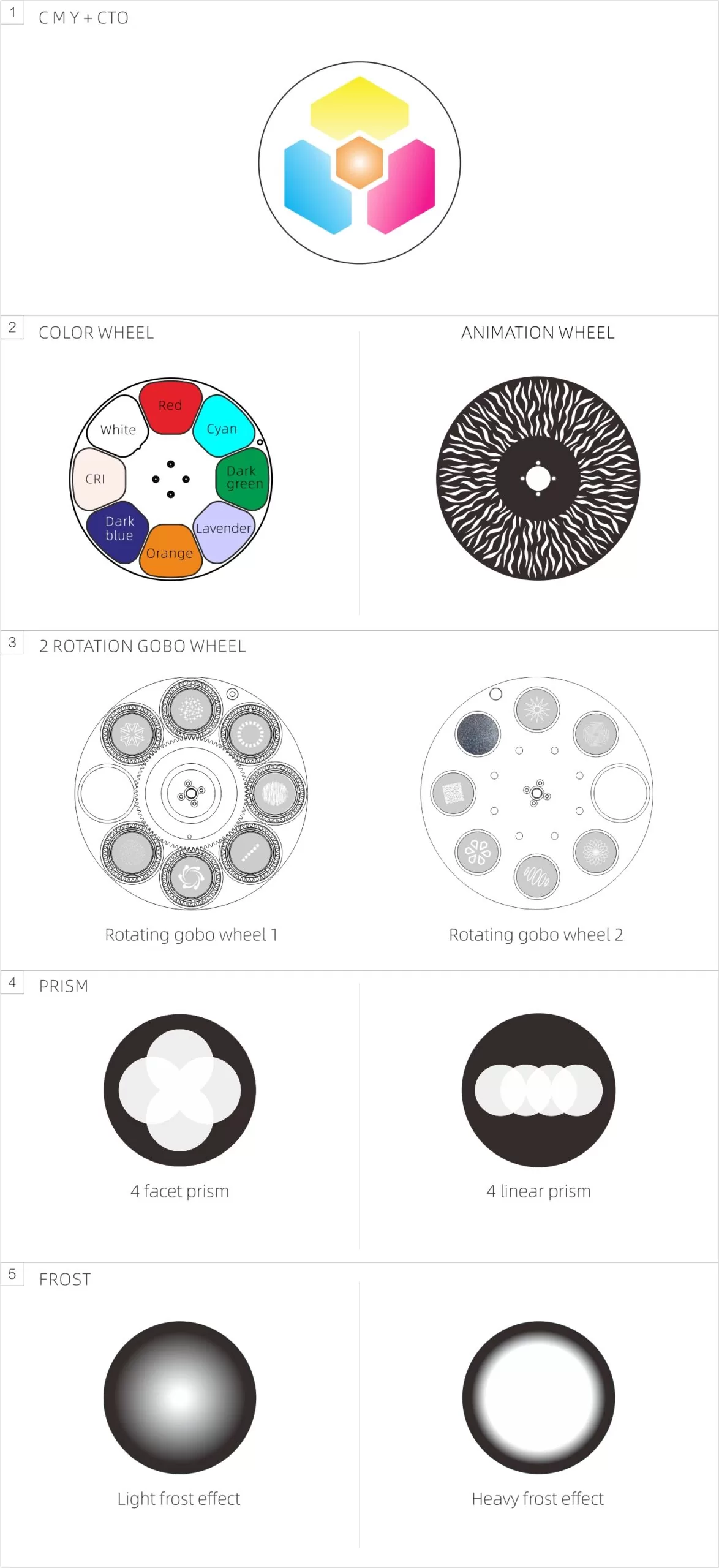

COLOR

CMY : CMY infinite color mixing
CTO : CTO color temperature linear adjustment (3000K-7000K)
Color : 6 color filters + white + 1 CRI filter, capable of bi-directional rainbow effect,
bi-color step gradient (linear movement), color wheel bi-directional rotation,
and random color mode.

GOBO

Dual rotating gobo wheels : 7+7 glass gobos + white, replaceable, capable of rotation, flowing, and shaking effects, gobo outer diameter 22.9mm, gobo inner diameter 15mm
Effects wheel : Capable of bi-directional flowing and linear speed adjustment effects

EFFECTS

Prisms : 4-facet prism + 4-facet prism, bi-directional rotation
Soft Light Effect : Light frost + heavy frost, adjustable independent soft light effect
Electronic Dimmer : 0-100% linear dimming, uniform spot
Electronic Strobe : 1-25 times/second
LED Refresh Rate : 1000Hz to 25KHz

CONTROL

Control Channels : 34CH, 30CH
Protocol : DMX512 , RDM , ArtNet
Data Connection : 3-pin or 5-pin signal IN/OUT
Display : LCD screen

SOFTWARE

Software Upgrade : Via USB or DMX interface
Intelligent Temperature Control : Ensures LED lifespan
Noise level control : High brightness mode, Standard mode, Silent mode

PAN/TILT MOVMENT

Pan axis : 540° 8-bit/16-bit precision scan
Tilt axis : 270° 8-bit/16-bit precision scan

POWER

Input Voltage : AC 100-240V 50/60Hz
Maximum Power : 840W
Power Factor : 0.99

SIZE & WEIGHT

Product Dimensions : 442×267× 656(mm)
Net Weight : 27.1kg
Carton Packaging (Default) : 495×355×775(mm)
Gross Weight : 32.2kg (including folding lamp hook)

OTHERS

IP Rate : IP20
Operating Environment : 0℃ ~ 40℃
Maximum Surface Temperature of Fixture : 80℃
Maximum Current of Fixture : 8.4A/100V; 3.8A/220V
