OPTICAL

Light Source : 450W White LED Module
Zoom Range : 4°- 53°
Optical Lens : High transmission coating, diameter 133mm
Color Temperature : 6500K
Color Rendering Index (CRI) : RA≥70 / RA up to 90 (with high CRI filter)

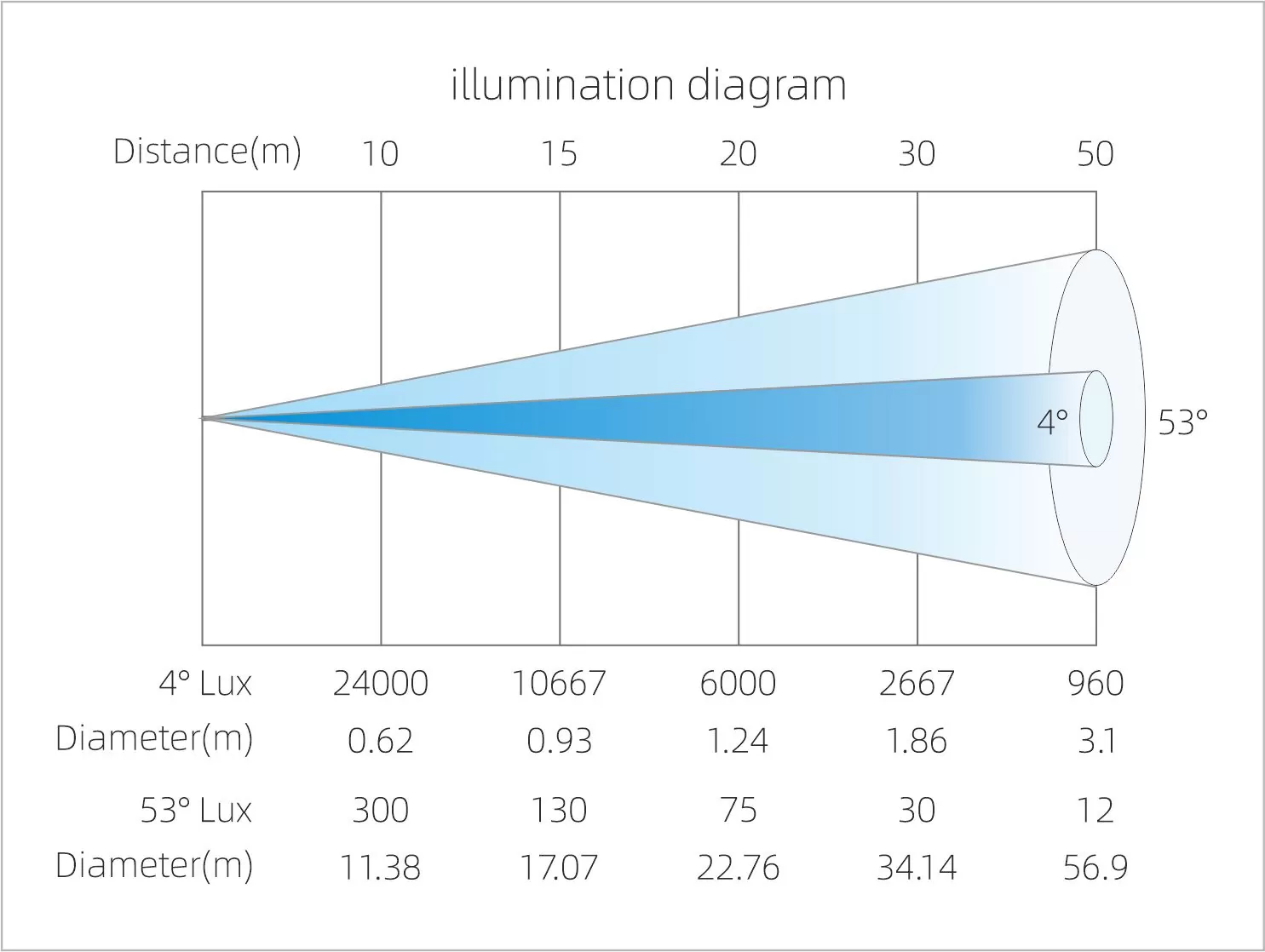

Illuminance : 24000 Lux @ 10 meters
Total Lumen Output : 20000 Lm
LED source life expectancy: 40,000 hours*

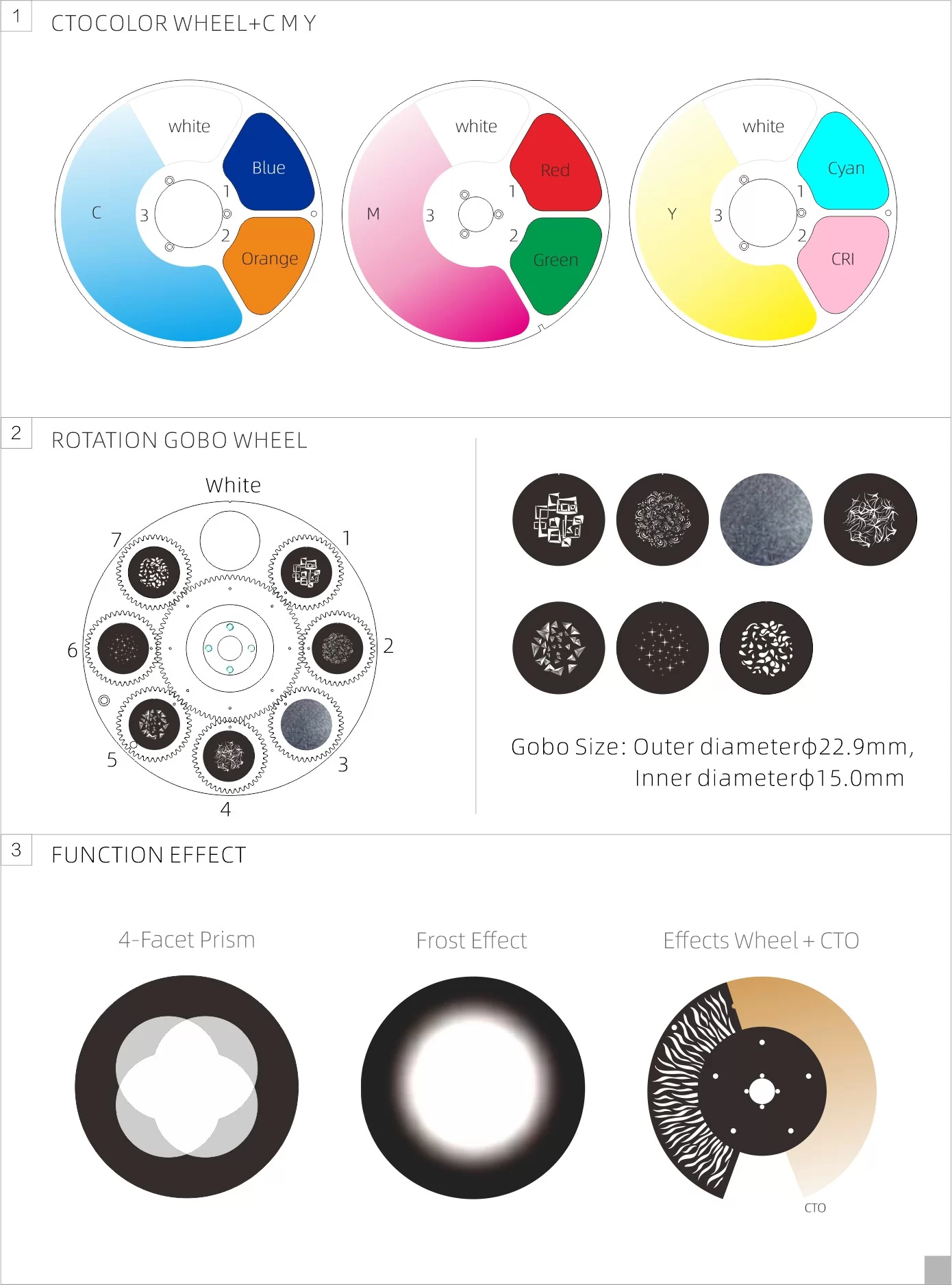

COLOR

CMY : CMY infinite color mixing
CTO : CTO color temperature linear adjustment (3000K-6500K)
Color : 5 color filters + high CRI filter + white, capable of bi-directional rainbow effect,
bi-color step gradient (linear movement), color wheel bi-directional rotation,
and random color mode.

GOBO

Rotating gobo wheel : 7 glass gobos + white, replaceable, capable of rotation,
flowing, and shaking effects, gobo outer diameter 22.9mm,gobo inner diameter 15mm
Effect wheel : Effect wheel + CTO color temperature linear adjustment, capable of flowing and shaking effects

EFFECTS

Prisms : 4-facet prism, bi-directional rotation
Soft Light Effect : Adjustable independent soft light effect
Electronic Dimming : 0-100% linear dimming, uniform spot
Electronic Strobe : 1-25 times/second
LED Refresh Rate : 1000Hz to 25KHz

CONTROL

Control Channels : 22CH, 25CH
Protocol : DMX512 , RDM , ArtNet
Data Connection : 3-pin or 5-pin signal IN/OUT

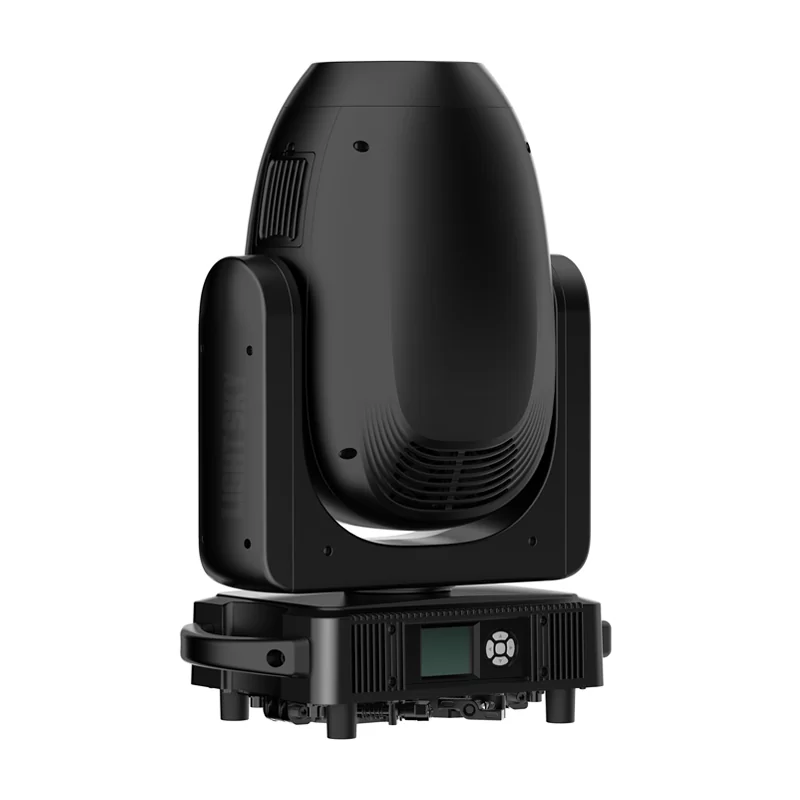

Display : LCD screen

SOFTWARE

Software upgrade via USB or DMX interface
Intelligent temperature control for LED lifespan
Silent fan with three modes: High-brightness/Standard/Silent

PAN/TILT MOVMENT

Pan axis : 540° 8-bit/16-bit precision scan
Tilt axis : 270° 8-bit/16-bit precision scan
Reset function with automatic error correction
Fixed lock : Tilt axis lock

POWER

Input Voltage : AC 100-240V 50/60Hz
Maximum Power : 602W
Power Factor : 0.99

SIZE & WEIGHT

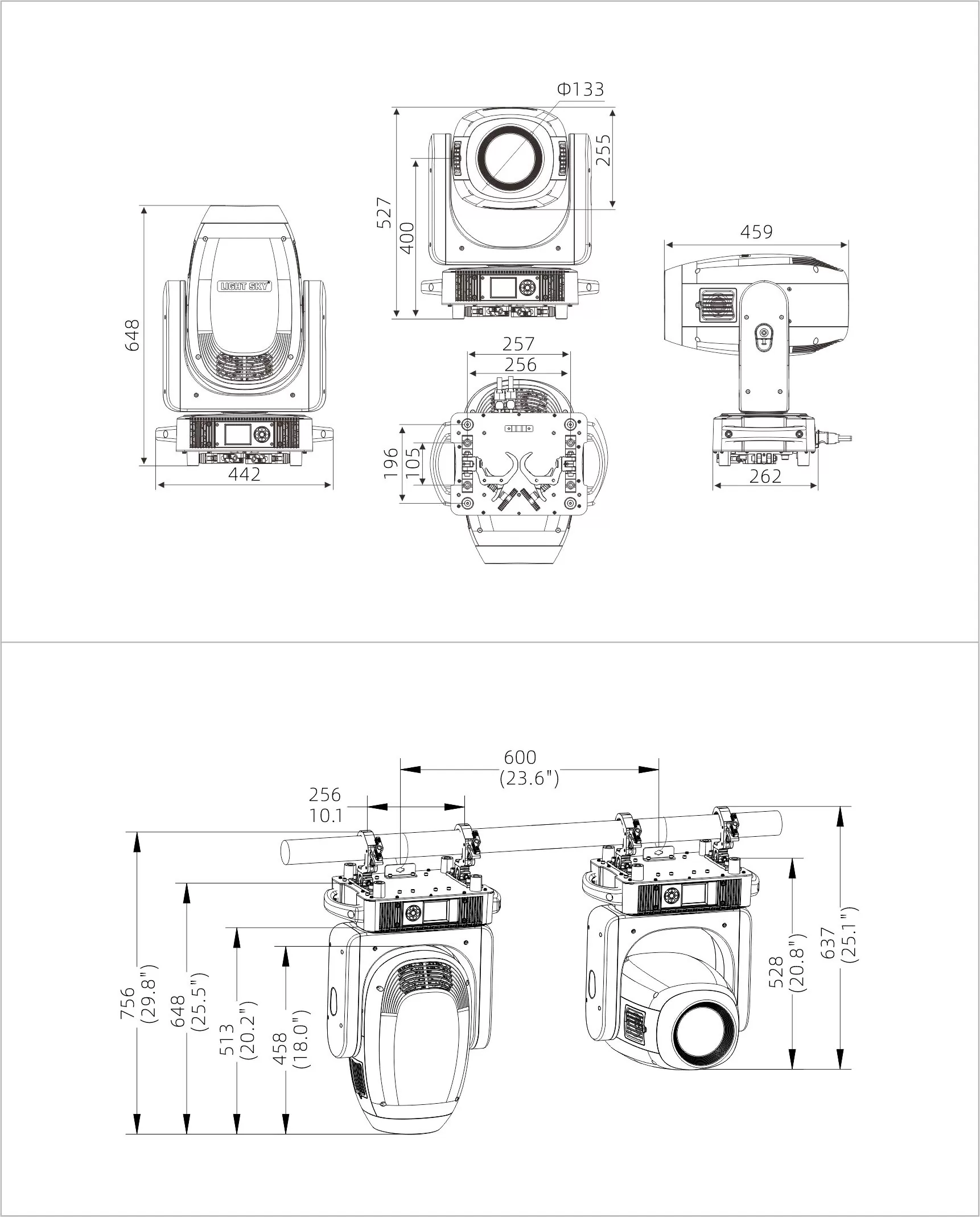

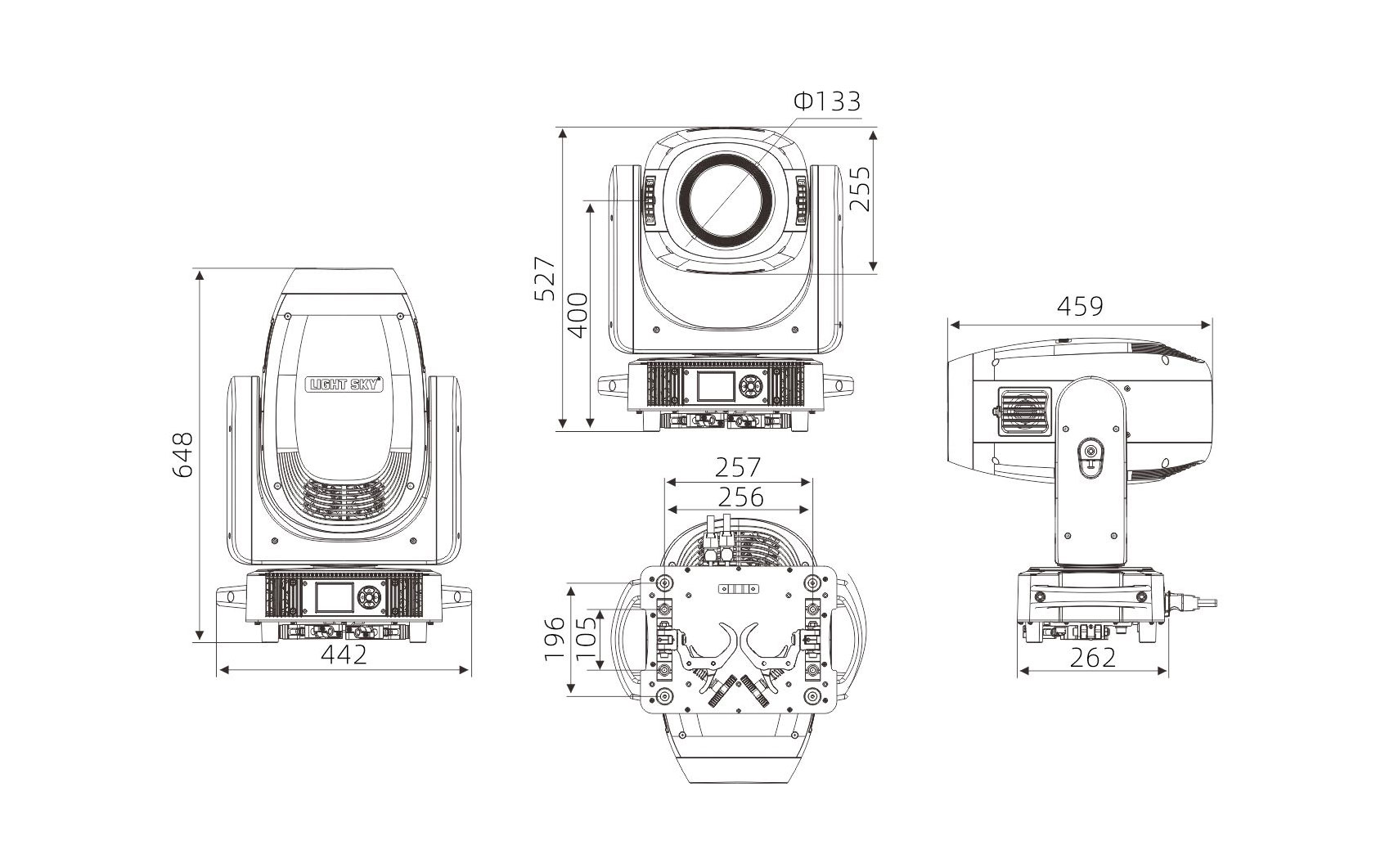

Product Dimensions : 442× 262×648(mm)
Net Weight : 23.8kg
Carton Packaging (Default) : 490×365×755(mm)

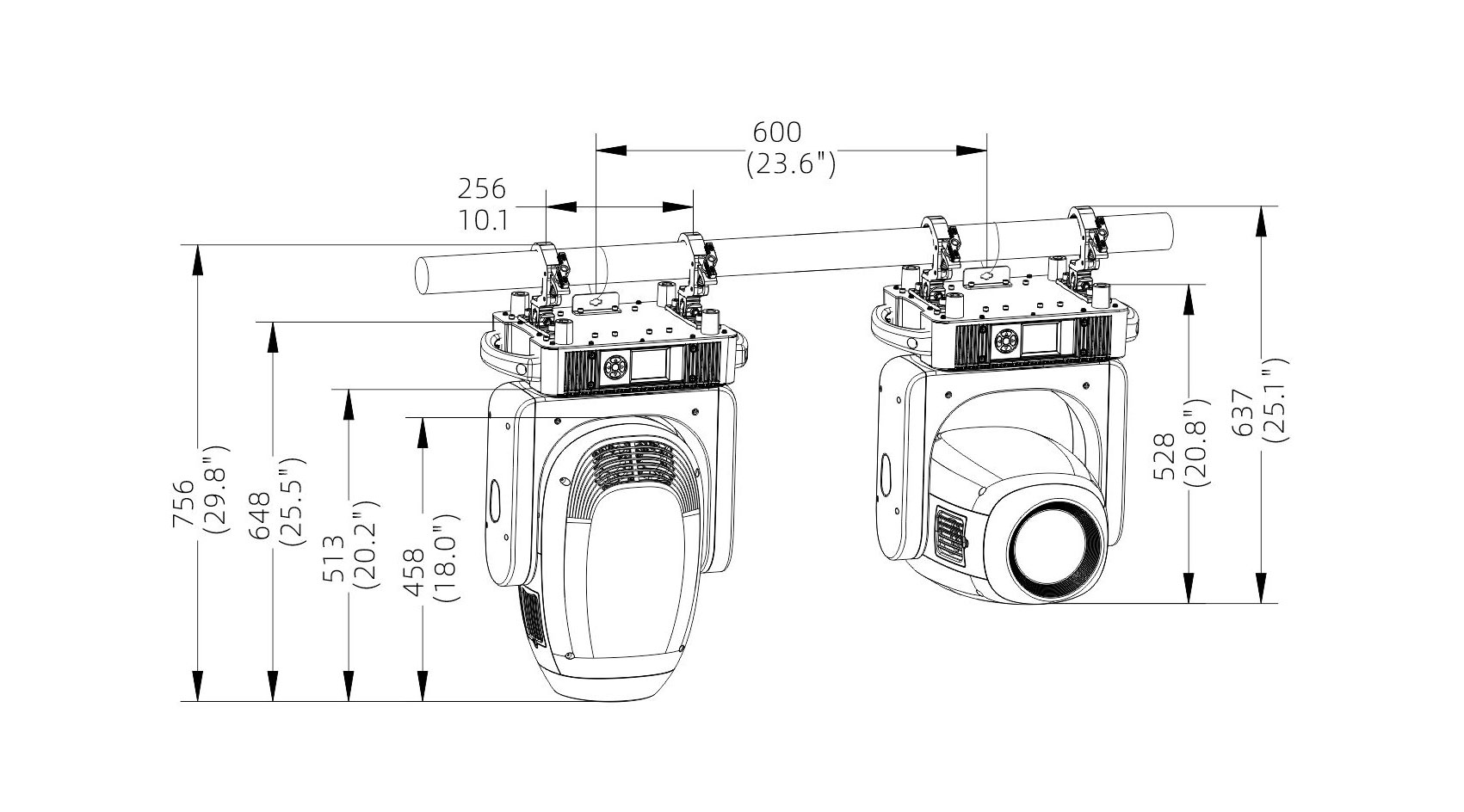

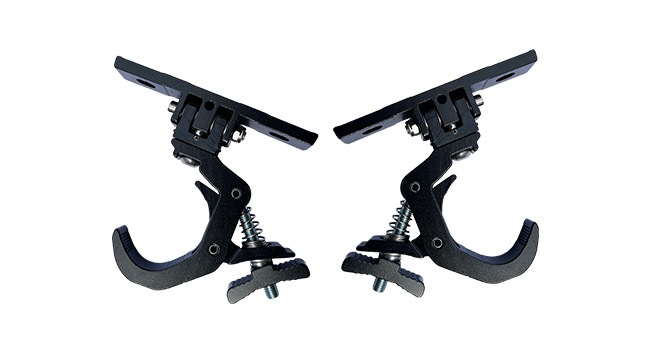

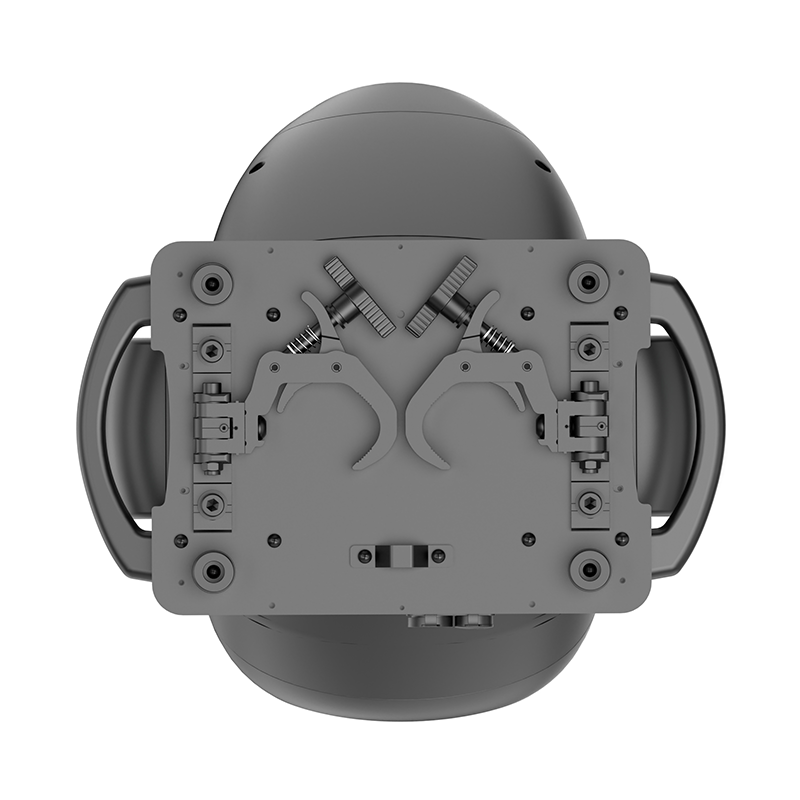

Gross Weight : 29.6 kg (including folding lamp hook)

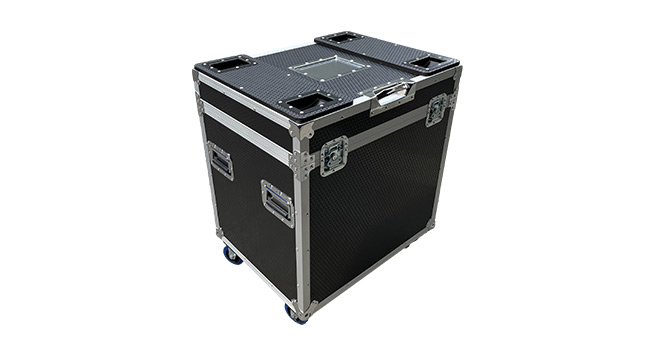

Flycase dimension : 730 x 575 x 850mm
G.W with fly case : 90.3kg (2 in 1)

OTHERS

IP Rate : IP20
Operating Environment : -10℃ ~ 45℃
Maximum Surface Temperature of Fixture : 80℃
Maximum Current of Fixture : 6.02A/100V; 2.6A/220V
