Light source & Optics

Light source:180x5W CW+1200 x 0.5W RGB

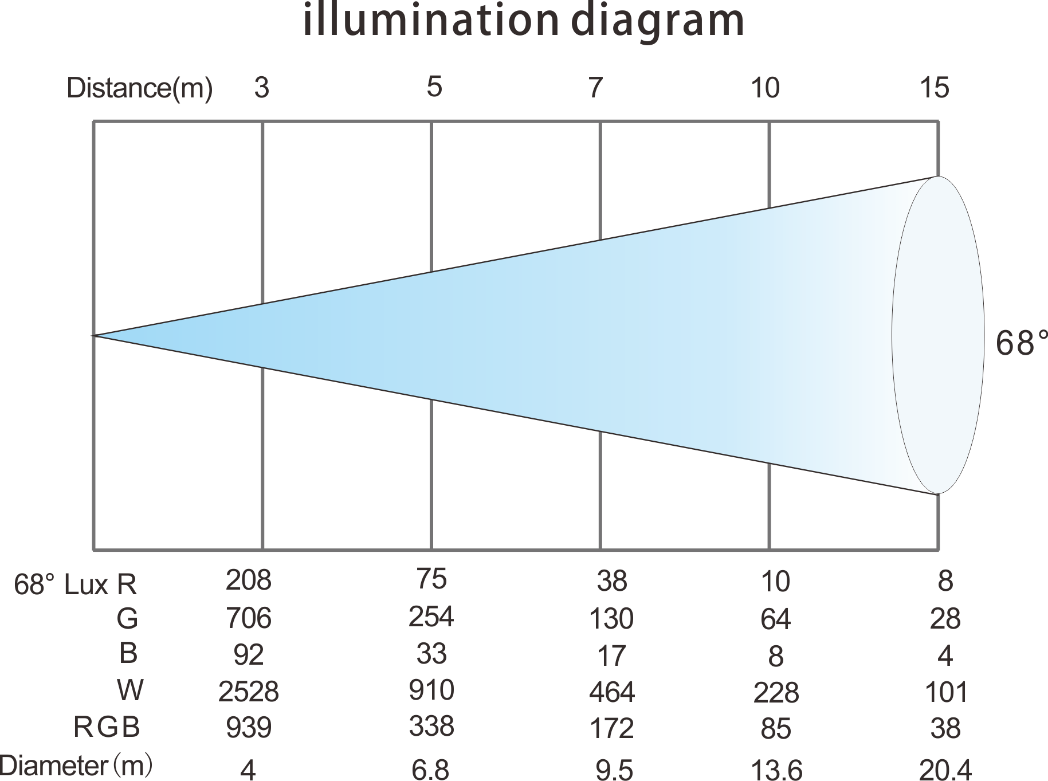

Beam Angle: 68°
Spot Angle: 115°
Color Rendering Index: RA≥79.2

CTO: 2500K-10000K
Light Flux RGB: 13,882 Lm
Light Flux W: 34,829 Lm
Output llluminance RGB: 338 lux@ 5m
Output llluminance W: 910 lux@ 5m
Light source average life span: 20,000 hours

EFFECTS

Color Mixing System: Uniform RGB color mixing system, each color can be controlled separately, presenting a variety of effects.

Intelligent Fogging: Linear adjustable fogging function, enhancing the color mixing effect

Effect Macros: Static effect macros and dynamic effect macros functions

Dimming: Electronic dimming, providing four dimming curves

Strobe:1-30Hz electronic strobe and random strobe

CONTROL AND PROGRAMMING

ControlChannels: Standard 21 channels, Extended 168 channels (see channelchart for details)

ControlProtocols: Standard DMX512, RDM, ART-NET(optional)

Data Connection: Three-core or five-core signal input/output

Display: LCD screen

SOFTWARE

Through the DMX signal interface
Intelligent temperature control, ensuring LED lifespan

POWER AND ELECTRICAL

Input Voltage: AC 100-240V 50/60HZ

Rated Power: 620W

Strobe Maximum Power:1500W

Power Factor: 0.99

Maximum Lamp Current: 6.3A/100V 2.8A/220V

SIZE & WEIGHT

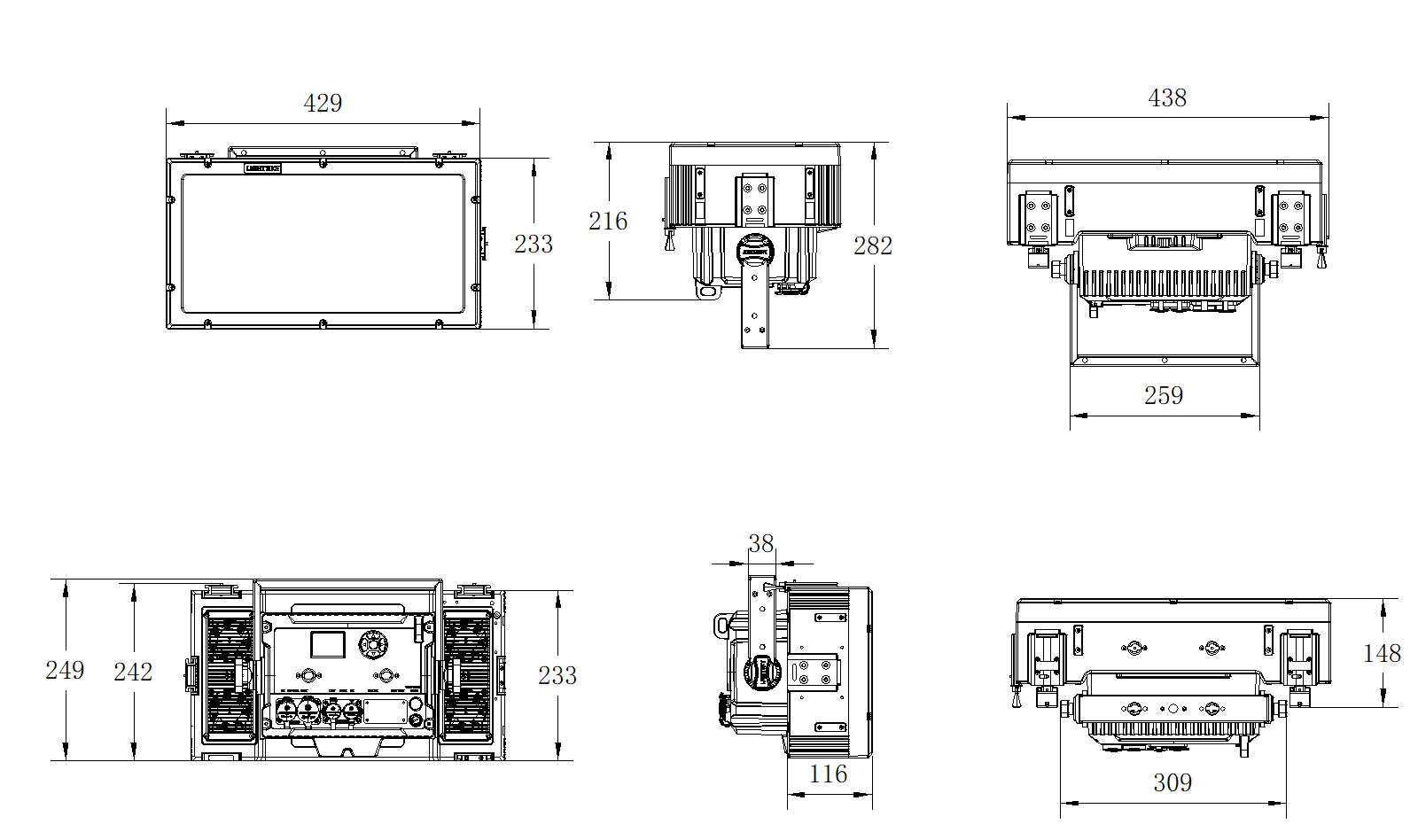

Product Dimensions:438X216X249mm

Net Weight: 13.1KG

Carton Packaging(default):510X320X380mm

OTHERS

Protection Level: IP66

Operating Environment:-20℃~45°C

MaximumLamp Surface Temperature:65°C

FACTORY CONFIGURATION

Power Cable:1 pc(Part No.:F0200030016)

Signal Cable:1 pc(PartNo.: F0200020008)

Safety Rope:2 pcs (Part No.: F0200010002)
