Description

Light Source / Power System

Voltage : AC100-240V, 50/60Hz
Power : 157W PF0.96
LED chip : 12pcs×15W RGBW LED
Lifespan : 30000h
Lens material : PMMA



Color / GOBO / Effects

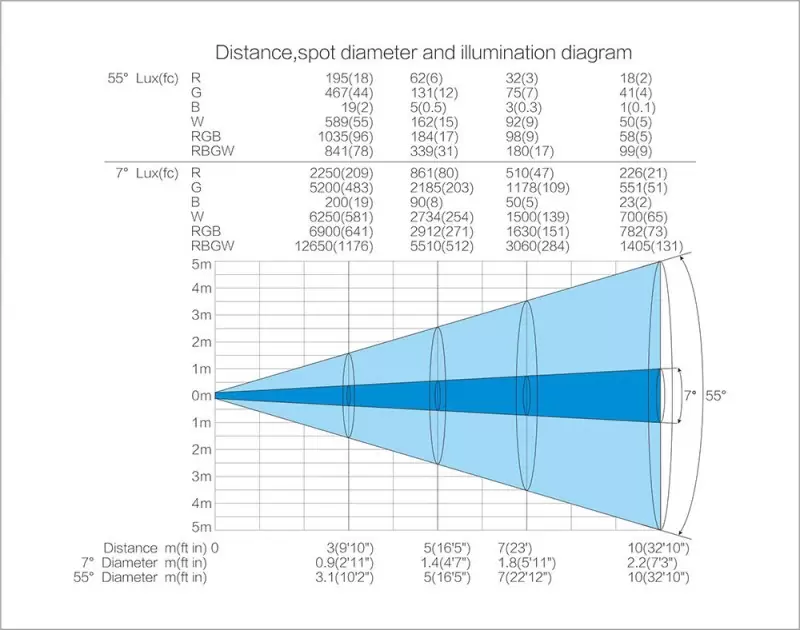

Zoom angle : 7°~55° Linear electric zoom
Installation working angle : ±90
Color Temperature : 2500K-10000K
CRI : Ra≥75
Color mixing : RGBW macro color system.
Strobe : 1-30Hz electronic strobe and random strobe.
Dimmer : 16Bit, 0 to 100% Linear electronic dimmer,
provides four dimming options;
Ring control : with independent color control of the inner and outer ring.





Control System

Control Mode : DMX512,RDM
DMX Channels : 9 channel (standard) 5 channel (Simple)
Intelligent temperature control : Display board can record
device’s using time , show device’s temperature,
channel data and software version .



Other functions

Display : 0.9 Inches OLED display screen. With Chinese
               and English two version language.
Software upgrade : Upgrade via DMX connector
RDM : RDM signal two-way transmission
Thermal Dissipation : Passive ( fanless )
Ambient temperature : -20~ +40℃



Appearance Parameters

Housing : Housing with high pressure engineering plastic,
                anti-UV, anti-high temperature and anti-aging.
IP rate : IP66

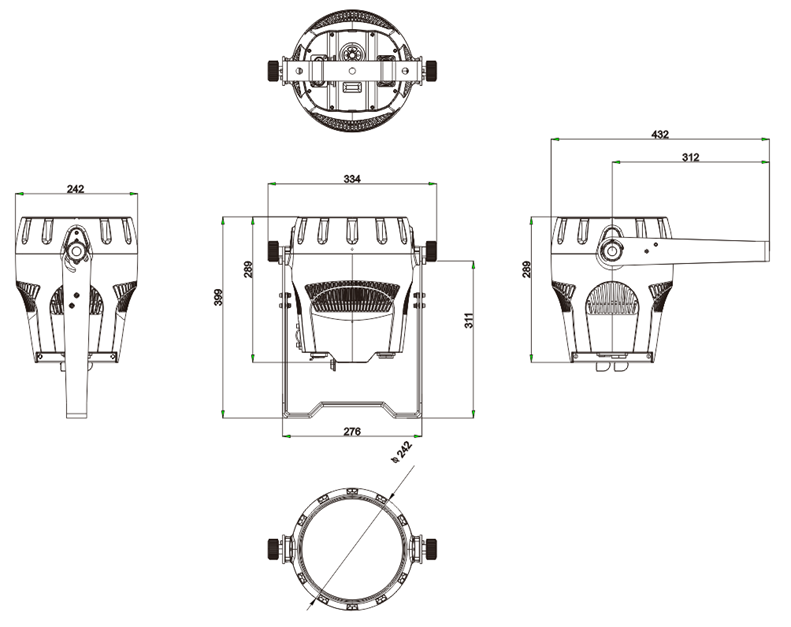

Light size : 334×242×432mm
N.W : 7.20Kg
Single Carton Packing : 330×330×475mm
N.W : 7.20Kg        G.W : 9.2 Kg
4 in 1 Carton Packing : 685×685×500mm
N.W : 28.4Kg        G.W : 37.2Kg
6 in 1 flycase Packing : 915×795×630mm
N.W : 43.2Kg        G.W : 82.5Kg
