Description

OPTICAL

Light source : 12*40W LED chip RGBW 4 in 1 (RGBL Option )
Beam angle : 3.6°-38°
Zoom angle : 4.2°-53°
Output color temperature : 2200K-8000K
Luminance : 18460lux@5M(RGBW) ; 13000lux@5M(RGBL)
Light lifespan : ≥50000hours



EFFECTS

Color Mixing System : uniform RGBW color mixing and rainbow effect
Zoom system : Linear electronic zoom
Individual Controlled : support individual controlled, varied in color and effect
Effect macro : static and dynamic
Dimmer : Linear electronic dimmer, provides four dimming options
Strobe : 1-30Hz electronic strobe and random strobe



CONTROL

Channel mode : 19CH(Standard),64CH(Extended),see channel table for details
Control protocol : DMX512, RDM, ART-NET
DMX and RDM connectors : RJ45 input and output, 3-pin and 5-pin input and output
Display : LCD Lattice screen



SOFTWARE

Software upgrade : Upgrade software through DMX signal interface and USB interface
Temperature control : Intelligent temperature control to ensure long lifespan of LED



PAN/TILT MOVEMENT

Tilt movement : 185° 16 bit precision



POWER

Voltage : AC 100-240V 50/60Hz
Power : 425W PF :>0.98



SIZE & WEIGHT

Light Dimension : 1003×126×308(mm)
N.W : 20.7 kg
Carton dimension : 1110×410×220(mm)
G.W with Carton : 24.4 kg
Flycase dimension : 1075×680×495(mm)
G.W with fly case : 101.6 Kg(3 in 1)



OTHERS

IP rate : IP20
Working environment : -10℃ ~ 45℃
Maximum temperature of fixture body surface : 80℃
Maximum on-line quantity : 2pcs/110V 4pcs/220V
Maximum current : 1.9A/220V; 4.3A/110V
Optional material: light hook

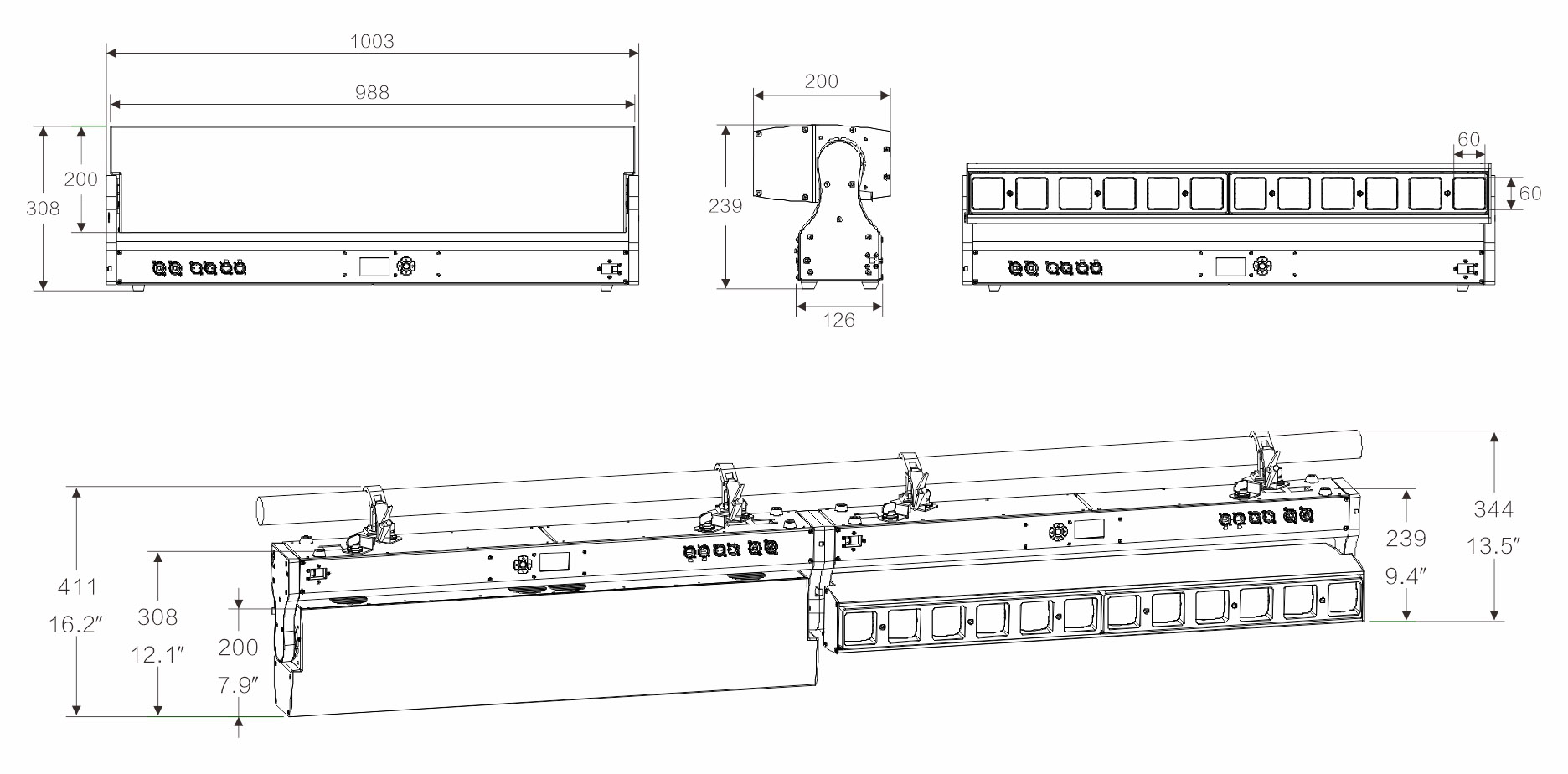

Dimension drawing
Hanger picture

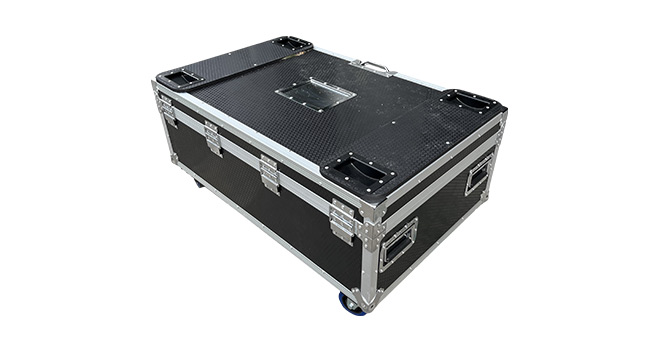

Fly case(optional)

Inventory code:B0100880001

Lighting quantity on one flycase:3 in1

Flycase dimension: 1075 x 680 x 495mm

N.W : 62.1kg/pcs

G.W with fly case: 101.6kg (3 in 1)

Light HookPower Cable
Safety RopesSignal cable

RGBW illumination diagram

LIGHTSKY MAMBA LED MOVING BAR







RGBL illumination diagram

LIGHTSKY MAMBA LED MOVING HEAD BAR



LIGHT SKY CAD DRAWINGS
