LIGHT SOURCE & OPTICS

Light source : USHIO NSL421M
Beam angle : 2.0°
Optical lens : High-transmittance coating, φ178mm
Color temperature : 6900K
Color Rendering Index : RA≥78

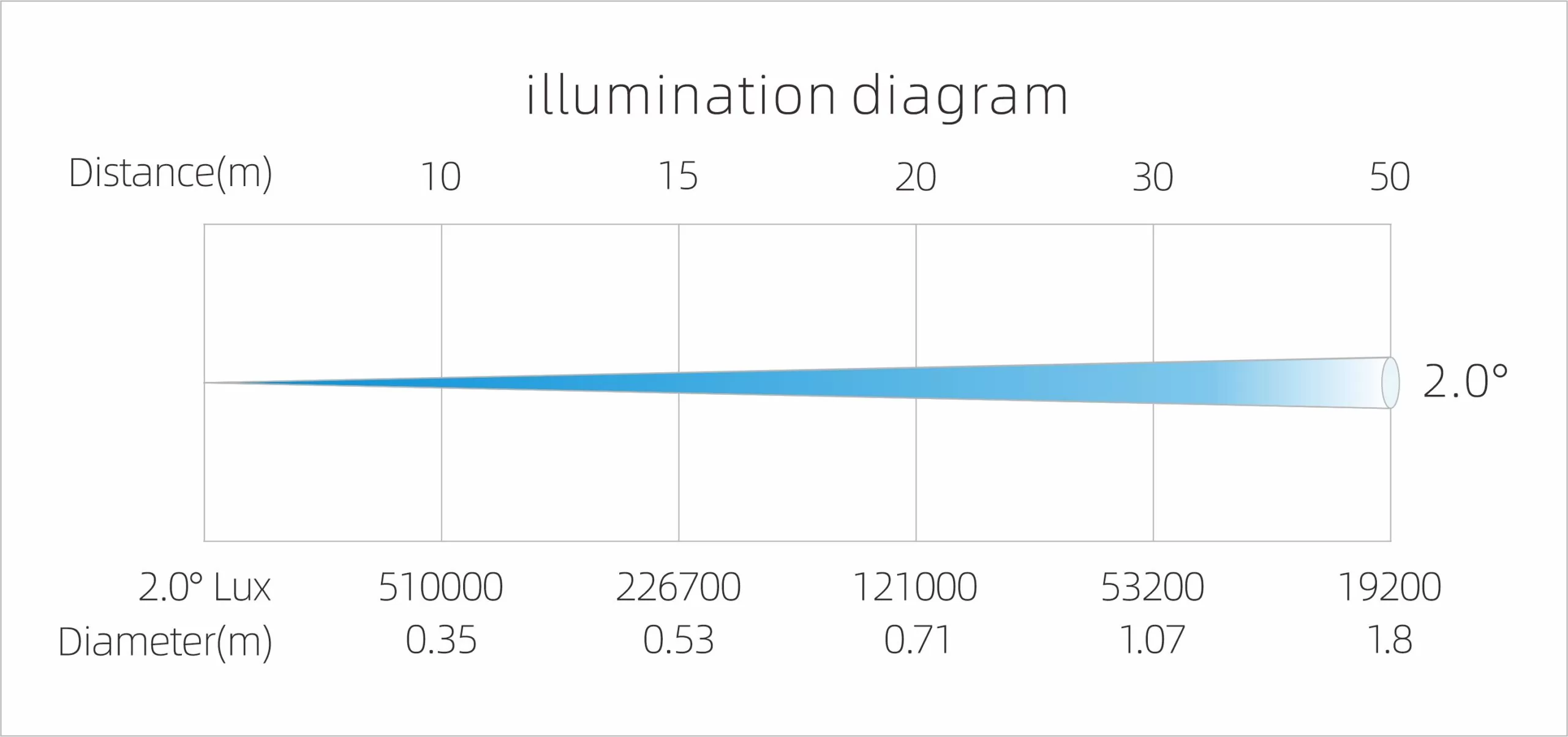

Illuminance : 510,000 Lux@10m
Light source life expectancy : 1,500 hours

COLOR

14 color filters + white light: Bidirectional color rainbow, dual-color gradient,color wheel rotation, random modes

GOBO

11 gobos + white + 3 animations (animated pattern effects),with bidirectional shaking, animation, and water flow effects

EFFECTS

Prism : 24-facet prism + 8-facet prism, bidirectional rotation
Frost effect : Adjustable independent Frost effect
Strobe : 0.5-9 times / sec adjustable pulse strobe and random strobe
Dimming : 0-100% linear adjustment
Focusing : High precision electric focusing

CONTROL AND PROGRAMMING

Control channels : 16CH, 14CH, 16PLUS (see channel chart for details)
Protocols : DMX512, RDM
Data connection : Three-core or five-core signal input/output
Display : LCD screen
Upgrade software via DMX signal

PAN/TILT MOVEMENT

Pan axis : 540°, 8-bit/16-bit precision scan
Tilt axis : 250°, 8-bit/16-bit precision scan
Reset function with automatic error correction
Fixed lock : Tilt lock

POWER AND ELECTRICAL

Input voltage : AC 100-240V 50/60Hz
Max power : 565W
Power factor : 0.985
Max current : 2.5A/220V, 5.5A/100V

SIZE AND WEIGHT

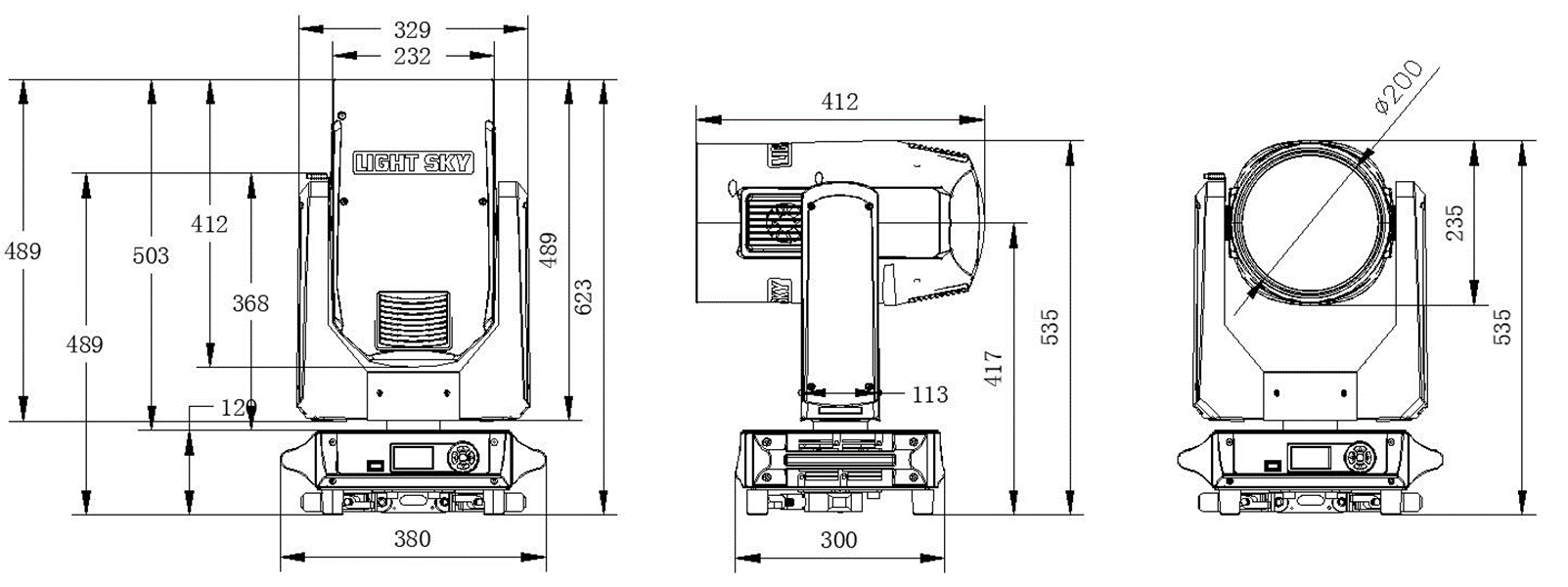

Product size : 380X300X591mm
Net weight : 20.8KG
Carton packaging (default) : 445X370X670mm
Gross weight : 24.2KG

OTHER

Protection level : IP20
Operating environment : -10℃~40℃
Max surface temperature : ≤80℃

FACTORY CONFIGURATION

Power Cable : 1 pc (Part No.: F0200030002)
Signal Cable : 1 pc (C1400060031- 3 core (default)/C1400060032- 5 core (optional))
Safety Rope : 2 pcs (Part No.: F0200010008)

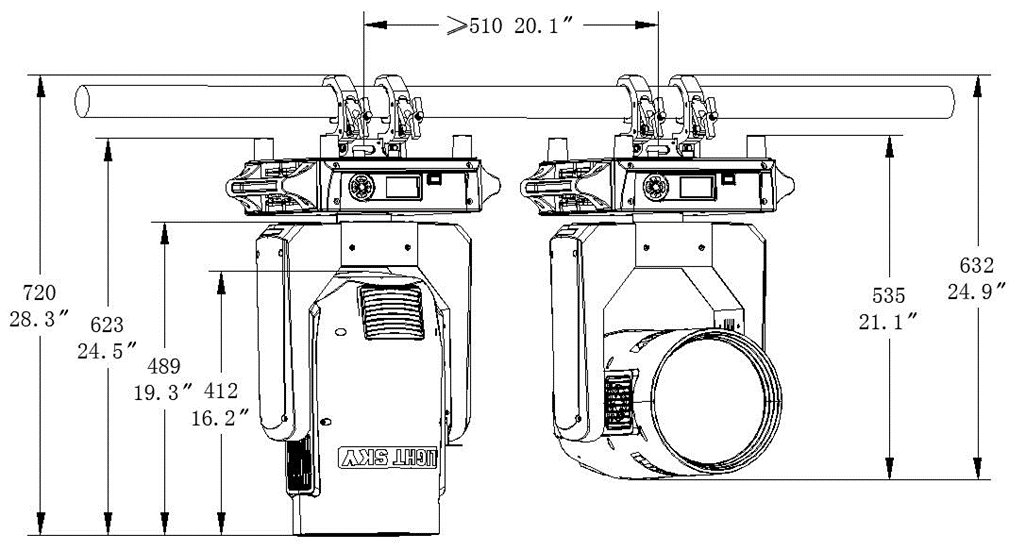

Lamp Hook : 2 set (Part No.: C0499990006)

OPTIONAL ACCESSORIES/PACKAGING

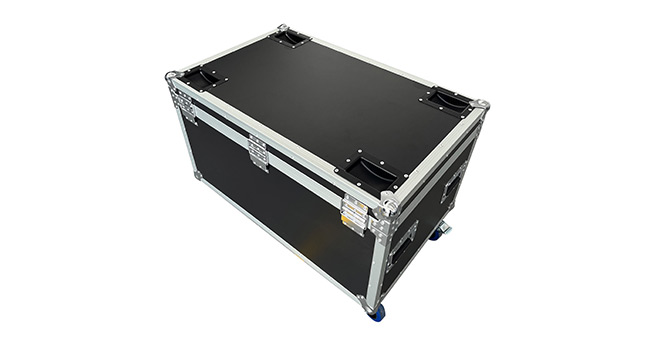

Fly case : Part No.B0100200001
Packaging(Fly case) : 820×535×810mm
Gross Weight : 77.3kg(2 in 1)
