OPTICAL

Light source : USHIO NSL 301
Beam angle : 2.18°(φ6mm white circle)
Optical lens : φ152mm (High-transmission AR coating)
Color Temperature : 7323K
Color Rendering Index (CRI) : Ra≥77
Illuminance : 57,5000 Lux@10m
Light Source life expectancy : 2,000 hours

COLOR

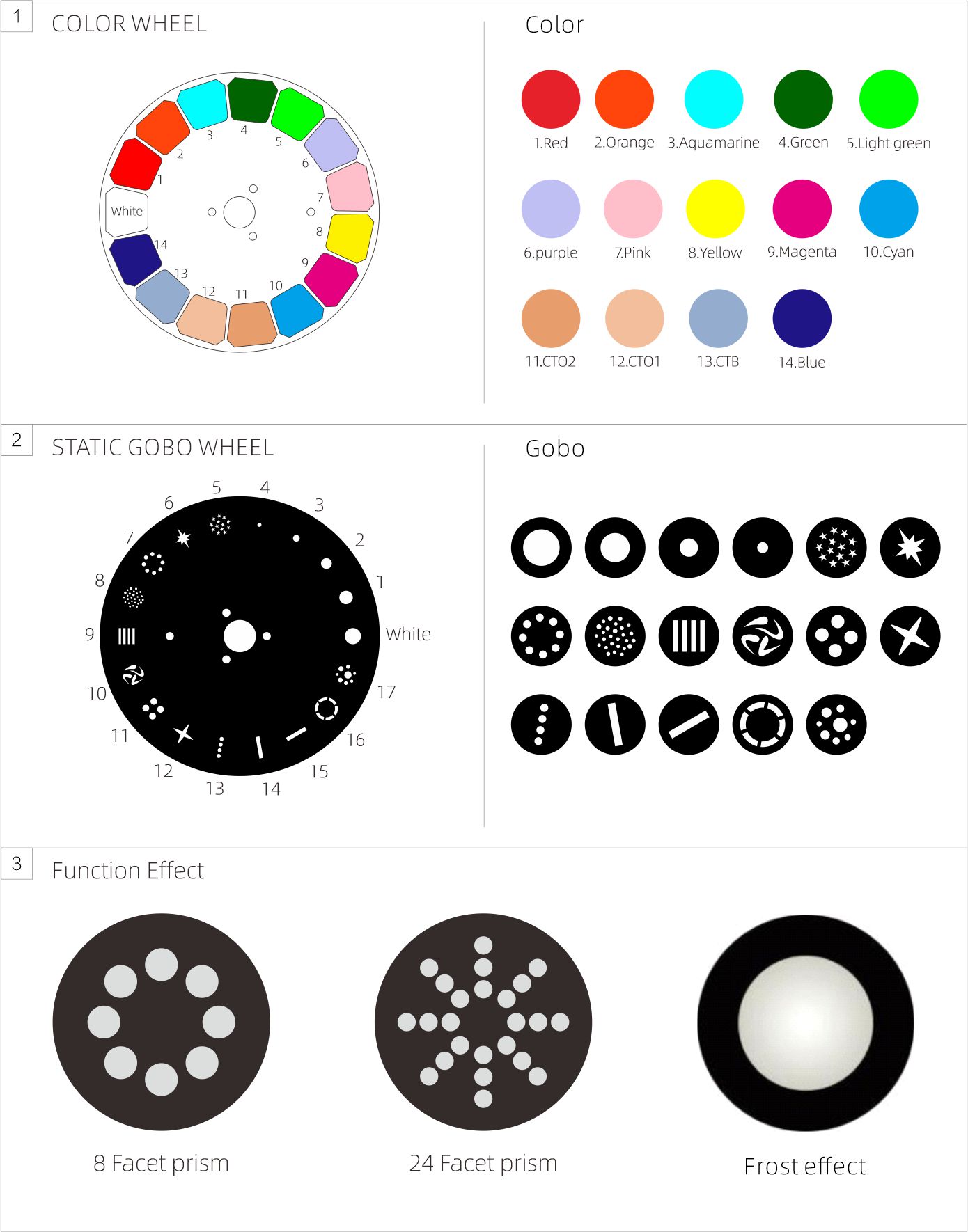

Color Wheel : 14 Colors filters + white light, Bi-directional rainbow effect, dual-color stepping gradient (linear movement), and bidirectional color wheel rotation.

GOBO

Static gobo wheel : 17 fixed gobo +1 Blank ,supporting flowing water effect and jitter effect.

EFFECTS

8-facet prism + 24-facet prism: Bidirectional independent rotation, individual switching, and multiple combination.
Frost : Independent Frost Effect
Focus : Motorized focus
Strobe : Adjustable pulse strobe (0.5-12Hz) and random strobe
Dimmer : 0 to 100% linear dimmer

CONTROL

Control channels : 16CH（see channel chart for details）
Protocols : DMX512, RDM
Data connection : Three-core or five-core signal input/output
Display : 1.7-inch screen with touch-sensitive buttons
Upgrade software via DMX signal

PAN/TILT MOVMENT

Pan axis : 540°, 8-bit/16-bit precision scan
Tilt axis : 270°, 8-bit/16-bit precision scan
Reset function with automatic error correction
Fixed Lock : Pan axis lock

POWER

Input voltage : AC 100-240V 50/60Hz
Max power : 450W
Power factor : 0.95
Max. current : 2.1A/220V, 4.2A/110V

SIZE & WEIGHT

Product size : 355×259×606mm
Net weight : 23.3 kg
Carton packaging (default) : 600×540×460mm
Gross weight : 26.1kg

OTHERS

Protection level : IP66
Operating environment : -10℃~40℃
Max surface temperature : ≤80℃
