OPTICAL

Light Source : 1400W White LED module

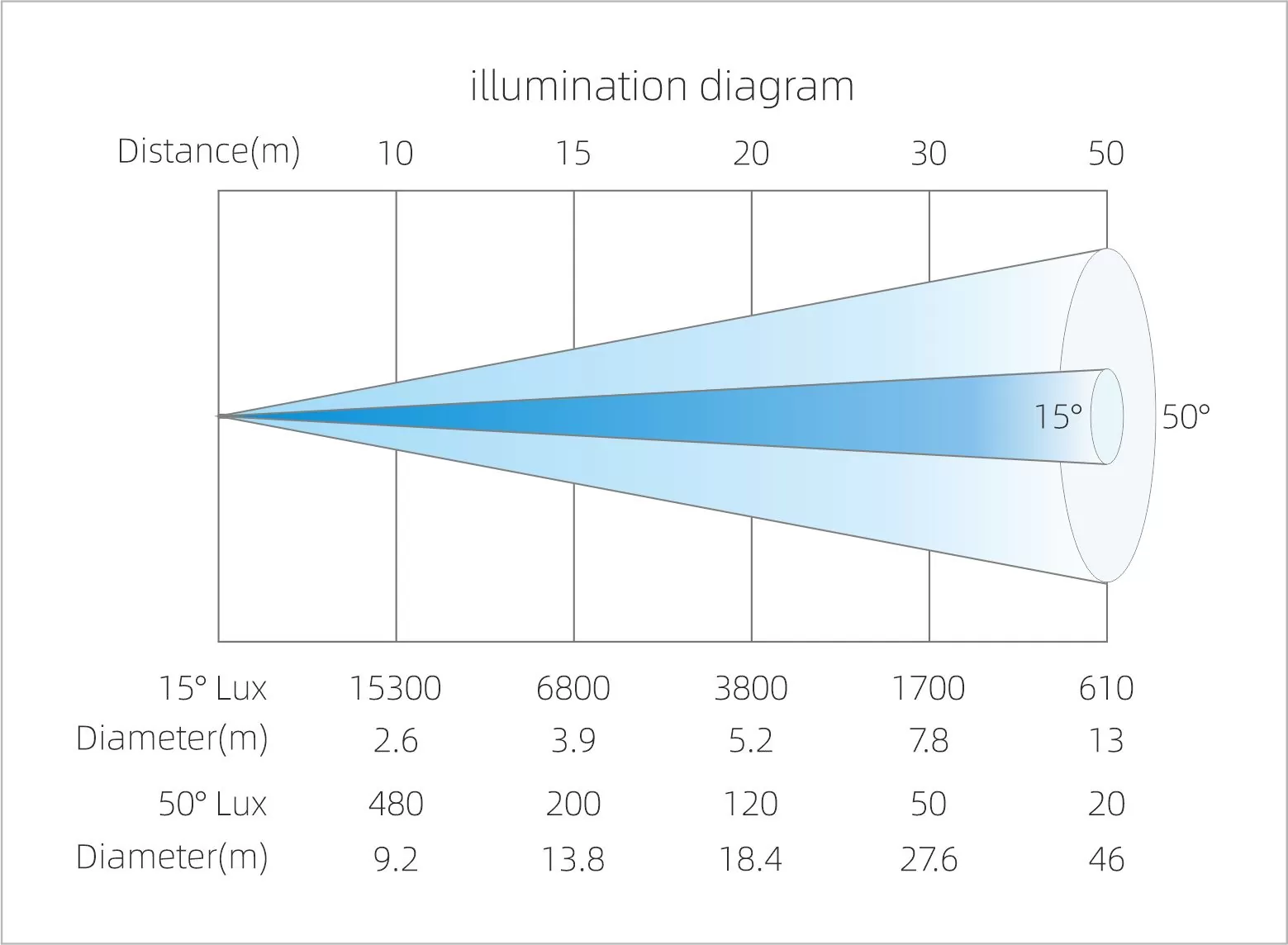

Zoom Range : 15°- 50°
Optical Lens : High-transmission coated lens, diameter 200mm
Color Temperature : 7000 K
Color Rendering Index (CRI) : RA≥70 / RA≥90 (with high CRI filter)
Total lumen output : 45,500 Lm

COLOR

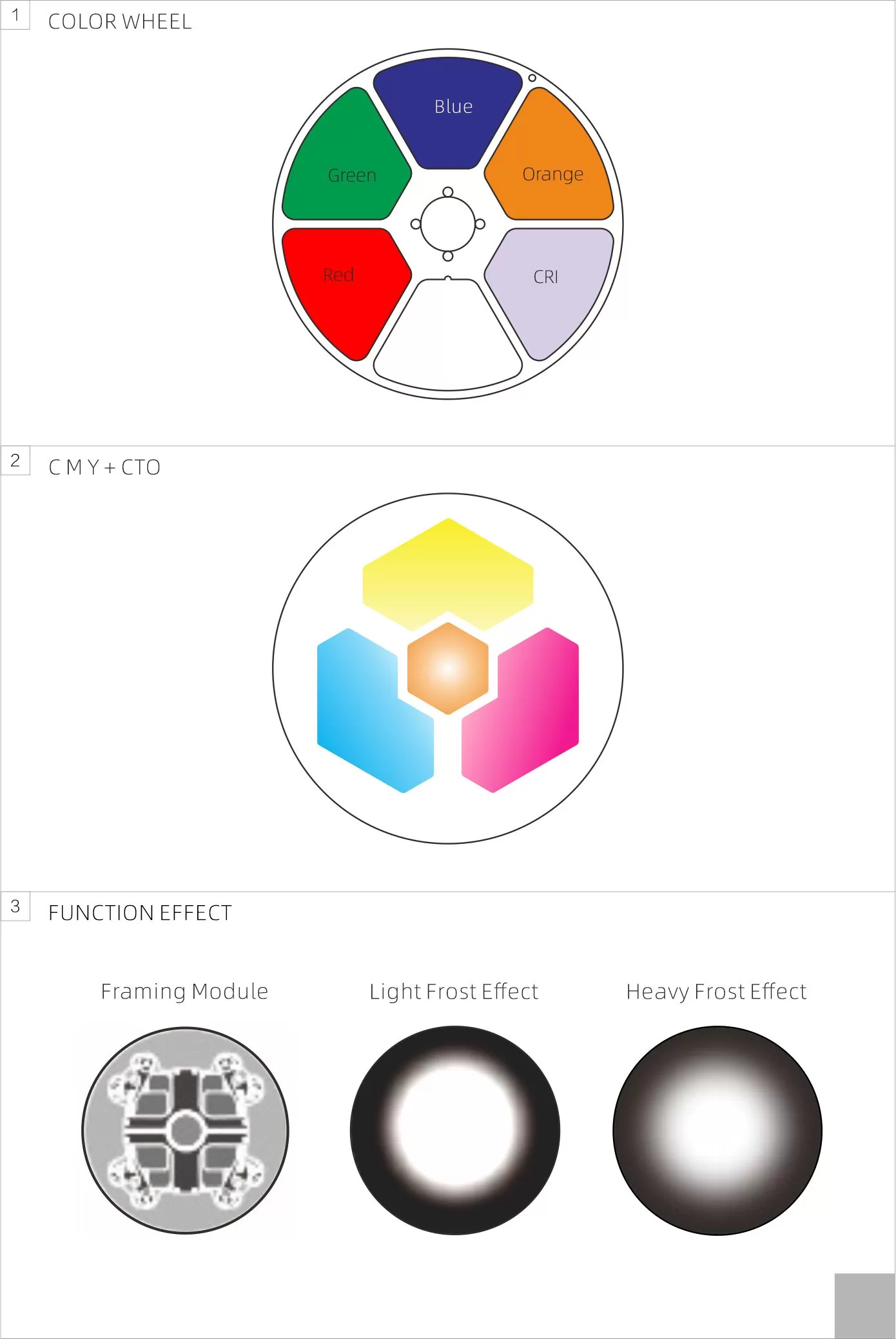

CMY : CMY Infinite Color Mixing
CTO : CTO Color Temperature Linear Adjustment (3000K-7000K)
Color : 4 Color Filters + High CRI Filter + White Light: Capable of bi-directional color rainbow effect, bi-color step gradient (linear movement), bi-directional rotating color wheel, random color mode

PROFILE

Framing : 4 pieces of blade achieve fast and smooth framing, with eight framing directions and angles independently controllable. Each piece canachieve complete blackout. The entire framing module can rotate ±45°.

EFFECTS

2 frost system : light frost 1° and Heavy frost 20°
CRI : High CRI Filter – CRI90
Iris : Motorized Iris, Linear adjustment from 5% to 100%, with macro functions and multiple effect variations
Dimmer : Electronic Dimmer, Linear dimming from 0% – 100%, ensuring uniform light distribution Electronic Strobe Speed : Adjustable from 1 to 25 flashes per second LED Refresh Rate : 1000Hz to 25KHz

CONTROL

Control Channels : 44 CH, 32CH
Protocols : DMX512, RDM, Art-Net
DMX and RDM connectors : Locking 3 pin or 5 pin XLR IN/OUT
Display : LCD screen

SOFTWARE

Software : Software upgrade via DMX signal or USB interface
Silent Fan : Three operation modes (high brightness / silent / ultra silent)
Intelligent control : Temperature intelligent control, ensuring LED longevity

PAN/TILT MOVMENT

Pan axis : 540°, 8-bit/16-bit precision scan
Tilt axis : 270°, 8-bit/16-bit precision scan

POWER

Input Voltage : AC 100-240V 50/60Hz
Maximum Power : 1550W
Power Factor : 0.987

SIZE & WEIGHT

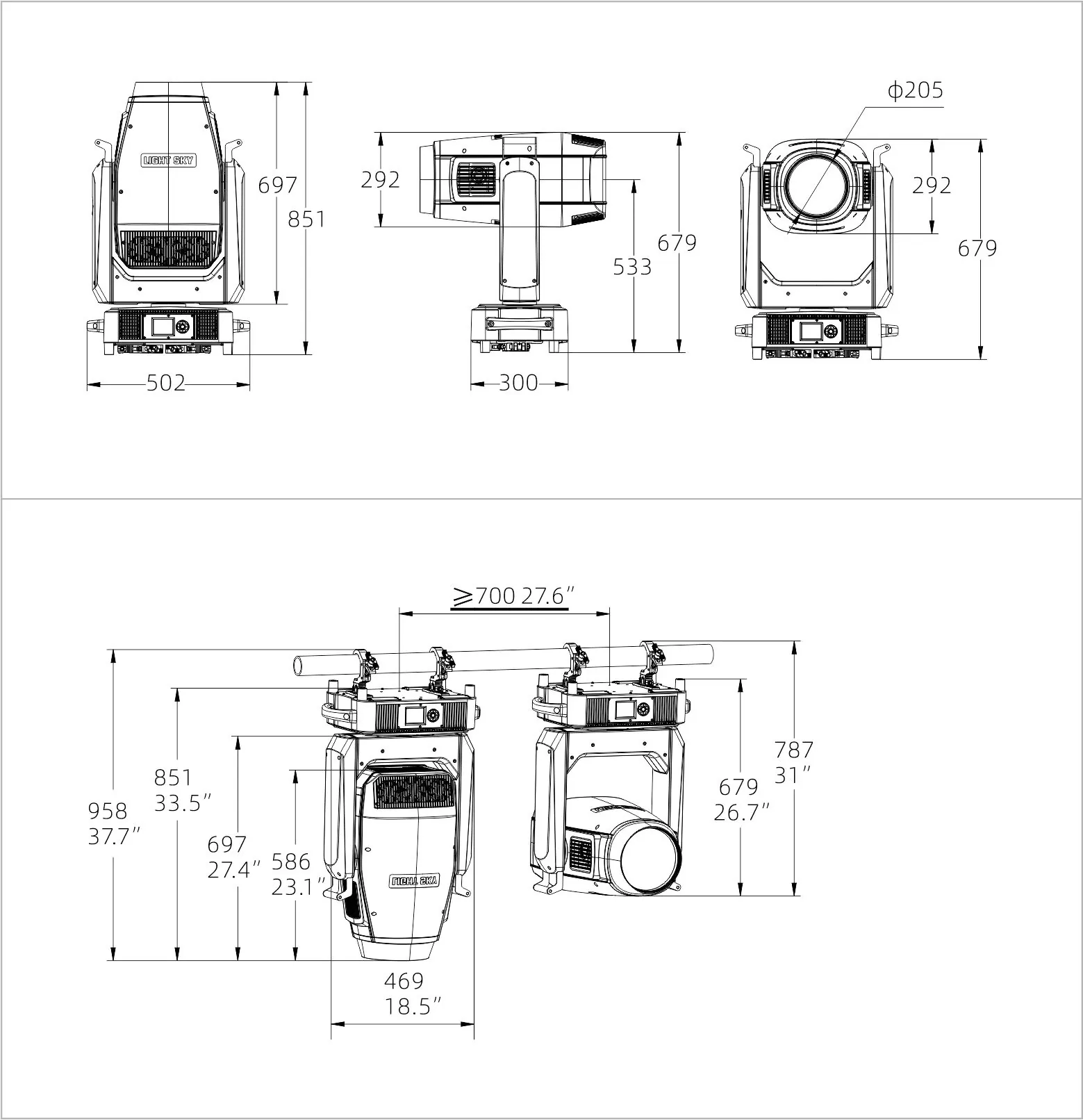

Product Dimensions : 502×300×851(mm)
Net Weight : 45 kg
Carton Packaging : 945×590×380(mm)
Gross Weight : 49.8 kg
Packaging(Fly case 1 in 1) : 700×550×865(mm)
Gross Weight : 80.6kg

OTHERS

IP Rate : IP20
Operating Environment : -10℃ ~ 40℃
Maximum Surface Temperature : 80℃
Maximum Daisy Chaining Quantity : None
Maximum Current of Fixture : 7.75A/220V; 15.5A/110V
