OPTICS

Light source : NSL- 450 USHIO LIGHT SKY
Optical angle : 1.8 °
Optical lens : coated with high anti reflective film, φ190mm
Color temperature : 6900K
Color rendering index : Ra≥72
Illuminance : 525000 lux@10 m
Expected service life of light source : 1500H (data provided by the light source supplier)

COLOR

Color : 14 color chips+white light, capable of achieving bidirectional color rainbow, dual color step gradient (linear movement), bidirectional rotation of color wheel, random color mode.

GOBO

Gobo : 11 gobos+white light+3 animations (animation effect patterns) with bi-directional shaking, animation, and flowing effects.

EFFECTS

Prism 8+Prism 24 : capable of bidirectional independent rotation, independent switching,and stacking
Soft light effect : adjustable independent soft light effect
Strobe : 0.5-9 timescond adjustable pulse flicker and random flicker
Dimming : 0-100% linear adjustment
Focusing : High precision electric focusing

CONTROL AND PROGRAMMING

Control channel : 17CH, please refer to the channel table for details
Protocol : Standard DMX512 protocol and RDM,protocol ArtNet protocol (optional)
Data connection : Three core or five core signal input/output
RJ45 interface (optional)
Display : LCD screen
Upgrade software through DMX signal

PAN/TILT MOVEMENT

Pan : 540 ° 8-bit/16bit precision scanning
Tilt : 240 ° 8-bit/16bit precision scanning
Reset function with automatic error correction
Fixed lock : Vertical lock

POWER SUPPLY AND POWER

Input voltage : AC 100-240V 50/60Hz
Maximum power : 650W
Power factor : 0.985
Maximum current of the lamp : 3.0A/220V, 6.5A/100V

SIZE & WEIGHT

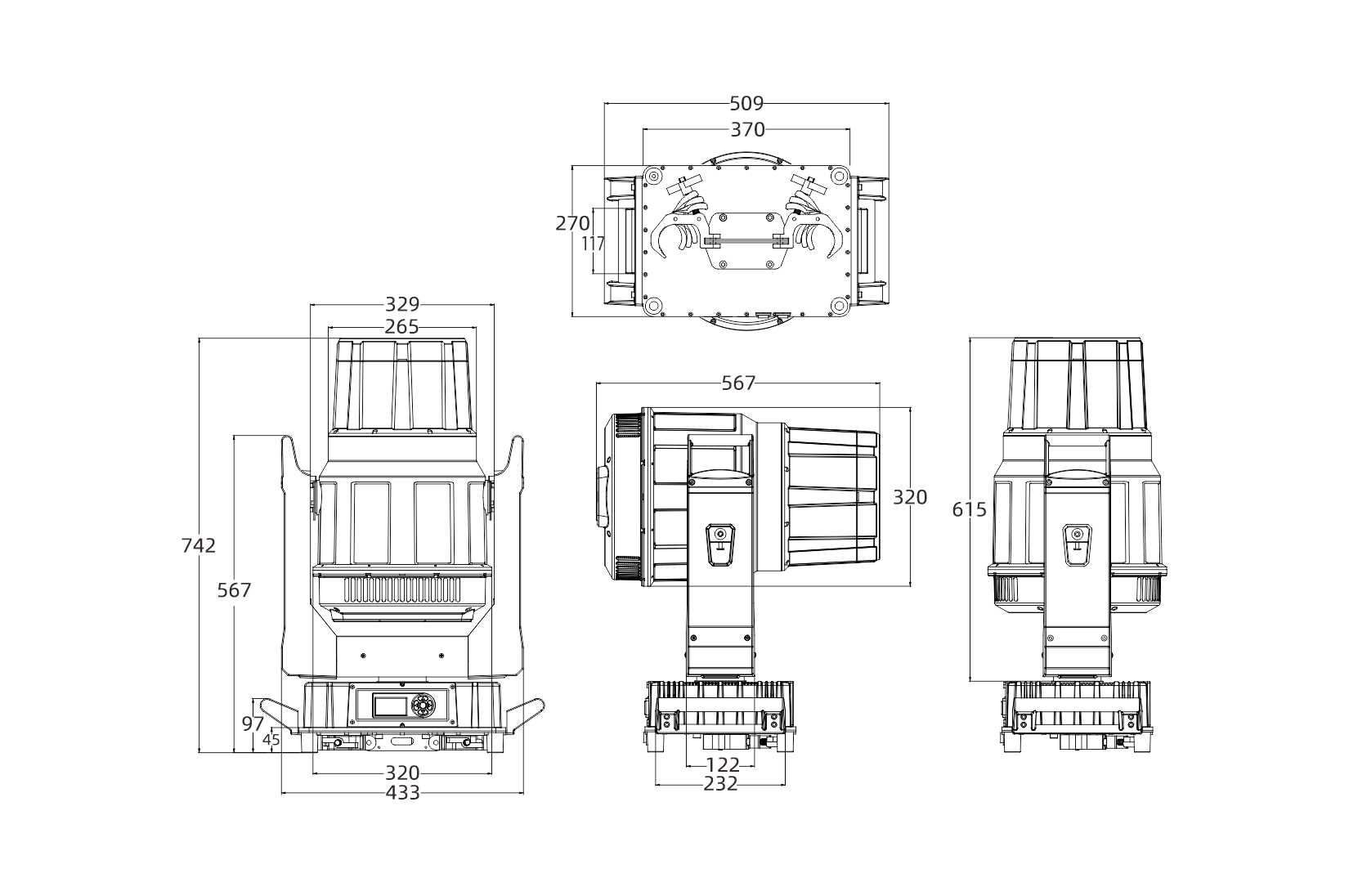

Product size : 509 × 320 × 742mm
N.W. : 34.5kg
Carton packaging (default) : 810 × 580 × 395mm
G.W. : 39kg

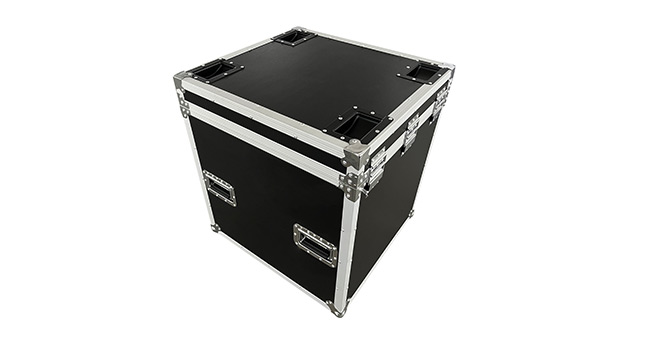

Flycase Size (1 sets) : 620 × 640 × 825 mm
G.W. : 69.0kg

OTHER

Protection level : IP66
Work environment :- 20℃ ~ 40℃
(Note: When the lamp is working in an environment below zero degrees Celsius and powered on, the bulb needs to be preheated for 30 minutes before resetting all functions of the lamp before it can be used normally.)
Maximum surface temperature of lamp body : ≤ 80℃

APPROVALS

The product implementation standard : GB/T 7000.1-2023 、 GB/T 7000.217-2023
Approved certifications : CE、RoHs
The product complies with the following EU directives:
Low Voltage Directive 2014/35/EU . EMC Directive 2014/30/EU
