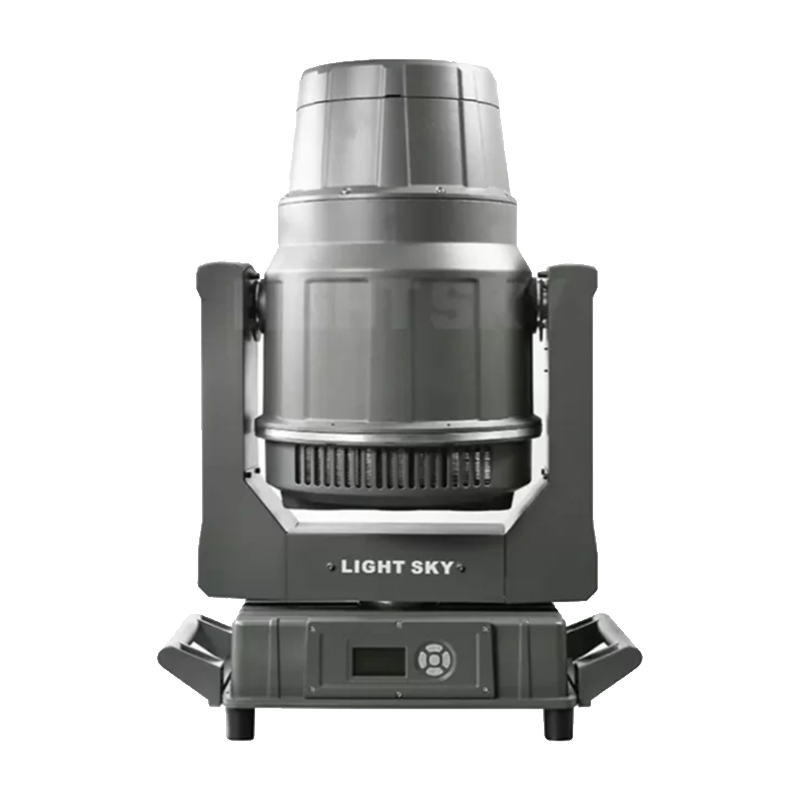

Description

Light Source / Power System

Voltage : AC100V~240V 50/60Hz
Power : 580W
Power factor : PF0.988
Lamp : 400W(LIGHT SKY NSL400S USHIO)
Colour temperature : 6900K
Lifespan : 1500h
Focus and Lens : φ160 optical lens with high precision, linear electronic adjustment
Strobe : Double lens strobe (0.5-9 times/second)
Dimmer : 0-100% linear adjustment

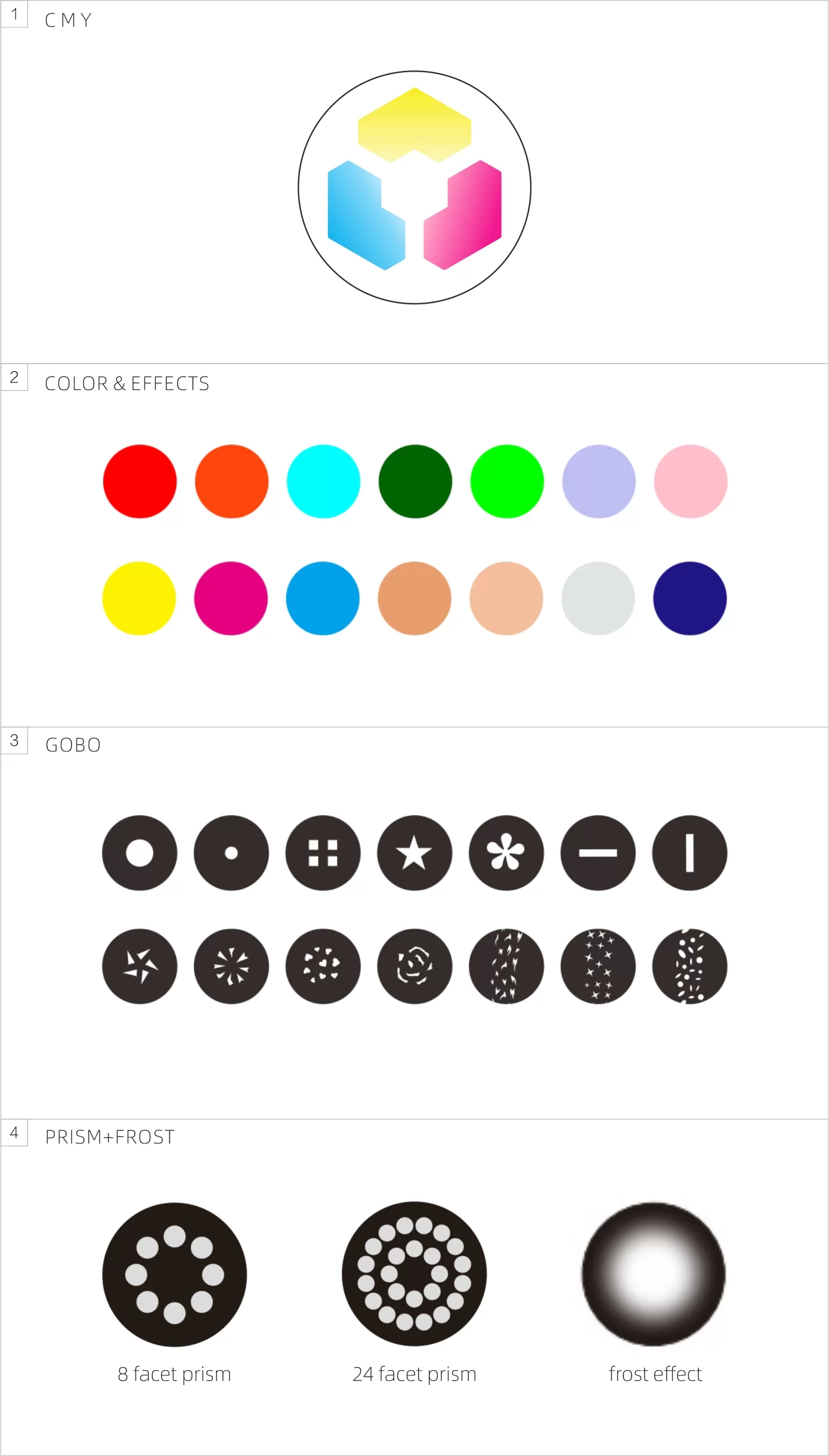

Color / GOBO / Effects

Color : 14 colors + white
Color mixing system : CMY color System
Static gobo wheel : 11Gobo + 1 white + 3 animation effect
Prism : 8 facet Prism+16 facet Prism + multi combination effect

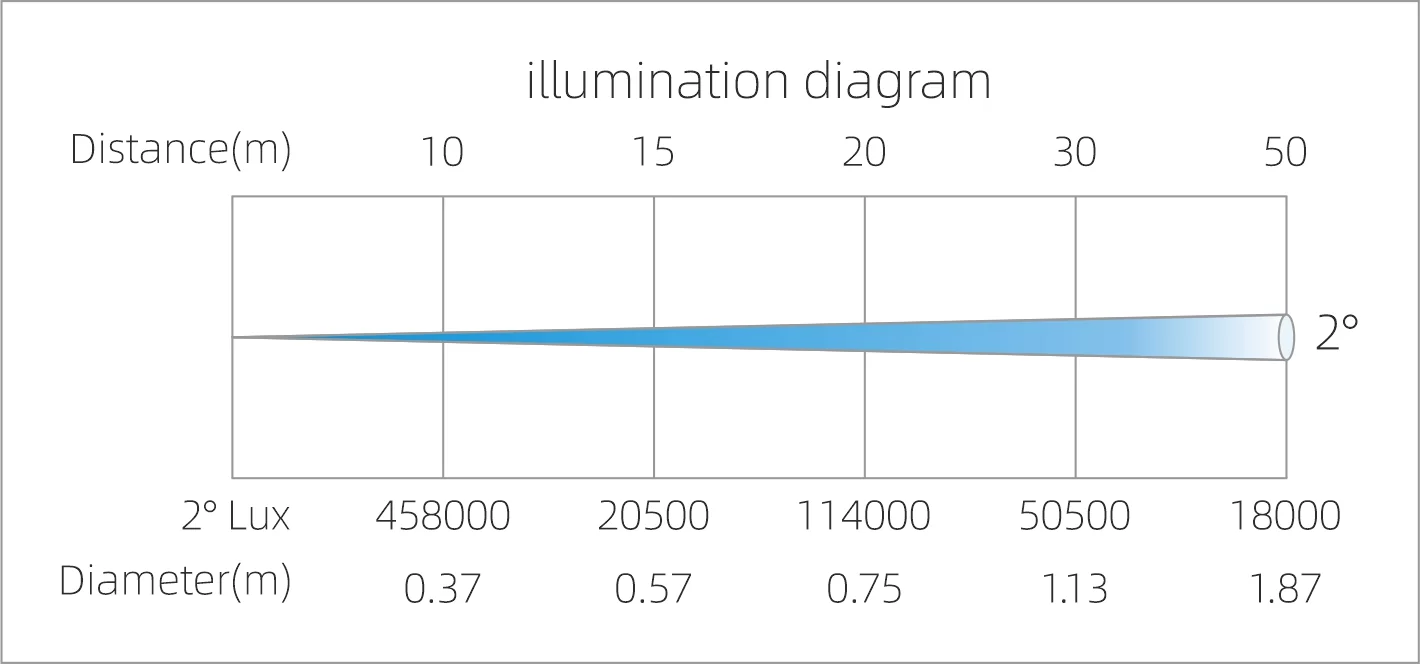

Beam angle : 2.0°
Wash angle : 6-45°



Control System

Control Mode : DMX512、RDM
Channel : 17CH
Motors : 15Pcs ultra-quiet motors
Pan/Tilt : 540°/240°
Pan/ Tilt Fine : 2.11°/0.98°
Pan/ Tilt Speed : 2.7S/1.6S
Other Features : The lamp’s switch can be remotely control and the cooling system can be adjustable
automatically. The power will be decreased when the fixture is on standby.
CE Mark : In conformity with the Low Voltage Directive of European Union — 2014/35/EU and
Electromagnetic compatibility Directive — 2014/30/EU.
Software upgrading : USB upgrading software is available



Other functions

IP set : Equipped with in-built long-life battery, IP could be set without power.
Display Menu : 1、The display panel adopts a 2.0-inch LCD12864 LCD screen with message in Chinese and English
                         2、The using time, fixture’s temperature and channel data as well as software’s version
are showed in the display panel.
Other Features : The lamp’s switch can be remotely control and the cooling system
can be adjustable automatically. The power will be decreased when the fixture is on standby.
Safety Devices : OPC & Over-temperature Protection
Vertical direction : convenient locking device for transportation and maintenance.
Cooling System : Forced ventilation with axial fans.



Appearance Parameters

Structure : Aluminum alloy
IP Rating : IP66
Light Size : 509X320X711(mm)
Carton Size : 810X580X395(mm)
N.W : 34.5kg       G.W : 39kg

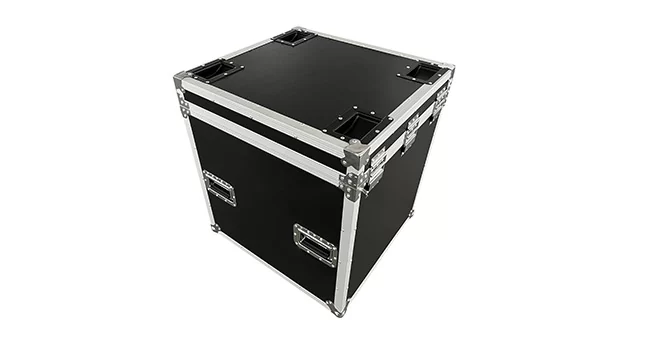

Single Fly case : 640X620X825(mm)
N.W : 34.5kg       G.W : 69kg

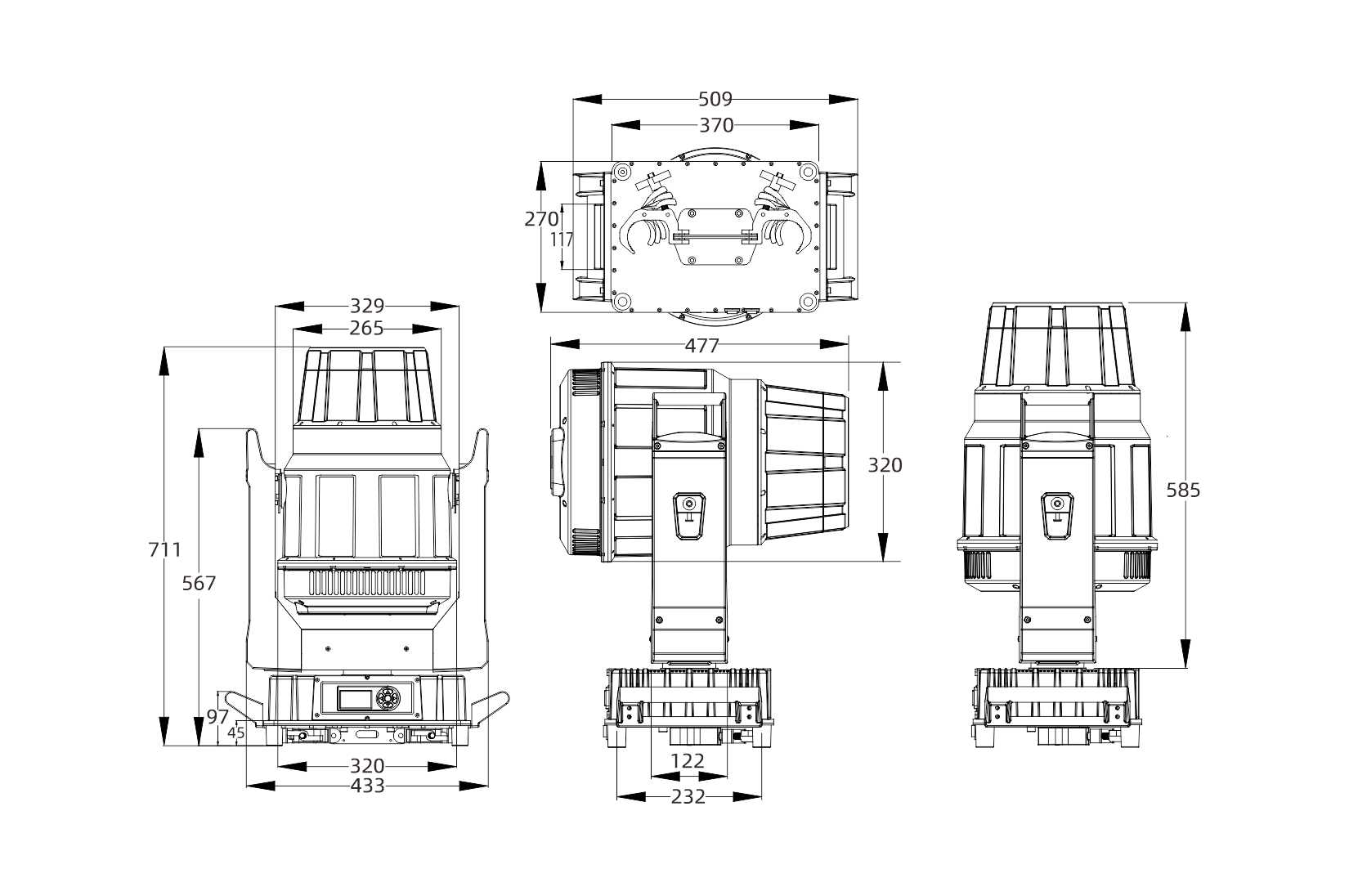

LIGHT SKY CAD DRAWINGS
