Light Source

Light Source: 1200W white LED module

LED source life expectancy: 40,000 hours*

Total lumen output: Up to 32,300 lm

Correlated Color Temperature (CCT): 5800 K

Color Rendering Index (CRI): Ra≥96

Optical System

Lens Diameter: φ186mm

Zoom Angle: 6° – 50° (Zoom ratio 8.3:1)

Illuminance: Up to 18,500 lux @ 10m

Dynamic Effects

Prism: 1 rotating bi-directional four-facet prism

Frost: Two high-transmission frosts, independently insertable and stackable (light and heavy frost), effectively enhancing

brightness in frost mode

Iris: Linear adjustable from 5-100%, with macro function

Framing system: 4 cutting blades, independently controllable in 8 directions, entire framing system rotatable by ±45º degrees

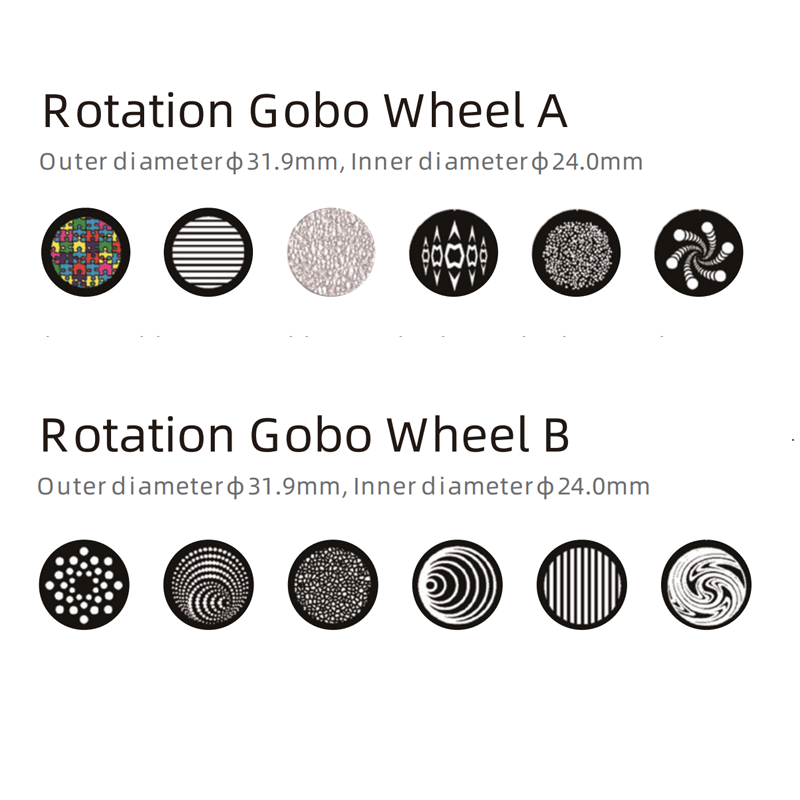

Rotating Gobo Wheel: Dual rotating gobo wheels, each with 6 quickly interchangeable glass gobos made of high-temperature

resistant glass, outstanding gobo overlay effects

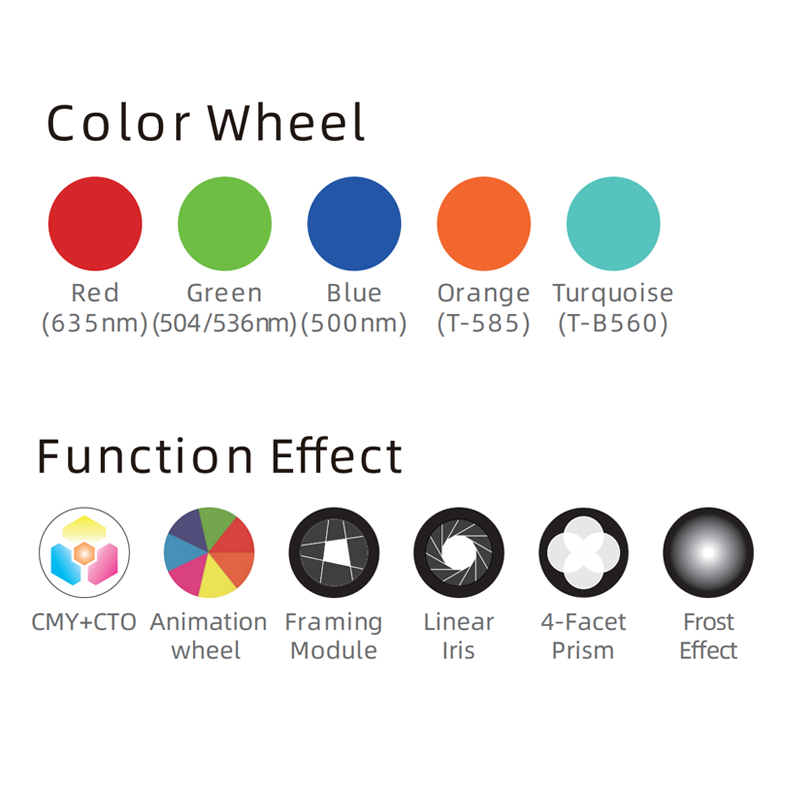

Color Wheel: 1 color wheel, 5 colors + blank

Animation wheel: Rainbow effects wheel, usable independently or in combination with the prism wheel, bi-directional rotation

with adjustable speed for kaleidoscope and rainbow effects

CMY: CMY infinite colour mixing

CTO: Color temperature adjustment range from 3000K to 6500K

High Precision Motorized Zoom and Focus: High precision motorised zoom and focus

Strobe: Adjustable electronic pulse strobe and random strobe from 1-25 times per second

Dimmer: Linear dimmer from 0-100% without flicker

Movement

Pan axis: 540° 8bit/16bit

Tilt axis: 270° 8bit/16bit

Reset function with automatic error correction

Fixed lock : Tilt axis lock

Operating Temperature

Maximum Ambient Temperature: 40 °C

Maximum Surface Temperature: 80 °C

Minimum Operating Temperature: -10 °C

Control And Programming

RDM Bi-directional Data Transfer, Console can remotely reset DMX address codes

Display: LCD screen

Intelligent Control: Menu records equipment usage time and luminous time, displays equipment temperature, channel data, and software version information

Error Alarm: Automatic error alarm for fixture faults

Software Upgrade: Software upgrade via USB interface

Protocols: DMX512, RDM，Art-Net (optional)

Channel Mode: 44CH, 56CH (see channel chart for details)

Appearance Parameters

Integrated Foldable clamps design, facilitates easier disassembly and transportation

Housing Material: Fully aluminum alloy with oxidation resistance and high salt spray protection level

IP Rate: IP66

Product Dimensions: 509mm × 303mm × 844mm

Net Weight: 55 kg

Packaging Dimensions (Carton): 950mm × 630mm × 420mm

Gross Weight (Carton): 61.5 kg

Packaging Dimensions (Fly case 1 in 1): 960mm × 640mm × 615mm

Gross Weight (Fly case): 88.0 kg
