Description

Light Source / Power System

Voltage : AC100-240V 50/60Hz;
Power : 1450W;
Power con : IP66 waterproof power input
DMX and RDM : IP66 Locking 3-pin & 5-pin XLR
Light source : White light LED module
Light source power : 1200W
Average Lifespan : ≥20000h
Total LED source output Lumen : 81000 lm
Light source color temperature : 8000 K
Light color temperature : 6500 K
CRI : HC version: 95.8; Normal version: 70, can be increased to more than 88 by improving the CRI color rendering plate



Optical System

Optical system : High-precision zoom optical system, ratio 9.5:1
Zoom range : 6° – 57°
Output lens diameter : φ186mm
Fixture total lumen output : HC Version : 25591 lm;High Brightness Version : 40000LM
Light output : HC version :13068lux@10m High Brightness version : 22308 lux @10m
Focus and Lens : Motorized zoom and focus



Dynamic Effects

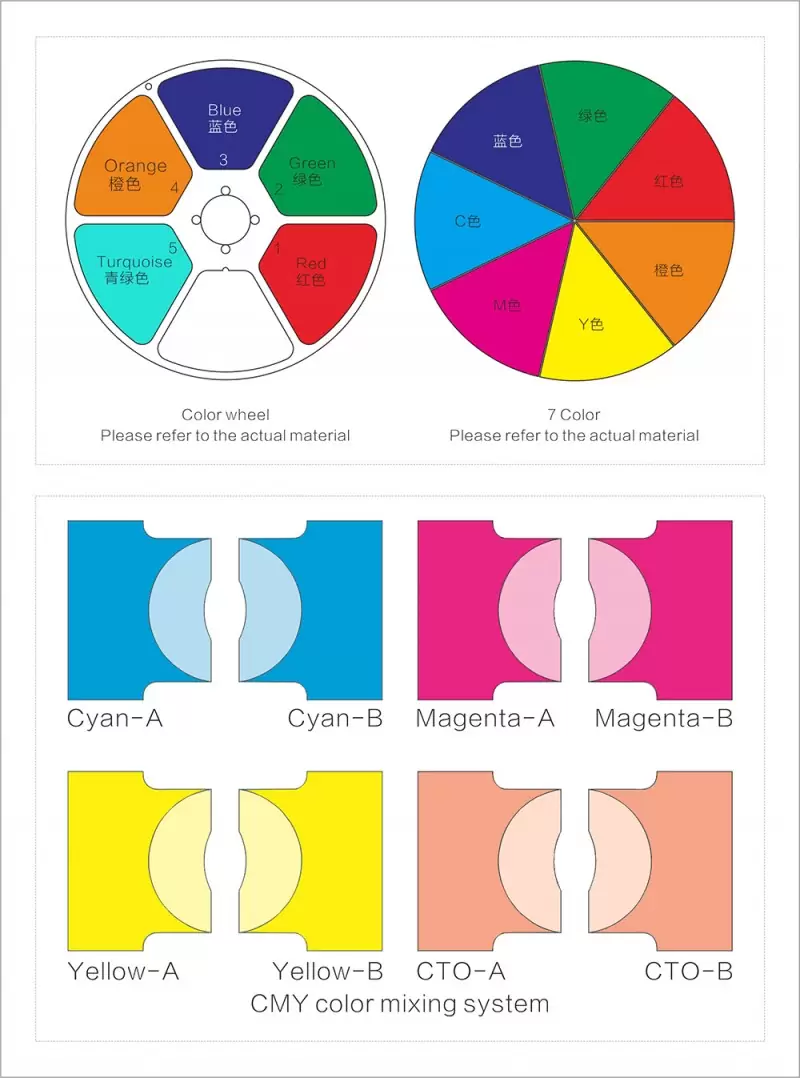

Colour Wheel : 5 colours + white,Bi-direction rotation and rainbow effect
C / M / Y : 0 – 100% linear adjustment
CTO : color temperature adjust from 6500K – 3000K
Effect Wheel : 7 colours effect Wheel,used alone or in combination withPrism wheel, rotating in both directionsat variable speed,kaleidoscope effects and rainbow effect。

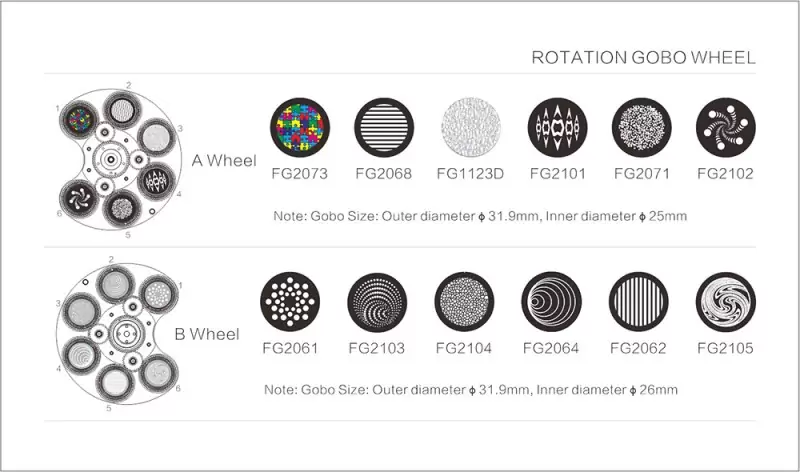

Rotation gobo wheel : Two pcs rotation gobo wheel , each wheel with 6 pcs rotation gobo

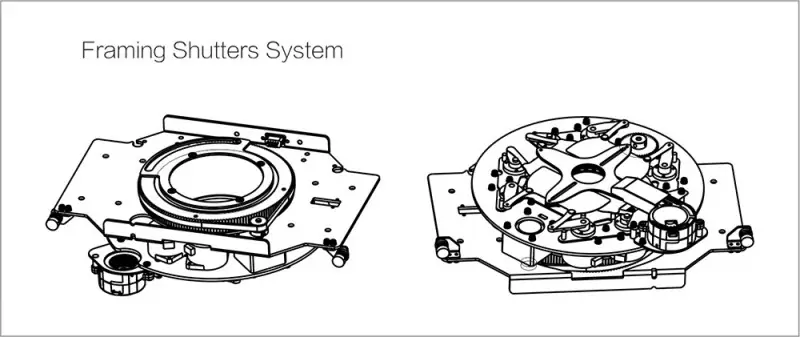

Professional Framing system : 8 facet &4 blades framing shutters system, And the whole framing system can rotate 90°
Iris : 5-100% linearly adjustable with macro
Strobe : 1-30 times/second
Dimmer : 0-100% linear adjustment,flicker free management for HD and UHD cameras.
Prism : 4 facet prism,multiple prism combination effect, prism macro effect
Frost effet : 1° & 20° two layer frost filter ,which can work together and separately.



Control And Programming

Software upgrade : Insert USB upgrade software
Control mode : DMX512, RDM
Control channels : 38CH,50CH



Appearance Parameters

Structure : The fixture adopted all aluminum alloy shell, anti-oxidation treatment, high salt spray protection level.
IP rate : IP66

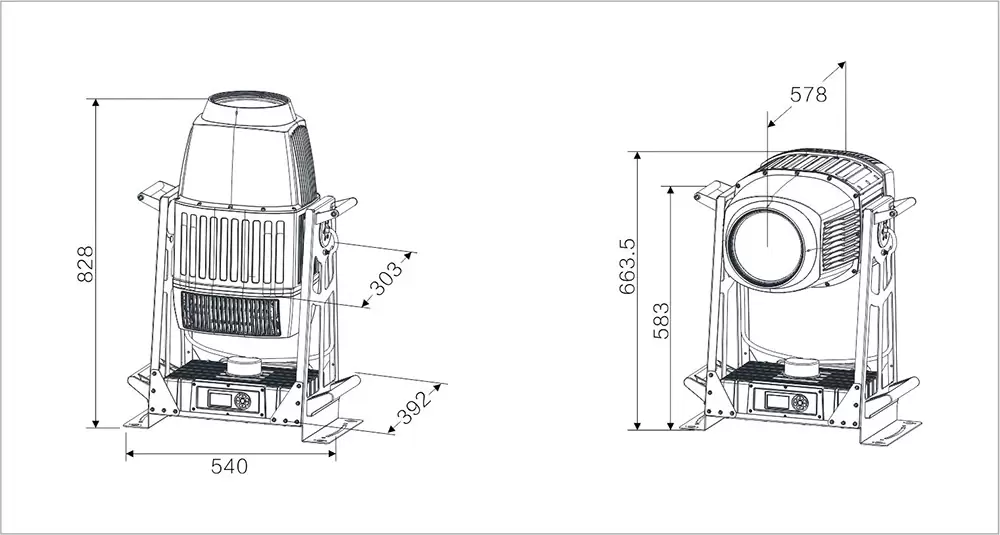

Lighting Size : 540x320x828mm
A single carton size : 900x590x410mm
N.W : 51.0kg       G.W : 56.5kg



















Attention : All downloaded light library files on this site need to be decompressed before they can be used.
